DELEX DSI ES8300 Installation And Operation Instructions Manual

Acrylic barrier optical turnstile
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ES8300 ACRYLIC
BARRIER OPTICAL TURNSTILE
INSTALLATION AND OPERATION
INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSI ES8300 and is the answer not in the manual?

Questions and answers

Related Manuals for DELEX DSI ES8300

Summary of Contents for DELEX DSI ES8300

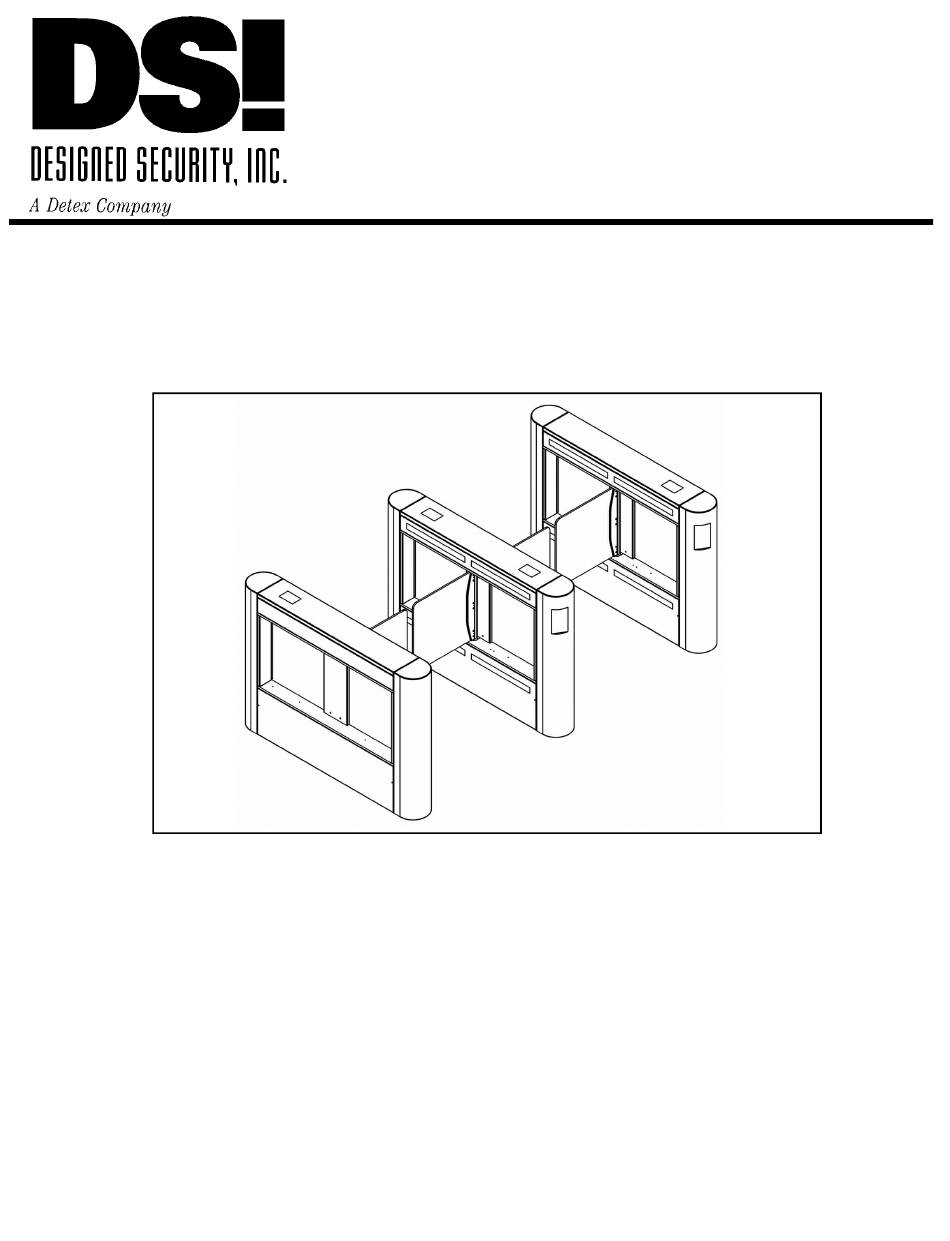

  • Page 1 ES8300 ACRYLIC BARRIER OPTICAL TURNSTILE INSTALLATION AND OPERATION INSTRUCTIONS...
  • Page 3 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 CUSTOM NOTES INS8300...

  • Page 5: Site Preparation

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 SITE PREPARATION INS8300...

  • Page 7: Pre-Installation Requirements

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 Refer to LANE PLACEMENT ERGONOMICS in the Appendix for information regarding planning considerations which can maximize efficient traffic flow and minimize nuisance alarms. Taking into consideration any installation from the perspective of providing access control while minimizing the impact on the user’s daily routine may allow security goals to be met more effectively.

  • Page 9: Installation

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 INSTALLATION INS8300...
  • Page 11 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 INITIAL LAYOUT Placement : The bollards are designed to be placed in a parallel arrangement, not to exceed 48 inches between  bollards. Spacing of 36”...
  • Page 12 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 BOLLARD ORIENTATION SECURE SIDE ELECTRONICS LOCATION Secure Side End ENTRANCE SIDE (UNSECURE) SECURE (EXIT)/UN-SECURE (ENTRY) SIDES— DEFINED In the above illustration the orientation of the bollards is shown to help installers understand the proper placement of the Turnstiles in reference to the direction of traffic.
  • Page 13 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 BOLLARD INTERNAL ACCESS PANEL REMOVAL STEPS Insert “T-Handle” Hex-key wrench into small hole near the top, side edge of panel.  Turn 3/4 turn Counter-Clockwise to release latch. ...
  • Page 14 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 LAYOUT AND MOUNTING BOLLARD LAYOUT Using a chalk line, or equivalent method, lay out the bollard arrangement. Bollard’s positions should be parallel and ...

  • Page 15: Component Location

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 COMPONENT LOCATION B & A SENSORS ENCODER BARRIER PANEL ELECTRONICS PACKAGE D SENSORS C SENSORS MOUNTING MOTOR MOUNTING POINTS & POINTS & CABLE ACCESS CABLE ACCESS END VIEW B-SIDE SHOWN...

  • Page 16: Electronics Package

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 ELECTRONICS PACKAGE N/O OR N/C OUTPUT JUMPER JUMPER LOCATED BESIDE EACH OUTPUT RELAY MAY BE CONFIGURED FOR N/O OR N/C OPERATION (DEFAULT IS N/O) Move Jumper to 831 RELAY CONTROLLER...

  • Page 17: Component Description

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 COMPONENT DESCRIPTION Electronics Package The Electronics are found in the left-hand pedestal end as seen when facing the B-Side of the bollard. (A-side holds the #2 Motor and reflectors for the lane.) The Motor Controllers control the local and remote barriers.
  • Page 18 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 BARRIER DRIVE ASSEMBLY “B” & “A” SENSORS ENCODER BARRIER PANEL LOCKING SOLENOID (optional) MOTOR/GEARBOX ASSEMBLY COUPLER The Motor/Barrier Assembly is the center section of the bollard, located between the two pedestals. Located above the Barrier is the Encoder.
  • Page 19 WIRING...

  • Page 20: Cable Routing

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 WIRING CABLE ROUTING The Motor 2 and Encoder 2 cables must be routed between the “A” and “B” Sides of each  lane. (15 ft. cables included) Optional BarrierLocking: Additional Locking Solenoid cable is required to be pulled along with the ...
  • Page 21 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 ENCODER 2 CONNECTOR DETAIL ENCODER 2 PIN-1 TAB COLOR Shield Black Vacant White Green MOTOR 2 CONNECTOR DETAIL MOTOR 2 PIN-1 TAB COLOR White Black Shield...
  • Page 22 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 INPUT AND OUTPUT CONNECTION REQUIREMENTS Inputs from Access Control System include: Entry Valid Card Read Dry contact closure indicating valid Entry card read (Momentary Closure of .5 Second or Less recommended) Exit Valid Card Read Dry contact closure indicating valid Exit card read...
  • Page 23 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 BRIDGE PANEL DETAIL POWER CONNECTOR Connect 4 Amp 24 VoltDC Power  Supply to the “24VDC POWER INPUT” connector. Pin 1 is “+”. See page 34 for Power Wire Gauge ...

  • Page 25: Setup And Operation

    SETUP & OPERATION...

  • Page 27: Sensor Alignment

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 SENSOR ALIGNMENT If necessary, you may adjust Sensor alignment by applying a slight twist and/or bend to the sensor bracket until the sensor reflects directly off the opposing reflector. Check for Alignment by following these steps: Enable Bypass mode by shorting the Bypass Input terminals.

  • Page 28: Final Testing Procedure

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 FINAL TESTING PROCEDURE Provide Input or State from Left Column, Look for responses marked with BARRIER OUTPUTS POSITION INPUTS VALID INVALID ALARM TIMEOUT BYPASS AUDIBLE ENTRY EXIT...
  • Page 29 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 GUIDELINES FOR EVERYDAY USE (PROVIDE COPIES TO ALL TURNSTILE USERS) Optical Turnstiles are provided for greater security in your workplace. They help ensure that only authorized individuals will be allowed into the secure areas of your facility. You may find daily use of Optical Turnstiles becomes routine as you follow these basic guidelines: USER VALIDATION “ID”...
  • Page 30 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 GUARD/OPERATOR - OPTICAL TURNSTILE GUIDELINES (LEAVE COPY AT GUARD OR OPERATOR DESK FOR REFERENCE) Making an optical turnstile installation work well depends upon a number of factors being present. Users must be provided adequate instruction.
  • Page 31 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 APPENDIX INS8300...

  • Page 33: Specifications

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 SPECIFICATIONS Power: 24-26 VDC @ 4 Amps per walkway Wiring: Power- Less than 50 feet; -14 Gauge 50 to 100 feet; -12 Gauge (See Power Wire Gauge calculator on page 34 for detail) Signal- 50 to 200 feet;...
  • Page 34 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 POWER WIRE GAUGE CALCULATOR STEP BY STEP WORKSPACE EXAMPLE COLUMN Specify total Current load, in Amps, of all devices sharing this trunk. 4 Amps ...
  • Page 35 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 OPTICAL TURNSTILE ERGONOMICS Prior to laying out the lanes, some information should be understood, regarding efficient placement of the bollards, traffic flow and minimizing nuisance-alarms, in order to make your installation effective at providing security with the least amount of intrusion into the user’s daily routine.
  • Page 36 DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 When planning for an elevator lobby consider the maximum number of users that may need to be accommodated while waiting for the elevator. Allow adequate space for the users to congregate beyond the turnstiles while not restricting traffic flow through the lane(s).

  • Page 37: Care And Cleaning

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 CARE AND CLEANING Congratulations on your purchase of a DSI Optical Turnstile system. This guide provides information for cleaning and maintaining the finishes, materials and optical paths of DSI’s standard finishes on our turnstile line.

  • Page 38: Troubleshooting Tips

    DESIGNED SECURITY INC 800-272-3555 www.dsigo.com Email: dsi@dsigo.com 1402 Hawthorne Street Bastrop, Texas 78602 Fax 512 321 9181 TROUBLESHOOTING TIPS The following are a few of the most common questions the Customer Support group answers. Symptom: Erratic Barrier Behavior The Barriers bump several times at the end of travel, or do not line up with one another properly when centering.
  • Page 39 WARRANTY The DSI Optical Turnstile Product you have purchased is warranted to be free of defects in material and workmanship when properly installed, used and maintained according to instructions. DSI will, for a period of three (3) years from date of purchase, repair or replace any part which, upon our examination, proves to be defective under normal use.
