Summary of Contents for i-box Stylus N10

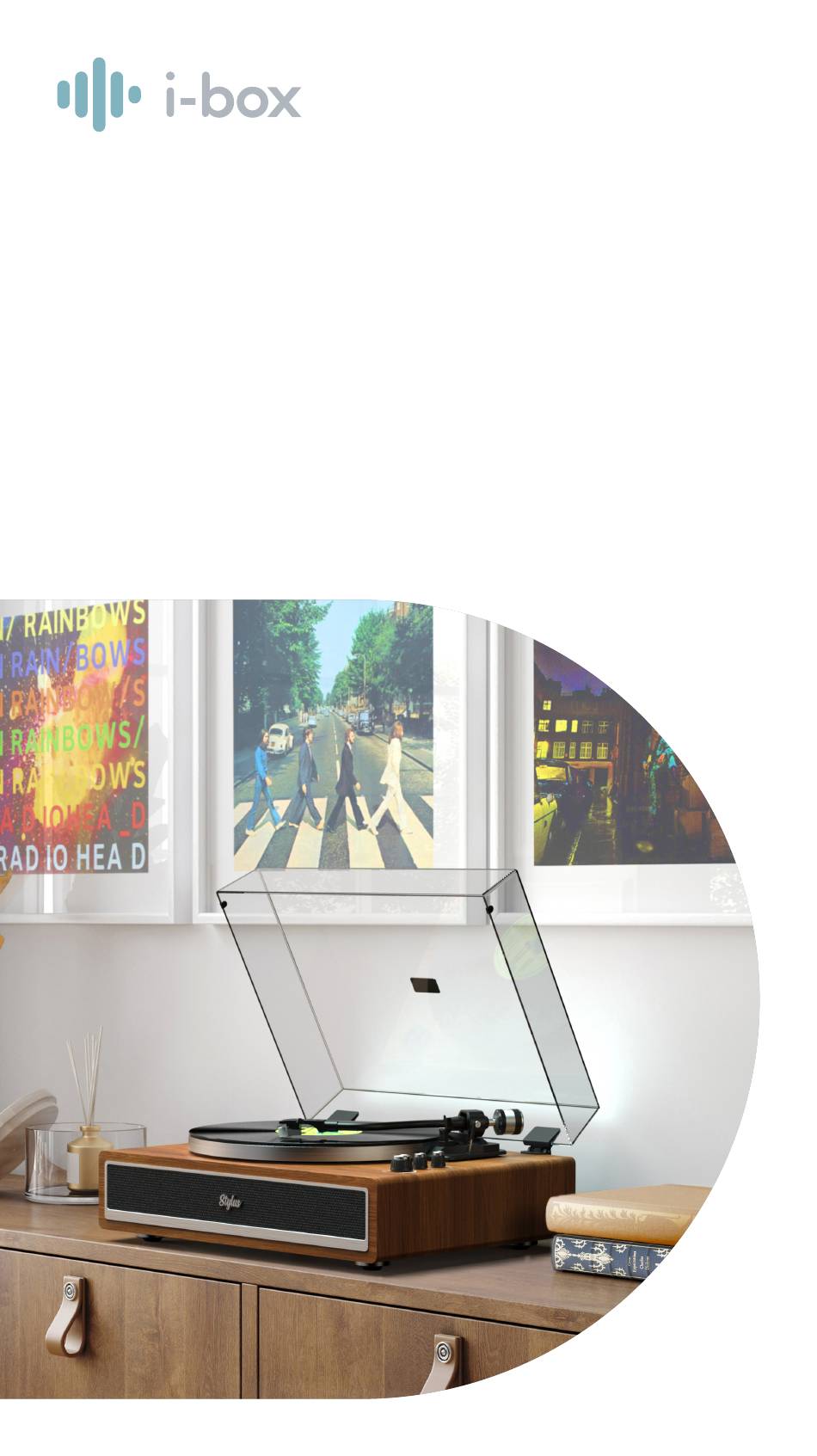

- Page 1 Stylus N10 All-In-One Retro Turntable...
- Page 2 Introduction The i-box Stylus N10 is designed for music lovers with a passion for listening to vinyl. Combining great performance and a stylish retro look, you are ensured maximum enjoyment from this all-in-one turntable. Scan this QR code or click to...
- Page 3 Caring for your Stylus N10 Important safety information. Please read these instructions fully before operating your Stylus N10. Do not place naked flame sources, such as lit candles on or near the unit. Do not expose to dripping or splashed liquids. Objects filled with liquids, such as vases, must not be placed close or on the unit.
-
Page 4: Table Of Contents
Contents Page Getting to Know Your Stylus N10 ........05 Getting Started ...............07 Using Powered External Speakers ........09 Powering Your Stylus N10 ............ 10 Eco Auto Power Off ............... 10 Playing a Vinyl Record ............11 Auto Stop Dial ................. 11 Bluetooth Function .............. -
Page 5: Getting To Know Your Stylus N10
Getting to Know Your Stylus N10 Front View Tonearm Clip Counterweight Tracking Force dial Tonearm lever Tonearm rest Tonearm Auto Stop On/Off dial Mode / Speed Select dial Volume dial Mode LED Blue = BT Red = 33/45 RPM Purple = AUX... - Page 6 Getting to Know Your Stylus N10 Back View Power On/ Off switch 12V DC Input port Stereo Audio Out sockets (RCA/PHONO sockets) PHONO/Line Out switch 3.5mm AUX Input port www.iboxstyle.com 06 | i-box support@iboxstyle.com...
-
Page 7: Getting Started
1. Getting Started Ensure your Stylus N10 is placed on a stable, level surface. Remove all packaging from your turntable, ensuring care when removing parts from the counterweight and tonearm. Remove the protective stylus guard from the tonearm cartridge by gently removing the band, and gently pulling the guard forwards. - Page 8 1.3. Rotate the platter slowly 10 times in a clockwise direction to seat the belt properly and to make sure it runs smoothly. 1.4. Place the felt mat on top of the platter. www.iboxstyle.com 08 | i-box support@iboxstyle.com...
-
Page 9: Using Powered External Speakers
2. Using Powered External Speakers The Stylus N10 can be used with the built-in speakers or connected to powered external speakers using the RCA/ phono sockets (20) on the back of your turntable using the RCA/phono cable supplied. When using an powered external speaker ensure the... -
Page 10: Powering Your Stylus N10
3. Powering Your Stylus N10 To power your Stylus N10, insert the jack plug into the DC 12V IN port (21) on the back of the Stylus N10 and plug the power adaptor (supplied) into a powered wall socket. Switch the... -
Page 11: Playing A Vinyl Record
4.2. Turn the speed selector/mode switch to the correct speed, (331/3 RPM 12-inch LPs, 45 RPM for 7-inch singles). AUTO STOP 4.3. Adjust the volume to a low level using the volume dial. AUTO STOP www.iboxstyle.com 11 | i-box support@iboxstyle.com... - Page 12 4.4. Make sure the dial* is switched to AUTO STOP AUTO STOP 4.5. Carefully place your record on the platter. 4.6. Unclip the tonearm. 4.7. Lift the tonearm using the tonearm lever. www.iboxstyle.com 12 | i-box support@iboxstyle.com...
- Page 13 4.8. Place the stylus over the start of the record, or at the start of the track you want to play. The turntable will spin automatically. AUTO STOP 4.9. Gently lower the tonearm using the tonearm lever. www.iboxstyle.com 13 | i-box support@iboxstyle.com...
- Page 14 To stop playback before the record has finished or if the turntable doesn’t stop automatically, lift the tonearm with the tonearm lever and return it to the tonearm rest, the turntable will stop turning automatically. Reclip the tonearm. www.iboxstyle.com 14 | i-box support@iboxstyle.com...
-
Page 15: Bluetooth Function
You will hear a chime when your device has been disconnected successfully and the LED will flash blue. Your Stylus N10 is now ready to pair with a new device. Use the volume dial to control the volume. You can also use your device to change the volume. -
Page 16: Aux In Function
6. AUX IN Function Connect any audio device to the 3.5mm port AUX IN on the back of your Stylus N10. The LED will be purple. Connecting a device to the port will override all AUX IN other modes/functions. AUTO STOP... -
Page 17: Counterweight And Tracking Force Adjustment
Rotate the counterweight backwards and forwards so that the tonearm hangs level in a neutral balanced position. The tonearm when moved up and down should now return to this position. 7.4. Return the tonearm to the rest. www.iboxstyle.com 17 | i-box support@iboxstyle.com... - Page 18 7.7. Return the tonearm to the rest. Now rotate the counterweight and tracking force dial together counter- clockwise (left) to 3.5g – the recommend tracking force for the AT3600L cartridge fitted. Help Blue and underlined text = rotate this part/ dial only www.iboxstyle.com 18 | i-box support@iboxstyle.com...
-
Page 19: Caring For Your Stylus N10
8. Caring for Your Stylus N10 See page 3 for general tips for cleaning your Stylus N10 and records. The stylus will also need cleaning irregularly to remove fluff and dust. Use a stylus brush or cleaner only (not supplied). To clean the stylus tip, move the stylus brush from the back to the front. -
Page 20: Replacing The Stylus
9. Replacing the Stylus It is recommended to replace the stylus after 1,000 hours of playing time or if it is damaged. 9.1. Switch off your Stylus N10 and disconnect from the mains. POWER AUDIO OUT DC 12V IN AUX IN... -
Page 21: Replacing The Belt
10. Replacing the Belt Over time the belt can stretch and deteriorate causing it to slip or cause juddering. 10.1. Switch off your Stylus N10 and disconnect from the power adaptor. POWER AUDIO OUT DC 12V IN AUX IN PHONO... - Page 22 10.8. Rotate the platter slowly 10 times in a clockwise direction to seat the belt properly and to make sure it runs smoothly. 10.9. Place the felt mat back on top of the platter. www.iboxstyle.com 22 | i-box support@iboxstyle.com...
-
Page 23: Troubleshooting
Disconnect AUX cable. the LED is purple. Problem Possible Cause Solution Is the vinyl warped/ Try playing a different vinyl. scratched? The stylus skips Is the stylus pressure See tracking force correct? adjustment on page 17. www.iboxstyle.com 23 | i-box support@iboxstyle.com... -
Page 24: Product Specifications
DC Servo motor Drive System Belt drive Speed 331/3 RPM, 45 RPM Signal To Noise Ratio More than 35dB Stylus Audio-Technica 3600L Recommended Tracking Force 3.5g ± 0.5g Stylus Frequency Response 30Hz – 20,000Hz Bluetooth Version v5.0 www.iboxstyle.com 24 | i-box support@iboxstyle.com... - Page 25 No legal right or entitlements may be obtained from the description made in this manual. Technical Support For further help, advice, information visit www.iboxstyle.com/support www.iboxstyle.com 25 | i-box support@iboxstyle.com...
- Page 26 Stylus N10 FCC ID: 2ANXU-TT517-13 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 27 Waste electrical and electronic products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority for recycling advice. Designed in the UK Distributed By EU Distributor Made in China Philex Electronic Ltd., Philex Electronic Ireland Ltd., Kingfisher Wharf, Robwyn House, Corrintra,...
