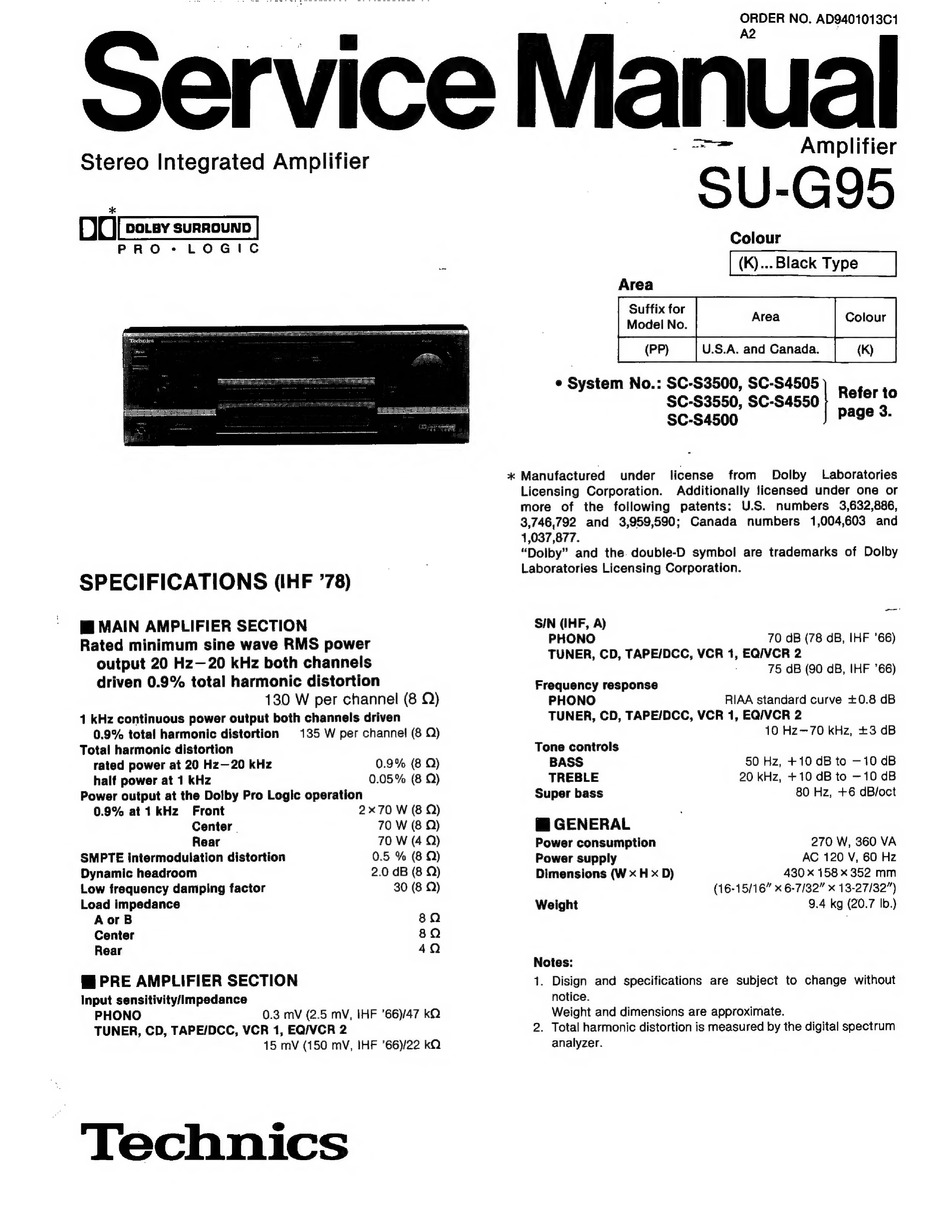

Technics SU-G95 Service Manual

ORDER NO. AD9401013C1
nual
Amplifier
Ma
SU-G95
*
OO [eats sunnoun
PRO+LOGIC
Colour
2 (K)... Black Type
Area
Suffix for CG
Model No. olour
(PP) '| U.S.A. and Canada.
Service
Stereo Integrated Amplifier
¢ System No.: SC-S3500, SC-S4505 Refer t
SC-S3550, S¢-54650| ¢ i
SC-S4500 page 9 .
* Manufactured under license from Dolby Laboratories
Licensing Corporation. Additionally licensed under one or
more of the following patents: U.S. numbers 3,632,886,
3,746,792 and 3,959,590; Canada numbers 1,004,603 and
1,037,877.
"Dolby" and the. double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
SPECIFICATIONS (IHF '78)
Mi MAIN AMPLIFIER SECTION
Rated minimum sine wave RMS power
output 20 Hz—20 kHz both channels
driven 0.9% total harmonic distortion
130 W per channel (8 Q)
1 kHz continuous power output both channels driven
0.9% total harmonic distortion 135 W per channel (8 Q)
Total harmonic distortion
rated power at 20 Hz—20 kHz 0.9% (8 Q)
half power at 1 kHz 0.05% (8 Q)
Power output at the Dolby Pro Logic operation
0.9% at1kHz Front 2x70 W (8 Q)
Center 70 W (8 2)
Rear 70 W (4Q)
SMPTE intermodulation distortion 0.5 % (8 Q)
Dynamic headroom 2.0 dB (8 Q)
Low frequency damping factor 30 (8 Q)
Load impedance
AorB 8
Center 8Q
Rear 4Q
@ PRE AMPLIFIER SECTION
Input sensitivity/Impedance
PHONO 0.3 mV (2.5 mV, IHF '66)/47 kQ
TUNER, CD, TAPE/DCC, VCR 1, EQ/VCR 2
15 mV (150 mV, IHF '66)/22 kQ
'Technics
SIN (IHF, A)
PHONO 70 dB (78 dB, IHF '66)
TUNER, CD, TAPE/DCC, VCR 1, EQ/IVCR 2
75 dB (90 GB, IHF *66)
Frequency response
PHONO RIAA standard curve +0.8 dB
TUNER, CD, TAPE/DCC, VCR 1, EQ/VCR 2
10 Hz—70 kHz, +3 dB
Tone controls
BASS 50 Hz, +10 dB to —10 dB
TREBLE 20 kHz, +10 dB to -10 dB
Super bass 80 Hz, +6 dB/oct
Mi GENERAL
Power consumption 270 W, 360 VA
Power supply AC 120 V, 60 Hz
430 x 158 x 352 mm
(16-15/16" x 6-7/32" x 13-27/32")
Weight 9.4 kg (20.7 |b.)
Dimensions (W x H x D)
Notes:
1. Disign and specifications are subject to change without
notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
