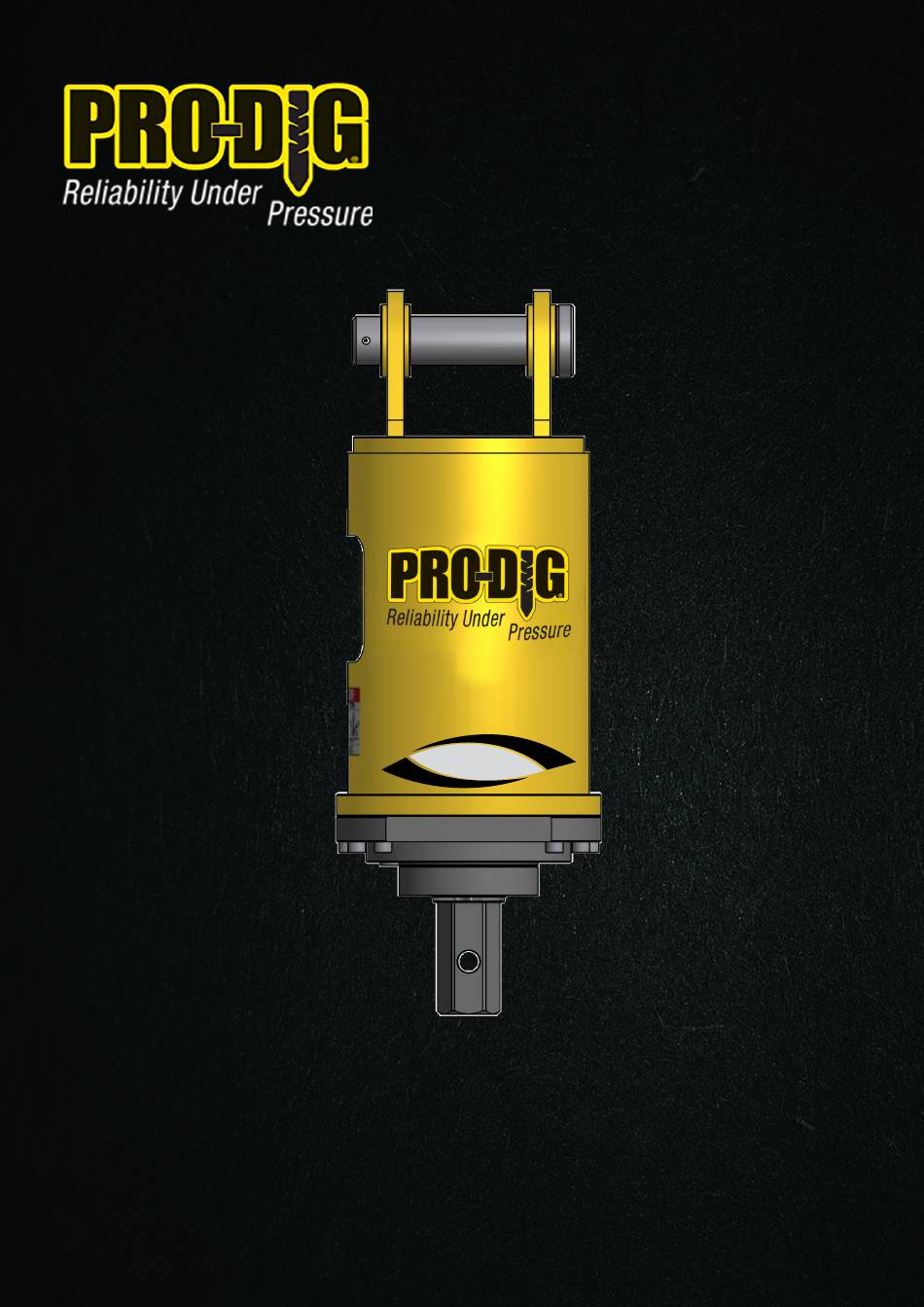

- Page 1 AUGER & ANCHOR DRIVE (LIGHT SINGLE SPEED) LIGHTWEIGHT ANCHOR Instruction Manual Manual number: PROL5K Operating Instructions Owners Manual Maintenance Release Date: September 3, 2011 Safety Precautions Parts Lists 785.856.2661 WWW.PRO-DIG-USA.COM...
- Page 2 Modifications may weaken the integrity of the equipment and may impair the func- Gearbox Parts Breakdown ......................10-11 WARNING tions, safety, life, and performance of the equipment. When making repairs, use Guarantee/Warranty ...........................12 only the manufactures genuine parts, following authorized instructions. Other parts may be substandard in fit and quality. WWW.PRO-DIG-USA.COM 785.856.2661...
- Page 3 • Keep all parts of your body away from the drilling bit when operating the unit. • Keep a first aid kit near by when operating equipment. • DO NOT operate the PRO-DIG Auger Drive when the auger bit is more than 12” (305mm) ®...
- Page 4 Read and follow all safety decals. OPERATING PROCEDURES Motor Mount SAE “A” 2 Bolt Motor 160cc OPERATIONS TO AVOID Before operating always ensure that the PRO-DIG Auger Bidirectional Speed ™ Min. Hydraulic Flow 5 GPM Drive and auger or anchor are connected correctly to the 1.
- Page 5 • Quick release couplers not engaged. Check connections. • If equipment has been altered in any way from it original design, PRO-DIG ™ does not accept any liability for injury or warranty.
- Page 6 WWW.PRO-DIG-USA.COM 785.856.2661...
- Page 7 Company (apart from any payments required by clause 3.7 hereof) the cost of inspecting, repairing or disposing of any goods returned to the company, or in the event that the goods are of no further value, the price thereof. 785.856.2661 WWW.PRO-DIG-USA.COM...
- Page 8 PROUD MEMBER OF: 1604 ROSEPORT RD ELWOOD, KS 66024 785.856.2661 WWW.PRO-DIG-USA.COM...
