Meridian Harvest T1052 Operator's Manual

Grain auger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

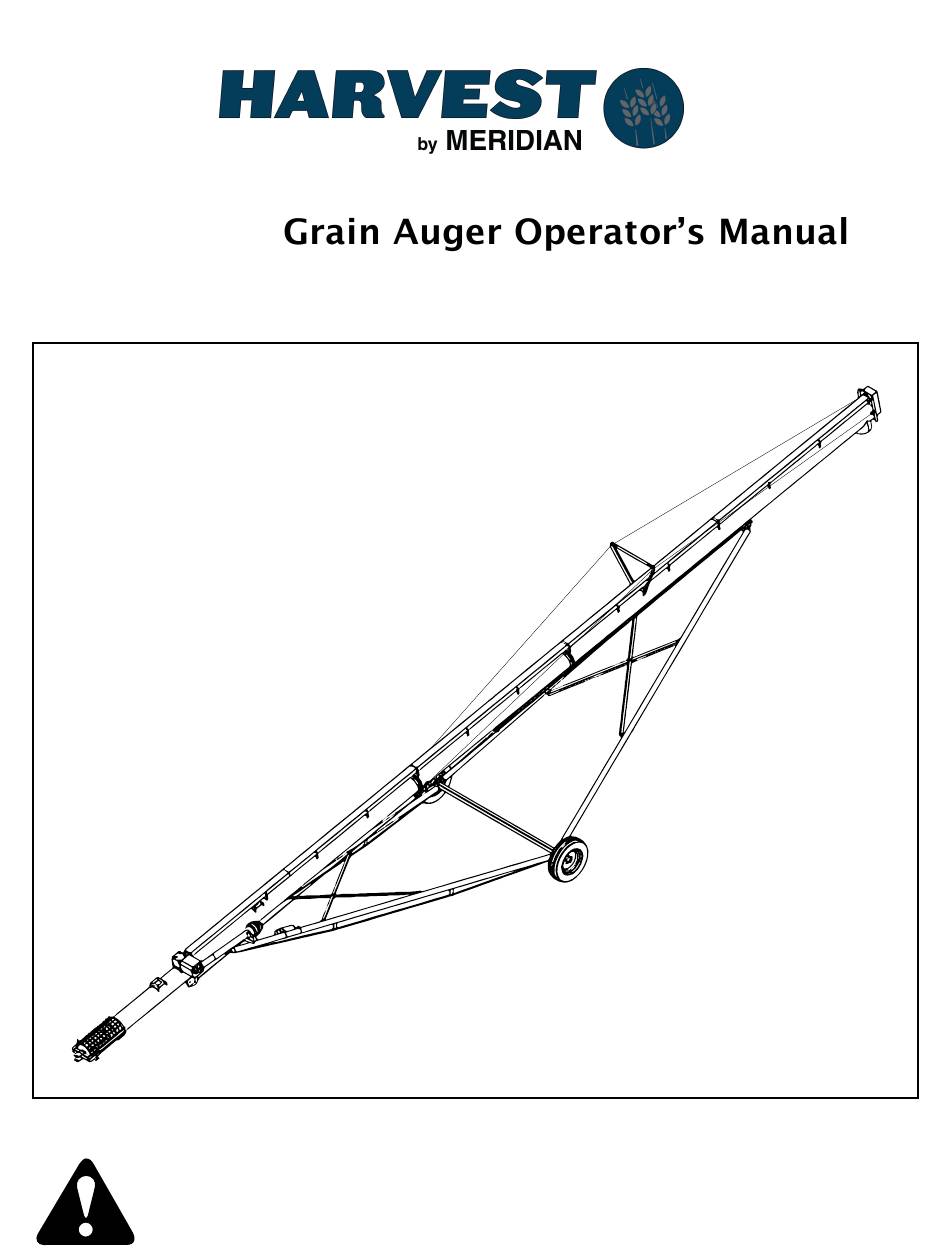

T1052
Read this manual before using product. Failure to follow
instructions and safety precautions can result in serious
injury, death, or property damage. Keep manual for future
reference.

Advertisement

Table of Contents
loading

Related Manuals for Meridian Harvest T1052

Summary of Contents for Meridian Harvest T1052

  • Page 1 T1052 Read this manual before using product. Failure to follow instructions and safety precautions can result in serious injury, death, or property damage. Keep manual for future reference.
  • Page 2 T-Series Augers: Important Notes At 15-20 miles, tire lug nut tightness and wheel hub temperature need to be checked. At 50-60 miles, check these a second time. For all models, the maximum transport speed is mph.
  • Page 3 Harvest by Meridian thanks you for your purchase of the best quality auger on the market. We are proud to have you on our team. Our equipment is manufactured in the United States of America and is made to improve your farming operation.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1.Introduction______________________________________________________________5 2. Safety First______________________________________________________________6 3. Transportation & Placement_____________________________________________7 3.1 Before Transporting Your Auger___________________________________7 3.2 Transport Procedure_______________________________________________8 3.3 Placement of Auger________________________________________________8 3.4 Final Placement__________________________________________________10 3.5 Lowering the Auger______________________________________________10 4. Operation______________________________________________________________12 4.1 Pre-Operation Checklist__________________________________________12 4.2 Auger Drive & Lockout___________________________________________13 4.3 Start Up &...

  • Page 5: Introduction

    Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Harvest by Meridian distributor or dealer if you need assistance, information, or additional copies of the manual. Always give your dealer the serial number of your Harvest by Meridian Grain Auger when ordering parts or requesting service or information.

  • Page 6: Safety First

    2. Safety First Safety is a priority in your everyday work habit, especially if you work with machinery. Whether you are an owner, an operator, or an employee, it is your responsibility to know the operational requirements and safety precautions of the machinery. Why is safety important to you? 1.

  • Page 7: Transportation & Placement

    3. Transportation and Placement 3.1 Before Transporting your Auger Remove wheel chocks, so wheels are free to move. DANGER: If auger wheels are stuck in grain, mud, dirt, or snow. remove the restraining substance from around the wheels before transport. Failure to do this could cause damage to the auger, and serious injury or death.

  • Page 8: Transport Procedure

    3.2 Transportation Procedure Move auger with a tractor only. Never attempt to move by hand. Under no condition should you allow riders on the auger or tractor. Transport the auger no faster than 15 mph. When roads are rough or surfaces are uneven, slow down to ensure safe travel.
  • Page 9 DANGER: If ground is very uneven, auger can tip and cause damage to the equipment and personal injury or death. WARNING: Never position raisers of any kind under the wheels of the auger to increase height. This includes pieces of wood, cement blocks, bricks, etc.

  • Page 10: Final Placement

    3.4 Final Placement of Auger When you are ready to use your auger, place the auger in its lowered position, and slowly back it up to your bin or storage facility, keeping an eye out for any people or obstructions in the hazard zone. DANGER: Avoid any electrical wires and overhead obstructions.
  • Page 11 When lowering the auger, never turn the winch handle counterclockwise to attempt to correct a stuck cable. This will disengage the brake mechanism and create an unsafe condition. If the cable stops moving, check to see where the binding is happening and fix before proceeding.

  • Page 12: Operation

    4. Operation Wear protective gear at all times when operating auger, such as hard hats, protective shoes, eye protection, and gloves. Do not wear loose clothing, and be sure that hair is tied back. 4.1 Pre-Operation Checklist Before operating the auger, the operator must follow this checklist: All safety shields are in place, secure, and in good working order.

  • Page 13: Auger Drive & Lockout

    4.2 Auger Drive & Lockout The proper operation of this auger requires that the operator pre-inspect the drive system, know how to shut down the system in an emergency, and generally monitor the system during operation. Drive System and PTO Driveline: Ensure that the PTO drive on the tractor is in the off position before starting the tractor.

  • Page 14: Everyday Operation

    polished and runs smoothly, proceed to unload at full speed (at but not to exceed 540 RPM for maximum efficiency). Upon completion of initial run, slow down until the auger is empty of grain, and stop auger. Lock out the power source and conduct a complete inspection of the auger, following the pre-operation checklist.

  • Page 15: Shutting Down The Auger

    4.5 Shutting Down the Auger Empty the auger of all grain. Disengage the PTO drive. Shut down and lock out power. WARNING: Never use your hands to clean out debris from auger. Rather, use a small shovel or other tool. In the case where there has been an interruption or emergency shutdown, restart the auger as follows: If auger is full of grain, do not restart at full speed.

  • Page 16: Lowering The Auger

    WARNING: Do not leave auger in raised position when not in use. Auger could drop rapidly in case of hydraulic failure. High winds may also upset the auger. Because the hydraulic scissor lift is faster than a hand crank system, use extra caution and clear area of personnel before raising or lowering auger.

  • Page 17: Hydraulics

    Escaping hydraulic fluid can be nearly invisible under high pressure. Use some type of backdrop when searching for leaks. Harvest by Meridian augers have a velocity fuse for hydraulic safety. If the hydraulic line breaks, it locks the system. Our shut off valve is equipped with a flow restrictive orifice.

  • Page 18: Cylinder Hydraulics

    5.2 Cylinder Hydraulics The testing done on Harvest by Meridian auger hydraulics was done using a pressure gauge with 3000psi maximum rating. This was used simply as a guide. The psi requirements for an individual auger may vary slightly. Auger...

  • Page 19: Storage & Maintenance

    Contact your Harvest by Meridian dealer to order parts. Harvest by Meridian augers are designed and tested for a safe, efficient operation. Do not modify the equipment in any way. Modification to the auger can create an unsafe working condition, affect the life of the equipment, and will void your warranty.

  • Page 20: Storage Of Auger

    Tire Pressure: Check tire pressure monthly. The recommended tire pressure should be maintained at 40 to 45 psi. PTO Driveline: Lubricate both universal joints after every eight hours of operation. Lubricate the center portion of the driveline on a yearly basis. The first lube maintenance should be done in the first 16 to 24 hours of operation.

  • Page 25: T1052 Parts Book

    PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) T1052 T1052 AUGER ASSEMBLY DESCRIPTION ITEM NO. PART NO. CLAMP, 1/4" CABLE 10957 CABLE, LIFT, 1/4" X 7 X 9 X 55FT 11016 FRAME ASSEMBLY, T1052 PBT10016 TUBE ASSEMBLY, INFEED, T1052 PBT10017 TUBE ASSEMBLY, DISCHARGE, T1052 PBT10018 DRAWING NO.
  • Page 26 AUGER MODEL(S) PART/ASSEMBLY DESCRIPTION T1052 TUBE ASSEMBLY, INFEED, T1052 DRAWING NO. DETAIL A PBT10017...
  • Page 27 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) T1052 TUBE ASSEMBLY, INFEED, T1052 DETAIL B DETAIL C DETAIL D DRAWING NO. PBT10017...
  • Page 28 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) DESCRIPTION ITEM NO. PART NO. BRACKET,BOLT ON,UPPER TRUSS CABLE MOUNT,LEFT 10192 BRACKET,BOLT ON,UPPER TRUSS CABLE MOUNT,RIGHT 10193 PIN,BENT, 1/2" x 5" USABLE LENGTH 10257 COUPLER, 1.25" to 1.25" SHAFT, PIN & PIN 10262 SHAFT,STUB, LOWER BEARING TO AUGER TUBE,T10XX 10282 SCREW, SELF TAPPING, #12 x 3/4"...
  • Page 29 AUGER MODEL(S) PART/ASSEMBLY DESCRIPTION T1052 TUBE ASSEMBLY, 120" MID, T1052 DETAIL A DETAIL B DRAWING NO. PBT10019...
  • Page 30 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) T1052 TUBE ASSEMBLY, 120" MID, T1052 DETAIL C DESCRIPTION ITEM NO. PART NO. COUPLER, 1.25" to 1.25" SHAFT, PIN & PIN 10262 SCREW, SELF TAPPING, #12 x 3/4" 10304 SHIELD, LONG, DRIVE SHAFT, T AUGERS 10942 STOP, LIFT ROLLER, T AUGERS 10959 RAIL, LIFT, SHORT, T1052...
  • Page 31 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) T1052 TUBE ASSEMBLY, DISCHARGE, T1052 DETAIL A DETAIL C DETAIL B DRAWING NO. PBT10018...
  • Page 32 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) T1052 TUBE ASSEMBLY, DISCHARGE, T1052 DETAIL D DRAWING NO. PBT10018...
  • Page 33 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) DESCRIPTION ITEM NO. PART NO. TRUSS, UPRIGHT 10163 TRUSS, CROSS MEMBER TOP 10174 WASHER, BEARING RETAIN, DISCHARGE HUB ASSEMBLY 10240 NUT, CASTLE, BEARING RETAIN, HUB ASSEMBLY 10242 SPROCKET, #60 x 20 TOOTH, 1.25in BORE 10248 CONNECTOR LINK, #60 ROLLER CHAIN 10250 CLAMP, 3/8"...
  • Page 34 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) T1052 FRAME ASSEMBLY, T1052 DETAIL C DETAIL A DETAIL B DRAWING NO. PBT10016...
  • Page 35 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) T1052 FRAME ASSEMBLY, T1052 DESCRIPTION ITEM NO. PART NO. SCREW, SELF TAPPING, #12 x 3/4" 10304 NUT, 1/2-20, 60 DEGREE LUG NUT, ZINC 10434 X-BRACE, SUPPORT ARMS, A10XX 10693 HOUSING, LIFT ROLLER, T AUGERS 10929 TIE, ZIP, MANUAL CANISTER MOUNT 10960 CANISTER, OWNERS MANUAL 30102...
  • Page 37 Warranty Claim Form Customer Name: Dealer Name: Address: Address City: City: Postal Code: Postal Code: Phone # Phone # Email: Email: Warranty Claim Description: Date of purchase________________________________ Date of occurrence______________________________ Model_________________________________________ Serial Number__________________________________ All claims subject to Harvest by Meridian approval.
  • Page 38 2902 Expansion Blvd. Storm Lake, Iowa 50588 PHONE: 712-213-5100 TOLL FREE: 1-800-667-5904 EMAIL: info@harvestauger.com WEB: www.harvestauger.com...
  • Page 39 Warranty Registration Name: Address: City: State: Zip Code: Phone # Cell Phone: Email: Date of Purchase: Dealer Name: Dealer Address: Model: Serial #: Please return within 10 days to: Harvest by Meridian 2902 Expansion Blvd. Storm Lake, IA 50588 712-213-5100 www.harvestauger.com...
