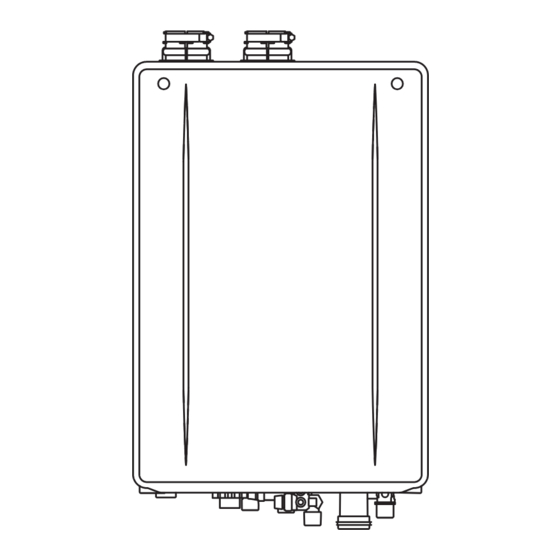

Condensing tankless gas water heater
Hide thumbs Also See for GQ-C3260WXQ-FF US:
Table of Contents

Advertisement

Quick Links

Download this manual
CONDENSING TANKLESS GAS WATER HEATER
Installation Manual
Models : NRCR111DV (GQ-C3260WXQ-FF US)
NRCR92DV (GQ-C2660WXQ-FF US)
WARNING
If the information in these instructions is not
followed exactly, a fire or explosion may result
causing property damage, personal injury or
death.
• Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use
any phone in your building.
- Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
- If you cannot reach your gas supplier, call the
fire department.
• Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
FOR USE IN RESIDENTIAL OR MANUFACTURED HOME APPLICATIONS.
Installation must conform with local codes, or in the absence of local codes, the National Fuel Gas Code, ANSI Z223.1 / NFPA
54 - latest edition and/or the Natural Gas and Propane Installation Code CSA B149.1 - latest edition.
When applicable, installation must conform with the Manufactured Home Construction and Safety Standard, Title 24 CFR,
Part 3280 or the Canadian Standard CAN/CSA-Z240 MH Mobile Homes, Series M86.
Noritz America reserves the right to discontinue, or change at any time, the designs and/or specifications of its products
without notice.
Contact Noritz America at 1-866-766-7489, if you have any questions or concerns.
NORITZ America Corporation
CAUTION
Requests to Installers
• In order to use the Water Heater safely, read
this installation manual carefully, and follow the
installation instructions.
• Failures and damage caused by erroneous work
or work not as instructed in this manual are not
covered by the Noritz America Limited Warranty.
• Check that the installation was done properly in
accordance with this Installation Manual upon
completion.
• After completing installation, either place this
Installation Manual and Owner's Guide (the
warranty registration information included) in
a plastic pouch and attach it to the side of the
Water Heater (or the inside of the pipe cover
or recess box if applicable), or hand it to the
customer to retain for future reference. For the
warranty conditions and limitations, see the
Owner's Guide.
SBB8168-4
Rev. 04/21
Low NOx Approved by SCAQMD
14 ng/J or 20 ppm
(Natural Gas Only)
