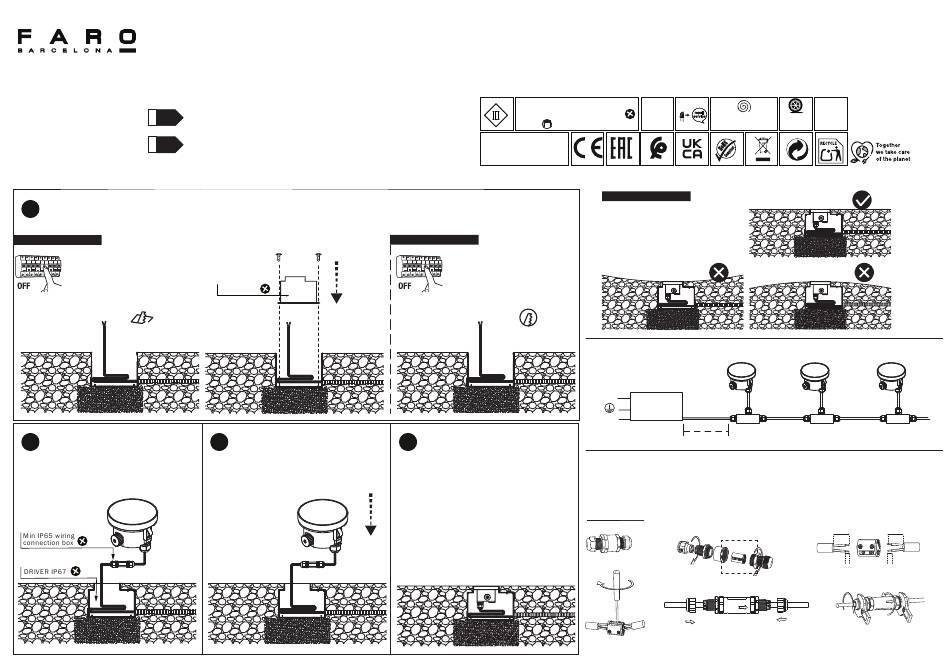

Faro Barcelona TRAS Series Manual
Faro Barcelona TRAS Series Manual

Faro Barcelona TRAS Series Manual

Advertisement

Quick Links

L
F
This product contains a light source of energy efficiency class F
TRAS 4
LED 3000K 13º
E
D
Este producto contiene una fuente luminosa de la clase eficiencia energética F
L
G
This product contains a light source of energy efficiency class G
TRAS 8
LED 3000K 13º
E
D
Este producto contiene una fuente luminosa de la clase eficiencia energética G
1
concrete installation
175 x 195 x 127
2
ref. 71703
3
DRIVER IP67 NO INCL
24Vdc 100V-240V max 20W
MBTS
Available environment
temperature -20º~40ºC
ground installation
Ø88mm
4
IP67
0,5m H05RN-F
IK09
2x1,0mm2-Tz
important
note:
max 3 TRAS for each driver.
100V-240Vac
L
LED DRIVER
24Vdc
N
max. 0,5cm
IP65 The block of connection is not included. The installation can need the intervention of a qualified personqualified
person. The block of connection must comply EN 60998-2-1 or EN 60998-2-2. The block of connection: MAX 10A
El bloque de conexión IP65 no se incluye. La instalción puede requerir la intervención de una persona cualificada. El
bloque de conexión a incluir debe ser conforme con la EN 60998-2-1 o EN 60998-2-2. Bloque de conexión: MAX 10A,
Example -
Ejemplo
a.
c.
d.
TRAS
Stainless
Steel
210Kg
316L
2059,4N
L=30mm
L=30mm
b.
L=8mm
L=8mm
e.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRAS Series and is the answer not in the manual?
