Summary of Contents for ROWAN ELECTRIC APPLIANCE HZB 20AF/S

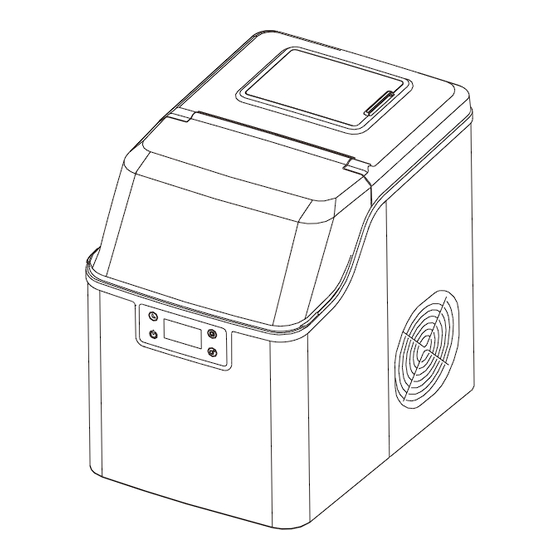

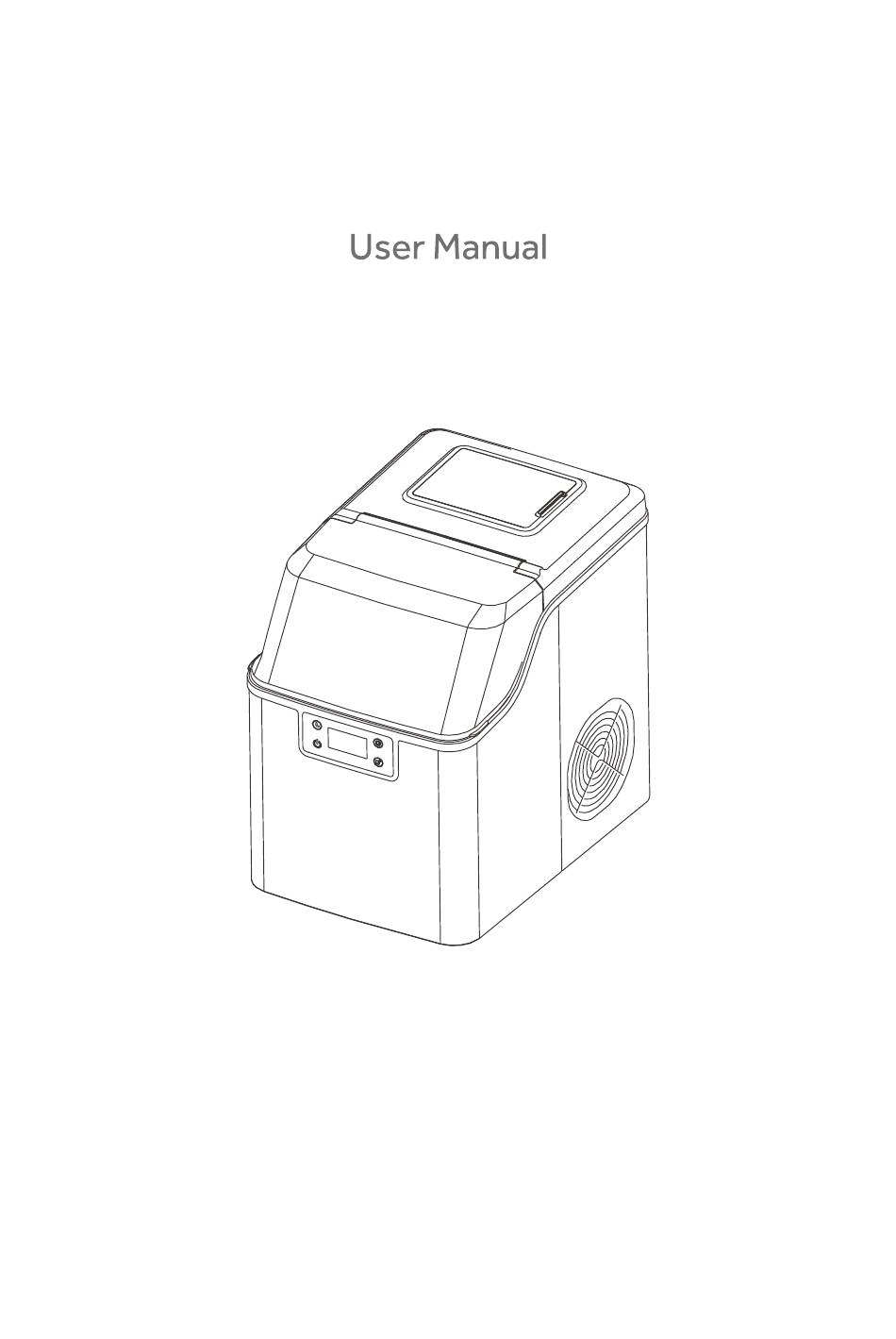

- Page 1 PORTABLE AUTOMATIC ICE MAKER HZB 20AF/S...
- Page 2 TECHNICAL PARAMETERS &...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. We have provided many important safety messages manual about your appliance. Always read and obey all safety messages. This is the safety alert symbol: All safety messages will follow the safety aler t symbol and the wor d "DANGER" or "WARNING". -
Page 4: Preparing Your Ice Maker For Use
PREPARING YOUR ICE MAKER FOR USE IMPORTANT SAFETY TIPS When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance. •... - Page 5 If the unit is with problem and need to be maintained, the replacing with similar components and the servicing shall be done by factory-authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts or improper service. PACKING LIST Description Quantity...
-
Page 6: Getting To Know Your Unit
GETTING TO KNOW YOUR UNIT 1. Control Panel: A. Timer/clean button Quickly press this button once, to enter the Timer setting program; And press this button for more than 5 seconds to enter the Cleaning program. B. ON/OFF button When the unit is off, press this button to turn on the unit; When the unit is making the ice cube, press this button for more than 5 seconds, the unit will switch to ice harvest process by force. -
Page 7: Operating Procedures & Maintenance
OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging. Check that the ice basket and ice scoop is included. If any parts are missing, please contact our customer service. 2. Clean the interior with lukewarm water and a soft cloth. Take out the ice basket and clean it. 3. - Page 8 After using your ice maker for a long time, we also suggest you should clean your unit. Especially to the water separator pipe and the wate filters, you must clean them periodically. 1. If the water separator pipe is blocked and there is no water flowing down when you listen the compressor and the water pump inside are still working, please turn off the unit firstly and disassemble this pipe down, and clean it.
-
Page 9: Using Your Ice Maker
USING YOUR ICE MAKER OPERATION OPERATION Operation panel and display area AREA AREA DISPLAY AREA SS� Tt.ERl(lfI �� IS� E� � � � (W/(ff 1. Remove the cover of the water reservoir and pour potable water into the water reservoir. And be sure to keep water level below the max. - Page 10 4. When Ice Full symbol< � >is on, the unit will stop. Take out the ice cubes inside, the unit will start working again. If press the button<ON/OFF>more than 5s, when the ice maker is working, the unit will start harvest.
-
Page 11: Troubleshooting
Warning A\ make sure the water tank, water filter and the water separator pipe is not blocked, and clean them. B\ The water temp will effect the ice-making capacity. The lower temp, the more ice cubes produce. C\ The cooler ambient temp, the more ice cubes produce. D\ Always use good quality water to make sure the pump work well. -
Page 12: Technical Parameters & Circuit Diagram
TECHNICAL PARAMETERS & CIRCUIT DIAGRAM TECHNICAL PARAMETERS Model HZB-20AF/S Protection Type 115V/60Hz Power Ice Making Current 2.2A Ice Harvest Current 2.5A Refrigerant R290 1.13Oz/32g Design Pressure High Side 280Psig Low Side 88Psig Net Weight 9.5kg Enclosure Stainless CIRCUIT DIAGRAM ELECTRICAL DIAGRAM Solenoid Valve FOR ICE-MAKER magneticcontrol... - Page 16 213-4467172 661-4358826 (8:30am - 5:30pm P.S.T.) SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO BAJO GARANTÍA. Add: ROWAN ELECTRIC APPLIANCE LLC 28407 Ascent Way, Santa Clarita, CA 91350 Phone: 213-4467172 or 661-4358826...
Need help?
Do you have a question about the HZB 20AF/S and is the answer not in the manual?
Questions and answers
Can you remove the water separator pipe for cleaning?
Yes, the water separator pipe can be removed for cleaning. The manual instructs to turn off the unit first, then disassemble the pipe, clean each hole, and ensure it is reassembled correctly with the silicone pipe.
This answer is automatically generated
