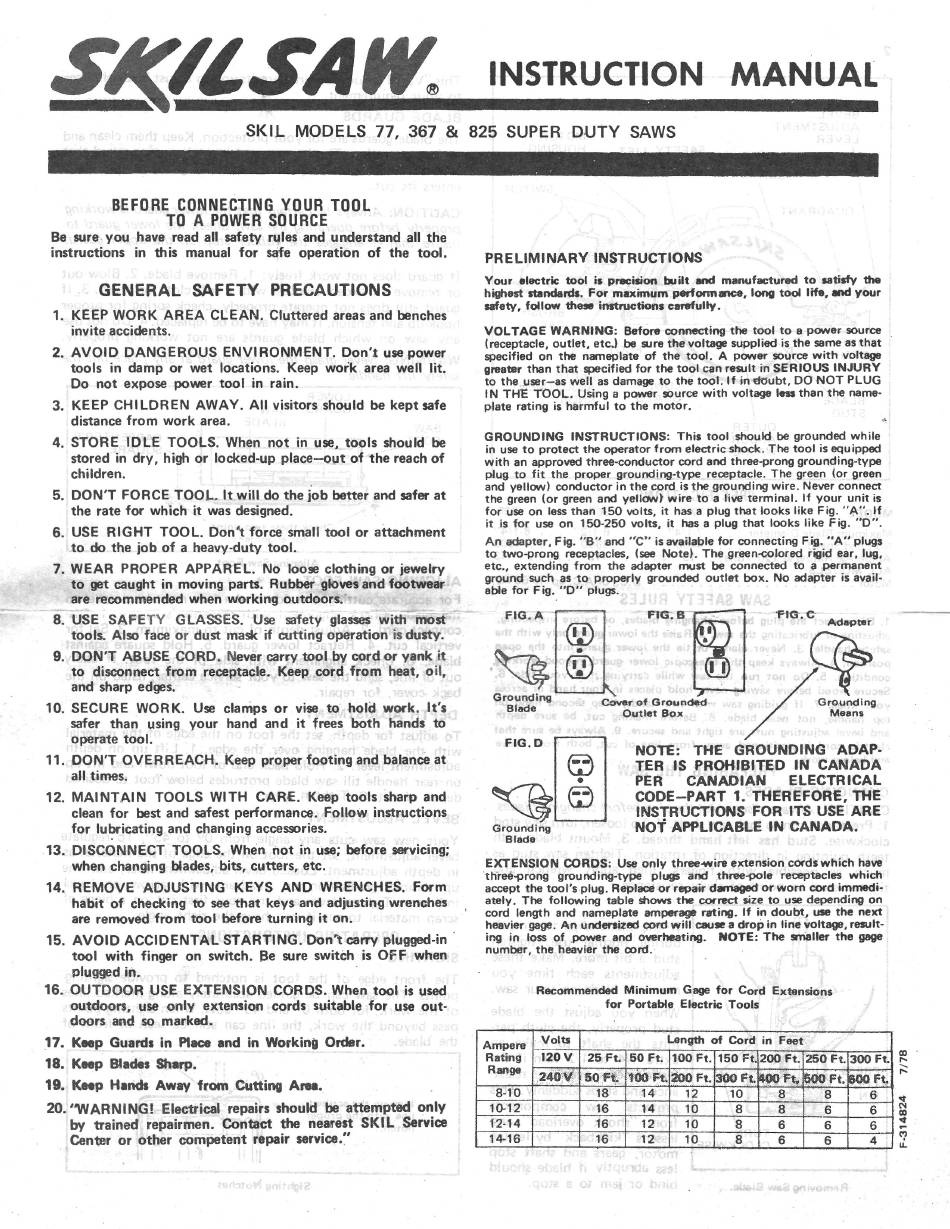

INSTRUCTION
MANUAL

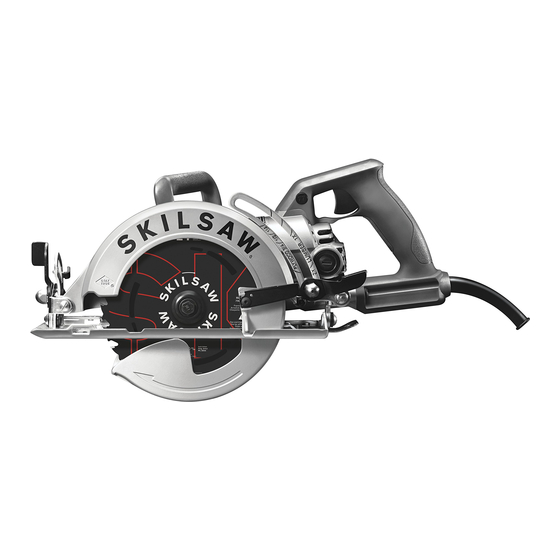

SKIL MODELS 77, 367 & 825
SUPER D-UTY SAWS
BEFORE CONNECTING YOUR
TOOL
TO A POWER SOURCE
Be sure.
you
have read all
safety rules
and
understand all the
instructions
in
this
manual
for
safe
operation
of
the
tool.
GENERAL SAFETY PRECAUTIONS
1.
KEEP WORK AREA CLEAN. Cluttered
areas
and benches
invite
accidents.
2.
AVOID
DANGEROUS ENVIRONMENT.
Don't
use
power
tools
in damp
or
wet
locations.
Keep
work
area
well lit.
Do not expose power
tool
in rain.
3. KEEP
CHILDREN AWAY.
All
visitors should
be
kept
safe
distance
from work
area.
4. STORE
IDLE TOOLS.
When not in use,
tools should
be
stored
in
dry,
high
or
locked-up place—out
of
the
reach
of
children.
5.
DON'T
FORCE
TOOL. It will do the job better
and safer at
the rate
for
which
it
was
designed.
6.
USE
RIGHT TOOL. Don't force
small
tool
or
attachment
to
do the
job
of
a
heavy—duty
tool.
7. WEAR PROPER APPAREL.
No loose
clothing
or
jewelry
to get caught in moving parts. Rubber gloves and
footwear
are
recommended when working outdoors."
8.
usE SAFETY
GLASSES.
Use
safety
glasses
witlfmost'
tools. Also
face
or
dust
mask
if cutting
operation
is
dusty.
9.
DON'T
ABUSE CORD. Never carry
tool
by
cord
or
yank it
to
disconnect
from
receptacle. Keep
cord
from
heat,
oil,
and sharp edges.
_10.
SECURE WORK.
Use
clamps
or
vise to'
hold work. It's
safer
than
using your hand and
it
frees
both
hands to
operate
tool.
'
11.
DON'T OVERREACH.
Keep
proper
footing
and balance at
all times.
12.
MAINTAIN
TOOLS WITH CARE.
Keep
tools
sharp and
clean
for
best and safest
performance. Follow instructions
for
lubricating
and changing accessories.
.13.
DISCONNECT TOOLS.
When not in
use;
before servicing;
when changing
blades,
bits, cutters,
etc.
14.
REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of
checking
to
see
that keys
and
adjusting wrenches
are
removed
from tool
before
turning it
on.
15.
AVOID ACCIDENTAL STARTING. Don't
carry plugged-in
'
tool with finger
on
switch.
Be
sure
switch
is
OFF when
plugged
in.
I
16. OUTDOOR
USE
EXTENSION CORDS. When
tool
is used
outdoors,
use
only extension cords suitable
for
use
out-
doors and
so
marked.
17. Keep Guards
in
Place and in Working Order.
18. Keep Blades
sharp.
19. Keep Hands Away
from Cutting
Area.
20."lNARNING!
Electrical repairs should
be
attempted
only
by
trained repairmen. Contact the
nearest
SKIL
Service
Center
or
other competent repair service."
PR
E
LIMINARY
INSTRUCTIONS
Your electric tool
is precision
built
and manufactured
to
satisfy the
highest standards.
For maximum perfomsmca, long tool
life,
and your
safety,
follow
these
instructions carefully.
VOLTAGE WARNING: Before connecting the tool
to
a
power
source
_
(receptacle,
outlet,
etc.)
be
sure
the voltage supplied
is
the
same
as
that
specified
on
the nameplate
of the tool. A
power
source
with
voltage
greater than that
specified
for the tool
can
result
in
SERIOUS INJURY
to
the
user—as
well
as
damage to the
tool. If
in
doubt,
DO
NOT
PLUG
IN THE TOOL.
Using
a
power
source
with voltage
less
than the
name-
plate rating
is
harmful
to
the motor.
GROUNDING INSTRUCTIONS: This tool should
be
grounded
while
in
use
to
protect the operator
from electric
shock. The
tool
is
equipped
with
an
approved three-conductor cord and
three—prong
grounding-type
plug
to
fit the proper grounding-type receptacle. The
green
(or
green
and
yellow) conductor in the cord
is
the grounding wire.
Never connect
the green
(or
green and
yellow) wire
to
a
live
terminal. If your unit
is
for
use
on
less
than 150 volts, it
has
a
plug that looks like Fig. If
it
is
for
use on
150-250 volts, it
has
a
plug
that looks like Fig. "D".
An adapter,
Fig.
"B"
and
"C"
is
available
for connecting Fig.
"A"
plugs
to
two-prong
receptacles,
(see
Note). The green-colored rigid
ear, lug,
etc., extending from the adapter
must be connected to
a
permanent
ground
such
as
to
properly grounded outlet box. No adapter
is avail-
able
for Fig. "D"
plugs.
F|G.A "F'IG.C Adapt.'
Q
629
°'3?i-?-'i'"°
°°'a'.:L?a°:."°*°
*"=';;::::"°
F'°'° NOTE: THE GROUNDING ADAP-
@
TER
IS
PROHIBITED IN CANADA
-
PER
CANADIAN ELECTRICAL
(E
CODE—PART 1. THEREFORE, THE
INSTRUCTIONS FOR ITS
USE
ARE
Grounding
NOT APPLICABLE IN CANADA.
Blade
EXTENSION
OORDS:
Use
only threewire
extension cords
which
have
'three-prong grounding-type plugs and three-pole receptacles which
accept the
tool's plug.
Replace
or
repair darrnged
or
worn
cord immedi-
ately.
The
following
table shows the correct size to
use
depending
on
cord length and nameplate
amperap rating. If
in
doubt,
use
the
next
heavier
gage.
An undersized cord will
cause
a
drop in line voltage, result-
ing in loss
of power and overheating. NOTE: The smaller the
gage
number, the
heavier
the cord.
Recommended Minimum
Gage
for
Cord Extensions
for
Portable Electric Tools
Ampere Volts Length of Cord in Feet
1:233
120
v 25 Ft. 50 Ft. 100
Ft.l150
1-':.[2oo
1=r._]2-so 1=~e.13oo
Ft.
1240V.%'5°'F€'-
'100Ft.1'oo1=1.3ooFt
0¢.lFt._
_F't.'
Ft.
8-10
18 .14 12
1o
8
8 e
1o12
16 14 10 8 8
6
6
12-14
16
12
1o
8
6 6 6
14-16
16 12 1o 8
6
e
4
