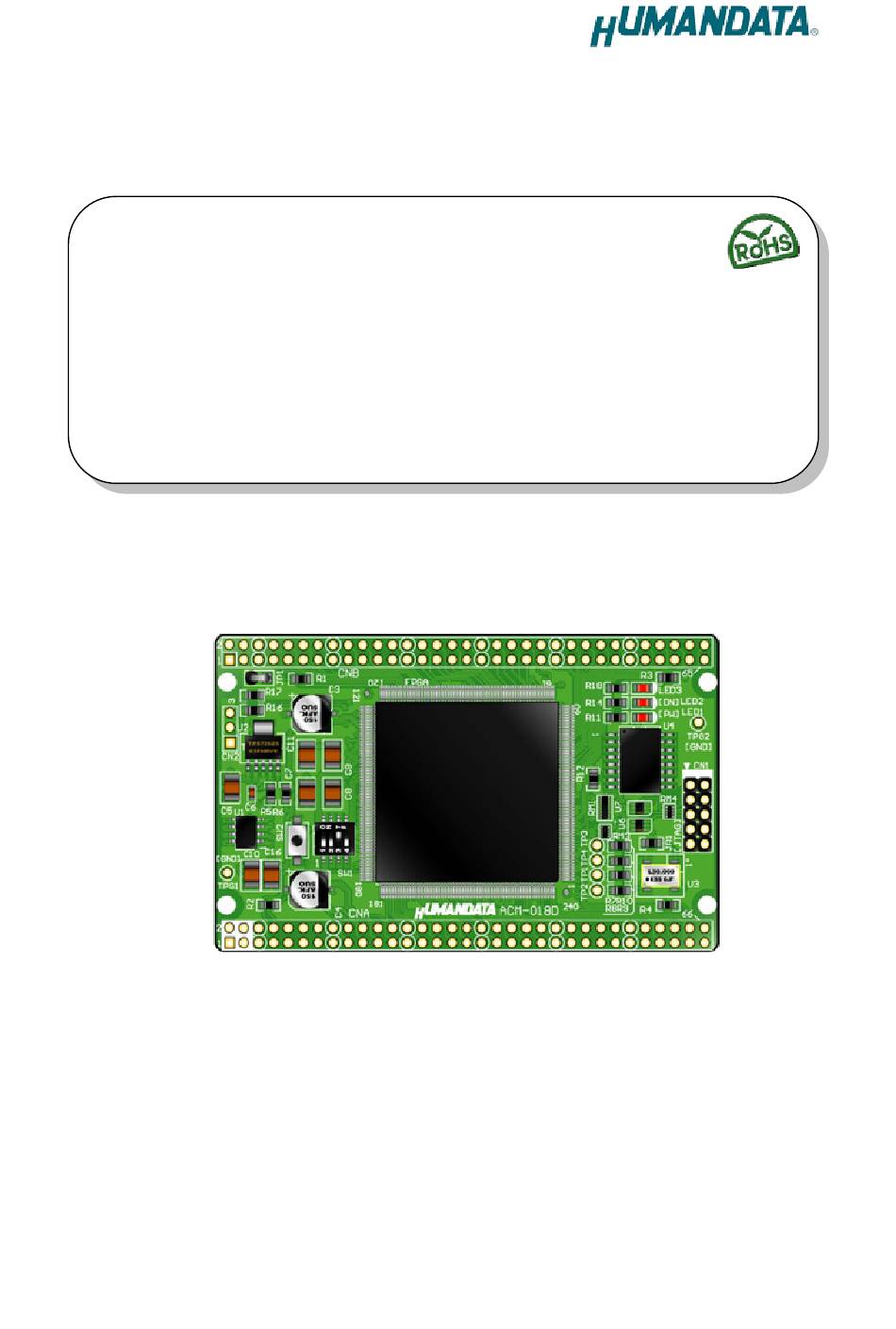

- Page 1 Cyclone III FPGA Board ACM-018 Series ( Rev2) User’s Manual Ver. 1.2 HuMANDATA LTD.
-
Page 2: Table Of Contents
Table of Contents Revision History ....................1 Introduction ....................1 1. Unused Pins [IMPORTANT] ................2 2. Specifications ..................... 3 3. Overview ......................4 3.1. Name of Parts .......................4 3.2. Block Diagram ......................5 3.3. Power Supply ......................5 3.4. JTAG Connector ....................6 4. - Page 3 HuMANDATA will revise the diagram. When a problem can be solved only by replacing components or modifying the product, HuMANDATA will take back the product to replace it with a properly functioning product.
-
Page 4: Revision History
Introduction Thank you for buying our product ACM-018. This is an evaluation board equipped with an Altera Cyclone III, power, reset, and clock circuit and configuration device. It can provide you with very convenient and easy-to-use environment. ACM-018 Series v1.2... -
Page 5: Unused Pins [Important]
To set the unused I/O pins follow the steps below: 1. Open “Assignments” and click “Device…” 2. Click “Device & Pin Options…” button 3. Open “Unused Pins” tab 4. Set Reserve all unused pins as “As input tri-stated” ACM-018 Series v1.2... -
Page 6: Specifications
Weight 29 [g] typ. User I/O Connectors 66-pin through-hole dia. 0.9 [mm], 100[mil]/2.54 [mm] pitch DIL 10-pin header (Mounted) Accessories 2 DIL 80-pin headers (Cuttable) RoHS Compliance * There may be cases when compatible parts are used. ACM-018 Series v1.2... -
Page 7: Overview
3. Overview 3.1. Name of Parts User LED DONE LED User I/Os (CNB) Power LED Serial I/F Config. Device Power & POR JTAG User Switch FPGA Config. Switch Oscillator 30 MHz User I/Os (CNA) Component Side Solder Side ACM-018 Series v1.2... -
Page 8: Block Diagram
This board operates from single DC 3.3 V power supply. The external power supply should be sufficient and stabilized. Notes Please apply power to CNA and CNB with thick print pattern or cable. Please connect all ground pins. ACM-018 Series v1.2... -
Page 9: Jtag Connector
Signal Name JTAG Pin Signal Name Net Label XTCK XTDO VCC (3.3 V) V33A XTMS XTDI You can use Altera download cable. (ByteBlaster [II/MV] or USB Blaster) Notice Please pay attention not to attach cables in reverse. ACM-018 Series v1.2... -
Page 10: Jumper Switches
For more details, please see FPGA data sheets. AS mode (Configuration device access) : SW1 (2, 4 ON) MSEL0 = ON MSEL1 = OFF MSEL2 = ON JTAG mode : SW1 (Any setting) MSEL0 = Any MSEL1 = Any MSEL2 = Any ACM-018 Series v1.2... -
Page 11: Fpga Configuration
8. Open [Tools] menu, then click [Programmer]. 9. Select [JTAG] from [Mode] list. 10. Open [Processing] menu, then click [Auto Detect]. 11. Select the jic file you made. 12. Check [Program/Configure] and [Verify] 13. Open [Processing] menu, then click [Start]. ACM-018 Series v1.2... -
Page 12: Additional Documentation And User Support
Quartus II help will give you more information. 7. Additional Documentation and User Support The following documents and other supports are available at http://www.hdl.co.jp/en/spc/ACM/acm-018/ Circuit Schematic Pin List Dimensional drawing PCB drawing Net List … and more. ACM-018 Series v1.2... - Page 13 Cyclone III FPGA Board ACM-018 Series User’s Manual Ver. 1.2 ..........Feb. 16, 2012 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-72-620-2002 (Japanese) Fax: 81-72-620-2003 (Japanese/English) URL: http://www.hdl.co.jp/en/ (Global) http://www.hdl.co.jp/ (Japan)
