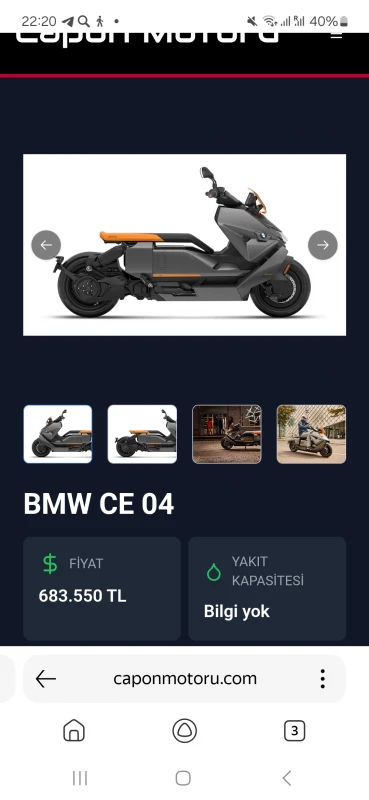

Здраствуйте у мотоцикла газ с какой стороны находиться?

User image 6817be8dd354b
0

Subscribe to Our Youtube Channel

Related Manuals for BMW CE 04

Summary of Contents for BMW CE 04

  • Page 1 MOTORRAD RIDER'S MANUAL (US MODEL) CE 04 MAKE LIFE A RIDE...
  • Page 2 Vehicle data Model Vehicle identification number Color number First registration License plate Retailer data Contact in Service Ms./Mr. Phone number Retailer's address/Phone (company stamp)
  • Page 3 Read these operating instructions before starting your new BMW. It contains important notes about operating the vehicle that will enable you to make full use of the technical assets of your BMW. You will also obtain preventive maintenance and care instructions, which are beneficial to operating and road safety and help retain the value of your vehicle as much as possible.
  • Page 4 GENERAL OPERATION INSTRUCTIONS Standby Emergency-off switch Quick & easy reference Reversing Abbreviations and sym- Lights bols Hazard warning sys- Equipment Technical data Turn signals Currentness of this man- Riding mode Anti-theft alarm sys- Additional sources of tem (DWA) information Tire Pressure Monitor Certificates and operat- (TPM) ing permits...
  • Page 5 SETTING TECHNOLOGY IN DETAIL Mirrors Headlights General notes Spring preload Antilock braking sys- tem (ABS) Traction control BMW EPOWER (ASC/DTC) Energy recovery sta- Principle General notes bility control (RSC) Charging cable Riding mode Charging procedure Dynamic Brake Con- trol Tire pressure monitor...
  • Page 6 Maintenance confir- Care of paintwork mations Paint preservation Service confirmations Storing the E-Scooter Put the E-Scooter CERTIFICATE into operation BMW CE 04 Bat- TECHNICAL DATA tery Certificate for high-voltage cell Troubleshooting chart module terms and Charging conditions Drivetrain Transmission...
  • Page 8 GENERAL INSTRUCTIONS...
  • Page 9 QUICK & EASY REFERENCE ABBREVIATIONS AND SYMBOLS EQUIPMENT TECHNICAL DATA CURRENTNESS OF THIS MANUAL ADDITIONAL SOURCES OF INFORMATION CERTIFICATES AND OPERATING PERMITS DATA MEMORY...
  • Page 10 GENERAL INSTRUCTIONS components could result in se- QUICK & EASY REFERENCE rious injury as a result of elec- This rider's manual has been tric shock. designed to provide quick and efficient orientation. The quick- ABBREVIATIONS AND SYM- est way for you to find infor- BOLS mation on specific topics is to CAUTION Hazard with...
  • Page 11 This Rider's Manual describes op- Optional equipment. tional equipment (OE) offered BMW Motorrad op- by BMW and selected optional tional equipment is accessories (OA). This explains already completely in- why the manual may also con- stalled during motor- tain descriptions of equipment cycle production.
  • Page 12 Authorized BMW Motorrad to the selected optional equip- retailer ment, national-market version Your BMW Motorrad retailer is or country-specific measuring always happy to answer any of procedures. Detailed values can your questions. be obtained from the registra-...
  • Page 13 ConnectedDrive Account that tion. was used. DATA MEMORY Data privacy laws...
  • Page 14 Internet. Ambient conditions, such as The vehicle owner can have temperature a BMW Motorrad retailer or The data is processed only in other qualified service partner the vehicle itself and is usu- or specialist workshop read out ally temporary.
  • Page 15 The fault memory and event event data recorder and fault data recorder in the vehicle can memory. be reset by a BMW Motorrad When a vehicle is serviced, retailer or other qualified such as for repairs, servicing service partner or specialist...
  • Page 16 GENERAL INSTRUCTIONS settings when using the ser- Data input and data transfer vices. in the vehicle Incorporating mobile end de- General information vices Depending on the equipment, Depending on the equipment, comfort settings and individual- mobile end devices connected ized settings in the vehicle can to the vehicle, such as smart- be saved and changed or reset phones, are controlled using...
  • Page 17 Services Any collection, processing and use of personal data that goes General information If the vehicle has a mobile beyond the provision of ser- phone connection, this vices take place only as per- connection makes it possible mitted by law, on the basis of to exchange data between a contractual agreement or as the vehicle and other systems.
  • Page 18 OVERVIEWS...

  • Page 19: Table Of Contents

    OVERALL VIEW, LEFT SIDE OVERALL VIEW, RIGHT SIDE MULTIFUNCTION SWITCH, LEFT MULTIFUNCTION SWITCH, RIGHT INSTRUMENT CLUSTER...

  • Page 20: Overall View, Left Side

    OVERVIEWS OVERALL VIEW, LEFT SIDE Behind the front-fairing panel: Diagnostic socket 162) Headlight range adjust- ment ( Coolant tank ( 151) Onboard tool kit, Torx T25 ( 147) Brake fluid reservoir for the rear wheel brake 149) Passenger grab handle Adjust spring preload on the suspension strut...

  • Page 21: Overall View, Right Side

    OVERALL VIEW, RIGHT SIDE Passenger grab handle Helmet compartment Storage compartment Onboard vehicle tool kit for spring preload Brake fluid reservoir for 147) the front wheel brake Payload table (on the in- 149) side of the helmet com- Charging compartment partment flap) 109) Tire pressure table (on...

  • Page 22: Multifunction Switch, Left

    OVERVIEWS MULTIFUNCTION SWITCH, LEFT High beams and headlight flasher ( Hazard warning system Favourite button ( Reverser ( Turn signals ( Horn MENU rocker button Multi-Controller...

  • Page 23: Multifunction Switch, Right

    MULTIFUNCTION SWITCH, RIGHT Heating ( Riding mode ( Emergency-off switch Starter button ( 123)

  • Page 24: Instrument Cluster

    OVERVIEWS INSTRUMENT CLUSTER Indicator and warning lights ( TFT display ( DWA LED with anti-theft alarm sys- tem (DWA) Alarm signal ( Indicator light for radio- operated key Turn on standby mode 52). Photodiode (for adjusting brightness of instrument lighting)
  • Page 26 DISPLAYS...
  • Page 27 INDICATOR AND WARNING LIGHTS TFT DISPLAY IN PURE RIDE VIEW TFT DISPLAY IN THE MENU VIEW TFT DISPLAY IN CHARGE VIEW INDICATOR LIGHTS...

  • Page 28: Indicator And Warning Lights

    DISPLAYS INDICATOR AND WARNING LIGHTS Turn signal, left ( High beams ( General warning light Turn signal, right ( ASC ( with riding modes Pro DTC ( ABS (...

  • Page 29: Tft Display In Pure Ride View

    TFT DISPLAY IN PURE RIDE VIEW Battery state of charge 13 Range ( 14 Operating assistance Speed Limit Info ( 15 Telephone mute ( 16 Heating ( Ride readiness indicator 17 Outside temperature 123) warning ( Speedometer Energy recovery limitation 18 Outside temperature Power limitation ( Rider info.

  • Page 30: Tft Display In The Menu View

    DISPLAYS TFT DISPLAY IN THE MENU VIEW Speed Limit Info ( 13 Heating ( Ride readiness indicator 14 Outside temperature Switching on ride readi- warning ( ness ( 123). 15 Outside temperature Speedometer 16 Menu area Energy recovery limitation Power limitation ( Rider info.

  • Page 31: Tft Display In Charge View

    TFT DISPLAY IN CHARGE VIEW Status of charging plug: State of charge Maximum available charge current level Charging time prediction Target time for 100% charging process Range prediction Range Active charging current limit...

  • Page 32: Indicator Lights

    DISPLAYS Green CHECK OK 1: No mes- INDICATOR LIGHTS sage, optimal values. Layout White circle with lowercase Warnings are indicated by the "i" 2: Information. corresponding warning light. Yellow warning triangle 3: Warnings are indicated by the Warning, value not optimal. general warning light in combi- Red warning triangle 3: nation with a dialog in the TFT...
  • Page 33 menu as additional tabs The evaluation of the indi- 75). You can go back to vidual values is possible in the message as long as the part only after a certain riding fault is present. duration or speed. If a mea- sured value cannot yet be dis- played due to unfulfilled mea- surement conditions, dashes...
  • Page 34 DISPLAYS Overview of warning indicators Indicator and Display text Meaning warning lights is lit yellow. is displayed. EWS active is displayed. Outside temper- ature warning is lit yellow. Light source de- The faulty light fect ( source is displayed. is lit yellow. Light control unit Light control failed (...
  • Page 35 Indicator and Display text Meaning warning lights is lit red. Severe insulation Insulation fault in the high- fault in high- voltage system voltage system. is lit yellow. Critical state of Charge level charge ( critical. lights up. is lit yellow. Fault in the elec- Fault in E- tric drive: Output...
  • Page 36 DISPLAYS Indicator and Display text Meaning warning lights is lit yellow. Charging sys- Charging tem overheated interruption, charg.sys. overheated. is lit yellow. Energy recovery Energy recovery limited ( limited. lights up. is lit yellow. High-voltage High-voltage safety plug safety plug disconnected disconnected.
  • Page 37 Indicator and Display text Meaning warning lights blinks ASC/DTC inter- rapidly. vention ( lights up. Limited ASC/ Traction con- DTC availability trol limited. is lit yellow. ASC/DTC failure Traction con- trol systems failed! lights up. is lit yellow. is displayed in yel- Tire pressure at low.
  • Page 38 DISPLAYS Indicator and Display text Meaning warning lights is lit yellow. Tire pressure con- Tire Press. trol (TPC) failed Monitor fail- ure! is lit yellow. Side stand Side stand mon- monitoring faulty itoring defec- tive. flashes. ABS self-diagno- sis not completed is lit yellow.
  • Page 39 Use a second ignition key. Have the faulty ignition key is less than: replaced, preferably by an au- Approx. 37 °F (Approx. 3 °C) thorized BMW Motorrad re- tailer. WARNING Outside temperature Risk of black ice, even The outside temperature is dis- above Approx.
  • Page 40 Have the LED light source faulty! replaced in full; for details Low beam faulty! please contact a specialist workshop, preferably an au- Front parking lamp thorized BMW Motorrad re- faulty! tailer. Tail light faulty! Light control unit failed is lit yellow. Brake light faulty!
  • Page 41 BMW Motorrad retailer. shop. This fault message is only Anti-theft alarm system shown for a short time battery is weak immediately following the Pre- with anti-theft alarm system Ride-Check. (DWA) Possible cause: Anti-theft alarm The anti-theft alarm system batt.
  • Page 42 Have the fault rectified as soon as possible by an autho- lights up. rized BMW Motorrad retailer. Severe insulation fault in the No communication high-voltage system with drive electron- is lit red.
  • Page 43 BMW Motorrad retailer. WARNING Critical state of charge Unusual handling when the is lit yellow. electric drive is in emer- gency operation Accident hazard Charge level criti- Avoid rapid acceleration and cal. Power reduced. passing maneuvers. Go to charging station.
  • Page 44 Possible cause: Contact a specialist workshop, A severe fault was detected preferably an authorized in the electric drive. Irregular BMW Motorrad retailer. handling may occur. Continued Connector fastener fault riding can result in damage to is lit yellow. the vehicle.
  • Page 45 Possible cause: preferably by an authorized A high temperature in the driv- BMW Motorrad retailer. etrain or cooling system was Energy recovery limited detected. is lit yellow. Ride in the partial load range if possible to cool the drive- Energy recovery lim- train.
  • Page 46 Possible cause: a specialist workshop, Due to a fault in the charging preferably an authorized infrastructure, the charging op- BMW Motorrad retailer. eration has been aborted or the charging operation could not Possible cause: be started. If the fault occurs while the...
  • Page 47 Possible cause: preferably an authorized Too many electrical consumers BMW Motorrad retailer. Continued riding is possible are turned on. Charge 12 V battery ( 157). until the battery is completely If the 12 V battery is no longer discharged, however it is not fully charging: recommended.
  • Page 48 DISPLAYS preferably an authorized ASC/DTC intervention BMW Motorrad retailer. blinks rapidly. ASC/DTC failure ASC/DTC has detected is lit yellow. instability at the rear wheel and responded by reducing lights up. the torque. The indicator and warning light blinks longer than Traction control the ASC/DTC intervention lasts.
  • Page 49 Tire pressure RDC sensor is not active with tire pressure monitor (TPM) min 19 mph (min 30 km/h) In addition to the MY VEHICLE (The RDC sensor transmits menu screen and the Check its signal to the vehicle only Control messages, there is also once the minimum speed has screen to TIRE PRESSURE...
  • Page 50 DISPLAYS Instrument cluster in the For more information about the TIRE view BMW Motorrad TPM, see the PRESSURE Sign on the inside of the hel- "Technology in detail" chapter met compartment flap starting on page ( 140). Tire pressure is outside the...
  • Page 51 Possible cause: age, preferably by an autho- The radio link to the TPM sen- rized BMW Motorrad retailer. sors is disrupted. There are If you are unsure whether the radio installation in the sur- tire is ridable: rounding area that are causing Do not continue riding.
  • Page 52 Have the malfunction cor- rected at a specialist work- TPM sensors battery shop, preferably an authorized low. Function lim- BMW Motorrad retailer. ited. Have checked by a specialist workshop. Sensor faulty or system fault This fault message is only with tire pressure monitor...
  • Page 53 Contact a specialist work- The ABS function is not avail- shop, preferably an authorized able, as the self-diagnosis BMW Motorrad retailer. function has not been com- Tire pressure warnings not pleted. (The E-Scooter must available. reach a specified minimum...
  • Page 54 Have the malfunction lights up. corrected as soon as possible at a specialist workshop, ABS Pro failure! On- preferably an authorized ward journey possi- BMW Motorrad retailer. ble. Ride carefully to ABS failure next specialist work- is lit yellow. shop. Possible cause: lights up.
  • Page 55 This situation can occur if the shop, preferably an authorized battery was disconnected. BMW Motorrad retailer. The operating safety and road Service due safety of the vehicle remains is displayed in white.
  • Page 56 OPERATION...
  • Page 57 STANDBY EMERGENCY-OFF SWITCH REVERSING LIGHTS HAZARD WARNING SYSTEM TURN SIGNALS RIDING MODE ANTI-THEFT ALARM SYSTEM (DWA) TIRE PRESSURE MONITOR (TPM) HEATING STORAGE COMPARTMENT HELMET COMPARTMENT...

  • Page 58: Standby

    OPERATION pocket) and to also carry the STANDBY spare key as an alternative. Ignition keys Range of Keyless Ride The indicator light for the radio-operated key radio-operated key flashes as long as the radio-operated Approx. 3.3 ft (Approx. 1 m) key is being searched for.
  • Page 59 There are two variants for There are two variants for turning on standby mode. turning off standby mode. Version 1: Version 1: Briefly press button 1. Briefly press button 1. Parking lights and all function Light is switched off. Steering lock is not locked. circuits are turned on.
  • Page 60 If you lose an ignition key, you can have it disabled by your authorized BMW Motorrad re- tailer. For this purpose, you must bring all of the motorcycle's remaining ignition keys with If you lose your keys, refer you.
  • Page 61 Period in which ride DANGER readiness can be estab- lished. Then unlocking must Swallowing a battery be repeated. Risk of injury or death An ignition key contains a 30 s button cell as a battery. Bat- Pre-Ride-Check is carried out. teries or button cells can be Radio-operated key was de- swallowed and cause severe...

  • Page 62: Emergency-Off Switch

    OPERATION ulations. Do not dispose of EMERGENCY-OFF SWITCH the battery in the household waste. ATTENTION Unsuitable or improperly in- serted batteries Component damage Use a battery compliant with the manufacturer's specifi- Emergency-off switch cations. When inserting the battery, The emergency-off switch 1 make sure that the polarity can be used to turn off the is correct.

  • Page 63: Reversing

    REVERSING Using reversing WARNING Reduced awareness of the E-Scooter in electric mode. Accident hazard With driving in electric The release is indicated in the mode, pedestrians and display by a with a down others on the road may not arrow icon 1. as aware of the E-Scooter Carefully actuate the E-gas because of its lack of engine...

  • Page 64: Lights

    OPERATION LIGHTS Low beams and parking lights The parking lights are automat- ically turned on as soon as the E-Scooter is operational. The parking lights then continue to glow for a short time. The low beams are automat- Immediately after turning off ically switched on as soon as standby mode, pull switch 1 the E-Scooter is ready to go.

  • Page 65: Hazard Warning System

    Switch standby mode on and then off again to switch off parking lights. HAZARD WARNING SYSTEM Operating the hazard warning system Turn on standby mode 52). Press button 1 to switch on The hazard warning flash- the hazard warning lights sys- ers place a strain on the tem.

  • Page 66: Riding Mode

    RIDING MODE Move button 1 to center posi- tion to turn off turn signals. Use of the riding modes BMW Motorrad has developed Comfort turn signals riding scenarios for your elec- tric scooter from which you can select the one matching your situation: ECO: Range-optimized riding.

  • Page 67: Anti-Theft Alarm System (Dwa)

    Press button 1. Press the button 1 repeatedly until the selection arrow is You can find more de- shown next to the desired rid- tailed information regard- ing mode. ing the selectable riding modes The selected riding mode is in the "Technology in detail" activated after approx.
  • Page 68 OPERATION radio-operated key again dur- ing the activation phase. Turn signals flash three times. Confirmation tone sounds three times (if programmed). Tilt sensor is deactivated. Alarm signal The DWA alarm signal can be triggered by: Turn off standby mode. Tilt sensor Press button 1 on the radio- Switch-on attempt with an operated key twice.
  • Page 69 5 blinks: Tilt sensor 3 rized BMW Motorrad retailer. Deactivation Version 1: Emergency-off switch in oper- ating position. Turn on standby mode 52). Turn signals blink once. Confirmation tone sounds once (if programmed).

  • Page 70: Tire Pressure Monitor (Tpm)

    OPERATION Adjusting the anti-theft alarm : Auto- Arm automatically system matic activation of the alarm function when standby mode is Turn on standby mode 52). turned off. Go to menu Settings TIRE PRESSURE MONITOR hicle settings Alarm (TPM) system The following settings are with tire pressure monitor available: (TPM)
  • Page 71 Operating the heating with heated grips with seat heating The heated grips and the seat heating are active only when standby is turned on. Switching on ride readiness 123). Press the button 1 repeat- edly until the desired heating level 2 is shown in front of the heated grip icon 3.

  • Page 72: Storage Compartment

    OPERATION STORAGE COMPARTMENT ATTENTION Using the storage compartment High temperatures in the Requirement storage compartments, es- Standby mode is turned on. pecially in summer Damage to objects housed here, particularly electronic devices such as cellular phones and MP3 players Refer to the operating instructions of the electronic device for possible usage restrictions.

  • Page 73: Helmet Compartment

    6.2 in (158 mm) x 3.1 in (78 mm) x 0.39 in (10 mm). For small mobile phones that might not be held securely by the holder, BMW Motorrad recommends the use of a BMW Motorrad smartphone case. Connect the charging cable...
  • Page 74 OPERATION Open helmet compartment Pull tab 1 in arrow direction, if flap 1 with button 2. necessary, using the on-board vehicle tool kit. The lighting of the storage Helmet compartment un- compartment is turned on locked. when standby is turned on. Installing side trim panel After standby is turned off, the 155).
  • Page 76 TFT DISPLAY...
  • Page 77 GENERAL NOTES PRINCIPLE PURE RIDE VIEW PURE VIEW SPLIT SCREEN GENERAL SETTINGS BLUETOOTH WIFI MY VEHICLE ON-BOARD COMPUTER NAVIGATION MEDIA PHONE DISPLAYING SOFTWARE VERSION DISPLAYING LICENSE INFORMATION...

  • Page 78: General Notes

    Connectivity functions may tem. be limited. BMW Motorrad WARNING Connected App With the BMW Motorrad Con- Distraction from traffic con- nected App, you can call up ditions and loss of control Risk of accident through the information about the vehicle use of integrated information and usage.

  • Page 79: Principle

    Reduce volume. cycle may vary from the de- scriptions in this rider's man- Tilt Multi-Controller to the ual. Updated information at: left: bmw-motorrad.com/service Activate the function accord- ing to the operating feedback. PRINCIPLE Activate function to the left or Operating elements back.
  • Page 80 TFT DISPLAY In Pure Ride view: Browse to Operating instructions in the the next split screen display. main menu Rocker button MENU functions Navigation instructions are displayed as a dialog if the menu has Navigation not been called up. Operation of the MENU rocker button is temporarily restricted.
  • Page 81 Operating instructions in Switching functions on and submenus In addition to the operating instructions in the main menu, there are additional operating instructions in submenus. Some items are preceded by a box. The box indicates whether the function is turned on or off.
  • Page 82 TFT DISPLAY Going to a menu Moving the mouse pointer in lists Show Pure (Ride) view 75). Going to a menu ( 76). Briefly press button 2 down- To move the mouse pointer ward. down in lists, turn the Multi- You can go to the following Controller 1 down until the menus:...
  • Page 83 Calling up the last menu used In the Pure Ride view: press and hold the bottom of the MENU rocker button. The last used menu is called up. The last marked entry is selected. Changing the status line display Press and hold button 1 to Requirement display the Pure Ride view.
  • Page 84 The vehicle is connected to state of charge and the range a compatible mobile end de- are displayed: vice. The BMW Motorrad Con- Battery state of charge nected app is installed on the mobile end device. Range...

  • Page 85: Pure Ride View

    Call up menu Settings PURE RIDE VIEW Display Drive display Switch Speed Limit Info on or off. Favourite button Range of energy recovery torque Current energy recovery In the menu Settings Sys- or drive torque tem settings Favourite Range of drive torque , select button Star...

  • Page 86: Pure View

    TFT DISPLAY Icon 3: Power is severely lim- PURE VIEW ited Display Limitations can have various causes. In addition to system faults that occur, the riding mode and marginal conditions such as the temperature or the battery charge can limit the power or the energy recovery.

  • Page 87: General Settings

    Alternative: Press the Multi- GENERAL SETTINGS Controller 1 to the right and Adjusting the volume hold it to return to the last Connect the rider's helmet selected display in the split and the passenger helmet screen. 84). The following displays can be Increase volume: Turn the selected: Multi-Controller up.
  • Page 88 TFT DISPLAY Setting the time format Chinese Japanese Call up menu Settings Korean System settings Date Thai and time Time format Select desired setting. Adjusting brightness Confirm setting. Call up menu Settings Setting the units of Display Brightness Adjust brightness. measurement The brightness of the display Call up menu...

  • Page 89: Bluetooth

    On some mobile devices, Although Bluetooth is designed e.g. with operating sys- for establishing robust con- tem iOS, the BMW Motorrad nections over short distances, Connected App must be called faults are possible as with any up before using.
  • Page 90 TFT DISPLAY Please consult the operating Select the mobile end device instructions for your communi- and confirm. Observe the instructions for cation system. the mobile end device. Pairing Confirm that the codes match. Call up menu Settings The connection is established Connections and the connection status is Bluetooth connections can...

  • Page 91: Wifi

    Select Pair new rider's WIFI helmet Pair new pas- WiFi connection and confirm. seng. helmet A WiFi connection is used to Helmets are searched for. transmit the map view from blinks in the lower status a mobile phone to the TFT line during pairing.

  • Page 92: My Vehicle

    TFT DISPLAY MY VEHICLE START SCREEN Check Control display Layout ( Status of coolant temper- ature ( Range ( Odometer Service display ( Rear tire pressure ( Status of high-voltage en- ergy storage system tem- perature Front tire pressure...
  • Page 93 Operating instructions The following screens are in- cluded in the My vehicle menu: MY VEHICLE ONBOARD COMPUTER TRIP COMPUTER with tire pressure monitor (TPM) TIRE PRESSURE SERVICE REQUIREMENTS CHECK CONTROL MESSAGE Operating instructions 1: present) Tabs that show how far to the More information about tire left or right you can browse.
  • Page 94 TFT DISPLAY Service requirements If the time remaining until the next service is less than a month, or if the next service is due within 700 mi (1000 km), a white Check Control message is displayed.

  • Page 95: On-Board Computer

    Consump. ON-BOARD COMPUTER Calling up the on-board Recuper. 1 computer Go to menu My vehicle Scroll to the right until the Calling up the travel on-board menu ONBOARD COMPUTER computer screen is displayed. Calling up the on-board com- As an alternative, the on- puter ( 89).

  • Page 96: Navigation

    On some mobile devices, Observe the valid road traf- e.g. with operating sys- fic regulations. Do not use any smartphone tem iOS, the BMW Motorrad while riding. Applications Connected App must be called that do not involve operation up before using.
  • Page 97 Go to the BMW Motorrad Select Start guidance Connected app and start the Entering special destinations route guidance. Special destinations, e.g. land- Go to menu Navigation marks, can be displayed on the TFT display. the map. Active route guidance is dis-...

  • Page 98: Media

    Connect the rider's helmet and the passenger helmet 84). Go to menu Media The navigation can be read BMW Motorrad recom- out by a computer voice. mends setting the volume To do this, the Spoken for media and conversations via...

  • Page 99: Phone

    Select Ending a call: Tilt Multi-Con- Playlists troller 1 to the left. In the sub- Audio settings Mute menu you can adjust the fol- The microphone in the helmet lowing settings: can be muted during active Turn on or off. Shuffle : Select conversations.

  • Page 100: Displaying License Information

    TFT DISPLAY DISPLAYING LICENSE INFOR- MATION Call up menu Settings formation Licenses...
  • Page 102 SETTING...
  • Page 103 MIRRORS HEADLIGHTS SPRING PRELOAD...
  • Page 104 Adjusting the mirror arm If you are not sure about the correct headlight range setting, contact a BMW Motorrad part- ner. Adjusting the headlight range Removing the front-fairing panel ( 154).
  • Page 105 Have the headlight base set- ting restored by a specialist Loosen lock nut 2. workshop, preferably an au- To increase the spring thorized BMW Motorrad re- preload, turn the adjusting tailer. ring in the arrow direction A using the on-board vehicle tool kit 1.
  • Page 106 SETTING Basic setting of spring preload, rear Spring length in base setting 257.5 mm (filled up with fuel, with rider weighing 85 kg) Spring length in base setting 257.5 mm (One-up without load) Spring length in base set- ting 247.5 mm (One-up with load) Spring length in base setting 227.5 mm (Two-up mode...
  • Page 108 BMW EPOWER...
  • Page 109 PRINCIPLE GENERAL NOTES CHARGING CABLE CHARGING PROCEDURE...
  • Page 110 BMW EPOWER a generator and converts into PRINCIPLE electricity some or all of the en- The vehicle can be operated ergy of motion released. This completely emission-free partly recharges the high-volt- thanks to its electrical drive age energy storage system, en- system.
  • Page 111 ATTENTION DANGER Failure to check the charg- Improper cleaning of charg- ing equipment before oper- ing connection. Injury or damage as a result, ating the vehicle Damage and excessive strain for example, of electric shock on the power supply or fire. Before the first charging Have the charging connec- procedure have your charg-...
  • Page 112 BMW EPOWER or replace the components Secure the accident scene. Immediately inform emer- (connector, coupling or Inca- gency services personnel, po- ble Modul). lice officers or fire fighters What to do in the event of an that the vehicle has a high- accident voltage system.
  • Page 113 The charging cable can be ATTENTION stored away in the helmet compartment. Improper use of the charg- As an alternative, use a per- ing cable manently installed cable of a Damage as a result, for exam- charging station. ple, of a cable fire Only use the charging cable Standard charging cable to charge the E-Scooter.
  • Page 114 BMW EPOWER ATTENTION No adaptation of the charge current to the electrical grid Risk of fire e.g. from over- heating the domestic socket outlet or excessive load on the electrical grid Before charging at domestic 1: Power supply from the do-...
  • Page 115 The standard charging settings Chrg. curr. cable is not functional at limit temperatures below -26 °F (- If the domestic socket 32 °C). Store the charging ca- outlet or the charging ble in a location with an am- station supplies a deviating bient temperature between charge current, the respective -26 °F (-32 °C) and 104 °F...
  • Page 116 BMW EPOWER If the domestic socket outlet or the charging ATTENTION station supplies a deviating No adaptation of the charge charge current, the respective current to the electrical grid lower charge current is used Risk of fire e.g. from over- for charging.
  • Page 117 Disconnect the standard Have the fault rectified as charging cable from the soon as possible by an autho- voltage supply by pulling the rized BMW Motorrad retailer. connector out of the domestic socket outlet. Re-insert the plug after 10 seconds.
  • Page 118 BMW EPOWER Pay attention to the displays The icon 1 for the state of on the charging cable. charging plug detection ap- The standard charging cable pears. The state of charge 2 automatically carries out all and the range 7 are displayed.
  • Page 119 with quick charger A check is carried out to see if there is a ground wire con- nection The prerequisites for correct charging are checked To display the current state of charge again, briefly press the button. MENU If the charging time is longer than expected, check the The display shows whether configured...
  • Page 120 BMW EPOWER charging station, put it in the designated place. Performing emergency release of charging plug Removing the front-fairing panel ( 154). Press the release button 3 and detach the charging cable 2 from the charging socket 1 on the E-Scooter.
  • Page 122 RIDING...
  • Page 123 SAFETY INSTRUCTIONS OBSERVE CHECKLIST BEFORE EVERY RIDE: AT EVERY 10TH CHARGING PROCEDURE ESTABLISHING RIDE READINESS RIDING THE ELECTRIC SCOOTER BREAKING IN BRAKES PARKING THE E-SCOOTER SECURING THE E-SCOOTER FOR TRANSPORTATION...

  • Page 124: Safety Instructions

    Your authorized Accident hazard BMW Motorrad retailer will be Do not exceed the gross happy to advise you and has weight limit and observe the the correct clothing for every loading information.

  • Page 125: Observe Checklist

    Modifications Payload of the helmet compartment ATTENTION max 18 lbs (max 8 kg) Modifications to the E- with topcase Scooter Observe the maximum pay- Damage to the affected parts, load of the topcase. failure of safety-relevant func- Payload of Vario topcase tions.

  • Page 126: At Every 10Th Charging Procedure

    149). at a specialist workshop, ESTABLISHING RIDE READI- preferably an authorized NESS BMW Motorrad retailer. Pre-Ride-Check Depending on the riding After standby mode is turned mode or its configuration, on, the instrument cluster the intervention of electronic...
  • Page 127 If an ABS error is displayed af- The self-diagnosis rou- ter the ABS self-diagnosis is tine determines whether completed: BMW Motorrad ABS is ready You may continue riding. It for operation. The self-diagno- must be noted that the avail- sis routine runs automatically ability of the ABS function is when you turn on standby.

  • Page 128: Riding The Electric Scooter

    All systems are at a specialist workshop, operational. Pressing the preferably an authorized emergency-off switch will BMW Motorrad retailer. deactivate the E-Scooter. E-Scooter ready for operation If temperatures are low After carrying out the Pre-Ride- (below 32 °F (0 °C)), the...
  • Page 129 In exceptional cases, the ABS self-diagnosis is per- high-voltage energy stor- formed. ( 121) ASC/DTC self-diagnosis is age system may heat up signif- performed. ( 121) icantly while the vehicle is not Apply the brake. in motion (i.e. in extreme out- side temperatures and direct sunlight).
  • Page 130 RIDING deceleration will be similar to Riding with ePOWER light braking. Energy can be recovered if the WARNING following conditions are met: Reduced awareness of the E-Scooter is in motion. E-Scooter in electric mode. Speed greater than approx. Accident hazard 3 mph (approx.

  • Page 131: Breaking In

    driving situations may be suit- able for this purpose: WARNING Deceleration on a route seg- Loss of adhesion of new ment on a slope tires on wet roads and at Deceleration before a red extreme angles light Accident hazard Avoid late or heavy braking. Always think well ahead and Instead, decelerate the vehicle avoid extreme angles.

  • Page 132: Parking The E-Scooter

    RIDING creased deceleration, and the brake force cannot be fully WARNING transmitted to the road. Poorer braking action due to Descending mountain passes moisture and dirt Accident hazard WARNING Brake until brakes are dry or clean; clean if necessary. Braking only with the rear- Brake early until the full wheel brake when descend- braking action is available...

  • Page 133: Securing The E-Scooter For Transportation

    ing so, lift the E-Scooter only by the passenger grab han- ATTENTION dles or the grab handles on Loading of the side stand the topcase carrier. with additional weight Component damage cause by SECURING THE E-SCOOTER tipping over FOR TRANSPORTATION Do not sit on the motorcy- Protect all component sur- cle when it is parked on the...
  • Page 134 RIDING in position; do not place it on the side stand or center stand. Secure the rear left tensioning belt at the retaining plate of the footrest. Tension all tensioning belts ATTENTION evenly; the E-Scooter should be pulled down with maxi- Pinching of components mum spring compression.
  • Page 136 TECHNOLOGY IN DETAIL...
  • Page 137 GENERAL NOTES ANTILOCK BRAKING SYSTEM (ABS) TRACTION CONTROL (ASC/DTC) ENERGY RECOVERY STABILITY CONTROL (RSC) RIDING MODE DYNAMIC BRAKE CONTROL TIRE PRESSURE MONITOR (RDC) ADAPTIVE HEADLIGHT...

  • Page 138: General Notes

    At this the coefficient of friction of the point, the BMW Motorrad ABS road surface. Gravel, ice, snow must assume extremely low and wet roads offer a consider-...
  • Page 139 Apart from problems with the characteristics of the BMW Motorrad ABS, unusual BMW Motorrad ABS? riding conditions can also The BMW Motorrad ABS en- cause a fault memory entry to sures riding stability on any sur- be generated: face within the limits of riding Riding on the rear wheel physics.
  • Page 140 Further development of ABS preventive maintenance? to ABS Pro with riding modes Pro WARNING In the past, the BMW Motorrad ABS system provided for a very Brake system not regularly high level of safety while brak- serviced ing during straight-ahead rid- Accident hazard ing.

  • Page 141: Traction Control (Asc/Dtc)

    ABS control the slip limit is exceeded. is more uniform. The BMW Motorrad ASC/DTC Advantages for the rider is designed as an assistance The advantages of ABS Pro for system for the rider and for the rider are sensitive response riding on public roads.
  • Page 142 BMW Motorrad recommends or the DTC function is turned that you respond to the front off. In these cases, a DTC error wheel lifting off by easing off is displayed.

  • Page 143: Energy Recovery Stability Control (Rsc)

    Hard brake onset in sporty riding experience, you can se- riding style. lect from the following riding Like the BMW Motorrad DTC modes: traction control, the energy re- Standard covery stability control com- RAIN...
  • Page 144 TECHNOLOGY IN DETAIL with riding modes Pro With Pro riding modes Rear wheel lift-off detection is DYNAMIC active in all riding modes. In the ECO, RAIN, ROAD and For each of these riding modes, DYNAMIC riding modes, the there is a coordinated set- ABS is set for road use.

  • Page 145: Dynamic Brake Control

    without traction is avoided Detection of emergency wherever possible. braking In all riding modes, the front Emergency braking is de- wheel is prevented from lift- tected when the front wheel off. brake is applied quickly and with force. Switchover Riding modes can be changed Behavior during emergency during a standstill with standby braking...

  • Page 146: Tire Pressure Monitor (Rdc)

    TECHNOLOGY IN DETAIL If the emergency braking is some time after the vehicle stopped and the E-gas elec- comes to a stop. tronic throttle twistgrip is still Transmission time of under actuation, the Dynamic the measured values af- Brake Control reduces the ter vehicle standstill: electrical machine torque as min 15 min...

  • Page 147: Adaptive Headlight

    The tire pressures Example are shown in the TFT display with temperature The following value is dis- compensation and are always played in the TFT display: based on the following tire 33.4 psi (2.3 bar) air temperature: The shortfall is thus: 68 °F (20 °C) 2.9 psi (0.2 bar) Tire pressure gauges at gas...
  • Page 148 TECHNOLOGY IN DETAIL Adaptive Headlights, the dim- ming unit additionally rotates around an axis, depending on the angle, and compensates for the angle of roll of the vehicle. The angle of rotation is 70° (±35°). In addition to the pitching com- pensation, the low-beam head- light is subject to compensa- tion for the angle at which rid-...
  • Page 150 MAINTENANCE...
  • Page 151 GENERAL NOTES STANDARD TOOL KIT BRAKE SYSTEM COOLANT TIRES RIMS AND TIRES LIGHT SOURCES TRIM PANEL COMPONENTS BATTERY FUSES DIAGNOSTIC SOCKET...

  • Page 152: General Notes

    BMW Motorrad re- effort. tailer. If specific tightening torques are to be taken into account for DANGER installation, these are listed.

  • Page 153: Standard Tool Kit

    E-Scooter will not move. the high-voltage system If no clear resistance points can should only be performed be felt and the scooter can be by a BMW Motorrad partner moved: with appropriately trained Have the brakes checked by a staff.
  • Page 154 Direction of view: from rear, ness. looking at brake pads 1. Have brake pads renewed at a specialist workshop, preferably an authorized BMW Motorrad retailer. BMW Motorrad recommends only installing genuine brake pads. Checking the rear brake pad thickness Front brake-pad wear...
  • Page 155 1. Have brake pads renewed at a specialist workshop, preferably an authorized BMW Motorrad retailer. BMW Motorrad recommends only installing genuine brake pads. Checking the front and rear wheel brake fluid level Rear brake-pad wear...
  • Page 156 MAINTENANCE WARNING Insufficient or contaminated brake fluid in the brake fluid reservoir Considerably reduced braking power caused by air, dirt or water in the brake system Stop riding immediately until Read off the brake fluid level fault is rectified. from the sight glass 1 of the Check brake fluid level regu- left/right brake fluid reservoir.

  • Page 157: Coolant

    If the brake fluid level falls be- low the approved level: Have the fault rectified as soon as possible by a spe- cialist workshop, preferably an authorized BMW Motorrad re- tailer. COOLANT Checking the coolant level Target coolant level in...

  • Page 158: Tires

    MAINTENANCE WARNING Automatic opening of verti- cally installed valve inserts at high speeds Sudden loss of tire inflation pressure Use valve caps with rubber sealing ring and screw on Open the cap 1. firmly. Top up coolant to specified level. Check tire pressure against data below.

  • Page 159: Rims And Tires

    Visually inspect rims for de- Tire recommendation fects. For every tire size, Have damaged rims checked BMW Motorrad has by a BMW Motorrad partner tested and approved certain and replaced, if necessary. tire brands as roadworthy. BMW Motorrad cannot evaluate Checking tire tread depth...

  • Page 160: Light Sources

    If an LED light source is faulty, please contact a spe- cialist workshop, preferably an authorized BMW Motorrad re- tailer. Position front-fairing panel 1 in arrow direction. Feed in front-fairing panel 1...
  • Page 161 Clip the front-fairing panel 1 into the clips 2 with gentle pressure. Removing side trim panel Remove screws 1. Push back the trim panel component and remove the screw 2. Remove the cover 3. Remove screw 2. Installing side trim panel Remove side trim panel 1.

  • Page 162: Battery

    MAINTENANCE BATTERY General notes Correct maintenance combined with proper charging and stor- age procedures extends the 12 V battery's service life, and is also required for warranty claims. Compliance with the points Install screws 2. below is important in order to Position battery cover 1.
  • Page 163 The recharging function the recharging function can al- is active in the following ways be activated as necessary. situations: Charge 12 V battery While the vehicle is in motion: The 12 V battery is recharged ATTENTION if necessary. During the charging process: Charging of the connected The 12 V battery is recharged 12 V battery on the battery...
  • Page 164 Damage to charger and vehi- on, the battery is completely cle electronics discharged. The disconnected Use suitable BMW chargers. 12 V battery must be charged The correct charger is avail- directly via the terminals. able through your authorized If the TFT display is switched BMW Motorrad retailer.

  • Page 165: Fuses

    Push together the left and Install the retainer 1 on the right clips on the retainer 1 12 V battery. and remove it. ATTENTION ATTENTION Incorrect battery connection Danger of short circuit Incorrect battery disconnec- Follow the installation se- tion quence.
  • Page 166 Replace faulty fuse 1. If the fuses blow frequently, have the electrical system checked by an authorized specialized workshop, preferably an authorized BMW Motorrad retailer. Main fuse ATTENTION Bypassing defective fuses 40 A (Main fuse) Risk of short circuit and fire...
  • Page 167 7.5 A (Terminal 30C, mul- by an authorized specialized tifunction switch left, high- workshop, preferably an voltage safety plug, EME, on- authorized BMW Motorrad board charger) retailer. Fuse 6 Fuse 1 Not in use 15 A (EME, relay terminal 30...

  • Page 168: Diagnostic Socket

    Vehicle experiences malfunc- tion system. tions Do not have the diagnos- tic socket disconnected ex- cept during BMW Motorrad service by a specialist work- shop or other authorized persons. Have work carried out by appropriately trained per- sonnel.
  • Page 170 ACCESSORIES...
  • Page 171 GENERAL NOTES SOCKETS TOPCASE...
  • Page 172 BMW Motorrad recommends the use of parts and acces- Use of products from other sories for your vehicle that are manufacturers approved by BMW for this pur- Safety risk BMW Motorrad cannot ex- pose. Your authorized amine or test each product...
  • Page 173 SOCKETS TOPCASE Connecting electrical devices with topcase Standby mode must be turned Opening the topcase on before electrical devices connected to the on-board power sockets can be oper- ated. Operating electrical acces- sories The battery capacity is not monitored when 12 V sock- ets are in use.
  • Page 174 ACCESSORIES Lock swivel arm 1 into its most forward position to ob- ATTENTION tain the largest volume. Folding down the carrying Lock swivel arm 1 as far back handle when the case is as it goes to obtain the small- locked est volume.
  • Page 175 Press and hold the yellow lock 2 and open the carrying handle 3. Mount topcase onto the front brackets 1 of the topcase re- taining plate. Push the rear of the topcase Pull back red lever 1. onto the topcase retaining Locking mechanism 2 springs plate.
  • Page 176 ACCESSORIES ATTENTION Folding down the carrying handle when the case is locked Damage to the locking tab Before folding down the carrying handle, make sure that the slot of the case lock is perpendicular to the di- rection of travel. Shut the carrying handle 1.
  • Page 178 CARE...
  • Page 179 CARE PRODUCTS WASHING THE VEHICLE CLEANING SENSITIVE VEHICLE PARTS CARE OF PAINTWORK PAINT PRESERVATION STORING THE E-SCOOTER PUT THE E-SCOOTER INTO OPERATION...

  • Page 180: Care Products

    WASHING THE VEHICLE BMW Motorrad recommends BMW Motorrad recommends that you use cleaning and care that you use BMW Insect Re- products available at your au- mover to soften and wash off thorized BMW Motorrad re- insects and stubborn dirt from tailer.

  • Page 181: Cleaning Sensitive Vehicle Parts

    ATTENTION face. Increased effect of salt Clean plastic parts with water caused by warm water and BMW plastic care emul- Corrosion sion. This includes in particular: Only use cold water to re- Windshields and wind deflec- move road salt.

  • Page 182: Care Of Paintwork

    CARE OF PAINTWORK is required in particular for Washing the motorcycle reg- removing road salt. ularly will help counteract the Use BMW Motorrad metal pol- long-term effects of substances ish for additional treatment. that damage the paint, espe- Radiator cially if your motorcycle is rid-...

  • Page 183: Paint Preservation

    STORING THE E-SCOOTER or cotton ball. BMW Motorrad recommends removing tar ATTENTION stains with BMW tar remover. Then add a protective wax Damage to the high-voltage coating to the paint at these battery from excess electro- locations.

  • Page 184: Put The E-Scooter Into Operation

    CARE Preserve bare metal and chrome-plated parts with an acid-free grease (Vaseline). Park E-Scooter in a dry room, raising it to relieve the weight from both wheels. PUT THE E-SCOOTER INTO OPERATION Remove the protective wax coating. Clean the E-Scooter. Checklist ( 119).
  • Page 186 TECHNICAL DATA...
  • Page 187 TROUBLESHOOTING CHART CHARGING DRIVETRAIN TRANSMISSION REAR-WHEEL DRIVE FRAME CHASSIS BRAKES WHEELS AND TIRES ELECTRICAL SYSTEM ANTI-THEFT ALARM SYSTEM DIMENSIONS WEIGHTS PERFORMANCE DATA...

  • Page 188: Troubleshooting Chart

    TECHNICAL DATA TROUBLESHOOTING CHART Ride readiness cannot be turned on: Possible cause Remedy Side stand folded out Fold in side stand. Start without applying brake Start with one brake lever ap- plied. 12 V battery dead Charge 12 V battery ( 157).
  • Page 189 93). Active route guidance is not displayed in the TFT display. Possible cause Remedy Navigation from the Call up the BMW Motorrad BMW Motorrad Con- Connected App on the con- nected App was not nected mobile end device be- transferred.
  • Page 190 TECHNICAL DATA The playlist is not displayed in the TFT display. Possible cause Remedy There are too many tracks in Reduce the number of tracks the playback list on the mobile in the playback list on the mo- end device. bile end device.

  • Page 191: Charging

    CHARGING Total capacity of the high-volt- 60.6 Ah age battery Note on charging time The information on the charg- ing time assumes that the nominal charge current is used for the charging operation. Temperatures and the se- lected charging infrastructure, charging cables and charging current limit can extend the charging time.

  • Page 192: Transmission

    TECHNICAL DATA TRANSMISSION Transmission design 1-speed manual transmission integrated in engine housing REAR-WHEEL DRIVE Type of final drive Toothed belt drive Type of rear-wheel guide Single arm aluminum alloy casting swingarm with rear wheel axle adjustable eccentric FRAME Frame design Steel-double cradle frame Location of type plate Frame at front right on steer-...

  • Page 193: Brakes

    WHEELS AND TIRES Recommended tire combina- An overview of the current tions tire approvals is available from your authorized BMW Motorrad retailer or on the Internet at bmw-motorrad.com. Speed category of front/rear H, minimum requirement: tires 130 mph (210 km/h)

  • Page 194: Electrical System

    TECHNICAL DATA Front wheel Front wheel design Aluminum cast wheel Front-wheel rim size 3.50" x 15" Front tire designation 120/70 R 15 Load index for front tire Permitted front wheel imbal- max 0.2 oz (max 5 g) ance Rear wheel Rear wheel design Aluminum cast wheel Rear-wheel rim size...
  • Page 195 Fuse 2 7.5 A, Terminal 30B, EME, An- tilock Braking System (ABS), sensor box, seat heating, USB charging compartment, TPM, storage compartments Fuse 3 10 A, EME Fuse 4 7.5 A, Terminal 30, cut-off re- lay terminal 30B, anti-theft alarm system, vehicle lock, instrument cluster, on-board charger, diagnostic connector Fuse 5...

  • Page 196: Anti-Theft Alarm System

    TECHNICAL DATA ANTI-THEFT ALARM SYSTEM with anti-theft alarm system (DWA) Activation time Approx. 30 s Alarm duration Approx. 26 s Battery type CR 123 A DIMENSIONS Motorcycle length 90 in (2285 mm), over license-plate carrier Motorcycle height 45.3 in (1150 mm), over windshield, at DIN unloaded vehicle weight with windshield, high...

  • Page 197: Weights

    WEIGHTS Unloaded vehicle weight 516 lbs (234 kg), DIN un- loaded vehicle weight, ready for road, 90% full tank of gas, without OE Gross vehicle weight 904 lbs (410 kg) Maximum payload 388 lbs (176 kg) Payload of Vario topcase with topcase max 11 lbs (max 5 kg) Payload of the helmet com-...
  • Page 198 SERVICE...
  • Page 199 REPORTING SAFETY DEFECTS BMW MOTORRAD SERVICE BMW MOTORRAD SERVICE HISTORY BMW MOTORRAD MOBILITY SERVICES MAINTENANCE WORK MAINTENANCE SCHEDULE MAINTENANCE CONFIRMATIONS SERVICE CONFIRMATIONS...

  • Page 200: Reporting Safety Defects

    However, the NHTSA cannot be- come involved in individual problems between you, your autho- rized BMW Motorrad retailer, or BMW of North America, LLC. You can contact the NHTSA by calling the Vehicle Safety Hot- line on 1–888–327–4236 (Teletypewriter TTY for the hearing impaired: 1–800–424–9153) for free, by visiting the website at...

  • Page 201: Bmw Motorrad Service

    (eSH), service-related data is preferably by an authorized stored on the central IT sys- BMW Motorrad retailer. tems of BMW AG in Munich, Germany. To ensure that your BMW is When there is a change in always in optimum condition,...

  • Page 202: Bmw Motorrad Mobility Services

    A BMW Motorrad retailer MAINTENANCE WORK or specialist workshop can BMW pre-delivery check view the data entered in the The BMW pre-delivery check is electronic Service History. carried out by your authorized Objection BMW Motorrad retailer before At the BMW Motorrad retailer...
  • Page 203 More information on the topic of service is available at: bmw-motorrad.com/service The required scope of mainte- nance work for your vehicle can be found in the following main- tenance schedule:...

  • Page 204: Maintenance Schedule

    SERVICE MAINTENANCE SCHEDULE BMW Motorrad break-in service Standard scope of BMW Motorrad service Replace belt Change brake fluid in the entire system Change transmission oil For the first time at BMW Motorrad break- in inspection if vehicle production date dates...

  • Page 205: Maintenance Confirmations

    MAINTENANCE CONFIRMATIONS BMW Motorrad Service standard scope The repair procedures belonging to the BMW Motorrad Service standard package are listed below. The actual maintenance work applicable for your vehicle may differ. Checking charging state of battery Performing the vehicle test using the BMW Motorrad diagnostic...
  • Page 206 SERVICE BMW pre-delivery check BMW running-in check performed performed at km Next service latest or, if reached earlier at km Stamp, signature Stamp, signature...
  • Page 207 BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Replacing belt Changing brake fluid in entire system Changing gear oil Stamp, signature Notes...
  • Page 208 SERVICE BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Replacing belt Changing brake fluid in entire system Changing gear oil Stamp, signature Notes...
  • Page 209 BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Replacing belt Changing brake fluid in entire system Changing gear oil Stamp, signature Notes...
  • Page 210 SERVICE BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Replacing belt Changing brake fluid in entire system Changing gear oil Stamp, signature Notes...
  • Page 211 BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Replacing belt Changing brake fluid in entire system Changing gear oil Stamp, signature Notes...
  • Page 212 SERVICE BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Replacing belt Changing brake fluid in entire system Changing gear oil Stamp, signature Notes...
  • Page 213 BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Replacing belt Changing brake fluid in entire system Changing gear oil Stamp, signature Notes...
  • Page 214 SERVICE BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Replacing belt Changing brake fluid in entire system Changing gear oil Stamp, signature Notes...
  • Page 215 BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Replacing belt Changing brake fluid in entire system Changing gear oil Stamp, signature Notes...
  • Page 216 SERVICE BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Replacing belt Changing brake fluid in entire system Changing gear oil Stamp, signature Notes...

  • Page 217: Service Confirmations

    SERVICE CONFIRMATIONS The table serves to provide evidence of maintenance and repair work, as well as installed optional accessories and special cam- paigns performed. Work performed at km Date...
  • Page 218 SERVICE Work performed at km Date...
  • Page 220 CERTIFICATE...
  • Page 221 BMW CE 04 BATTERY CERTIFICATE FOR HIGH-VOLT- AGE CELL MODULE TERMS AND CONDITIONS...
  • Page 222 The selling BMW Motorrad purchaser shall be reimbursed partner grants the purchaser of the cost of towing it to the a new BMW CE 04 vehicle the nearest BMW CE 04 service following performance guar- station. antees with respect to high- voltage cell modules in ad- 4.
  • Page 223 BMW CE 04 Battery Certificate ation, maintenance and care require that maintenance be of the BMW CE 04 vehicle (in carried out at the intervals particular, in accordance with specified by the manufacturer the Rider's Manual) have not...
  • Page 224 CERTIFICATE * Sales markets are: Andorra, Austria, Belgium, China, Ger- many, France, Great Britain, Ire- land, Italy, Japan, Korea, Liecht- enstein, Luxembourg, Monaco, the Netherlands, Portugal, Rus- sia, San Marino, Switzerland, Spain and the US.
  • Page 226 CERTIFICATE FOR ELECTRONIC IMMOBILIZER CERTIFICATE FOR KEYLESS RIDE CERTIFICATE FOR TIRE PRESSURE MONITOR CERTIFICATE FOR TFT INSTRUMENT CLUSTER...
  • Page 227 Declaration of Conformity Radio equipment electronic United Arab Emirates immobiliser (EWS4) For all countries without EU Technical information Frequency Band: 134 kHz (Transponder: TMS37145 / Type DST80, TMS3705 Transponder Base Station IC) Philippiens Output Power: 50 dBµV/m Manufacturer and Address Manufacturer: BECOM Electronics GmbH Address: Technikerstraße 1,...
  • Page 228 Indonesia Taiwan 72790/SDPPI/2021 13349 低功 電波 射性電機管 辦法 第十二條 經型式認證合格之低 功率射頻電 機，非經許可，公 司、商號或使用者均不得擅 自變 更頻率、加大功率或變更原設計 之特性及 功能。第十四條 低功 Dilarang melakukan perubahan 率射頻電機之使用不 得影響飛航 Spesifikasi yang dapat 安全及干擾合法通信；經發現有 Menimbulkan gangguan fisik 干 擾現象時，應立即停用，並改 dan/atau elektromagnetik 善至無干擾時方 得繼續使用。 前 terhadap lingkungan sekitarnya 項合法通信，指依電信法規定作...
  • Page 229 United States (USA) Canada Contains FCC ID: Contains IC: ODE-MREWS5012 10430A-MREWS5012 FCC § 15.19 Labelling This device complies with part 15 requirements of the FCC Rules and Industry This device complies with part Canada license-exempt RSS 15 of the FCC Rules and Industry standard(s).
  • Page 230 Certifications BMW Keyless Ride ID Device USA, Canada: Product name: BMW Keyless Ride ID Device FCC ID: YGOHUF5750 IC: 4008C-HUF5750 Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 231 USA: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Argentina: H-17115...
  • Page 232 Declaration Of Conformity We declare under our responsibility that the product BMW Keyless Ride ID Device (Model: HUF5750) camplies with the appropriate essential requirements of the article 3 of the R&TIE and the other relevant provisions, when used for its intended purpose.
  • Page 233 The product is Iabeted with the CE marking: Velbert, October 15 th , 2013 Benjamin A. Müller Product Development Systems Car Access and Immobilization - Electronics Huf Hülsbeck & Fürst GmbH & Co. KG Steeger Straße 17, D-42551 Velbert...
  • Page 234 Certification Tire Pressure Control (TPC) FCC ID: MRXBC54MA4 FCC ID: MRXBC5A4 IC: 2546A-BC54MA4 IC: 2546A-BC5A4 This device complies with Part 15 Le présent appareil est conforme of the FCC Rules and with aux CNR d'Industrie Canada Industry Canada license-exempt applicables aux appareils radio RSS standard(s).
  • Page 235 Declaration of Conformity Turkey Radio equipment TFT Robert Bosch GmbH, ICC10in tipi instrument cluster telsiz sisteminin 2014/53/EU nolu yönetmeliğe uygun olduğunu beyan For all Countries without EU eder. AB Uygunluk Beyanı'nın tam metni, aşağıdaki internet adresinden Model name: ICC10in görülebilir: http://cert.bosch- Technical information carmultimedia.net The ICC10in can operate in...
  • Page 236 Canada L’émetteur/récepteur exempt de This device contains licence- licence contenu dans le présent exempt transmitter(s)/ appareil est conforme aux CNR receiver(s) that comply with d’Innovation, Sciences et Développement économique Innovation, Science and Economic Development Canada applicables aux Canada’s licence-exempt RSS(s). appareils radio exempts de licence.
  • Page 237 United States (USA) However, there is no guarantee This device complies with part that interference will not occur in 15 of the FCC Rules. Operation a particular installation. If this is subject to the following two equipment does cause harmful conditions: interference to radio or television reception, which can be...
  • Page 238 （適合証明番号などが無効となりま Taiwan, Republic of す。） 取得審驗證明之低功率射頻器材， 201-200559 非經核准，公司、商號或使用者均 不得擅自變更頻率、加大功率或變 20 0138 201 更原設計之特性及功能。低功率射 頻器材之使用不得影響飛航安全及 Korea 干擾合法通信；經發現有干擾現象 Equipment Name: BMW A-Kombi 時，應立即停用，並改善至無干擾 Basic model number: ICC10in 時方得繼續使用。前述合法通信， 指依電信管理法規定作業之無線電 Manufacturer/Country of Origin: 通信。低功率射頻器材須忍受合法 Robert Bosch GmbH / 通信或工業、科學及醫療用電波輻 Zertifikatsnummer: 射性電機設備之干擾。 R-R-BO2-ICC10in Serbia...
  • Page 240 INDEX Brake fluid 12 V battery Checking the front wheel Replacing, 158 brake fill level, 149 12 V socket Checking the rear wheel Information on use, 167 brake fill level, 149 Position on vehicle, 15 Rear wheel brake reser- voir, 14, 15 Abbreviations and symbols, 4 Brake pads Breaking in, 125...
  • Page 241 Charging process Emergency-off switch, 17 Ending, 113 Operating, 56 Starting, 109 Energy recovery Indicator light, 39 Chassis Technical data, 186 Limitation, 79 Check Control Engine Dialog, 26 Drive malfunction warning Display, 26 light, 35 Checklist, 119 Equipment, 5 Clock E-Scooter Adjusting, 81 Cleaning, 172 Coolant...
  • Page 242 INDEX Headlight Light source defect, 33 Headlight range, 98 My Vehicle, 86 Headlight courtesy delay Outside temperature feature, 58 warning, 33 Headlight range Overview, 22 Adjustment elements, 14 TPM Tire Pressure Moni- Heated grips tor, 44 Operating, 64 Instrument cluster Ambient light sensor, 18 Helmet Stowing, 67...
  • Page 243 Luggage Outside temperature Loading information, 118 Display, 33 Overview of warning indicators, 28 Maintenance Overviews General notes, 146 Indicator and warning Maintenance schedule, 198 lights, 22 Maintenance confirma- Instrument cluster, 18 tions, 199 Left multifunction switch, 16 Maintenance intervals, 196 Left side of vehicle, 14 Media My Vehicle, 86...
  • Page 244 INDEX State of charge Indicator light, 37 Technology in detail, 140 Status bar, top Warning lights, 44 Setting, 77 Rear-wheel drive Storage compartment Technical data, 186 Emergency unlocking, 68 Remote control Helmet, 67 Replacing the battery, 55 Operating, 66 Reverser Operating element, 16 Position on vehicle, 15 Reversing...
  • Page 245 Selecting a display, 73 Turning on the split screen display, 80 Tire Pressure Control TPC/RDC Display, 43 Tires Breaking in, 125 Checking tire pressure, 152 Checking tread depth, 153 Recommendations, 153 Tire pressures, 188 Topcase Operating, 167 Traction Control ASC, 135 DTC, 135 Transmission Technical data, 186...
  • Page 246 Further information is avail- able at: © 2021 Bayerische Motoren www.P65Warnings.ca.gov/ Werke Aktiengesellschaft passenger_vehicle 80788 Munich, Germany Reprinting, in whole or in part, is only permitted with the written permission of BMW Motorrad, Aftersales. Original Rider's Manual, printed in Germany.
  • Page 247 36.3 psi (2.5 bar), One-up mode, with cold tires 36.3 psi (2.5 bar), Two-up mode with load, with cold tires You can find further information on all aspects of your vehicle at: bmw-motorrad.com Order No.: 01 40 7 924 827 *01407924827* 06.2021, 1st edition, 07...

Table of Contents

Save PDF
