REVLON Jumbo Waver RVIR3056UKE - Tourmaline Ceramic Wave Master Manual

Tourmaline Ceramic Coating

The Tourmaline Ceramic coating helps protect hair from over-styling with even heat distribution that penetrates hair quickly and styles from the inside out and helps to seal the hair cuticle and boost shine.

Styling tips

• The Revlon® Ceramic 3-Barrel Wave Master - Jumbo Waver uses a unique three-barrel design ith an extra-wide middle barrel to create the deepest, smoothest waves. The barrels with three coats of ceramic emit far-infrared heat for shiny, smooth styles that last all day long.
• Hair should be clean and dried completely before using any styling tool.
• Plug the appliance into an electrical outlet and slide the On / Off Switch to the "On" position. Use the heat control dial to select the appropriate heat setting for your hair type.
•
  When using the waver for the first time, select the LOWEST heat setting and test in one small section of hair for 5 to 8 seconds. If you want to use a higher setting, be sure to GRADUALLY increase the temperature. Never style hair for the first time on a high setting as this may damage your hair. Use only as much heat as you need for effective styling. Over time, using more heat than is necessary can result in hair damage. For best results, follow the guidelines below:

  Hair type	Heat level	Heat Setting	Position:
  Fine	LOW	140 - 160	1 to 15
  Normal	MEDIUM	160 - 180	15 to 25
  Thick	HIGH	180 - 190	25 to 30

• Allow the barrels to heat for approximately 30 seconds.
• DO NOT touch heating barrels while the waver is plugged in or operating. They are extremely hot.
• Comb or brush out a two-inch wide section of hair and place between barrels.
• You will achieve the best results if you work from the scalp to the ends of your hair. Lightly clamp the hair strands close to the scalp. Close clamp and hold the waver in this position for a few seconds, depending on the type of hair (5 seconds for fine hair and up to 8 seconds for medium to coarse hair).
• To release, simply release the handles and let the hair slip out.
• The waving process requires some overlapping; match the outermost wave of your hair with the barrels and hold in position again for a few seconds. Repeat the process until you have achieved the look you desire.
• When styling is complete, slide the On / Off Switch to the "Off" position and unplug the styling tool.
• Allow the hair to cool before combing or brushing.

During the first few minutes of initial use, you may notice smoke and a slight odor. This is normal and is not a cause for concern.

Locking Ring / Storage Loop

When styling is finished, turn the switch to "OFF," unplug the appliance and allow it to cool. To store the appliance, use the Thumb Grip to press the barrels together, then push the Locking Ring / Storage Loop up and hook it into the groove at the end of the Thumb Grip. DO NOT fasten the Locking Ring / Storage Loop in the closed position while styling. Locking the heated waver onto the hair can cause serious damage to the hair.

User Maintenance Instructions

Maintenance

Your appliance is virtually maintenance-free. No lubrication is needed. Keep heated surfaces clean and free of dust, dirt, and hair spray. If cleaning becomes necessary, unplug the appliance from the power source and wipe the exterior with a damp cloth. If the cord becomes twisted, untwist prior to use.

Storage

Unplug appliance when not in use.
Allow appliance to cool and store out of reach of children in a safe, dry location. Never wrap the cord around the appliance since this will cause the cord to wear prematurely and break. Handle cord carefully for longer life and avoid jerking, bending sharply, twisting, or straining cord, especially at plug connections.

Should this product malfunction, do not attempt to repair it. This appliance has no user-serviceable parts or components.

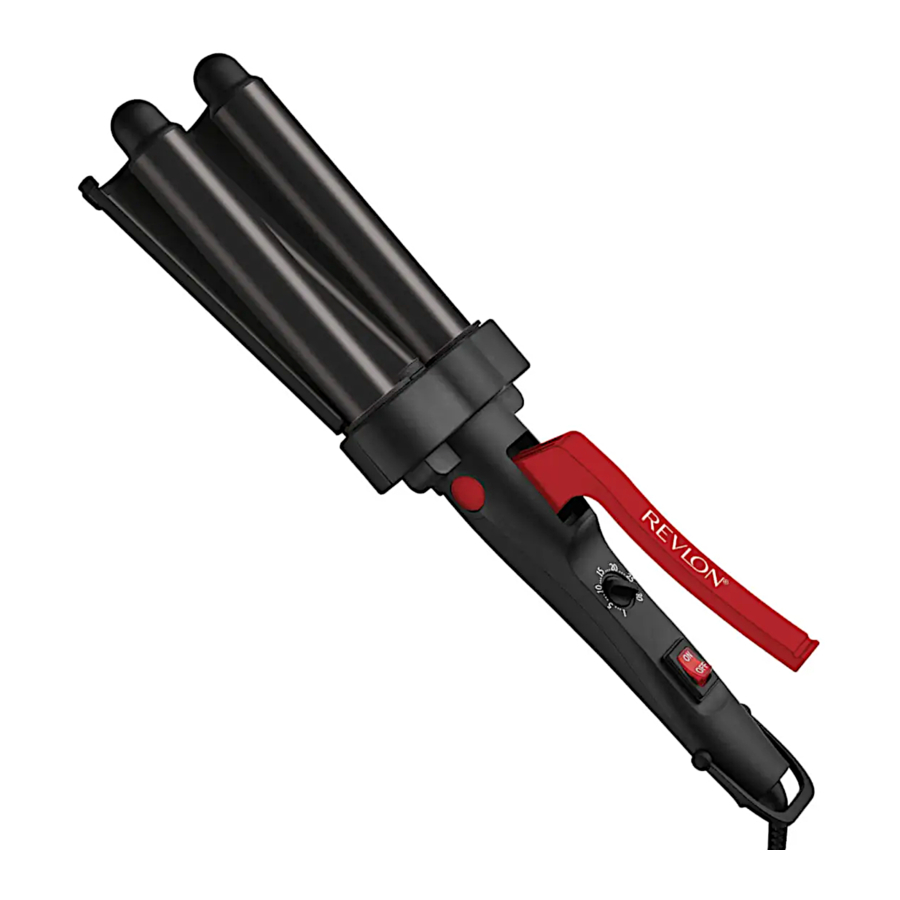

Features

1. Cool tip
2. Heating Barrels
3. Clamp
4. Locking Ring
5. Swivel Cord
6. On / Off Switch
7. Adjustable Temperature Control
8. Handle
9. Safety stand
10. Mini screwdriver
11. How to convert to EU plug (from 3 pin UK adaptor)

• You will need the mini screwdriver included in the box ( K.1 & J).
• Turn the UK adaptor plug so the 3 pins face upwards or towards you (K.2).
• Using the mini screwdriver, unscrew the screw in the centre of the 3 pins, rotating anticlockwise (K.3) until the top cover is released.
• Turn the plug over, so the 3 pins face downwards and lift the hinged top cover upwards from the bottom (K.4). This will reveal the Euro 2 pin plug, which can then be removed from the UK adaptor.
• For refitting, follow the above procedure in reverse.

IMPORTANT SAFETY INSTRUCTIONS

Please read all instructions before using this appliance.
This appliance is intended for household use only.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not leave the appliance unattended. Do not allow bare skin or the eyes to come into contact with any heated surface on the appliance when in use. Do not place the appliance on any heat-sensitive surfaces when hot or plugged into the mains. Always unplug the appliance when not in use.

Do not use this appliance on synthetic hair or wigs.
NOTE: Use on dry hair only.

Should this product malfunction, do not attempt to repair it.
This appliance has no user-serviceable parts or components.

INTERNATIONAL SUPPORT & SERVICE NETWORK
Product Support:

www.helenoftroy.com/emea-en/support
