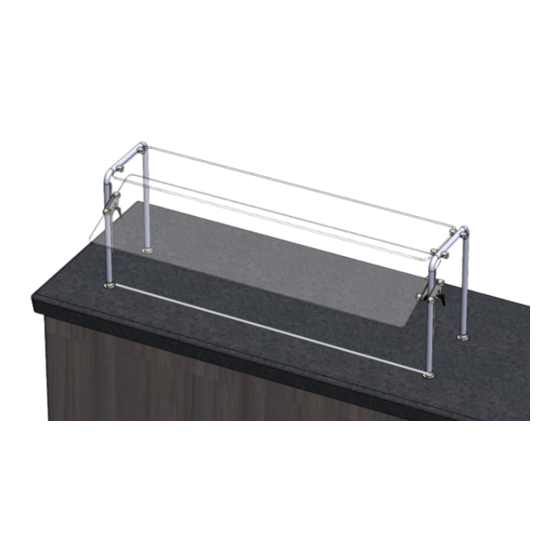

ADJUSTAGUARD FOOD SHIELDS
LIGHTS & WARMERS
Thank you for choosing products from BSI. We appreciate your business and are
available to assist you with all of your needs. This manual has been designed to help
you better understand your product and its proper usage. If you have questions that
go beyond this detailed manual, please contact our Customer Service Department at
1.800.662.9595.
1
Specifications subject to change without notice.
10/23
BSI, LLC
601 East 64th Avenue, Bldg. A, Denver, CO 80229
800.662.9595
sales@bsidesigns.com
bsidesigns.com
Advertisement
Table of Contents
Related Manuals for BSi E Series
Summary of Contents for BSi E Series
- Page 1 ADJUSTAGUARD FOOD SHIELDS LIGHTS & WARMERS Thank you for choosing products from BSI. We appreciate your business and are available to assist you with all of your needs. This manual has been designed to help you better understand your product and its proper usage. If you have questions that go beyond this detailed manual, please contact our Customer Service Department at 1.800.662.9595.
- Page 2 - SERIES AdjustaGuard OWNER'S MANUAL & WARRANTY NOTES 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
-
Page 3: Table Of Contents
IMPORTANT OWNER INFORMATION Record your guards' model number(s) and light/warmer unit serial number(s) (if applicable) to use as a reference when contacting your local representative or BSI headquarters. BSI, LLC Model No.: Business Hours: 8:00 AM to 5 PM MST Serial No.:... -
Page 4: Safety Precautions
6. All packages contain a product owner's manual and warranty document, along with installation drawings for your installer. EA112A All AdjustaGuard models are certified by NSF. COMPONENT 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... -
Page 5: Basic Components And Layout
Glass End Panel Fig. 1 shows two glass panels with a center bracket. ADJUSTAGUARD BRACKETS A. Left AdjustaGuard Bracket B. Center AdjustaGuard Bracket C. Right AdjustaGuard Bracket 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... -
Page 6: Adjustaguard Bracket Assembly & Parts
If you need to order replacement parts for your Exploded View AdjustaGuard food guard, contact the customer service. Phone: 800.662.9595 Email: sales@bsidesigns.com Be sure to designate part finishes when ordering. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... -
Page 7: Bracket Operation
BSI recommends the use of two people when adjusting or performing maintenance to your AdjustaGuard sneeze guard. Using only one person to adjust your sneeze guard may cause damage to the brackets. - Page 8 Screws Hex Screw While holding glass in place, slightly loosen the Using an allen wrench (provided by BSI), loosen thumb screws (2 per bracket). It is not necessary glass clip set screws on both brackets while to completely unscrew thumb screws to the holding the glass.
-
Page 9: Cleaning Instructions
If unit is fitted with a warmer, do not clean the glass or housing when warmer is hot. Cleaning warmer when hot can cause staining or damage to warmer finish. END PANELS To meet NSF guidelines, end panels are included on all BSI quotations unless otherwise specified. Location Part #... -
Page 10: Mounting Options
F7 Mount 1" Post F4 Grommet (#17109) 1" Post 0.11" 3-1/2" 1-3/8" 2-1/2" F1 Flange (#721BPS) Screw Flange (#17107) Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... - Page 11 F12 Lower Assembly (#17114) Mount (#17115) F10 Mount 1" Post F5 Trim Ring (#17111) 1-1/8" F2 Flange (#17103) Set Screw Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
- Page 12 (#17119) F5 Mount F5 Trim Ring 1-1/8" (#17112) 1" Square Post 1-1/8" Counter Cutout 2" Welded 2" by Others Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
- Page 13 Post Post F5 Trim Ring Cutout (#17134) 1-5/8" Counter 3-1/2" Screw Cutout Welded by F1 Flange Others 3-1/2" (#17123) Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
- Page 14 F5 Mount F5 Trim Ring (#17150) 1/8" 2" Square Post 3" 2-1/8" 2" Counter Cutout Welded by 4" Others Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
-
Page 15: Installation Instructions
Tighten screws firmly in place. NOTE: Mounting style may vary. Please refer to flange options (pages 11-15) for more details. Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... - Page 16 - SERIES Helios ™ OWNER'S MANUAL & WARRANTY OWNER’S MANUAL & WARRANTY HELIOS LIGHT & WARMER COMBO ™ Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
-
Page 17: Safety Precautions
Do not steam clean or use excessive water on unit. Do not attempt to repair or replace a damaged power cord. The cord must be replaced by BSI, Authorized Service Agent, or a person with similar qualifications. Use only genuine BSI replacement parts when service is required. -
Page 18: Receiving And Inspecting The Equipment
ALL HELIOS UNITS ARE SHIPPED USING ZIP TIES TO SECURE DURING TRANSIT. AFTER INSTALLATION, CAREFULLY REMOVE ALL ZIP TIES. Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... -
Page 19: Cleaning & Identifying Equipment
Kelly LED:_6" Power_Connector • Model Number • Manufacture Date • Electrical Information HELIOS ™ 800.662.9595 Commercial Cooking Appliance 3MUU Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... -
Page 20: Heating Elements
ELEMENT Replacement of the tubular heating element should be completed by a professional service ELEMENT CLIPS technician. If you have additional questions, LED LIGHT contact BSI at 800.662.9595. REPLACEMENT HEATING LED CONNECTOR POWER CORD ELEMENTS PARTS & SERVICE Part #... -
Page 21: Wiring Installations
Black White Black * Pilot-Optional * Pilot-Optional Infinite switch (208V/240V) - Part #582 Infinite switch (120V) - Part #581 Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... - Page 22 Reposition remote control box away from the heat mounted too close to heat zone. zone. Switches are not BSI Contact Authorized Service Agent or BSI to replace genuine parts. with genuine BSI switches. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595...
-
Page 23: Warranty
BSI, LLC’s liability shall be limited to product repair or replacement, or refund of purchase price issued at the discretion of BSI, LLC. BSI, LLC will not be liable, under any circumstances, for incidental or consequential damages (including, without limitation, to lost profits) arising in connection with the sale, use, inability to use, repair, or replacement of BSI, LLC’s products.
