- Page 1 VIPER FOOD SHIELDS LIGHTS & WARMERS Thank you for choosing products from BSI. We appreciate your business and are available to assist you with all of your needs. This manual has been designed to help you better understand your product and its proper usage. If you have questions that go beyond this detailed manual, please contact our Customer Service Department at 1.800.662.9595.
- Page 2 - SERIES Viper OWNER'S MANUAL & WARRANTY NOTES 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
-
Page 3: Table Of Contents
IMPORTANT OWNER INFORMATION Record your guards' model number(s) and light/warmer unit serial number(s) (if applicable) to use as a reference when contacting your local representative or BSI headquarters. BSI, LLC Model No.: Business Hours: 8:00 AM to 5 PM MST Serial No.:... -
Page 4: Safety Precautions
6. All packages contain a product owner's manual and warranty document, along with installation drawings for your installer. COMPONENT All Viper models are certified by NSF. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... -
Page 5: Components And Layout

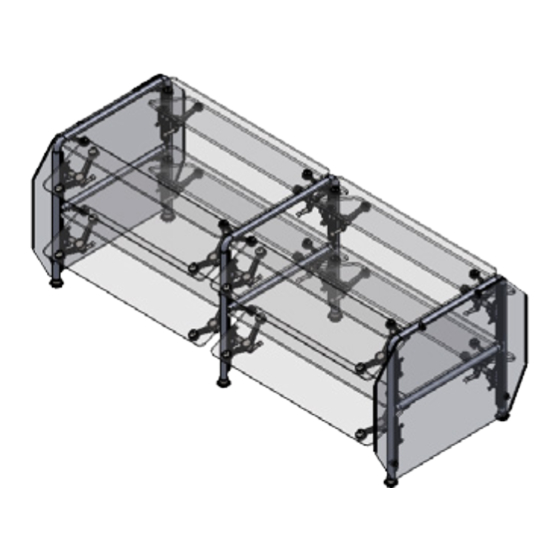

SERVER SIDE Handle (For Angle Adjustment) End Cap Adjustment Pins Glass Panel (For Height Adjustment) Center Bracket Flange CUSTOMER SIDE Right Bracket Glass End Panel 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... -
Page 6: Brackets & Parts
Screw 1/4-20 x .5" Slot Exploded View 17562 End Cap How to Order Replacement Parts Phone: 800.662.9595 Email: sales@bsidesigns.com Be sure to designate part finishes when ordering. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... - Page 7 How to Order Replacement Parts Phone: 800.662.9595 Email: sales@bsidesigns.com Be sure to designate part finishes when ordering. Viper bracket featuring top glass, fixed end bracket, and center bracket. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
- Page 8 When adjusting or performing maintenance, BSI recommends two people to hold and move the guard. Using only one person may cause damage to the brackets. 2. Hold the glass in place while loosening both handles about 1/4 - 1/2 turn. Do not remove screw or loosen more than one full turn.
- Page 9 2. While holding glass in place, slightly loosen the thumb screws (two per bracket). It is not necessary to completely unscrew thumb screws to the point of removal. 3. Move slider block up or down to reach desired location. For longer units (50” or longer), BSI recommends that two people adjust the glass height.
-
Page 10: Cleaning Instructions
If unit is fitted with a warmer, do not clean the glass or housing when warmer is hot. Cleaning warmer when hot can cause staining or damage to warmer finish. VIPER END PANELS To meet NSF guidelines, end panels are included on all BSI quotations unless otherwise specified. Location... -
Page 11: Mounting Options
F7 Mount 1" Post F4 Grommet (#17109) 1" Post 0.11" 3-1/2" 1-3/8" 2-1/2" F1 Flange (#721BPS) Screw Flange (#17107) Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... - Page 12 F12 Lower Assembly (#17114) Mount (#17115) F10 Mount 1" Post F5 Trim Ring (#17111) 1-1/8" F2 Flange (#17103) Set Screw Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
- Page 13 (#17119) F5 Mount F5 Trim Ring 1-1/8" (#17112) 1" Square Post 1-1/8" Counter Cutout 2" Welded 2" by Others Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
- Page 14 Post Post F5 Trim Ring Cutout (#17134) 1-5/8" Counter 3-1/2" Cutout Screw Welded by F1 Flange Others 3-1/2" (#17123) Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
- Page 15 F5 Mount F5 Trim Ring (#17150) 1/8" 2" Square Post 3" 2-1/8" 2" Counter Cutout Welded by 4" Others Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
-
Page 16: Installation Instructions
NOTE: Mounting style may vary. Please refer to flange options (pages 12-17) for more details. Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... - Page 17 - SERIES Helios ™ OWNER'S MANUAL & WARRANTY OWNER’S MANUAL & WARRANTY HELIOS LIGHT & WARMER COMBO ™ Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com...
-
Page 18: Safety Precautions
Do not steam clean or use excessive water on unit. Do not attempt to repair or replace a damaged power cord. The cord must be replaced by BSI, Authorized Service Agent, or a person with similar qualifications. Use only genuine BSI replacement parts when service is required. -
Page 19: Receiving And Inspecting The Equipment
ALL HELIOS UNITS ARE SHIPPED USING ZIP TIES TO SECURE DURING TRANSIT. AFTER INSTALLATION, CAREFULLY REMOVE ALL ZIP TIES. Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... -
Page 20: Cleaning Instructions
Kelly LED:_6" Power_Connector • Model Number • Manufacture Date • Electrical Information HELIOS ™ 800.662.9595 Commercial Cooking Appliance 3MUU Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... -
Page 21: Parts & Service
ELEMENT Replacement of the tubular heating element should be completed by a professional service ELEMENT CLIPS LED LIGHT technician. If you have additional questions, contact BSI at 800.662.9595. REPLACEMENT HEATING LED CONNECTOR POWER CORD ELEMENTS PARTS & SERVICE Part #... -
Page 22: Wiring Installations
Black White Black * Pilot-Optional * Pilot-Optional Infinite switch (208V/240V) - Part #582 Infinite switch (120V) - Part #581 Specifications subject to change without notice. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com... -
Page 23: Troubleshooting Guide
Reposition remote control box away from the heat mounted too close to heat zone. zone. Switches are not BSI Contact Authorized Service Agent or BSI to replace genuine parts. with genuine BSI switches. 10/23 BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595... -
Page 24: Warranty
BSI, LLC’s liability shall be limited to product repair or replacement, or refund of purchase price issued at the discretion of BSI, LLC. BSI, LLC will not be liable, under any circumstances, for incidental or consequential damages (including, without limitation, to lost profits) arising in connection with the sale, use, inability to use, repair, or replacement of BSI, LLC’s products.
