Focus FAKDBR20 Assembly Instructions

SHELVING
Step 1 Unpack carton, identify & confirm quantity of components.
Insert casters into openings at the bottom of the side panel, see Diagram #1. Make sure that hole in
Step 2
caster stem is aligned with hole in side panel opening.
Step 3 Align threaded opening in 1" diameter rod with opening of inside side panel. Thread 2" screw through the
side panel opening and into threaded opening of 1" diameter rod and loosely tighten. See Diagram #2.
Make sure screw head is on the the outside of the side panel.
Step 4 Repeat Step 3 for other 1" diameter rod.
Step 5 Insert / " diameter rod into inside side panel opening.
3
4
Align opening in U-bracket with the opening in the outside of the side panel, see Diagram #3.
Step 6
Thread 1 1 / " screw through U-bracket and into
Step 7
8
Repeat steps 5 through 7 for other 3
Step 8
Place side panel on ground with insert rods facing up.
Step 9
Place other side panel on top of side panel on the ground so that rods fit into side panel openings.
Step 10
Insert casters into openings at the bottom of side panel (follow step 2).
Step 11
Step 12 Thread 2" screw through the side panel opening and into threaded opening of 1" diameter rod and
loosely tighten. See Diagram #2.
Step 13 Repeat step 12 for the other caster.
Step 14 Align opening in U-bracket with the opening in the outside of the side panel, see Diagram #3.
Step 15 Thread 1 1 / " screw through U-bracket and into smaller diameter rod and loosely tighten, see Diagram #4.
8
Step 16 Repeat steps 14 & 15 for other 3 U-brackets.
Step 17 Stand unit upright and tighten all screws.

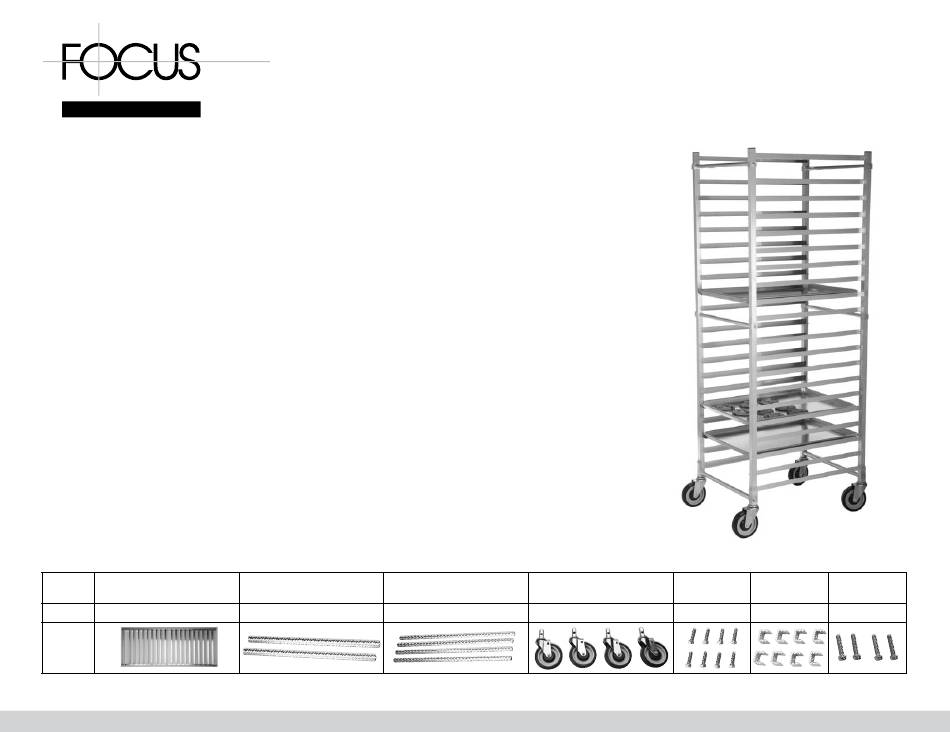

Part Side Panels
Qty 2
All manuals and user guides at all-guides.com
ASSEMBLY INSTRUCTIONS
Item# FAKDBR20 and FAKDBR12 |
3 / " diameter rod and loosely tighten, see Diagram #4.
4
3 / " diameter rods.
4
1" diameter Rods 3 / " diameter Rods
4
2
Aluminum Bakery Rack
Casters
4 4
1 1 / " Screws U-Brackets 2" Screws
8
8 8 4
