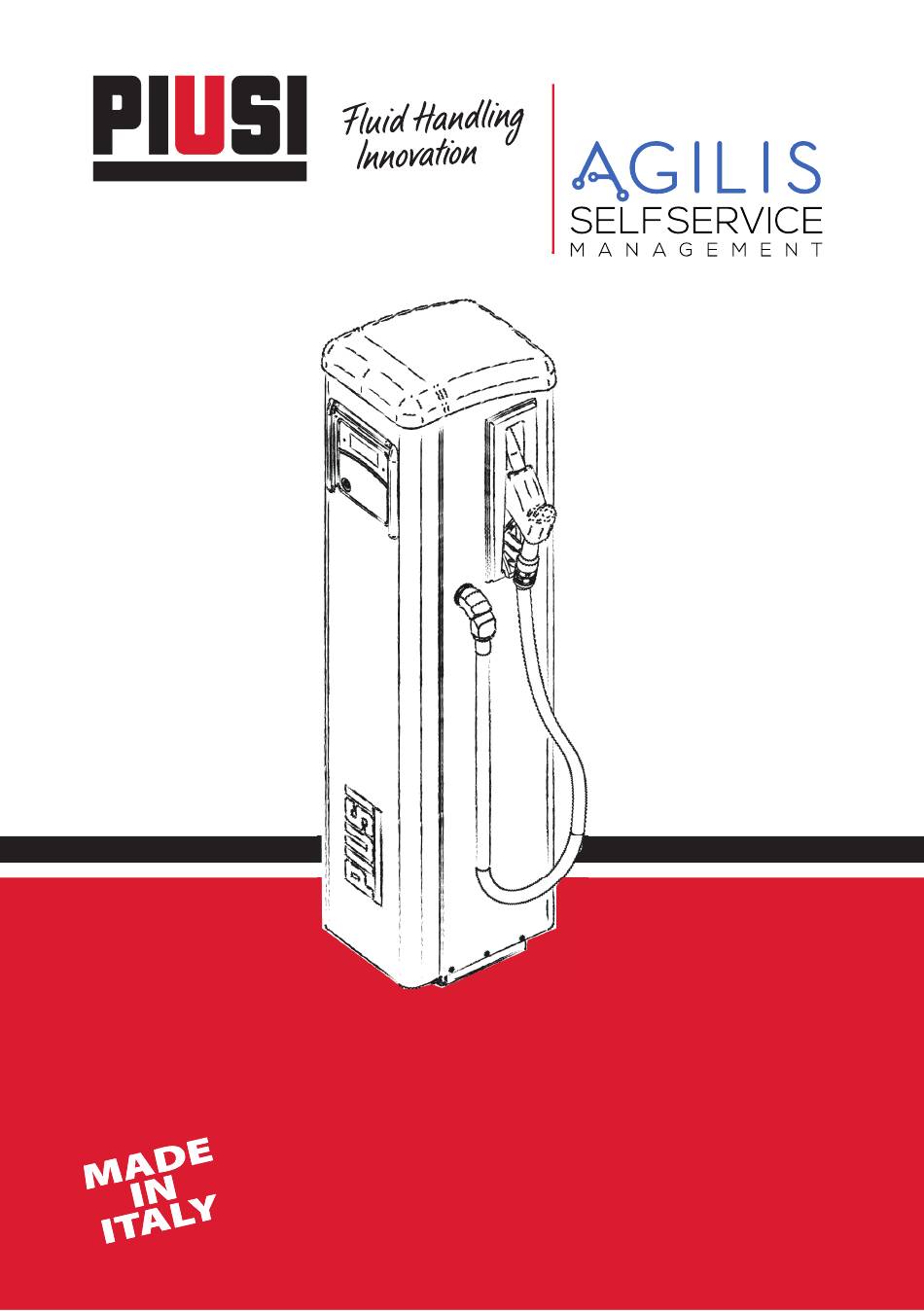

Piusi SELF SERVICE MANAGEMENT AGILIS Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SELF SERVICE
Installation, use and maintenance
EN
BULLETIN M0653 EN_
00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SELF SERVICE MANAGEMENT AGILIS and is the answer not in the manual?

Questions and answers

Tetiana
April 9, 2025

What problem might occur if the data connection is not available for Piusi Self Service Management 2.0, and how can I find out why it is not working on my computer?

0
1 comments:
Mr. Anderson
April 10, 2025

If the data connection is unavailable, the Piusi Self Service Management 2.0 system cannot transfer transaction data from the SELF SERVICE AGILIS unit to the PC. This prevents data logging, report generation, and user monitoring.

To troubleshoot the connection problem on your computer:

1. Check the connection method:
- For serial cable: Ensure the RS485 cable is properly connected and the Piusi PW-14 adapter is installed on the USB port.
- For Ethernet: Confirm the Piusi PW-LAN adapter is connected and the network is active.
- For Wi-Fi: Verify the Piusi PW-WiFi adapter is functioning and connected to the correct wireless network.
- For 4G: Ensure the Piusi PW-Mobile adapter has cellular signal and is active.

2. Inspect the KEY READER: If using an i-button key, make sure the KEY READER is securely connected to the USB port.

3. Check software installation: Confirm the AGILIS SELF SERVICE MANAGEMENT software is installed on the PC and running properly.

4. Verify the MASTER KEY: Ensure the key used is the correct MASTER KEY authorized for the unit.

5. Inspect the USB ports and cables: Test with different USB ports or cables to rule out hardware issues.

6. Review power supply: Make sure the SELF SERVICE unit is powered correctly and protected with a suitable circuit breaker or disconnection system.

These steps help identify and resolve most connection-related issues.

This answer is automatically generated

0

Related Manuals for Piusi SELF SERVICE MANAGEMENT AGILIS

Summary of Contents for Piusi SELF SERVICE MANAGEMENT AGILIS

  • Page 1 SELF SERVICE Installation, use and maintenance BULLETIN M0653 EN_...
  • Page 2 Installation, use and maintenance ENGLISH Bulletin M0653 2 / 80 M0653...

  • Page 3: Table Of Contents

    RS485 SERIAL DATA CONNECTION ......................31 14 GETTING TO KNOW SELF SERVICE AGILIS ................32 14 1 OPERATING MODES ................................32 3/124 3 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 4 Installation, use and maintenance 14.1.1 SYSTEM MODE ................................ 32 14.1.2 DISPENSING MODE .............................. 32 14 2 DISPLAYS .......................................32 14.2.1 NUMERIC DISPLAY ............................... 32 14.2.2 ALPHANUMERIC DISPLAY ..........................32 14 3 KEYPAD ......................................33 14 4 SPECIAL KEY COMBINATIONS ............................33 14 5 ELECTRONIC KEYS AND THE READER ........................33 15 USING SELF SERVICE ........................

  • Page 5: Eu Declaration Of Conformity

    THE ORIGINAL DECLARATION OF CONFORMITY IS SUPPLIED SEPARATELY IN CONJUNCTION WITH THE PRODUCT Suzzara, 23/08/2021 Otto Varini Legal representative 5/124 5 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 6: General Precautions

    All the rights deriving from such norms belong to PIUSI S.p.A. Reproduction, publication, editing, transcription, public disclosure, distribution, sale in any form, translation and/ or processing, loan, and any other activity concerning this manual, also partial, are reserved by law to PIUSI S.p.A. 6 / 80...

  • Page 7: Instructions And Safety Norms

    / or any other negligent, reckless or inept behaviour of the user. 7/124 7 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 8 Installation, use and maintenance This equipment must have a protective earth connection between metal masses and for electrical components that require grounding. Improper installation or use of the equipment may result in danger of electric shock. All electrical equipment in the work area must have a protective earth connection.
  • Page 9 Do not use the equipment for uses other than those for which it is designed and built. All different uses may be hazardous for property, animals, or persons. 9/124 9 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 10: First Aid Measures

    Installation, use and maintenance FIRST AID MEASURES PERSONS WHO HAVE SUFFERED ELECTRIC SHOCK Disconnect the power source, or use a dry insulator to protect yourself while you move the injured person away from any electrical conductor. Avoid touching the injured person with your bare hands until he is far away from any conductor.

  • Page 11: Dimensions And Weights

    WEIGHT (kg) DISTRIBUTOR WEIGHT (kg) SELF SERVICE 1391 1478 59.1 63.7 MCAGILIS SELF SERVICE 1080 48.7 53.3 TANK MC AGILIS 11/124 11 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 12: Package Contents/Preliminary Inspection

    Installation, use and maintenance PACKAGE CONTENTS/PRELIMINARY INSPECTION FOREWORD Use scissors or a cutter to open the cardboard box, taking care not to damage the contents. NOTE: two people must open the box completely and move the SELF SERVICE unit into a vertical position to facilitate subsequent definitive positioning.

  • Page 13: Machine And Manufacturer Identification

    NOTE: should this occur, please contact customer service and request replacements for any damaged or missing decals, then affix the new decals in their designated positions. 13/124 13 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 14 Installation, use and maintenance Decals are the following ones: Product warranty label CE plate with technical data Attention plate Affixed to the SELF SERVICE display Corner label plate applied on the box FAC SIMILE 14 / 80 M0653...

  • Page 15: Description Of Main Parts

    EN 60034-5-86 norm), self-ventilated, single-phase. An easy-clean ANGLED MESH FILTER is connected to the pump inlet (See relevant manual). 15/124 15 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 16: 3 Pulser Flow Meter

    Installation, use and maintenance PULSER FLOW METER The Pulser K600/3 flow meter has a high-precision oval gear measuring system designed to allow accurate fuel measurement. They consist of a sturdy die-cast aluminium structure, complete with inlet filter and are easy to maintain and reliable.

  • Page 17: Managing System

    The AGILIS controller allows only authorised users to dispense fuel. All transaction data are saved and can be downloaded to a PC (optional). EXPLANATORY DIAGRAM: PW14 / RS 485 MANAGER KEY PW-LAN PW-WIFI PW-MOBILE RS485-232 ADAPTER 17/124 17 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 18: Brief Overview Of Features

    Installation, use and maintenance 10 BRIEF OVERVIEW OF FEATURES 10 1 ACCESS CONTROL The presence of a SELF SERVICE guarantees restricted access by authorized users only. The SELF SERVICE recognizes the User’s authorization through two alternative systems: - 4-digit PIN CODE; - ELECTRONIC USER KEY.

  • Page 19: 10 5 Dispensing

    • Dedicated software for printing out transaction reports and summaries per user. • Option to handle up to 16 devices using special software. 19/124 19 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 20: Intended Use

    It is strictly forbidden to use the system for purposes other than the ones indicated. Any other use different from the one for which the system has been conceived and described in this manual is considered “MISUSE”. Therefore, PIUSI S.p.A. shall not be held responsible for any damage caused to people, animals or to the system itself.

  • Page 21: Technical Characteristics

    300 Hz with a Duty Cycle (NPN) contact (or open collector). between 20% - 80%. 21/124 21 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 22 Installation, use and maintenance Technical data Standard conditions Limits Note Level 1 contact It is possible to configure Approximately 250 µA at 5 Vdc input the presence or not of this (Only for will be supplied to the clean signal, furthermore it is versions contact (or open collector).

  • Page 23: Installation

    NOTE: local codes may impose specific installation requirements. Installation is subject to approval of the local authorities having jurisdiction for the site. 23/124 23 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 24: 13 2 Positioning The Dispenser

    Installation, use and maintenance 13 2 POSITIONING THE DISPENSER SELF SERVICE AGILIS should be positioned to ensure: - Easy removal of detachable panels when access to internal components is required. - Compliance with max. distances and diff erence in height between fuel transfer pump and tank. - Correct and safe fi...
  • Page 25 SELF SERVICE EN (Translation of the original language) UNDERGROUND TANK FOOT VALVE GROUND FIXING TEMPLATE 25/124 25 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 26: 13 4 Hydraulic Connections

    Installation, use and maintenance 13 4 HYDRAULIC CONNECTIONS FOREWORD Always follow the below-listed WARNINGS: - Use pipes and joints suitable for operation in vacuum conditions. - Use pipes and accessories suitable for treated fl uid. Unsuitable materials can result in serious damage to the pump;...

  • Page 27: 13 5 Electrical Installation

    Loosen all 7 screws of the rear cover of the controller to access the compartment of the electronic boards. 27/124 27 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 28 Installation, use and maintenance CABLE GLAND CONNECTION Cable gland connection: the cable glands to be used for the various signals are indicated in order to obtain an optimised cable route inside the controller. Pulser input and motor output are already wired. MOTOR OUTPUT POWER SUPPLY INPUT Once the cover has been opened, the electronic board and its connectors are accessible:...

  • Page 29: Power Supply Cable

    -PE- (yellow/green) MAIN AC POWER INPUT CN11 WE P: 7.62 WE P:7. 62 Neutral -N- Phase -L- (blue) (brown) 29/124 29 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 30: Motor Cable

    Installation, use and maintenance 13.5.2 MOTOR CABLE Insert the grounding wire (yellow/green sheath) into the central hole of the terminal, then phase and neutral respectively on the left and right and tighten the wire fixing screws. On the motor terminal, when active, the voltage and frequency are the same as the input values from the power supply line.

  • Page 31: Nozzle Contact

    Refer to the adapter’s manual for the connection and configuration instructions. RS485 A+ RS485 A- PW14 / RS 485 PW-LAN PW-WIFI PW-MOBILE 4G SERIAL PRINTER 31/124 31 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 32: Getting To Know Self Service Agilis

    Installation, use and maintenance 14 GETTING TO KNOW SELF SERVICE AGILIS 14 1 OPERATING MODES SELF SERVICE AGILIS has a variety of OPERATING MODES which start it automatically in response to given events. 14.1.1 SYSTEM MODE In this mode, SELF SERVICE AGILIS runs access control and system management functions. SELF SERVICE AGILIS automatically goes into SYSTEM mode as soon as a key is pressed, a key inserted or a transaction concluded.

  • Page 33: 14 3 Keypad

    These keys have an ID code which is automatically scanned when the user touches his key to the unit. 33/124 33 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 34: Using Self Service

    Installation, use and maintenance The keys are read by AGILIS as soon as they are touched to the key reader on the unit’s front panel ALPHANUMERIC DISPLAY (Stand-by Mode) These messages display when AGILIS is waiting for a PIN CODE or for a KEY to be touched to the reader, or when there is an active level alarm.

  • Page 35: 15 3 Representations Of Key Presses

    # 002 PIN 5678 DISPLAY (2 ROWS 16 CHARACTERS) MAIN ALPHANUMERIC MASTER CODE DISPLAY MESSAGES 5 678 FLASHING ALTERNATING FLASHING MESSAGES 35/124 35 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 36 Installation, use and maintenance EXAMPLE FLOW CHART XXXXXXX VIEW ALL? VIEW GENERAL TOTAL ONLY GENERAL? XXXXXX TOTAL XXXXX FROM XX/XX/XX VIEW USER NUMBER? USER XXX T XXXXX SINGLE USER? FROM XX/XX/XX PRINT WAIT PLEASE... ALL? PRINT REPORT PRINT WAIT PLEASE... ONLY GENERAL? PRINT REPORT PRINT...

  • Page 37: Software Overview

    DISPENSING TRANSACTIONS CHECK KEY CHECK KEY DATA TRANSFER MAIN MANAGEMENT AND CONFIGURATION MENU TOUCH MASTER KEY ADVANCED CONFIGURATION PARAMETERS 37/124 37 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 38: 16 1 Boot

    Installation, use and maintenance BOOT SECTION SELF SERVICE AGILIS runs a display autotest and displays the MODEL, SERIAL NUMBER and REV. FIRMWARE: LAUNCHES: automatically when the device is turned on. QUITS: automatically when the operation is completed. SYSTEM MANAGEMENT SECTION This contains the system management options (reports, user management, calibration, data downloads to the PC): LAUNCHES: from ACCESS CONTROL, using a MANAGER KEY or SYSTEM code.

  • Page 39: Code Check

    LOW LEVEL INPUT = PUMP CUT OUT. The display shows the message “ALARM/ LOW LEVEL INPUT”, and AGILIS will no longer handle dispensing transactions. 39/124 39 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 40: System Configuration

    Installation, use and maintenance 17 SYSTEM CONFIGURATION FOREWORD The SYSTEM CONFIGURATION section is used to configure the system for the application and installation in question. Only the MANAGER or installation technician can access the SYSTEM CONFIGURATION section, using the MASTER PIN CODE or MASTER KEY. To access the configuration section: 1 - enter the SYSTEM MANAGEMENT menu 2 - scroll to the SYSTEM option...
  • Page 41 LINE DEL AY LINE DEL AY 1 00* 10 ms 1 23* 1 0 ms INPUT DELAY ENTER ENTER CANCEL 41/124 41 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 42 Installation, use and maintenance CANCEL PC CONNECTED PCCONNECTED ENTER ENTER CANCEL CANCEL MEASUREMENT UNIT MEASUREMENT UNIT LITERS US G ALLONS ENTER ENTER CANCEL CANCEL DECIMAL DIGIT DECIMAL DIGIT ENTER ENTER CANCEL CANCEL LOW LEVEL INPUT LOW LEVEL INPUT ENTER ENTER CANCEL CANCEL LOW LEVEL INPUT...
  • Page 43 DEFAULT value: Values: NO (do not send CR-LF) YES (send CR-LF) 43/124 43 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 44 Installation, use and maintenance REMOTE PRINTER/LINE DELAY If the printer does not have enough memory to handle the print queue, you can change the line delay setting to make it possible for the printer to handle the queue without losing data NOTE: We advise leaving the default setting when making the first printouts.
  • Page 45 (NEW MASTER KEY); 4. quit the CONFIGURATION menu (if you don not wish to change the MASTER KEY) by pressing CANCEL. 45/124 45 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 46: System Management

    Installation, use and maintenance 18 SYSTEM MANAGEMENT Stand-by MODE FOREWORD MASTER KEY MASTER CODE SYSTEM MANAGEMENT section allows the manager to complete routine AGILIS system management tasks. The SYSTEM MANAGEMENT section is divided into menus and submenus to enable quick access to the various options.
  • Page 47 “0000“. If on the other hand a given user has only a PIN CODE, it will be different form “0000“, and there will not be an asterisk in the USER KEY column. 47/124 47 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 48 Installation, use and maintenance PRINT CODE - NO PRINT CODE - YES REPORT / CONFIGURATION Prints out the options selected in the configuration procedure, as follows: 48 / 80 M0653...
  • Page 49 TOTALS -> PRINT -> SINGLE -> USER TOTALS -> PRINT -> ALL We show the REPORTS/TOTALS flow chart below. 49/124 49 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 50 Installation, use and maintenance 50 / 80 M0653...

  • Page 51: 18 2 Menu Users

    - If you enter a USER NUMBER already belonging to another user, SELF SERVICE will refuse it and ask you to enter a new one. 51/124 51 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 52 Installation, use and maintenance Once you have confirmed the automatic or manual option by pressing ENTER, the system will display all the new user’s data for a few seconds, and then return to the USER / ADD menu. N.B.: the system does not allow you to modify user data partially. If the data assigned to the new user are incorrect, you must: - cancel the new user (see par.
  • Page 53 - USER NAME. USER - PIN CODE. NAME - KEY (if available). ABCDEFGHIL # 002 PIN 5678 PIN CODE USER NUMBER 53/124 53 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 54 Installation, use and maintenance NOTE: WHEN AUTHORISING A USER FOR THE FIRST TIME, ONLY THE “USER ADD?” MENU DISPLAYS. ONCE USERS HAVE BEEN AUTHORISED, THE SYSTEM WILL PROVIDE ACCESS TO ALL THE OTHER MENUS DESCRIBED IN THIS FLOW CHART. 54 / 80 M0653...

  • Page 55: 18 3 System Menu

    The MEMORY RESET option is thus for use only when absolutely necessary, and should be preceded by printing out all the saved transactions before deleting them irreversibly. 55/124 55 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 56 Installation, use and maintenance SYSTEM / DATA / TIME Sets the system date and time, for logging with the transactions. N.B.: the system has a perpetual calendar which automatically changes the year and also accounts for leap years. The calendar does NOT change between summer and winter time. SYSTEM / LANGUAGE The Language Menu selects the interface language out of those available in the controller.

  • Page 57: 18 4 Check Key

    2. The system displays the user data as shown if the key AAAA is recognised. # NNN PIN 1234 USER USER NUMBER PIN CODE 57/124 57 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 58: 18 5 Calibration

    Installation, use and maintenance 18 5 CALIBRATION FOREWORD Accesses a submenu with two options, for checking or modifying the CALIBRATION of the LITER COUNTER/ PULSER. CALIBRATION VIEW Displays the current CALIBRATION FACTOR. The SELF SERVICE must be calibrated for the liter counter in use. Before it is calibrated, the factor displays as “K FAC 1.0000”.
  • Page 59 To do so, run a normal transaction with a user code (not the master code). We show the CALIBRATION flow chart below. 59/124 59 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 60: 18 6 Data Transfer

    Installation, use and maintenance 18 6 DATA TRANSFER FOREWORD Transfers the transaction data from the AGILIS’s internal memory to the MASTER KEY. You can then use the key to transfer the data to a PC with a KEY READER, which must be running the AGILIS SELF SERVICE MANAGEMENT software.
  • Page 61 This message indicates that the SELF SERVICE AGILIS has no data to transfer as its memory is empty. We show the DATA TRANSFER flow chart below. 61/124 61 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 62: 18 7 Dispensing

    Installation, use and maintenance 18 7 DISPENSING FOREWORD The DISPENSING section is used to dispense fuel. As soon a user is recognised, and after any optional inputs, the system enables dispensing. The NUMERIC displays goes from displaying the time to displaying the amount of fuel dispensed, displaying “000.0“...
  • Page 63 PRESET 1 2.5 L/GAL / STOP LITERS /US GALLONS PRESET 1 2.5 L/GAL WAIT PLEASE. . . PRINT REPORT 63/124 63 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 64: 10 Dispensing - Message

    Installation, use and maintenance 18 10 DISPENSING - MESSAGE FOREWORD As soon as a USER enters his USER PIN CODE or touches his USER KEY to the unit’s reader, the system checks his authorisation in the ACCESS CONTROL section and displays one of the following messages: GOOD MORNING “USER”...

  • Page 65: Maintenance

    Check that no leakage is visible on the flanged or threaded connections and that the flexible hoses do not show any damage. 65/124 65 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 66: 194 Pump And Pipes

    Installation, use and maintenance 19 4 PUMP AND PIPES Keep delivery hose and nozzle clean. Make sure that: - The hose is intact with no damage caused by vehicle transit. - The threaded connections are tight and leak-free. - The swivel fi ings (at the dispenser outlet and on the nozzle) turn freely and are leak-free. 19 5 PIPE AND DELIVERY NOZZLE Keep delivery hose and nozzle clean.

  • Page 67: 196 Filter Maintenance

    2. Put the small pipe connected with the RELEASE VALVE in a vessel and open the valve with a screwdriver. BE CAREFUL: DIESEL FUEL LEAKING OUT!! 67/124 67 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 68: Suction Filter

    Installation, use and maintenance 3. Start the pump and dispense the fuel into a suitable capacity container. The nozzle will start dispensing fuel and then, thanks to air intake through the release valve, the flow will decrease progressively before being interrupted.

  • Page 69: Pump Filter (Fitted On Models With Panther Pumps Only)

    However, should the filter be cleaned for any reasons and/or in case of special maintenance operations, remove the pulser (if necessary) and proceed as described in PULSER MANUAL. 69/124 69 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 70: Delivery Filter (Only For Self Service Mc Agilis Models)

    Installation, use and maintenance 19.6.4 DELIVERY FILTER (only for SELF SERVICE MC AGILIS models) The delivery filter of the WATER-ABSORBING CARTRIDGE type. It represents a fundamental element for the protection of the engines using fuel delivered by the station. This kind of filter separates and absorbs any water present in the pumped fuel oil. When water is absorbed, the filtering capacity is progressively reduced with a resulting increase in pressure drops caused by the filter.

  • Page 71: Delivery Filter (Only For Self Service Tank Mc Agilis Models)

    On the SELF SERVICE TANK MC AGILIS, the filter is only installed externally. For the assembly, some operations must be carried out as outlined in the following paragraphs: 71/124 71 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 72: 197 Extraordinary Maintenance

    Installation, use and maintenance 19 7 EXTRAORDINARY MAINTENANCE CAUTION: maintenance of the electrical parts can be performed only by a qualified electrician or electronics engineer. Before performing any maintenance make sure to unplug the device from the power supply to turn it off and isolate it from the mains.
  • Page 73 5. Tighten the screws of the metal rear panel to close the circuit boards compartment and reconnect the power supply. 73/124 73 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 74: 199 Firmware Update

    Installation, use and maintenance 19 9 FIRMWARE UPDATE FW UPDATE MODE This option prepares the controller for a firmware update (resident software) via a USB cable connection to a PC. This is something that most likely will never need to be done during the unit’s lifetime. Access the UPDATE FIRMWARE menu by pressing the key combination # + 2 when in the SYSTEM menu to enter the advanced options menu.

  • Page 75: Troubleshooting

    Clean the automatic stop probe hole to TRIPS TOO OFTEN Automatic stop probe hole blocked. remove dirt and/or obstructions. 75/124 75 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 76: 20 2 Electrical/Electronic Problems

    Installation, use and maintenance 20 2 ELECTRICAL/ELECTRONIC PROBLEMS PROBLEM POSSIBLE CAUSES POSSIBLE SOLUTIONS Lack of power due to: SELF SERVICE Incorrect connections. Check connections. AGILIS does not Upstream circuit breaker set to Set circuit breaker to ON position. switch on OFF.
  • Page 77 (EMERGENCY dispensing without access control, (factory setting) metering or memorisation) Dip switch in position 1 Dip switch in position ON DOWN 77/124 77 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.

  • Page 78: Scrapping And Disposal

    Installation, use and maintenance 21 SCRAPPING AND DISPOSAL FOREWORD In case the system should be demolished, its parts must be given to companies specialised in industrial waste disposal and recycling; in particular: PACKAGING DISPOSAL The package is made of biodegradable cardboard that can be consigned for sorted waste collection. DISPOSAL OF METAL PARTS The metal components, both painted and in stainless steel, are usually recycled by companies that are specialised in the metal-scrapping industry.

  • Page 79: Replacement Parts Table

    SELF SERVICE EN (Translation of the original language) 22 REPLACEMENT PARTS TABLE 79/124 79 / 80 This manual is the property of PIUSI S.p.A. Whole or partial reproduction of this manual is forbidden.
  • Page 80 © PIUSI S.p.A. EN This document has been drawn up with great care concerning the accuracy of the data contained herein. However, PIUSI S.p.A. rejects all liability for any mistakes and omissions. Scarica il manuale nella tua lingua! EN Download the manual in your language! CS Stáhnout příručku ve vašem jazyce!

Table of Contents
