Toa DT-930 Specifications

D T- 9 3 0
AM/FM T
UNER

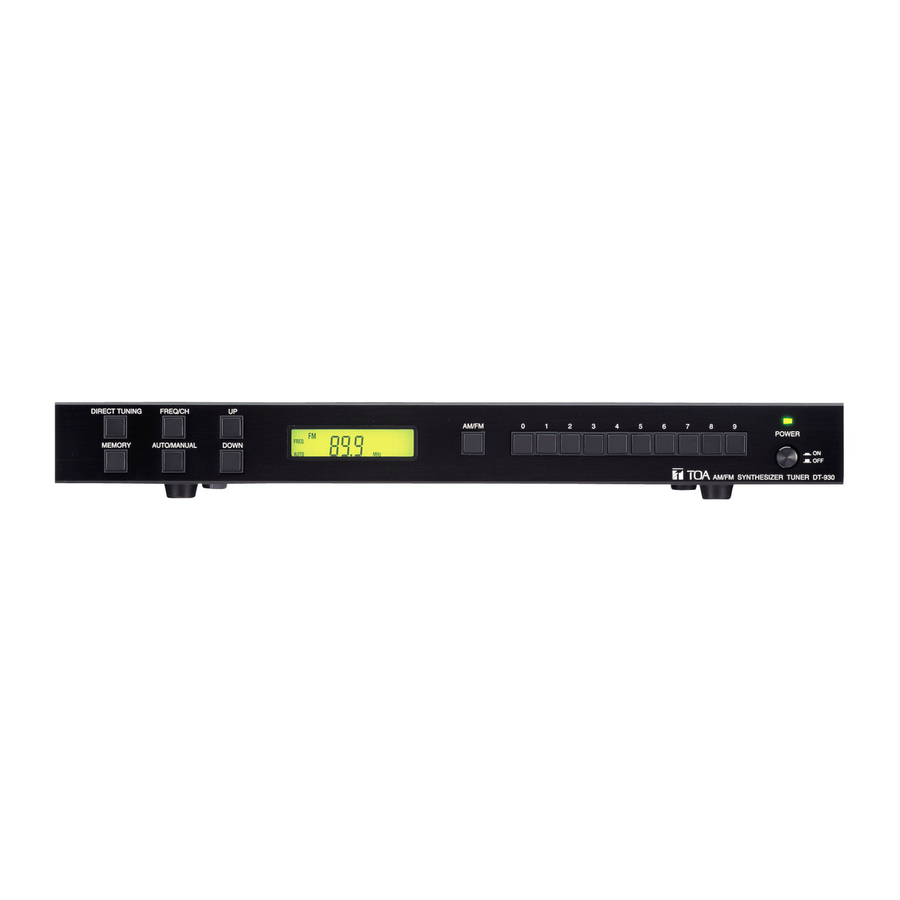

The DT-930 AM/FM Tuner is a frequency-
synthesized AM/FM stereo tuner designed to
provide broadcast program material for
background and foreground music systems.
Featuring a clean, uncluttered look with easy and
intuitive control, the DT-930 provides
outstanding performance and sound quality
with superb sensitivity and stability.
A large digital LCD display indicates radio station,
memory preset, tuning mode and frequency
band. The DT-930 offers 40 memory presets
which can be divided as desired between AM
and FM stations. The automatic up or down
station scan control can be used to select the
next preset or frequency. In addition, manual
station tuning is also provided using the station
up/down tuning bar. Both these tuning methods
can be set independently for the AM and FM
bands. Alternative selection methods include
direct entry of a frequency or memory preset
number.
For selecting stations without referring to any
frequencies, the DT-930 provides an Automatic
Preset Tuning (APT) function which automatically
scans from the lowest frequency of the band
selected. As it scans, it will automatically enter
the first 20 stations it encounters for both the AM
and FM bands. The result is automatic
programming of all memory presets. Both mono
and stereo line outputs are provided, each with
an output level of –15dBV into loads of 10k ohm
or higher, optimum for driving the line inputs of
TOA mixers and amplifiers.
Included with the tuner is a 300 ohm FM dipole
antenna, AM loop antenna and stereo RCA cable.
The DT-930 is UL listed and backed with a five
year warranty.
H
I G H L I G H T S
High quality, commercial
AM/FM tuner
Frequency synthesized digital
tuning ensures reliable signal
reception
Assignable presets for up to
forty AM/FM stations
Multi-function LCD digital
display
Automatic station scan (local or
distant) mode
Automatic station storage to
memory using scan mode
Manual station selection using
up/down keys
A
P P L I C AT I O N S
A/V Applications
Banks
Bars / Lounges / Clubs
Boardrooms
Conference Facilities
Convenience Stores
Corporate Environments
Educational Facilities
Fitness Clubs
O A
P T I O N A L C C E S S O R I E S
MB-15B Mounting Bracket Kit
Direct station frequency entry
using numeric keys
Separate stereo (dual RCA) and
mono (RCA and screw terminal)
outputs
Stereo: dual RCA pin jacks
Mono: RCA pin jack and
screw terminals
Includes FM and AM antennas
plus stereo RCA cable (40")
Optional rack-mount kit, model
MB-15B (1U)
Five year warranty
Hotels
Houses of Worship
Museums
Offices
Restaurants
Retail Stores
Theme Parks
and much more
