Summary of Contents for Toa DT-920

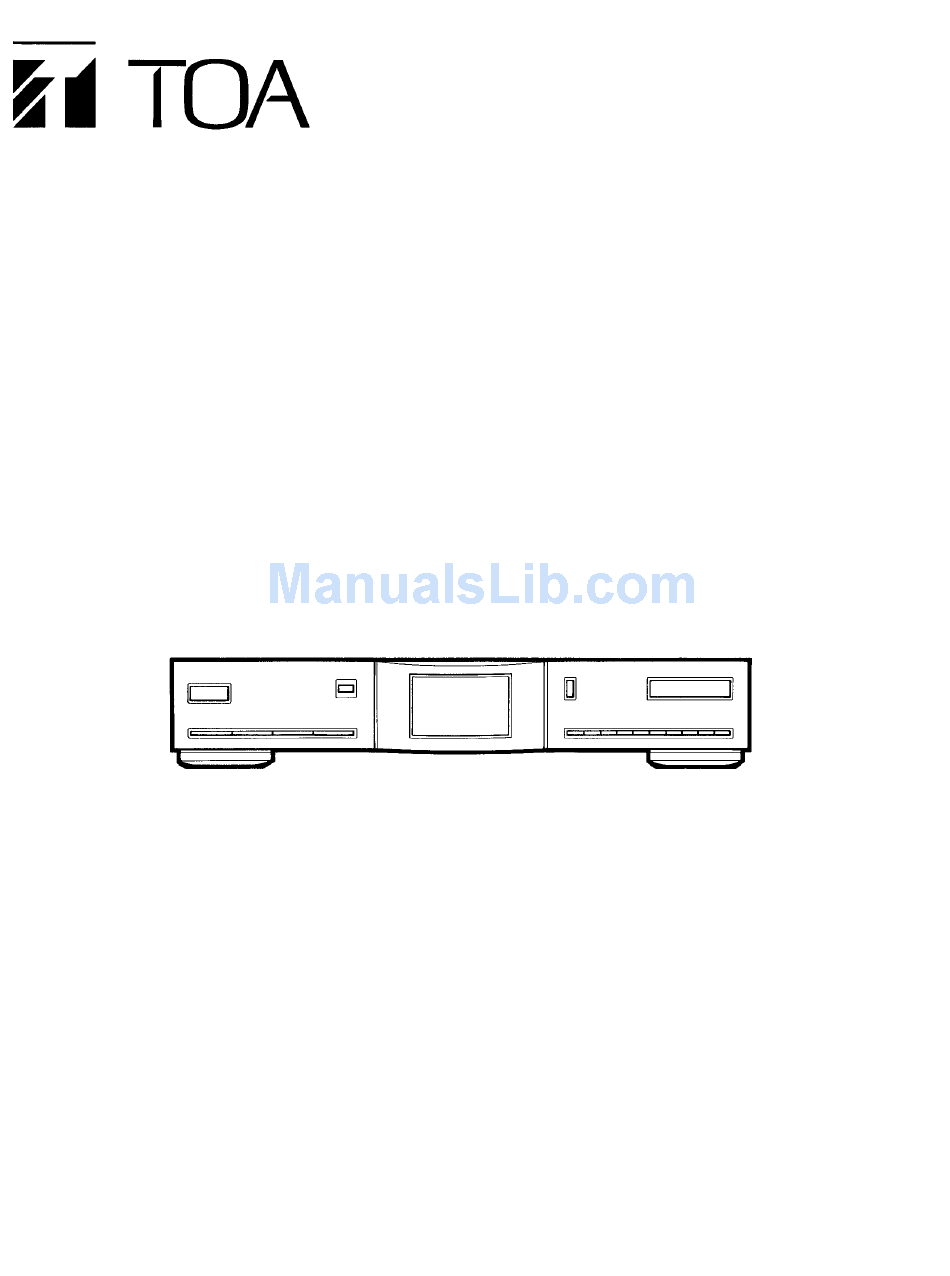

- Page 1 OPERATING INSTRUCTIONS AM/FM SYNTHESIZER DT-920 TUNER Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference. TOA Corporation...
- Page 2 AM loop antenna Part No. 614 240 0845 For your protection in the event of theft or loss of this product, please fill in the information below for your own personal records. DT-920 Model No. Date of Purchase Where Purchased...
- Page 3 The T-shaped indoor FM antenna (300-ohm) is sufficient to receive most local FM broadcasts and should be connected to the rear FM terminals on the DT-920. Infringe areas, or where reception is distorted or noisy, an FM outdoor antenna (not supplied) should be connected instead of the indoor antenna.
-
Page 4: Listening To The Radio
1. Power button (POWER) 2. Channel/Frequency select button (CH/FREQ) 3. Display (MULTI-FUNCTION DISPLAY) 4. Band select button (BAND) 5. Tuning button (DOWN TUNING UP) 6. Preset tuning buttons (PRESET) 7. Direct-in button (DIRECT IN) 8. Memory button (MEMORY) LISTENING TO THE RADIO Preparation 1. -
Page 5: Direct Tuning
DIRECT TUNING 1. Press the BAND button to select AM or FM. 2. Press the DIRECT IN button. "FM ---. -- MHz" or "AM - - - - kHz" appears and blinks. 3. Press the PRESET buttons (1 - 0) to enter the frequency of a broadcast station. -
Page 6: Listening To Preset Stations
LISTENING TO PRESET STATIONS Program stations as described in "AUTOMATIC OR MANUAL TUNING." Using the TUNING "UP" or "DOWN" button 1. Press the CH/FREQ button to select the channel mode. ("FREQ" disappears.) 2. Press the TUNING "UP" or "DOWN" button until the desired channel number appears on the display. -
Page 7: Troubleshooting Guide
The power cord may be too close to the AM loop antenna or the antenna wire. The memory must be reset. SPECIFICATIONS DT-920 520kHz - 1710kHz (10kHz steps)/522kHz - 1710kHz (9kHz steps) BE SURE TO CORRECTIVE ACTION... -
Page 8: Fcc Information
FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. CAUTION: Changes or modifications not expressly approved by TOA may void the user's authority to operate this equipment. Printed in Hong Kong TOA Corporation 1AD6P1P0022--A...
