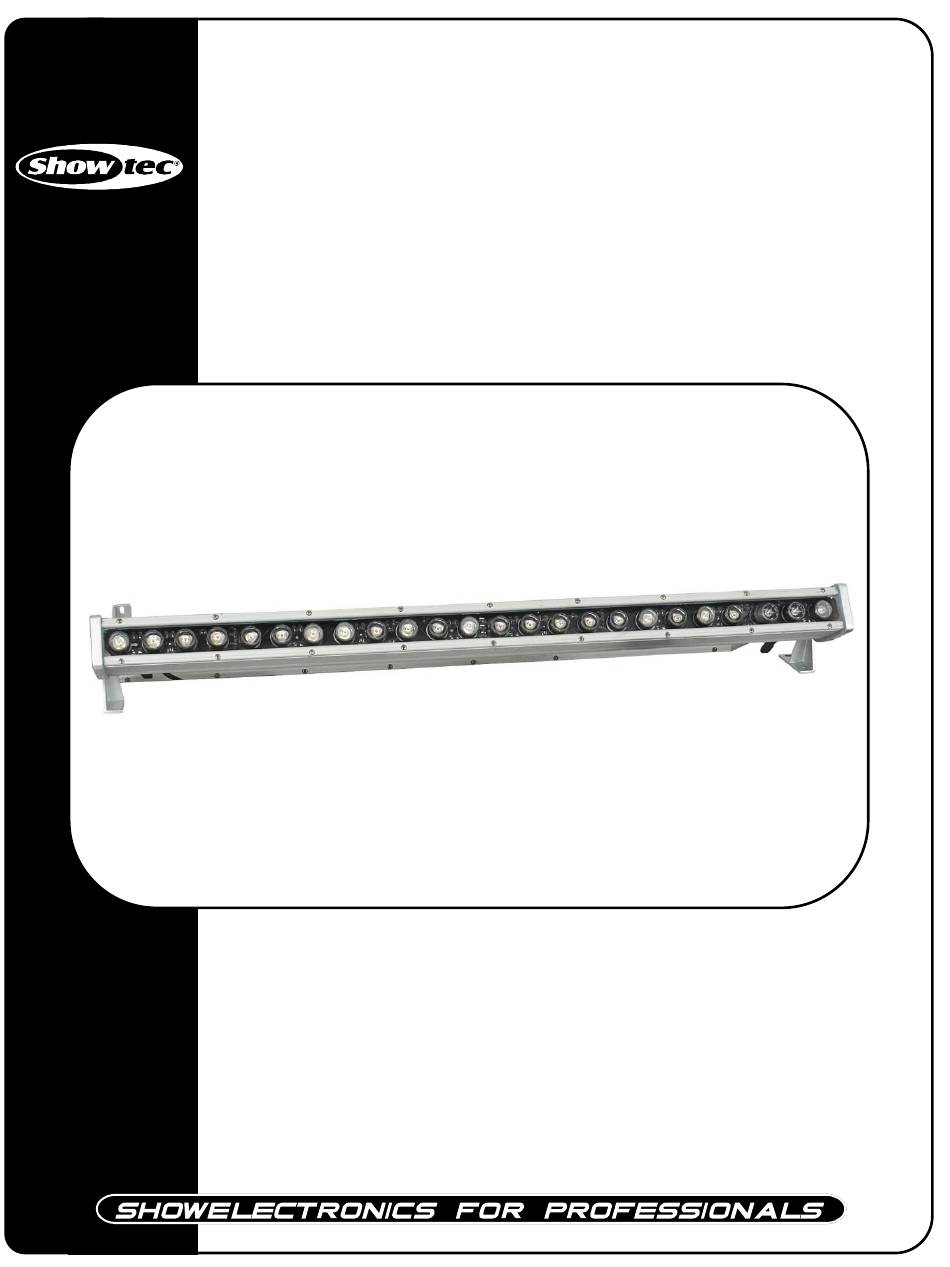

- Page 1 LED Powerbar 24 ORDERCODE 41331...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. Showtec LED Powerbar 24 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec LED Powerbar 24 Product Guide ™ Warning..…...................……………………………………………………….. Safety-instructions………………………………………………………………………………………………………… Operating Determinations…….………………………………………………………………………………………… Rigging…………………………….………………………………………………………………………………………… Description..…................……….…………………………………………….. Features and Overview …………..……………………...….……………….………….……….……….……………. Backside……………………………….…………………...…...….……………….…………………...………………… Installation................…...………………………………………….………..…. Set Up and Operation..............……..……………………………………………… Connection……….……..…………..…………………………………………………………….……....…… Operation…………..…………..…………………………………………………………….……....…… DMX Addressing……..…………..………………………………………………………………………………………... Light Output……..…………..…………………………………………………………….………………….…………… Set Up Example….…..……………………………………………………………….…….…..……………………….….… Maintenance...................………..………….…….………………………….. Troubleshooting................………………….………………….………………... Product Specifications..............……………….…….………………………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Description
Description of the device Features LED Powerbar is a LED system from Showtec. • 2 Modes: Stand-alone, DMX-controlled • 3 Channels (R, G, B) • IP-Rating: IP-65 • Color range: 16,000,000 colors. • Light source: High Power LED • 24 High power LEDs (8 Red, 8 Green, 8 Blue) •... -
Page 7: Installation
Installation Remove all packing materials from the LED Powerbar 24. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 8: Dmx Operation
DMX Operation Press the Up/Down button to change the DMX address setting rnenu: The DMX Channel functions when using the entire device as one: Channel 1: Red (0-255) Channel 2: Green (0-255) Channel 3: Blue (0-255) The LED Powerbar’s built-in controller will automatically detect the presence of a DMX signal. In order to receive a DMX signal, the built-in controller must be attached to a DMX controller by a 3-pin DMX cable and the DMX controller must be turned on. -
Page 9: Light Output
Light Output Light Output Measurement (for 28º beam angle) -
Page 10: Set Up Example
SET UP Example Fig. 4... -
Page 11: Maintenance
Make sure connections are thoroughly dry before linking equipment or supplying electric power. Troubleshooting Showtec LED Powerbar 24 This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. -
Page 12: Product Specifications
Product Specification Model: Showtec LED Powerbar 24 Operating voltage: AC90-264V Operating current: Max.5.4A Power consumption: 64.8 W Beam Angle: 25º Light Source: 24 High power LEDs (8 Red, 8 Green, 8 Blue) Max Projecting distance: 30m. Colors: RGB Protection Rating: IP65 Weight: 2,98 kg Design and product specifications are subject to change without prior notice.
