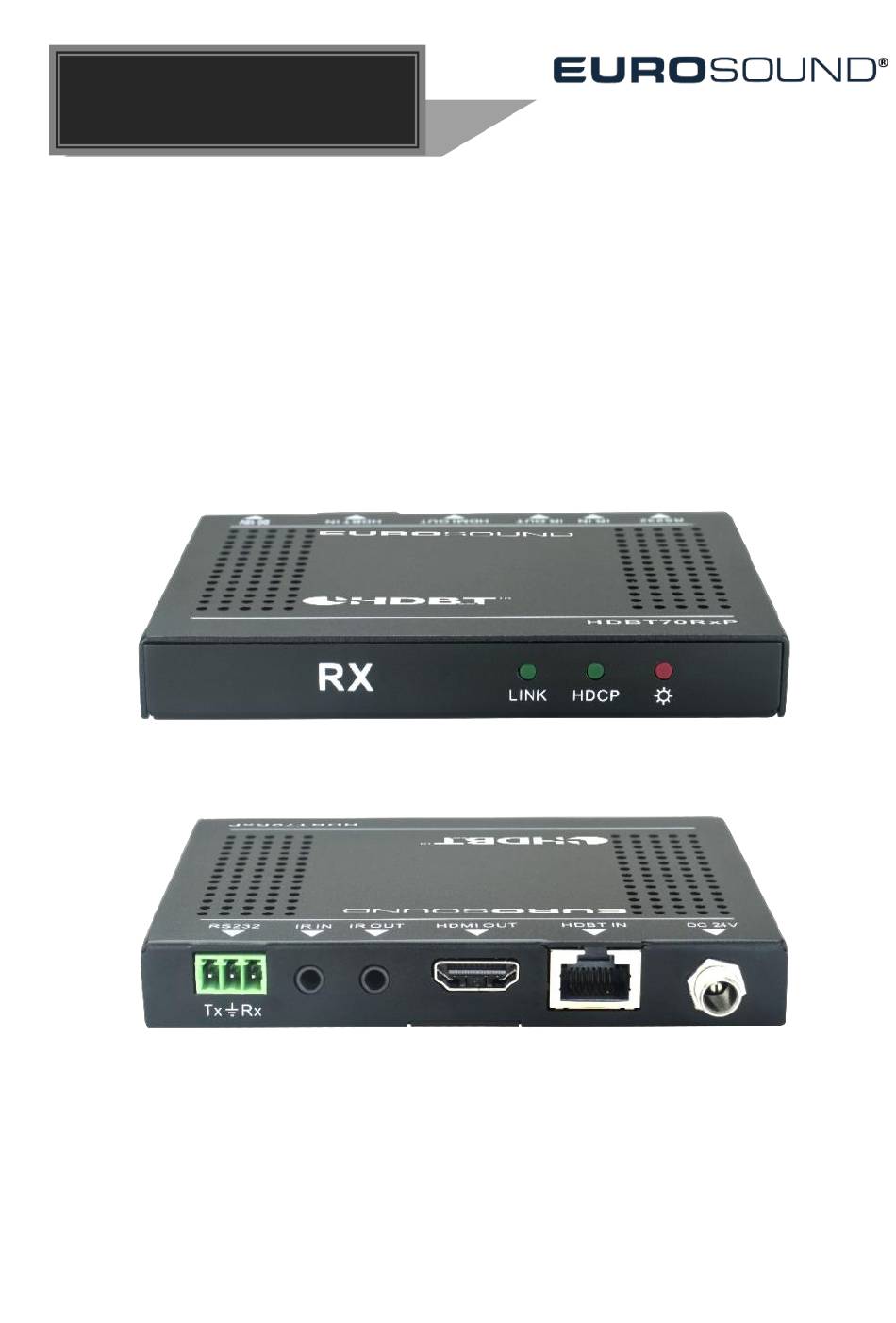

- Page 1 User Manual HDBT70RxP HDBaseT Extender All Rights Reserved Version: HDBT70RxP_2019V1.0...
- Page 2 HDBaseT Receiver Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till December, 2019.
- Page 3 HDBaseT Receiver SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
HDBaseT Receiver Table of Contents 1. Introduction ........................1 1.1 Product Introduction ................... 1 1.2 Features ......................1 1.3 Package Contents ....................1 2. Panel Description ......................2 3. System Connection ..................... 3 3.1 Usage Precaution ....................3 3.2 System Diagram ....................3 3.3 Connection Procedure .................. -
Page 5: Introduction
1. Introduction 1.1 Product Introduction The HDBT70RxP is a mini-size HDBaseT Receiver which adopts HDBaseT technology to receive high-resolution 1080p/ 4k signal from HDBaseT transmitter via a CAT5e/CAT6a cable at a distance of up to 70/40m. Moreover, it support CEC, bi- directional RS232&IR control, and bi-directional PoH function. -
Page 6: Panel Description
HDBaseT Receiver 2. Panel Description Name Description HDBT Link status indicator: OFF: No Link LINK ① GREEN:Link Successful Blinking GREEN: Link abnormal HDCP compliant indicator OFF: No HDMI traffic (no picture) HDCP ② GREEN: Traffic with HDCP. Blinking GREEN: Traffic without HDCP Power OFF: No power;... -
Page 7: System Connection
HDBaseT Receiver 3. System Connection 3.1 Usage Precaution System should be installed in a clean environment and has a prop temperature and humidity. All of the power switches, plugs, sockets and power cords should be insulated and safety. All devices should be connected before power on. Use shielded straight-thru CAT5e/CAT6a cable with TIA/EIA T568B terminations for good transmission effect. -
Page 8: Twisted Pair Cable Connection
HDBaseT Receiver HDMI cable. Step4. Both transmitter and receiver have IR IN and OUT. When one end is used as an IR receiver, the signal sent from the end can only be transmitted via the other end. For example: When “IR IN” of transmitter connects with an IR receiver, the IR emitter must connect to IR OUT of Receiver. -
Page 9: Specification
HDBaseT Receiver 4. Specification HDBaseT Receiver Input (1) IR,(1) HDBaseT, (1) RS232 (1) 3.5mm mini jack, (1) RJ-45, Input Connector (1) 3p captive screw connector Audio Digital audio, transmit through HDMI audio Output (1) HDMI, (1) IR, (1) RS232 (1) Female HDMI, (1) 3.5mm mini jack, Output Connector (1) 3p captive screw connector General... -
Page 10: Troubleshooting & Maintenance
HDBaseT Receiver 5. Troubleshooting & Maintenance No image on display: Ensure that the display device has been set to the correct input. Ensure that the HDMI cables used for both the source/transmitter and the receiver/display are properly connected and are working. Test the HDMI cables directly from a source to display and ensure their operation. -
Page 11: Customer Service
HDBaseT Receiver 6. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years. 2) Scope These terms and conditions of Customer Service apply to the customer service provided for the products or any other items sold by authorized distributor only.
