Topens TC196 User Manual

Topens TC196 User Manual

Tuya wifi remote control
Hide thumbs Also See for TC196:

Advertisement

Quick Links

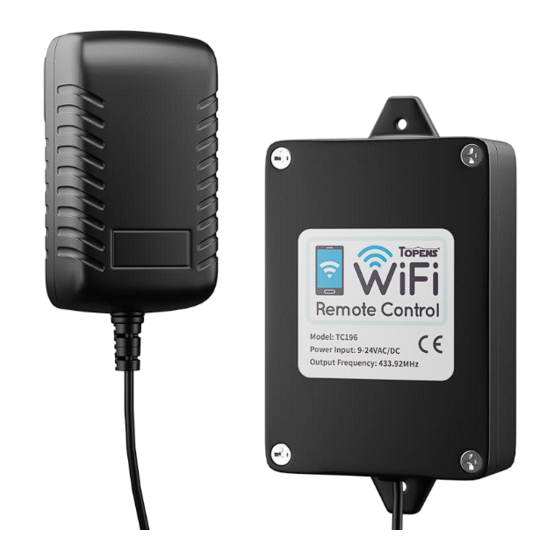

Tuya WiFi Remote Control
(Item No. TC196)
User Manual
NOTE: Please read this manual thoroughly before installation and programming.
C030710
23a

Advertisement

loading
Need help?

Need help?

Do you have a question about the TC196 and is the answer not in the manual?

Questions and answers

Summary of Contents for Topens TC196

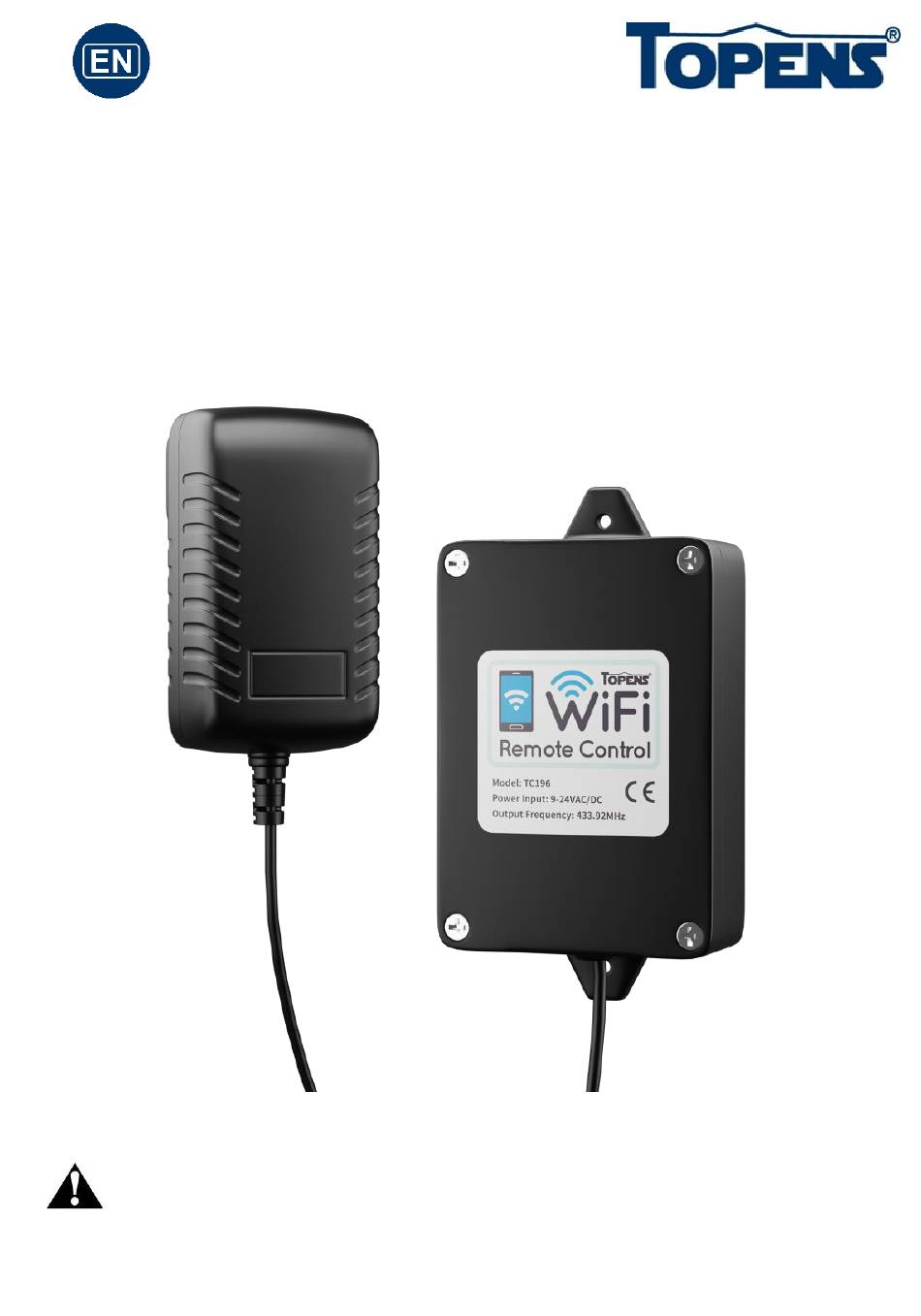

  • Page 1 Tuya WiFi Remote Control (Item No. TC196) User Manual NOTE: Please read this manual thoroughly before installation and programming. C030710...
  • Page 2: Power Supply

    1. Power Supply The TC196 is equipped with an adapter, and the adapter can be plugged into the socket to supply power. You can also use AC-DC power supply, battery or transformer as power source. The power input of the TC196 could be 9-24VAC/DC.
  • Page 4 3.2 Power on the WiFi remote control, the red light will be on. Now you can configure the remote control to connect the network (via WiFi). Login into the app and click “+” or “Add device” to add a new WiFi remote control. Make sure there is a WiFi network that your phone and the switch can be connected.
  • Page 5 You can see the remote control in the app and click the WiFi remote control you have added. It will jump to the main control interface. You can operate the WiFi remote control by your phone.
  • Page 6 3.3 On the main operation interface you can see four buttons. These four buttons equal to the four buttons of the gate/door opener remote control. The WiFi remote control can be programmed to control four swing gate openers or one sliding gate opener plus two swing gate openers.
  • Page 7 3.5 How to Erase the WiFi remote control code from the gate opener Press and hold the remote control programming button (CODE SW button, LNSW button, Learn button, etc.) on the gate opener control board until the (REM LED, LEARN LED, etc.) from ON to OFF or LCD display “dL”, and then release the button. Now all remote controls include the WiFi remote control codes have been erased from the gate opener.
  • Page 9 4.2.3 You can create different devices in a group. 4.2.4 If you have any questions, you can click "FAQ & Feedback "to inquire. You can click “More” to see more questions. If the list of issues does not have the questions you want to feedback, you can click "Unsolved? Send Feedback "for further feedback, and you can also check your feedback progress later.
  • Page 10 4.2.5 You can add a shortcut to your home screen. Click “Add to Home Screen”, please go to your system settings to turn on the permission to add TUYA Smart shortcut to your home screen. Then you can see the shortcut on your phone 4.2.6 You can also check device network and update status.
  • Page 12 Your comments and suggestions are important to us as they help us provide the best possible service. Should you have any need to contact us, the info below will help you get in touch: TOPENS Website www.topens.com Contact Us: E-mail: support@topens.com Kindly include your Product Model, Purchasing Date &...
