Topens TCS173 User Manual

of
User Manual Wireless Push Button
(Item No. TC173)
Thank you for purchasing the wireless push button remote control (TC173). It
can be mounted not only on wall in the room but also in the car or any other
place for user convenience. Read the manual carefully and completely before
you permanently mounting the push button.

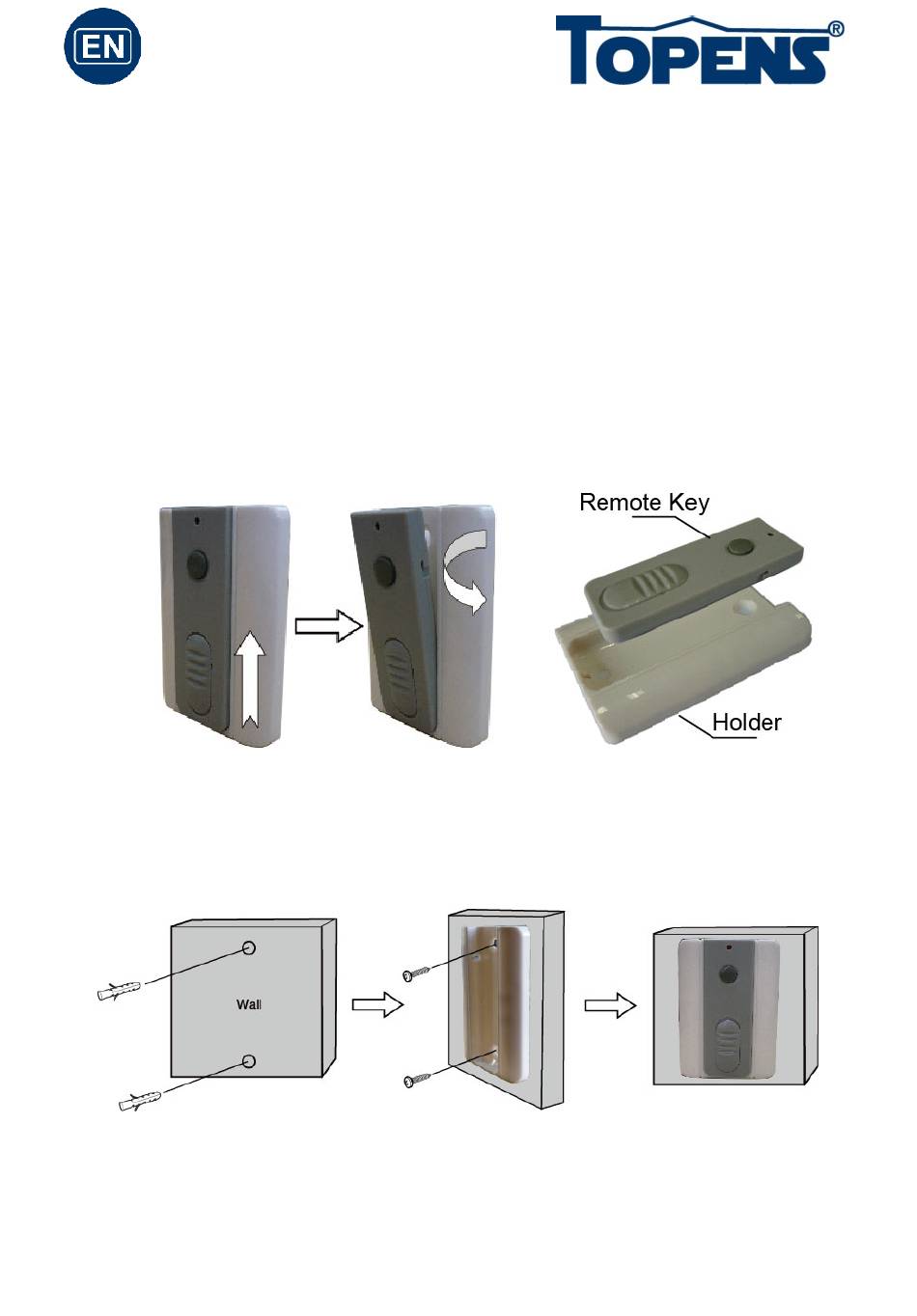

Installation

There are 2 parts of the push button, one is remote key and another is the
holder. You should take the remote key out before the installation. You can
detach the holder from the push button according to Fig.1.
Fig. 1
There are 2 methods to install the push button according to you needs. One is
permanently mounting to the wall (Fig.2) and another is installing to the post for
portable using (Fig.3).
Fig. 2
C030501 VER21a
