GIGABYTE X3 Plus r7 - Portable Laptop Manual

Introduction

Congratulations on your purchase of the AORUS Notebook!

This Manual will help you to get started with setting up your notebook. For more detailed information, please visit our website at http://www.aorus.com. All specifications are subject to the manufacturer's configuration at the time of shipping and may change without prior notice, written or otherwise.

Using Notebook for the First Time

1. Connect the power cord to the AC adapter.
2. Connect the AC adapter to the DC-in jack on the back side of the notebook.
3. Connect the power cord to the power outlet.
4. While the Battery Indicator lights on, press the Power Button to turn on the notebook.

• Ensure that your Notebook PC is connected to a grounded power adapter before turning it on for the first time.
• When using your Notebook PC on power adapter mode, the socket outlet must be near to the unit and easily accessible.
• Locate the input/output rating label on your Notebook PC and ensure that it matches the input/output rating TC information on your power adapter. Some Notebook PC models may have multiple rating output currents based on the available SKU.
• Power adapter information:
  • Input voltage: 100-240Vac
  • Input frequency: 50-60Hz
  • Rating output voltage: 19.5V
  • USB charging port: 5V/2. IA

(The availability of charging port may differ by country and region. Please contact your local dealers or retailers for the latest product information.)

Switching on the Power

After you turn on the notebook for the very first time, do not turn it off until the operating system has been configured. Please note that the volume for the audio will not function until Windows Setup has completed.

Booting Up the notebook for the First Time

Depending on your configuration, the Microsoft Windows Boot Screen may be the first screen that you will see as the notebook starts up. Follow the on screen prompts and instructions and enter your personal information to complete the setup of the Windows Operating System.

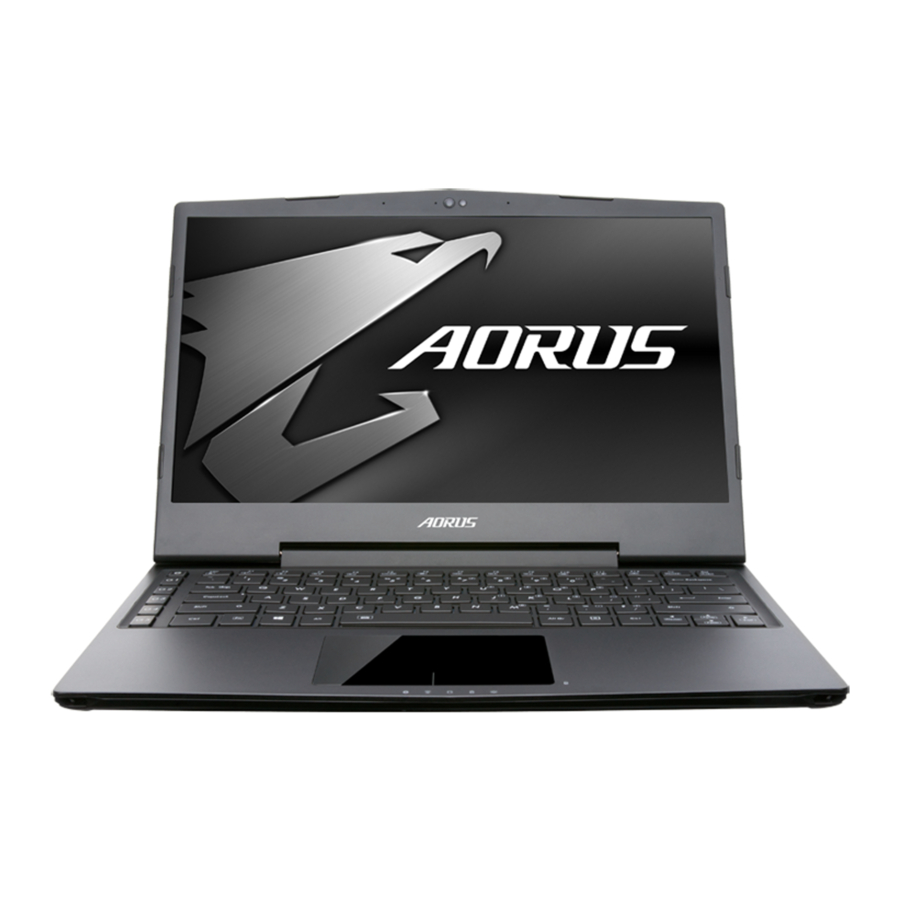

Your Notebook Tour

1. Webcam Status LED Indicator
2. Webcam
3. Light sensor
4. Microphone
5. TouchPad
6. Battery Indicator Button
7. LED Indicators

2. Bluetooth Status LED
   Wireless Lan Status LED
   HDD Status LED
   Battery Status LED
   Power Status LED

1. Kensington Lock Slot
2. Mini Display Port
3. HDMI Port
4. USB 3.0 Port
5. Microphone Jack
6. Headphone Jack
7. USB 3.1 Port
8. Speaker
9. Speaker
10. SD Card Reader
11. USB 3.0 Port
12. Power Button

1. DC-in Jack
2. Ethernet Port

DO NOT remove the built-in lithium battery. For any service needs, please contact your local Aorus Authorized Service Center.

• Do not install the Notebook PC on a slant or a place prone to vibrations, or avoid using the Notebook PC in that location for a long time. This increases the risk that a malfunction or damage to the product will occur.
• Do not store and use Notebook PC in direct sunlight or the location where temperatures exceed 112 °F (45°C) such as inside a vehicle. There is a danger of Lithium-ion battery expansion and aging.
• Do not use the Notebook PC in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with floor heating as it may cause the computer to overheat. Take care that the Notebook PC vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, it may be dangerous and cause the Notebook PC to overheat.

X3 Operation Manual

X3 equipped with many unique features, providing user an exceptional gaming experiences.

Hardware Upgrade

TC User may upgrade memory and storage or carry X3 to nearest repair center to upgrade; Please visit AORUS official website for compatible memory and storage brands.

Please ensure X3 is not powered on and unplugged to power source before the upgrade. Any damage during user's upgrade will not be covered by warranty, and user shall be responsible for related repair cost; hence recommend to carry your laptop to nearest service center for the upgrade.

Battery Protection

When battery is in use for a period of time (not connected to power source and in high performance mode), Mass power discharging on battery in a short period of time may cause battery to run at high temperature and may shorten its lifespan. in order to protect the battery's lifespan, the battery will not be chargeable when its temperature is higher than 45°C. The mechanism for this is to protect the battery life. However, after user connects to power adapter, battery stops discharging and temperatures below is 45°C, the battery will start charging back to the source and to maintain normal operation.

Command & Control is a software that integrates a list of basic settings to a single interface, providing user a faster and better experience when customization is needed.

FAQ

FAQ (Frequently Asked Questions) please refer to the below link: http://www.aorus.com/
