Titan TTT817GBC Instructions Manual

Titan TTT817GBC Instructions Manual

2-in-1 brush cutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

EN
2-in-1 Brush Cutter
36V 23cm/ 30cm TXP
TTT817GBC
WARNING: Read the instructions before using the product!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTT817GBC and is the answer not in the manual?

Questions and answers

Related Manuals for Titan TTT817GBC

Summary of Contents for Titan TTT817GBC

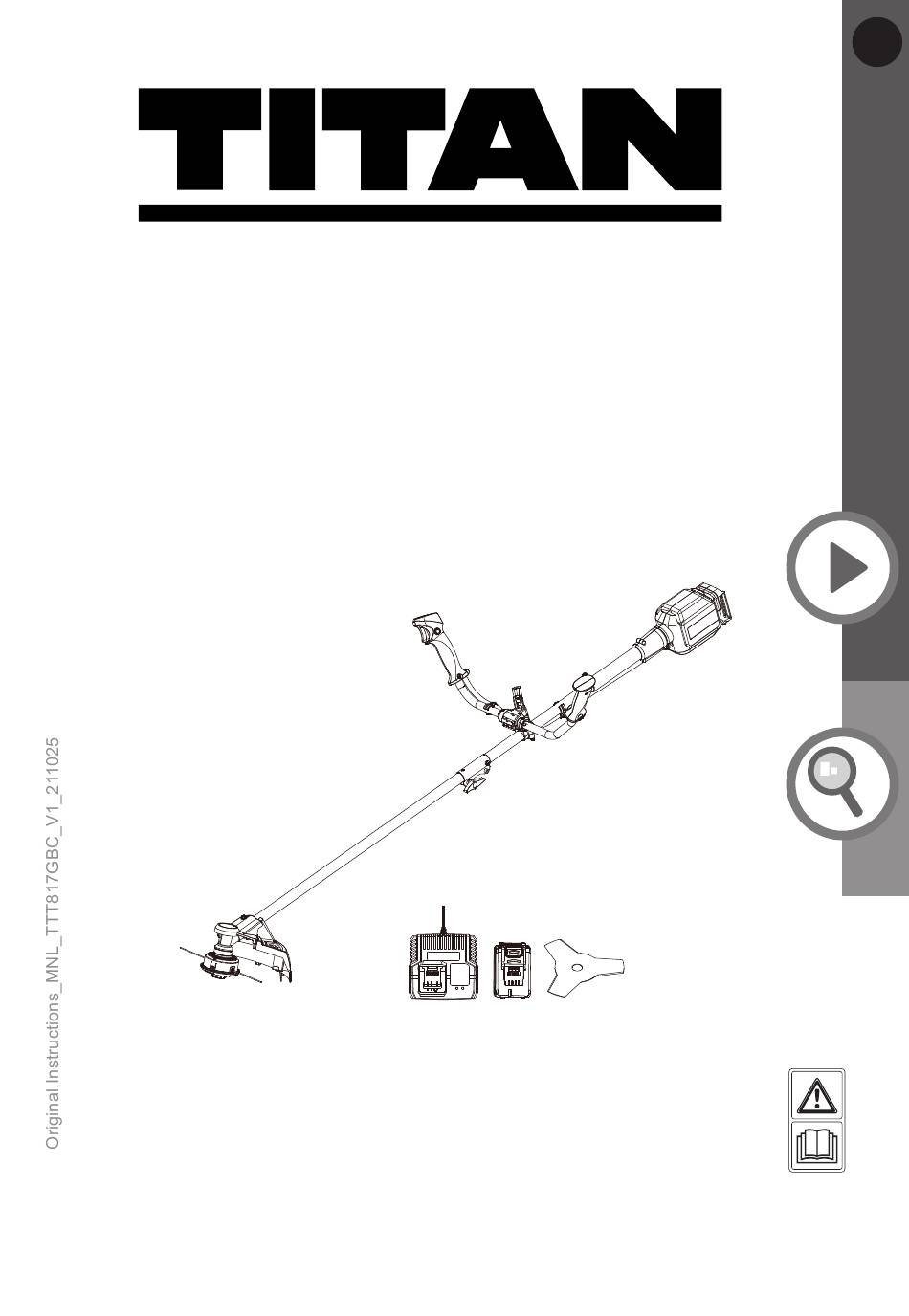

  • Page 1 2-in-1 Brush Cutter 36V 23cm/ 30cm TXP TTT817GBC WARNING: Read the instructions before using the product!
  • Page 2 Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications...

  • Page 3: General Power Tool Safety Warnings

    TTT817GBC by TITAN Safety information Safety warnings General safety warnings 1. Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.
  • Page 4 Safety information TTT817GBC by TITAN Safety warnings which may ignite the dust or fumes. 3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety 1. Power tool plugs must match the outlet. Never modify the plug in any way.
  • Page 5 TTT817GBC by TITAN Safety information common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 6 Safety information TTT817GBC by TITAN Safety warnings Power tool use and care 1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
  • Page 7 TTT817GBC by TITAN Safety information 8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care 1.
  • Page 8 Safety information TTT817GBC by TITAN Safety warnings improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service 1. Have your power tools serviced by a qualified repair person using only identical replacement parts. This will ensure that safety of the power tool is maintained.

  • Page 9: Operation

    TTT817GBC by TITAN Safety information DISCONNECTING THE SUPPLY. Do not use the machine if the cord is damaged or worn. 2. Before use, always visually inspect the machine for damaged, missing or misplaced guards or shields. 3. Never operate the machine while people, especially children, or pets are nearby.
  • Page 10 Safety information TTT817GBC by TITAN Safety warnings Maintenance and storage 1. Disconnect the machine from the power supply (i.e. remove the plug from the mains, remove the disabling device or removable battery) before carrying out maintenance or cleaning work. 2. Use only the manufacturer’s recommended replacement parts and accessories.
  • Page 11 Safety information TTT817GBC by TITAN machine. Blades running faster than their rated rotational speed can break and fly apart. 7. Wear eye, ear, head and hand protection. Adequate protective equipment will reduce personal injury by flying debris or accidental contact with the cutting line or blade.
  • Page 12 Safety information TTT817GBC by TITAN Safety warnings blade. A damaged supply cord may result in electric shock, fire and/or serious injury. 17. Keep all parts of the body away from the cutter, line or blade when the machine is operating. Before you start the machine, make sure the cutter, line or blade is not contacting anything.
  • Page 13 TTT817GBC by TITAN Safety information cover on metal blades. Proper handling of the machine will reduce the likelihood of accidental contact with the blade. 25. Only use replacement cutters, lines, cutting heads and blades specified by the manufacturer. Incorrect replacement parts may increase the risk of breakage and injury.
  • Page 14 Safety information TTT817GBC by TITAN Safety warnings difficult to see the material being cut. 5. If you are approached by another person while operating the machine, switch the machine off. There is an increased risk of injury to other persons being struck by the moving blade in the event of blade thrust.
  • Page 15 Safety information TTT817GBC by TITAN Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low- noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks: 1.
  • Page 16 Safety information TTT817GBC by TITAN Safety warnings if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again. Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain.
  • Page 17 Safety information TTT817GBC by TITAN Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (direct current voltage) Hz Hertz Ampere Watt °C Degree Celsius Milliampere /min or...
  • Page 18 Safety information TTT817GBC by TITAN Symbols Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation. In general, children must not come near the area where the product is.
  • Page 19 TTT817GBC by TITAN Safety information Do note expose battery packs to heat in excess of 40 ºC. Do not charge or store the battery pack in temperatures below 5 °C (41 °F) and above 40 °C (104°F). The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.

  • Page 20: Your Product

    Your product TTT817GBC by TITAN Your product 25 24 23...
  • Page 21 Your product / Before you start TTT817GBC by TITAN 1. On/Off switch 16. Lower pole a. Battery capacity 2. Lock-off button a. Protective sleeve* indicators* 3. Right-handle bar 17. Guard b. Battery capacity 4. Cord clip (smaller) a. Bolt button* 5.

  • Page 22: You Will Need

    Before you start TTT817GBC by TITAN You will need (items not supplied) (items supplied) Suitable personal protective equipment Guard (17) Suitable crosshead screwdriver Trimmer head (18) Battery pack (19) Charger (20) and its manual Cutter blade (3-Teeth) (21) Harness (22)
  • Page 23 TTT817GBC by TITAN Before you start Fig. 1 Fig. 2 WARNING! Make sure bolt (15d) and lock knob (15) are properly tightened before using the product. Guard 1. Remove the bolt (17a) from the guard (17) by using the supplied multi tool (23) and keep it handy (Fig.
  • Page 24 TTT817GBC by TITAN Before you start Setup WARNING! Never use the trimmer head (18) or cutter blade (21) without the guard (17) properly fitted. Fig. 3 NOTE: Always remove knife protector (17e) before use. Handle bars Adjust the handle bars (3, 13) to the suitable position to fit the intended use (Fig. 4, 5) Fig. 4 (Storage position) Fig. 5 (Working position) 1.
  • Page 25 TTT817GBC by TITAN Before you start Fig. 6 Fig. 6 5. Attach the electric cord (10) with the cord clip (smaller) (4) on the right-handle bar (3), the cord clip (bigger) (11) on the upper pole (9) (Fig. 7). Fig. 7 WARNING! Never use the product without the handle bars (3, 13) Fig.
  • Page 26 TTT817GBC by TITAN Before you start Setup 5. Screw the trimmer head (18) onto the spindle (21e) and tighten it counterclockwise by hand. 6. Remove the spindle lock rod (24) (Fig. 8). Fig. 8 Cutter blade 1. Rotate the backing flange (21d) until its hole is aligned with the notch in the gear head. 2. Insert the spindle lock rod (24) into the hole to lock the spindle (21e).

  • Page 27: Battery Pack

    TTT817GBC by TITAN Before you start Fig. 8 Fig. 8 Fig. 9 Battery pack Attach / Release Fig. 9 1. Align the battery pack (19) with the sliding slots of the battery docking port (8) and slide the battery pack in to attach it. Ensure it clicks in place (Fig. 10).
  • Page 28 TTT817GBC by TITAN Before you start Battery pack Battery capacity indicators The battery pack (19) is equipped with the battery capacity indicators (19a) which are used to give an indication of the battery pack’s remaining capacity. Press the battery capacity button (19b) to check battery capacity (Fig. 12). The LEDs will stay lit for approximately 5 seconds.
  • Page 29 TTT817GBC by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications Declaration of conformity...

  • Page 30: Intended Use

    Product functions TTT817GBC by TITAN Intended use This cordless 2-in-1 brush cutter TTT817GBC is designated with rated voltage of 36 V It is designed only to be used with the battery pack TTB812BAT and the charger TTB815CHR. With the trimmer head attached the product is intended to cut smaller types of weed, lawn grass or similar soft vegetation.
  • Page 31 TTT817GBC by TITAN Product functions 3. Adjust the length of the harness (22) so that the securing clip (22a) is approximately 15 cm below your waist. 4. Attach the securing clip (22a) to the loop the suspension sleeve (12) (Fig. 15).

  • Page 32: Cutting Attachments

    TTT817GBC by TITAN Product functions Cutting attachments Trimmer head Use the trimmer head (18) to cut smaller types of weed, lawn grass or similar soft vegetation. Cutter blade Use the cutter blade (21) to cut heavier weeds, brush and similar vegetation.

  • Page 33: General Operation

    TTT817GBC by TITAN Operation General operation 1. Check the product, its battery pack and charger as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 2. Double check that accessories or attachments are properly fixed. 3. Always hold the product by its handles. Keep the handles dry to ensure safe support.
  • Page 34 TTT817GBC by TITAN Operation Cutting 2. Hold the product firmly so that it sits with a gap between the product and max. your right side. 3. Stand upright, do not lean forward max. and pay attention to posture. Keep both feet apart to help retain your balance. 4. Never hold the cutting head higher than your hip (Fig.
  • Page 35 TTT817GBC by TITAN Operation 6. Ensure the cutting device remains clean and free from off-cuts that may cause it to jam. Check regularly. Release the on/off switch (1) and disconnect the product from the power supply before checking. 7. Trim longer grass in stages; do not cut long grass in one cut (Fig. 24). For the best results, cut longer grass in steps (Fig.

  • Page 36: After Use

    Operation TTT817GBC by TITAN Trimming Line feeding During use, the tip of the trimming line (18d) will get shorter due to wear and the trimming line may break. Regularly check the condition of the trimming line (18d) and adjust if necessary.

  • Page 37: General Cleaning

    TTT817GBC by TITAN Care and maintenance The golden rules for care WARNING! Always switch the product off, remove the battery pack and let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage.
  • Page 38 TTT817GBC by TITAN Care and maintenance Cutting attachments Replace worn or damaged cutting attachments. WARNING! Never use other blades including metal multi-piece pivoting chains and flail blades. Otherwise serious injury may result. 1. Keep the cutting attachments and the safety guard clean and free of debris. Remove grass trimmings.
  • Page 39 TTT817GBC by TITAN Care and maintenance 6. Remove the cover (18a) and the trimming spool (18c) from the housing (18h) (Fig. 29, step 3). Fig. 28 Fig. 29 Fig. 28 Fig. 29 7. Clean the housing (18h) before inserting a new trimming spool (18c) of the same type.
  • Page 40 Care and maintenance TTT817GBC by TITAN Trimming line Refill the trimming line in the trimming spool 1. Remove the trimming spool (18c) from the housing (18h) as instructed in chapter “Trimming line - Replace the trimming spool”. 2. Discard all the remaining line (18d) from the trimming spool (18c).

  • Page 41: Troubleshooting

    TTT817GBC by TITAN Care and maintenance / Troubleshooting 4. Store the product and its accessories in a dark, dry, frost-free, well-ventilated place. 5. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 °C and 30 °C.

  • Page 42: Recycling And Disposal

    Troubleshooting / Recycling and disposal TTT817GBC by TITAN Troubleshooting Problem Possible cause Solution 3. Unsatisfactory 3.1. Trimming line is worn / 3.1. Replace with a new result damaged 3.2. Cutter blade is worn / 3.2. Replace with a new one damaged 4.
  • Page 43 TTT817GBC by TITAN Guarantee Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use.
  • Page 44 TTT817GBC by TITAN Guarantee Guarantee Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Screwfix Direct Limited Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com...

  • Page 45: Technical Specifications

    Technical specifications TTT817GBC by TITAN Technical specifications General > Rated voltage : 36 V > Rated no load speed n : 6500 min (as grass trimmer) 6600 min (as brush cutter) > Protection class : ||| > Weight : approx. 4.3 kg >...
  • Page 46 Proper measures include among others regular maintenance and care of the product and accessories, keeping hands warm, periodical breaks and proper planning of work processes. Rating label explanation 2-in-1 Brush Cutter: TTT817GBC TTT = TITAN (brand) 817 = Series number GBC = 2-in-1 Brush cutter...

  • Page 47: Declaration Of Conformity

    Declaration of conformity TTT817GBC by TITAN Declaration of conformity...
