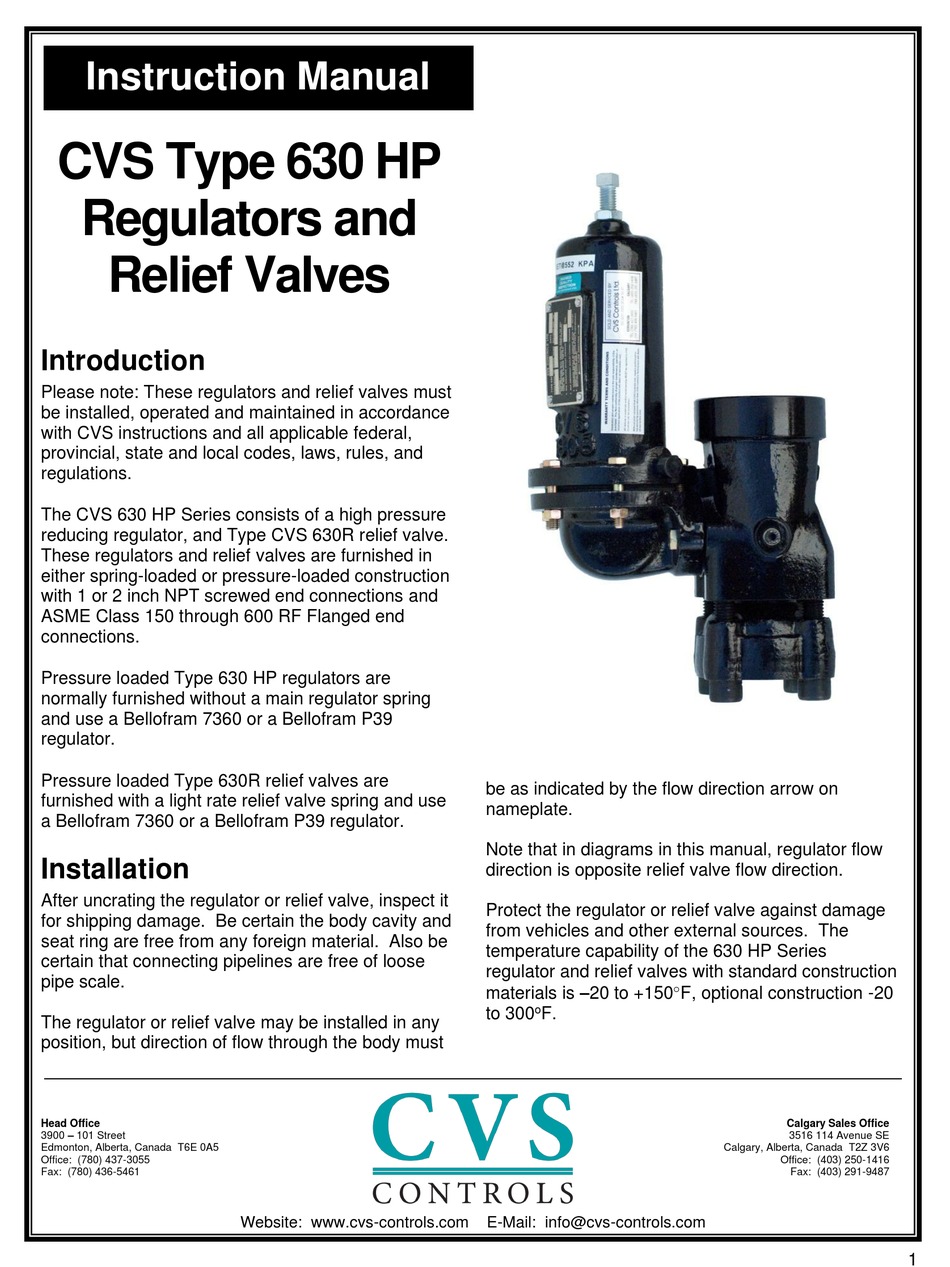

Instruction Manual
CVS Type 630 HP
Regulators and
Relief Valves
Introduction
Please note: These regulators and relief valves must
be installed, operated and maintained in accordance
with CVS instructions and all applicable federal,
provincial, state and local codes, laws, rules, and
regulations.
The CVS 630 HP Series consists of a high pressure
reducing regulator, and Type CVS 630R relief valve.
These regulators and relief valves are furnished in
either spring-loaded or pressure-loaded construction
with 1 or 2 inch NPT screwed end connections and
ASME Class 150 through 600 RF Flanged end
connections.
Pressure loaded Type 630 HP regulators are
normally furnished without a main regulator spring
and use a Bellofram 7360 or a Bellofram P39
regulator.
Pressure loaded Type 630R relief valves are
furnished with a light rate relief valve spring and use
a Bellofram 7360 or a Bellofram P39 regulator.
Installation
After uncrating the regulator or relief valve, inspect it
for shipping damage. Be certain the body cavity and
seat ring are free from any foreign material. Also be
certain that connecting pipelines are free of loose
pipe scale.
The regulator or relief valve may be installed in any
position, but direction of flow through the body must
Head Office
3900 – 101 Street
Edmonton, Alberta, Canada T6E 0A5
Office: (780) 437-3055
Fax: (780) 436-5461
Website: www.cvs-controls.com

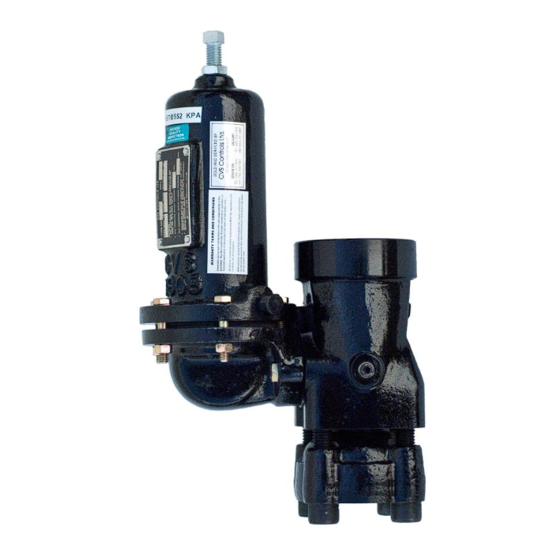

Figure 1: CVS Type 630HP Regulator
be as indicated by the flow direction arrow on
nameplate.
Note that in diagrams in this manual, regulator flow
direction is opposite relief valve flow direction.
Protect the regulator or relief valve against damage
from vehicles and other external sources. The
temperature capability of the 630 HP Series
regulator and relief valves with standard construction
materials is –20 to +150F, optional construction -20
to 300
o
F.
E-Mail: info@cvs-controls.com
Calgary Sales Office
3516 114 Avenue SE
Calgary, Alberta, Canada T2Z 3V6
Office: (403) 250-1416
Fax: (403) 291-9487
1
Advertisement
Table of Contents
Related Manuals for CVS Controls CVS 630 HP Series
Summary of Contents for CVS Controls CVS 630 HP Series
- Page 1 CVS instructions and all applicable federal, provincial, state and local codes, laws, rules, and regulations. The CVS 630 HP Series consists of a high pressure reducing regulator, and Type CVS 630R relief valve. These regulators and relief valves are furnished in...
-
Page 2: Overpressure Protection
Refer to the following tables to determine pressure Vents ratings: Spring-loaded constructions have a screened vent assembly (Key 24) installed in the ¼” NPT spring 1. Spring loaded Type 630 HP regulators case vent opening. If a remote vent is required, 1.1. - Page 3 Table 2: Outlet Pressure Limits for Spring-Loaded CVS Type 630 HP Regulators Low-Pressure Regulator High-Pressure Regulator 3 to 10 8 to 20 17 to 30 27 to 40 27 to 50 46 to 95 90 to 150 150 to 200 200 to 275 275 to 500 Outlet Pressure range...
-
Page 4: Taking Out Of Service
Table 5: Relief Valve Pressure Limits for Pressure-Loaded CVS Type 630R Regulators Low Pressure Relief High Pressure Relief Valve Valve Loading Regulator Type Bellofram 7360 Bellowfram 7360 Bellofram P39 Max. Allowable Inlet Pressure to Relief pressure setting plus maximum Relief pressure setting plus maximum Relief Valve, PSIG Allowable buildup of 25 psig Allowable buildup of 250 psig... -
Page 5: Maintenance
6. To replace seating surface: Maintenance 6.1. For Type 630 HP, use a ¾” socket wrench to remove and re-install valve disc and holder assembly (Key 3). WARNING: To avoid personal injury and 6.2. For Type 630R, unscrew machine equipment damage, isolate the regulator or screw (key31) and remove O-ring relief valve from all pressure. -
Page 6: Nameplate Information
Nameplate Information 9. To ensure proper slack in the diaphragm: When corresponding with your CVS Controls 9.1 For constructions using a spring, tighten the representative about this device, state the model spring case cap screws finger tight only. number, pressure range and all other pertinent Compress the spring slightly with the information found on the nameplate (Key 29). -
Page 7: Parts Reference
Parts Reference Description Body Valve Carrier Type 630R O-Ring Holder Type 630* Valve Disc Assembly Seat Ring Gasket (2 required) Inlet Adaptor, Steel Cap Screw, Steel (4 required) Gasket Pin, SST Lever Assembly Diaphragm Adaptor Connector Head Assembly Diaphragm, Neoprene Cap Screw, Steel Cap Screw, Steel Diaphragm Plate, Steel Cd. - Page 8 Figure 3: Spring-Loaded CVS Type 630R Relief Valve Low Pressure Connection Figure 4: Pressure-Loaded CVS Type 630R Relief Valve Low Pressure Connection...
-
Page 9: Parts List
CVS Type 630 HP Regulators and Relief Valves Parts List Description Part # 1” Steel w/ brass pitot tube Body CVS2N6990000A2 1” Steel w/ SST pitot tube CVS2N6990X0012 2” Steel w/ SST pitot tube CVS2N699122012 Brass CVS0W018614022 Valve Carrier CVS0W018635032 Brass CVS1D336014012 O-Ring Holder, Type 630R... - Page 10 CVS Type 630 HP Regulators and Relief Valves Parts List cont’d Description Part # Spring See Following Table 630 Pressure Loaded None Required Pressure Range to 275 CVS0W019344022 Upper Spring Seat, Zinc 630 and 630R, and 630R Pressure Range over Pressure-Loaded CVS1K371144022 Cast Iron...
- Page 11 Key 23: Adjusting Screw, Steel For Wire Seal, Type Spring Use Adjusting Adjusting Screw Screw CVS0W019227022 CVS1A279128982 CVS1R829928992 CVS0W019127022 CVS1B212028982 CVS1R830028992 CVS0W019027022 CVS1A500528982 CVS1R808528992 CVS 630 CVS0Y0664000A2 CVS1A500528982 CVS1R808528992 CVS1J146927142 CVS1A500528982 CVS1R808528992 CVS1K370927082 CVS1A500528982 CVS1R808528992 None * CVS1C116227092 CVS0W019227022 CVS1A279128982 CVS1R829928992 CVS0W019127022 CVS1B212028982...
-
Page 12: Dimensional Data
Dimensional Data:... - Page 13 CVS Type 630 Regulator – Capacity Data Table 1 contains flow capacities in Standard Cubic Feet per Hour of 0.6 specific gravity gas. Alternate flow rates for other gasses may be determined by multiplying the table value by the appropriate factor: Air – 0.775; Nitrogen –...
- Page 14 Table 1(continued): CVS Type 630 Regulator Capacity – SCFH of 0.6 Specific Gravity Gas; based on 20% Droop Outlet Inlet Outlet 1 Inch Body 2 Inch Body Pressure Pressure Pressure Port Diameter - Inches Port Diameter - Inches Range PSIG PSIG 3/16 3/16...
- Page 15 Table 1(continued): CVS Type 630 Regulator Capacity – SCFH of 0.6 Specific Gravity Gas; based on 20% Droop OUTLET INLET OUTLET 1 Inch Body 2 Inch Body PRESSURE PRESSSURE PRESSURE Port Diameter - Inches Port Diameter - Inches RANGE PSIG PSIG 3/16 3/16...
- Page 16 Table 1(continued): CVS Type 630 Regulator Capacity – SCFH of 0.6 Specific Gravity Gas; based on 20% Droop OUTLET INLET OUTLET 1 Inch Body 2 Inch Body PRESSURE PRESSURE PRESSURE Port Diameter - Inches Port Diameter - Inches RANGE PSIG PSIG 3/16 3/16...
- Page 17 Table 1(continued): CVS Type 630 Regulator Capacity – SCFH of 0.6 Specific Gravity Gas; based on 20% Droop OUTLET INLET OUTLET 1 Inch Body 2 Inch Body PRESSURE PRESSURE PRESSURE Port Diameter - Inches Port Diameter - Inches RANGE PSIG PSIG 3/16 3/16...
- Page 18 NOTES:...
- Page 19 NOTES: CVS Controls Ltd. strives for the highest levels of quality and accuracy. The information included in this publication is presented for informational purposes only. CVS Controls Ltd. reserves the right to modify or change, and improve design, process, and specifications without written notice. Under no circumstance is the information contained to be interpreted to be a guarantee/warranty with regard to our products or services, applicability or use.
- Page 20 Head Office Calgary Sales Office 3900 101 Street 3516 114 Avenue SE Edmonton, Alberta Calgary, Alberta T6E 0A5 T2Z 3V6 Canada Canada Office: (780) 437-3055 Office: (403) 250-1416 Fax: (780) 436 5461 Fax: (403) 291-9487 Website: www.cvs-controls.com Email: info@cvs-controls.com June 2021...
