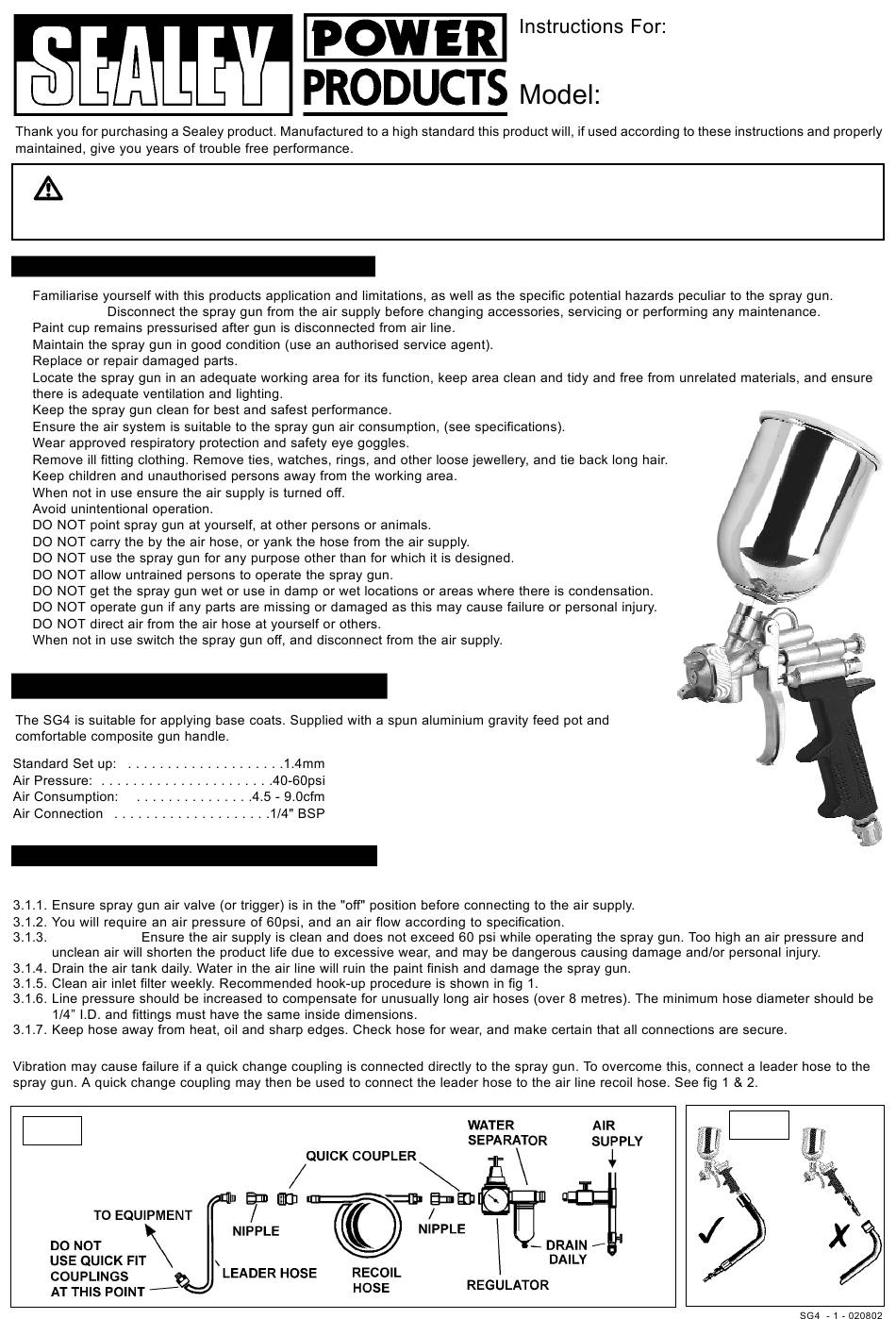

Sealey SG4 Instructions

Gravity feed refinishing gun

Download this manual

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,

WARNINGS AND CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS

INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE ANDOR PERSONAL INJURY, AND WILL INVALIDATE THE

WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY INSTRUCTIONS

F WARNING!

INTRODUCTION AND SPECIFICATIONS

3. AIR SUPPLY CONNECTION

3.1.

Air Supply

F WARNING!

3.2. Couplings.

fig1

Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.

SG4

DO NOT pull the trigger, but depressurise by gently opening cup.

GRAVITY FEED

REFINISHING GUN

fig2

Page 1 GRAVITY FEED REFINISHING GUN IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE ANDOR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY.
Page 2 4. OPERATING INSTRUCTIONS fig 5 fig 4 fig 6 fig 3 5. CLEANING & MAINTENANCE FOR OPTIMUM PERFORMANCE IT IS VERY IMPORTANT TO ENSURE THE GUN IS CORRECTLY CLEANED AFTER EACH USE. 5.1. Cleaning the gun 5.2. Air nozzle, fluid nozzle and needle assembly 5.3.
Page 3 PART NO DESCRIPTION NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice. IMPORTANT: WARRANTY: INFORMATION: E-mail: sales@sealey.co.uk 01284 703534 01284 757500 Web: www.sealey.co.uk...
