  • Page 1 HRV-2B-Mi D200÷D2000 M0H200002-00 - 06/21...
  • Page 2 WARNING If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. An all-pole disconnection device which has at least 3mm separation distance in all pole and a residual current device(RCD)with the rating of above 10mA shall be incorporated in the fixed wiring according to the national rule.

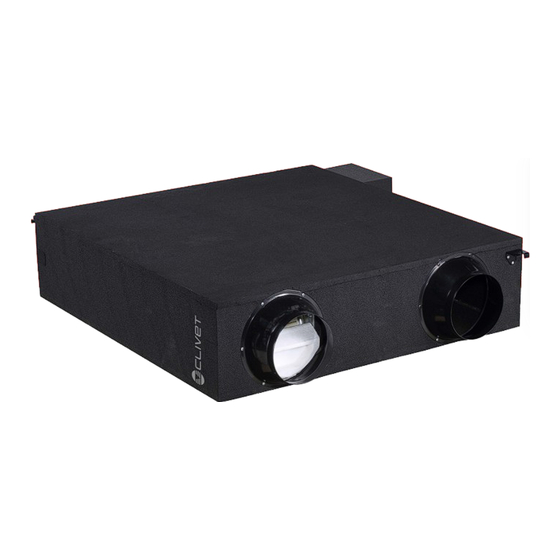

  • Page 3 MAIN PARTS OF THE UNIT HRV-2B-Mi D200~D300 HRV-2B-Mi D400 Fresh Air filter Fresh Air filter Exhaust air outlet Heat exchanger core Exhaust air outlet Heat exchanger core Exaust air filter Exaust Air filter CO2 sensor By-pass Fresh air inlet Fresh air inlet By-pass Return air inlet Return air inlet...
  • Page 4: Table Of Contents

    ● Make sure Earth Leakage Breaker is the type of all poles drop-out. CONTENTS PAGE ● Be sure to ground. Do not connect the ground wire to gas or water pipes, lightning rod PRECAUTIONS..................or a telephone ground wire. Incomplete grounding may result in electric shocks. ACCESSORY...................
  • Page 5: Installation

    3. INSTALLATION ● Do not install the unit in the following locations: ● Place subjected to high temperature or direct flame. May 3.1 Installation Preparation result in fire or overheating. ● Place such as machinery plant and chemical plate where WARNING gas, which contains noxious gas or corrosive components of materials such as acid, alkali organic solvent and plaint,...
  • Page 6 3.4 Installation ● Before installation, please confirm all external parts are stand in their place and without damage. Steel beam and girder structure ● The surrounding environment of the unit, especially the sides of wiring cabinet and water collecting side should Set and use supportive angle steel.
  • Page 7 Key dimensions of the unit and air duct installation. (See the following pictures Fig.3-4~3-7 & Table 3-1 ) HRV-2B-Mi D200~D400 Electric Door control By-pass Return air inlet Exhaust air outlet system Supply air outlet Fresh air inlet Fig. 3-4 HRV-2B-Mi -D500~D1000 Electric control Door...
  • Page 8 HRV-2B-Mi -D1500 Electric Door control 1425 By-pass system Flange dimension Return air inlet Exhaust air outlet Supply air outlet Fresh air inlet 1690 1740 Fig. 3-6 HRV-2B-Mi -D2000 Electric Door control 1625 Flange dimension Exhaust air Return air inlet outlet Fresh air inlet Supply air outlet 1761...
  • Page 9: Wiring

    4.1 Electric data Specification 4. WIRING Table 4-1 HRV-2B-Mi -D200~ D2000 Warning All the supplied parts, materials and electrical works must Phase Single phase comply with local regulations. Power supply Only use copper wires. Voltage Use a steady power supply for the air-conditioners. The 220-240V/50Hz /frequency power voltage must be in line with the rated voltage.
  • Page 10 Table 4-3 Code and Definitions Flashing Operation Show on Explanation times lamp centralized controller ● Unit is ON ○ Unit is OFF Indoor temperature ★ sensor error E5(new protocol) Outdoor temperature ★ EF(old protocol) sensor error NOTE: EEPROM error ★ DC fan motor error ★...
  • Page 11 Communication wiring between the indoor unit and wired controller The wired controller and the indoor unit can be connected in different manners, depending on the forms of communication. For a bidirectional communication mode: ● Use 1 wired controller to control 1 indoor unit or 2 wired controllers (one master and one slave controller) to control 1 indoor unit.(see Fig.4-4) Use 1 wired controller to control multiple indoor units or 2 wired controllers (one master and one slave ●...
  • Page 12 can be caused by lightning) can damage electrical equipment. • If this unit is used in the same room as a cooker, stove, hob, or Ensure that suitable surge protectors and circuit breakers are burner, ventilation for sufficient fresh air must be ensured, properly installed, otherwise electric shocks or a fire may result.
  • Page 13: Specification Parameter

    5. SPECIFICATION PARAMETER 5.1 Specification Parameter Table 5-1 Air outlet Static Power Packing Nominal air flow dimension pressure Model weight (kg) supply size(mm) (mm) (Pa) 53.6 1275×880×420 HRV-2B-Mi -D200 Φ144 HRV-2B-Mi -D300 1275×994×420 Φ144 HRV-2B-Mi -D400 1360×1284×420 71.5 Φ198 74.4 220-240V~...
  • Page 14: Hrv Application

    6. HRV APPLICATION 8. TRIAL RUN 8.1 Please Confirm The Following Points 6.1 Operation principle Before Trial Run: HRV (Heat Recovery Ventilation) employ advanced technique and technics, the heat exchanged core forming 8.1.1 The unit is installed correctly completed. by special paper that be processed with chemical 8.1.2 Ducting and wiring are correctly completed.
  • Page 15 9. Wiring Diagrams Low static pressure SW 1-1 Hige static pressure HRV centralized control SW 1-2 HRV single unit operation R1510 With PRO PGND Black SW 2-1 DC _FAN A R1230 AC_2 Blue EX HUAS T FAN Without PRO AC_1 Brown Blue DC _FAN B...
  • Page 16 10. Electrical Characteristics Indoor Unit Power Supply Model Voltage Min. Max. 220-240 1.3A 1.4A HRV-2B-Mi -D200 HRV-2B-Mi -D300 220-240 1.7A 1.36A HRV-2B-Mi -D400 220-240 2.0A 1.6A 220-240 2.5A HRV-2B-Mi -D500 HRV-2B-Mi -D800 220-240 5.0A HRV-2B-Mi -D1000 220-240 6.0A 4.8A HRV-2B-Mi -D1500 220-240 8.0A 6.4A...
  • Page 17 11 Fan Performance 11.1 How to Read the Diagram The horizontal axis is the Static Pressure (Pa) while the vertical axis represents the Air Flow (m /h). The characteristic curve for the “H” “M” and “L” fan speed control. 11.2 Fan Performance Diagram HRV-2B-Mi -D300 HRV-2B-Mi -D200 HRV-2B-Mi -D500...
  • Page 18 HRV-2B-Mi -D300 HRV-2B-Mi -D200 HRV-2B-Mi -D500 HRV-2B-Mi -D400 HRV-2B-Mi -D1000 HRV-2B-Mi -D800 HRV-2B-Mi -D2000 HRV-2B-Mi -D1500 Notes: All the above fan performance diagrams are obtained under the condition of F7 filter.
  • Page 19: Erp Information

    12. ERP INFORMATION Table 12-1 Fan Types Centrifugal forward curved fan Directive (or Standard) for Regulation ErP Directive 2009/125/EC COMMISSION REGULATION (EU) No 327/2011 Model Name WZDK170-38G-2 +LX-245*203*12- Rev. 48J 1320 Prepare by Specified Information of Fan: Information Item Comment η...
  • Page 20 T able 12-2 Fan Types Centrifugal forward curved fan ErP Directive 2009/125/EC Directive (or Standard) for Regulation COMMISSION REGULATION (EU) No 327/2011 Model Name Rev. WZDK750-38G-W-1+LX-261*234*15 -48J 1300 Prepare by Specified Information of Fan: Information Item Comment 34.14% η target 49.7% Overall efficiencye(η...
  • Page 21 Required information for RVU in COMMISSION REGULATION (EU) No.1254/2014 ANNEX IV Table 12-3 Information item Comment Supplier's name Clivet HRV-2B-Mi D200 Model name Cold region:-79.3 SEC(kWh/(m .a)) Average region:-41.5 Declared typology RVU,BVU Type of drive Multi-speed Type of HRS Recuperative...
  • Page 22 Required information for NRVU in COMMISSION REGULATION (EU) No.1253/2014 ANNEX V Table 12-4 Information Item Comment Clivet Supplier's name Model name HRV-2B-Mi HRV-2B-Mi HRV-2B-Mi HRV-2B-Mi HRV-2B-Mi HRV-2B-Mi HRV-2B-Mi D300 D400 D500 D800 D1000 D2000 D1500 Declared typology NRVU,BVU NRVU,BVU NRVU,BVU NRVU,BVU NRVU,BVU...
