Digitrax UR93E Manual

UR93E

Features:

▪
LocoNet makes it easy to add UR93E Duplex Radio support to your layout.
▪
Provides a Full Duplex radio link to/from the layout with compatible Digi-
trax Duplex Equipped Throttles.
▪
CE conforming and Class B RFI.

Parts List

1 UR93E Duplex Transceiver
1 PS14 Power Supply

UR93E Installation / Quick Start

LocoNet
compatible
command station

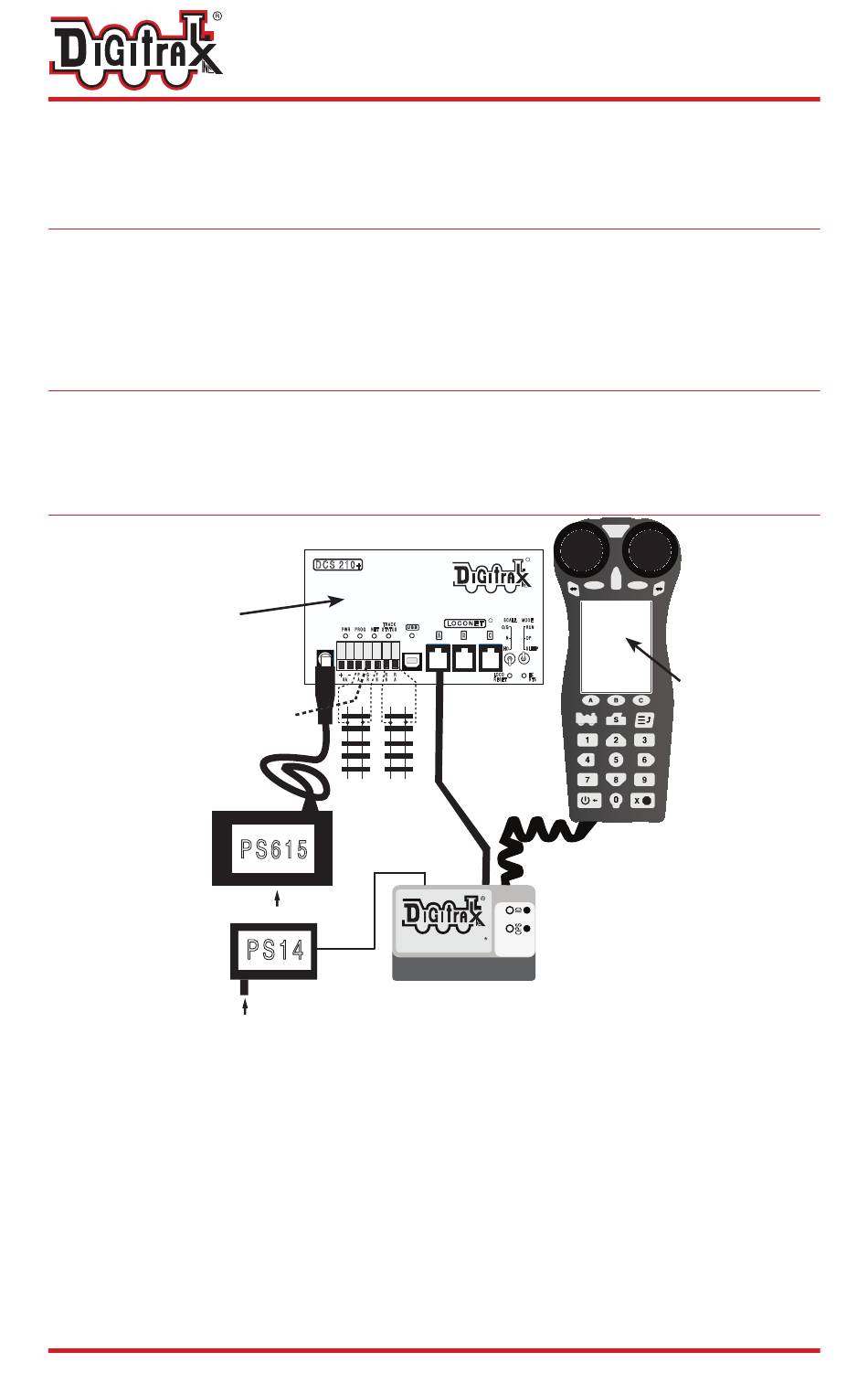

The UR93 is simple to install and begin using on your LocoNet layout.
1. It is recommended the UR93 be placed near the physical center of a layout.
2. Connect the PS14 DC power supply to your UR93 via the DC power jack.
Plug the PS14 into an AC wall outlet. The green and red LEDs will blink.
3. Connect the UR93 to your working LocoNet system using one of the RJ12
jacks at the rear of the UR93. The red LED will go on and the GREEN ID
LED will blink at about 2-second interval to indicate that it is working.
4. If there are more UR93 or UR92's added to the layout, use a throttle to turn
track power OFF and then back ON. This will match Duplex Group Names.
That's all that's required for installation of your UR93 on LocoNet!
