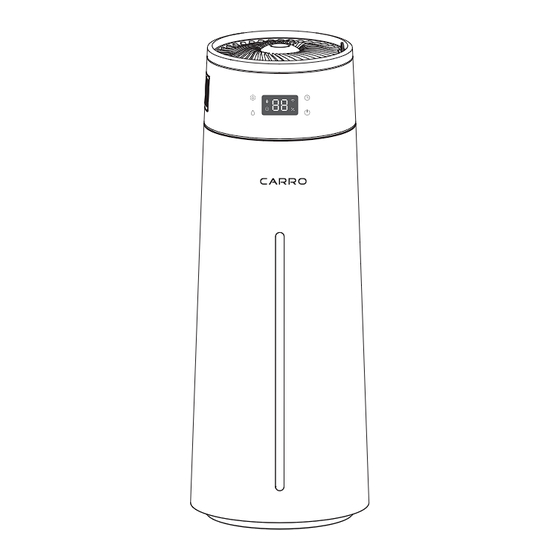

Ultrasonic Humidifier
Model: PH-805-24
Rated voltage: 120V
Rated power: 24W
Frequency: 60Hz
Warning Notice: Before using
this product, please read this
manual carefully and keep it for
future reference.
The design and specifications are
subject to change without prior
notice for product improvement.
Consult with your dealer or
the manufacturer for details.
USER MANUAL
QUESTIONS? CONTACT US.
Email: humidifier@fscarro.com
Tel: 888-253-2374
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carro PH-805-24
Summary of Contents for Carro PH-805-24

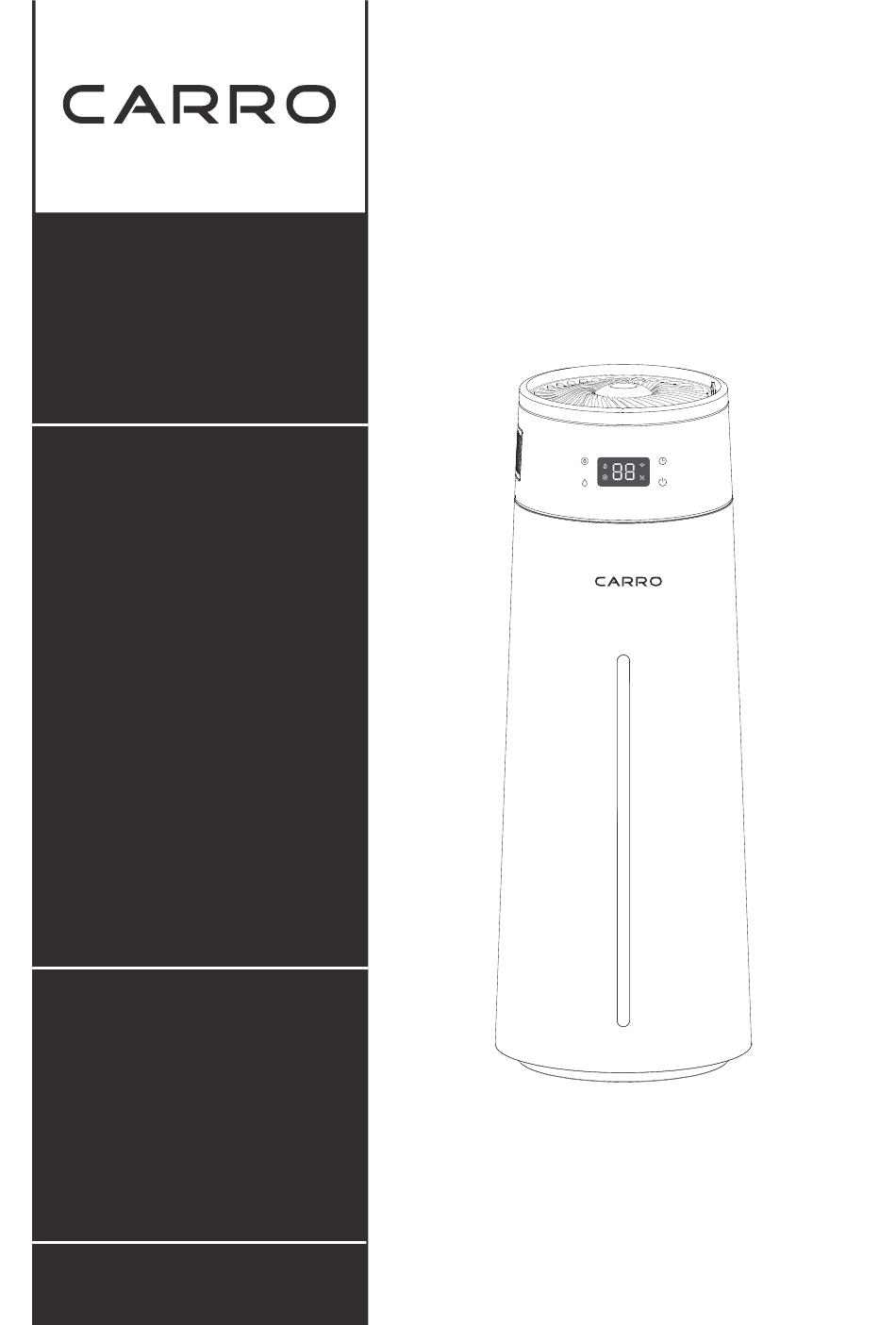

- Page 1 USER MANUAL Ultrasonic Humidifier Model: PH-805-24 Rated voltage: 120V Rated power: 24W Frequency: 60Hz Warning Notice: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement.
-
Page 2: Safety Precautions
READ AND SAVE THESE INSTRUCTIONS Read This Manual Inside you’ll find many helpful hints on how to use and maintain your appliance properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your appliance. You’ll find many answers to common problems in the troubleshooting tips - you should be able to fix most of them quickly before calling customer service. - Page 3 IMPORTANT INSTRUCTIONS • Do not replace the power cord without authorization, or connect the power cord halfway or use other appliances in parallel; • Do not place the appliance near water source; • Do not disassemble, modify or repair internal parts without authorization; •...
-
Page 4: Rules For Safe Operation
This humidifier is pre-assembled in factory. SPECIFICATIONS NOTICE • The following are the design parameters of PH-805-24 the measured parameters are subject to the product; • The humidification amount will vary, depending on the temperature and humidity in the room. -
Page 5: Parts And Features
PARTS AND FEATURES NOTICE • The pictures of the Manual are for reference only, and the actual product in the packing box shall prevail. • The product appearance and function vary with the model; Please be subject to the real product, with optional reading of the respective function description. - Page 6 INSTRUCTION FOR USE Two methods for water filing Method A Fill the water tank directly through the main unit cover. Please use purified water. Please do not add the water in the atomization outlet. Atomization Outlet Main Unit Cover Method B Lift the main unit of the humidifier up and fill purified water directly from top of the water tank.
- Page 7 2. In the on/idle state, press and hold 3 seconds till hear “be- ep”, the WIFI signal on the screen will blink and enter the On/Off CARRO HOME APP connection mode. Under working conditions, the humidity and atomization amount can be set to three levels (small, medium and large).
-
Page 8: Cleaning And Maintenance
Humidity Setting. Press once will display "F", and you can cycle to set the humidity "40%-45%-50%-55%-...-90%-F- 40%"(5%RH gradient). "F" stands for canceling the preset Humidity On/Off humidity. The indicator light is on when the humidifier is shortage of water. Water shortage indicator light When connecting to the network, the indicator light is on. -
Page 9: Cleaning The Outer Casing
Lift the main unit up in Clean the outside part of the machine. Clean the outside part the direction of the arrow. Do not turn the main unit upside down. of the machine. Cleaning the outer casing Wipe and clean the surface of the whole machine with a slightly damp soft cloth. - Page 10 Cleaning the inside & outside of the mist guiding tube,and the atomizing head 1. Rotate counterclockwise to unscrew connecting hose of the main unit and the atomizing head as shown in Fig 1. 2. Hold the main unit with one hand, press the spring switch of the mist guidi- ng tube with the other hand at the same time as shown in Fig 2, and remove the main unit in Fig 3.
- Page 11 NOTICE The foam of the float in Fig 7 is important part of atomizing head assembly, DO NOT mistakenly discard it as part of the packaging. Mist tube assembly installation Install the atomizing head Put the main unit on the table, on the float assembly.
-
Page 12: Fault Handling
SERVICE GUIDE Fault Handling NOTICE • If the humidifier does not work properly after the following suggestions, please contact the customer service center or local service station. PROBLEM CAUSE SOLUTION The power plug is not plugged well The power plug is plugged well The humidifier does not There is no water in the water tank The water is added to the tank... -
Page 13: One (1) Year Limited Warranty
) • Any humidifier outside of the contiguous 48 states • Any claim made outside of the warranty period QUESTIONS? CONTACT US. Carro USA Inc. 1037 W.9th street, Unit 101, Upland, CA 91786 Tel:888-253-2374 www.carrohome.com | humidifier@fscarro.com... - Page 14 APP Control Connection: 1.First download the free Carro Home app from the App Store or Google Play or scan the QR Code as below.Connect the device to the app must turn on WIFl and Bluetooth on your phone. Note: This humidifier needs to use 2.4Ghz wifi to work when you connecting the device, and after connecting it can use the 5Ghz or 2.4Ghz.
- Page 15 Check whether the WIFI name, password,etc have been modified. If so, reset the device and add it again. With product technical updates, the content of Carro Home App may be changed, please refer to the guide displayed on the App.
-
Page 16: Power On/Off
Humidifier APP Operation Display Real-time Ambient Humidity Set Target Humidity On/off Power On/Off (*When in the "on" state, the "Humidity Setting" below will become selectable, and the target humidity can be selected. ln the "off" state, Select and Set the "Humidity Setting" cannot Target Humidity be selected, and the product will maintain continuous...
