Mylight MC3D01RM User Manual V2
MC3D01RM

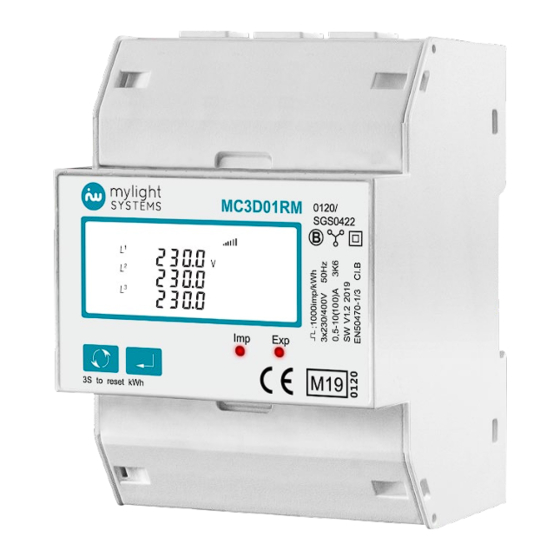

Three Phase Four Wire Energy Meter
Introduction
Mylight Systems
0 800 710 226 | https://www.mylight-systems.com | Specifications are subject to change without notice
Measures active kWh & W.
Resettable partial energy
Bi-directional measurement IMP & EXP
Pulse Output
RS485 Modbus
Din rail mounting 35mm
Direct connection, up to 100A
Better than Class 1/ B accuracy
User Manual V1.3
2017
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MyLight MC3D01RM
Summary of Contents for MyLight MC3D01RM

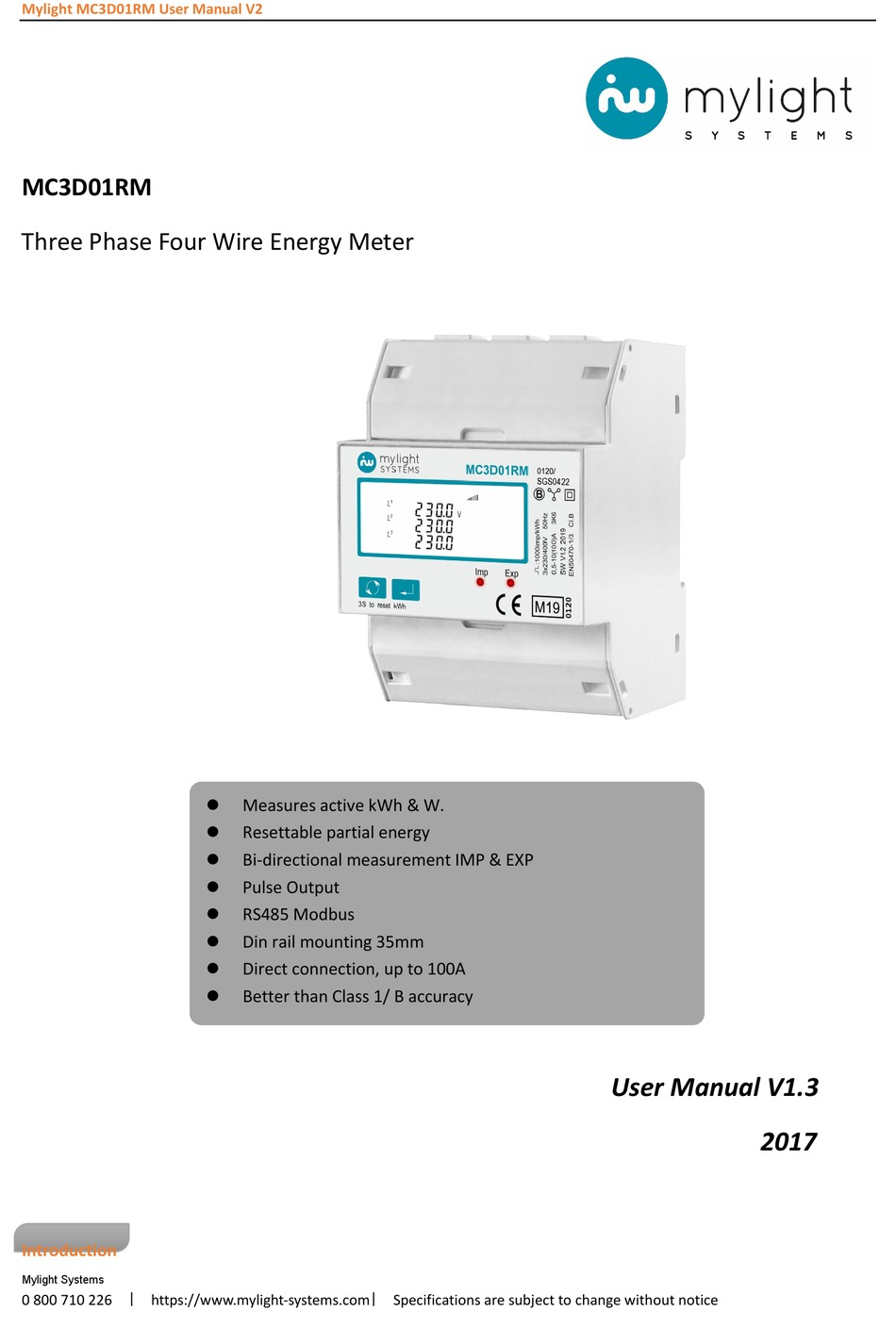

- Page 1 Din rail mounting 35mm Direct connection, up to 100A Better than Class 1/ B accuracy User Manual V1.3 2017 Introduction Mylight Systems 0 800 710 226 | https://www.mylight-systems.com | Specifications are subject to change without notice...
-
Page 2: Specification
Mylight MC3D01RM User Manual V2 The MC3D01RM is digital three phase 4 wire energy meter with a white back-lighted LCD screen for perfect reading. The unit measures and displays active energy (kWh) and power ( W), imported and exported. A resettable partial energy is provided, so the user can easily check the energy imported and energy exported during a certain period. -
Page 3: Operation
DIN rail 35mm Sealing IP51 (indoor) Material self-extinguishing UL94V-0 PART 2 Operation Initialization Display When it is powered on, the meter will initialize and do self-checking. Mylight Systems 0 800 710 226 | https://www.mylight-systems.com | Specifications are subject to change without notice... - Page 4 After initialization and self-checking program, the meter display the measured values. The default page is total kWh. If the user wants to check other information, please press the scroll button on the front panel. Mylight Systems 0 800 710 226 | https://www.mylight-systems.com | Specifications are subject to change without notice...
- Page 5 Mylight MC3D01RM User Manual V2 Total active energy(kWh) Total=Import+ Export import energy export energy Total partial energy(kWh) Total=Import+ Export Import partial energy export partial energy Total active power Mylight Systems 0 800 710 226 | https://www.mylight-systems.com | Specifications are subject to change without notice...
- Page 6 Mylight MC3D01RM User Manual V2 Import active power Export active power Pulse constant Modbus Address Baud Rate Parity Mylight Systems 0 800 710 226 | https://www.mylight-systems.com | Specifications are subject to change without notice...
- Page 7 3 second, the current selection will flash, use to change the Parity. Options: EVEN,ODD,NONE ( default ) Keep press for 3s to confirm the selection. Mylight Systems 0 800 710 226 | https://www.mylight-systems.com | Specifications are subject to change without notice...
- Page 8 The range is from 0001 to 9999. Keep press for 3s to confirm the selection. Keep pressing button to exit the set-up mold. Wiring diagram 3 phase 4 wire Mylight Systems 0 800 710 226 | https://www.mylight-systems.com | Specifications are subject to change without notice...
- Page 9 Mylight MC3D01RM User Manual V2 2 phase 3 wire Dimensions Installation Mylight Systems 0 800 710 226 | https://www.mylight-systems.com | Specifications are subject to change without notice...
- Page 10 Mylight MC3D01RM User Manual V2 Declaration of Conformity Mylight Systems 0 800 710 226 | https://www.mylight-systems.com | Specifications are subject to change without notice...
