Coleman CMBG750 User Manual

Product Details (All Models)
Product Details (All Models)
A
USB
12V
B
12W
12W
100W
DISPLAY
AC/UPS
C

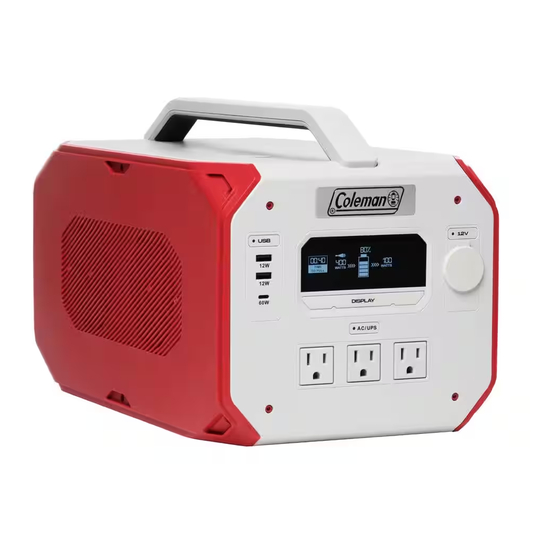

A. Intelligent LCD screen: See details at right
B. USB power button and ports
C. AC/UPS power button and outlets
D. 12V power button and accessory socket
Quick Start Guide
Connect to AC outlet,
1.
solar panel, or both to
fully charge unit:
EXT BATT
OR
SOLAR INPUT
RED
Getting Started: Charging your Battery Generator
BEFORE YOU START: See "Safety Information" section for important precautions. Please conform to all safety precautions in the guide. Keep this guide in a safe place for future reference.
IMPORTANT - CHARGE BEFORE USE: Fully charge your Battery Generator before using it and/or storing it. While recharging from an AC outlet, your Battery Generator should be located near an
easily accessible outlet. The charger is designed to maintain the battery in a healthy state.
IMPORTANT - The Battery Generator must be connected to a grounded AC outlet (3 prong outlet) to ensure safety when charging the product and used in UPS mode.
IMPORTANT: The Battery Generator should be placed in a dry, well ventilated area with at least 6 inches of space on all sides for proper ventilation.
The Battery Generator can be charged from grid power (AC) or solar energy (solar panels). When it is being charged and discharged (used to power your items) at the same time:
• If the input power (charging the Battery Generator) is greater than the output power (used to power your items), the intelligent LCD screen will show the "Time to Full".
• If the input power (charging the Battery Generator) is less than the output power (used to power your items), the intelligent LCD screen will show the "Time to Empty".
• The LCD screen stays on during charging but it can be turned off by pressing the DISPLAY button below the screen.
If your Battery Generator is fully discharged (0% available power), the intelligent LCD screen will be completely dark. This screen will illuminate as soon as the Battery Generator is connected to power, letting you know that the unit is charging, and will
continually display the growing power status as the Battery Generator charges.
Battery Generator 750 / 1000 / 1500
User Guide
EXT BATT
E
D
F
SOLAR INPUT
RED
AC INPUT
G
E. Extension port:
Extension Pack sold separately
F. Solar input
G. AC input port:
Use AC charging cord (included)
H. Input overload protection switch
I. AC charging cord
2.
EXT BATT
SOLAR INPUT
RED
Intelligent LCD Screen (All Models)
I
88:88
TO FULL
H
A. Charging Input Indicators
• Time to fully charge (in hours)
• AC or solar
• Input wattage
B. Fuel Gauge Indicators
• Percentage of available battery power
• Battery graph fuel gauge
Turn on outputs
(USB, AC, and 12V ports)
and connect device(s):
USB
AC/UPS
PRESS
ONCE
12V
A 3 second delay may occur before
power is delivered to your device.
EN ESPAÑOL / ET FRANÇAIS
ColemanPowerStations.com
A B C
888%
POWER SAVE OFF
888 888
TIME
WATTS WATTS
+EXT BATT
E
HILO TEMP OUTPUT OVERLOAD LOW BATTERY
C. Power Output (Usage) Indicators
• Total output wattage
• Time remaining to empty at current output
charge detected
D. Special Function Indicators
• POWER SAVE OFF (details on Page 5)
• +EXT BATT (details on Page 3-4)
E. Warning Indicators
• HI TEMP/LO TEMP
• OUTPUT OVERLOAD
• LOW BATTERY
3. Turning on UPS/Power Save
USB
Off mode:
2.4 A
2.4 A
3.0 A
DISPLA Y
AC/UPS
PRESS / HOLD
SECONDS
For more detail, refer to "UPS" or "Power
Save Off " Mode section in this manual.
MANUALS
88:88
D
TIME
TO EMPTY
12V
USE THIS MODE
FOR
CPAP
3
AND OTHER
LOW-DRAW
APPLIANCES
