OPERATION & SERVICE MANUAL
ORIGINAL INSTRUCTIONS
Model: 06-5024-Series
06-5024-3300, 06-5024-3510, 06-5024-3610, 06-5024-3800

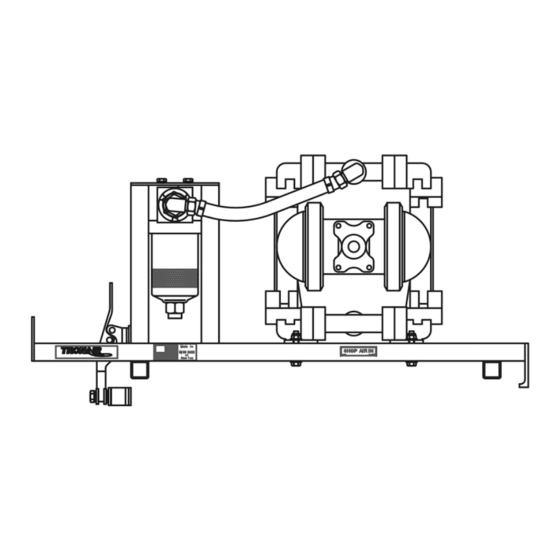

Barrel Pump
09/2023 - Rev. 02
For Spare Parts, Operations & Service Manuals or Service Needs
Scan the QR code or visit Tronair.com/aftermarket
Tronair, Inc.
Phone: (419) 866-6301 | 800-426-6301
1 Air Cargo Pkwy East
Web: www.tronair.com
Swanton, OH 43558
Email: sales@tronair.com
Advertisement
Related Manuals for Tronair 06-5024 Series
Summary of Contents for Tronair 06-5024 Series
- Page 1 06-5024-3300, 06-5024-3510, 06-5024-3610, 06-5024-3800 Barrel Pump 09/2023 - Rev. 02 For Spare Parts, Operations & Service Manuals or Service Needs Scan the QR code or visit Tronair.com/aftermarket Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 11/2014 Original release 09/2023 Major revision, CE Marked...
- Page 3 Models: 06-5024-3300, 06-5024-3510, 06-5024-3610, 06-5024-3800 Barrel Pump TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SPECIFICATIONS .............................. 1 FEATURES ................................. 1 SAFETY INFORMATION ..............................2 USAGE AND SAFETY INFORMATION ......................2 PERSONAL PROTECTION EQUIPMENT ......................
-
Page 4: Model And Serial Number
Models: 06-5024-3300, 06-5024-3510, 06-5024-3610, 06-5024-3800 Barrel Pump This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. - Page 5 Screw pick-up tube into barrel. Connect pump to pick-up tube via quick disconnect coupling. Verify hand valve is closed. Connect shop air to inlet port (maximum line pressure 100 psi/6.9 bar). Tronair recommends the use of customer supplied quick disconnect fitting. CAUTION! Unit will start pumping when pressurized air is applied to the pump.
-
Page 6: Troubleshooting
KIT, AIR END REPAIR RECOMMENDED SPARE PARTS LISTS Reference the following pages for Replacement Parts and Kits available. IN SERVICE SUPPORT Contact Tronair, Inc. for technical services and information. See Section 1.3 − Manufacturer. 09/2023 | Rev. 02 Page | 3... - Page 7 If warranty coverage is approved, either replacement parts will be sent or the product will have to be returned to Tronair for repairs. If the product is to be returned, a Return Material Authorization (RMA) number will be issued for reference purposes on any shipping documents.
-
Page 8: Parts List
Models: 06-5024-3300, 06-5024-3510, 06-5024-3610, 06-5024-3800 Barrel Pump Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Model Number Fluid Type 06-5024-3300 ....HyJet V 06-5024-3510 ....MIL-PRF-5606, MIL-PRF-83282 06-5024-3610 ....Skydrol 06-5024-3800 ....MIL-L-23699, MIL-PRF-87257 06-5024-3300 06-5024-3510 06-5024-3610... - Page 9 Models: 06-5024-3300, 06-5024-3510, 06-5024-3610, 06-5024-3800 Barrel Pump Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Model Number Fluid Type 06-5024-3300 ....HyJet V 06-5024-3510 ....MIL-PRF-5606, MIL-PRF-83282 06-5024-3610 ....Skydrol 06-5024-3800 ....MIL-L-23699, MIL-PRF-87257 06-5024-3300 06-5024-3510 06-5024-3610...
-
Page 10: Filter Assembly
Models: 06-5024-3300, 06-5024-3510, 06-5024-3610, 06-5024-3800 Barrel Pump Filter Assembly When ordering replacement parts/kits, please specify model, serial number and color of your unit. Model Number Fluid Type 06-5024-3300 ....HyJet V 06-5024-3510 ....MIL-PRF-5606, MIL-PRF-83282 06-5024-3610 ....Skydrol 06-5024-3800 ....MIL-L-23699, MIL-PRF-87257 06-5024-3300 06-5024-3510 06-5024-3800... - Page 11 APPENDIX I Lincoln Pump Service & Operating Manual...
- Page 33 APPENDIX II Declaration of Conformity...
-
Page 35: Eu Declaration Of Conformity
Enter serial number(s) Declaration: Tronair has assessed the equipment described above against the Essential Health and Safety Requirements of one or more Directives. Based on this assessment, the equipment described above is deemed to comply with the directive(s) listed below.
