4. Add chlorine as directed on the bottle to create a chlorine residual of
5 ppm. Allow jets to run for five minutes per jet system, rotating diverter valves.
It is very important that you shock the spa water with chlorine at start-up.
Skipping this step can prevent the system from establishing a chlorine residual.
NOTE: Shock is a process of adding significant doses of a quick-dissolving chlorine
to oxidize non-filterable organic waste and to remove chloramines and bromamines.
5. Reduce calcium hardness if needed.
Use FreshWater Vanishing Act Calcium Remover. The standard-size FreshWater
Vanishing Act Calcium Remover (included) can remove up to 100 ppm of calcium
hardness from spa water after the hot tub has been filled, or after the spa has
been topped off. The larger FreshWater Vanishing Act Calcium Remover XL (sold
separately) can remove up to 300 ppm. Follow FreshWater Vanishing Act Calcium
Remover label instructions and reference your spa Owner's Manual.
6. Set output level. Access the FreshWater Salt System menu by following the spa
Owner's Manual instructions. Within the system screen, you can easily verify the
Salt System
system status, test the system, adjust the output level, or activate a system Boost.
2
2 + 3
3

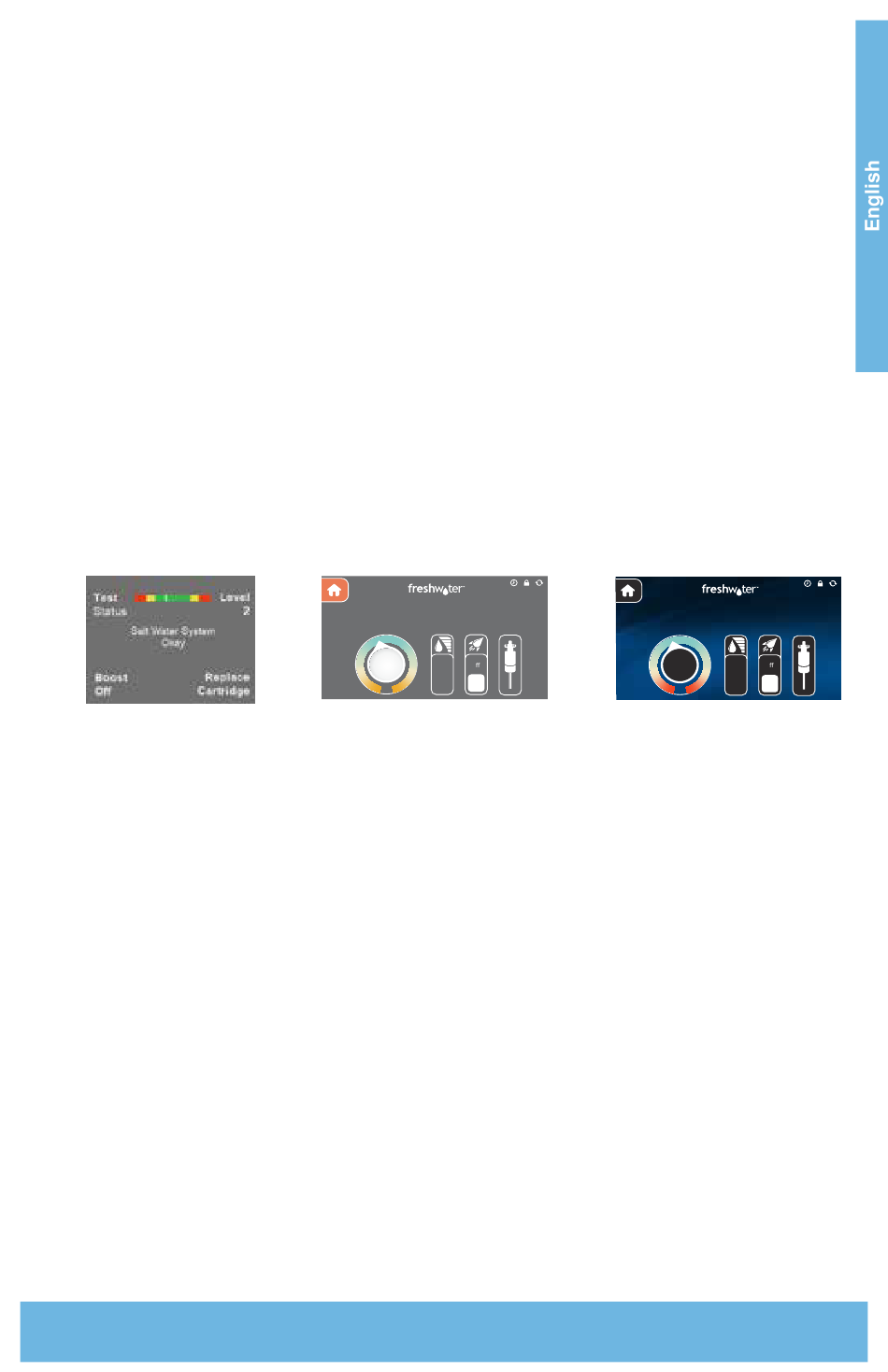

You will see one of the three screens below on your spa's control panel.
-
OK
Later
Output level 0=system off, 10=maximum output.
th clickable icons.
Salt System
e 24-Hour Boost Cycle
System is O
+
O OK
O
0
On
-
hen Level input is "0" When Boost button is On
Button Display
The recommended initial output level is 5-7 (see Appendix on page 13). Your
setting may change once you begin to use the spa. Consult dealer for initial
s
ce Cartridge Now?
settings and/or individual circumstances.
NOTE: It may take up to 24 hours for the system status to register in the OK
OK
ridge Screen starts from here
range of the system status bar.
24 Hours Later
? Salt Water System Restarting
Test spa water with a FreshWater 5-Way Test Strip.
1. Adjust alkalinity and pH as needed.
2. If calcium hardness is above the initial target of 50 ppm, use a new FreshWater
Vanishing Act Calcium Remover and repeat process to soften the water.
3. Add chlorine to the water to achieve a chlorine level of 3 ppm. Repeat this as
needed until your test strip shows that the system is sustaining a minimum of
3 ppm residual of chlorine in the water.
• If there is no measurable amount of chlorine in the spa water after
24 hours, the system is still cleaning the water. Increase the output level
as needed. It may take the system a few days to clean the spa water and
keep up with your chlorine demand.
+
3
FreshWater Salt System
-
K
Salt System
Restart Salt System?
OK
Salt System
Inactive - High Status
Dip Salt Strip or Replace Cartridge
+
O
1
-
Salt System
3
+
3
-
OK
This screen appears for 1 seconds then goes to normal functioning screen
Salt System
Salt System
Low Output Mode
+ +
O
OK O
1
1
-
-
Touch Screen Display
Salt System
Salt System
Turning O Pumps
Salt System
Salt System
Restart Salt System?
OK
Salt System
Salt Water System Restarting
- Caldera Brand charcoal background, orange home button
- Freshwater logo and system title
- Message displays center aligned
- Flat design buttons with icons
- Water status in circle shape, clickable button,
functionality similar to the original two-sided color
bar. Indicator shows low > ok > high with message
displays in the middle of the button and on screen as well.
#84cac5 #f2e8c4 #eda928 #eb7a54 #6e6f71
Salt System
Salt System is ready!
Salt System
Salt System
System is OK
24-Hour Boost Cycle
+ +
OK OK O
O
5
1
-
-
Normal functioning screen When Boost button is On
Salt System
Salt System
Salt System
Salt Water System Restarting
Salt System
Salt System is ready!
Salt System
Salt System is ready!
This screen appears for 1 seconds then goes to normal functioning screen
Salt System
System is OK
+
OK
O
5
-
Normal functioning screen
Touch Screen Display
