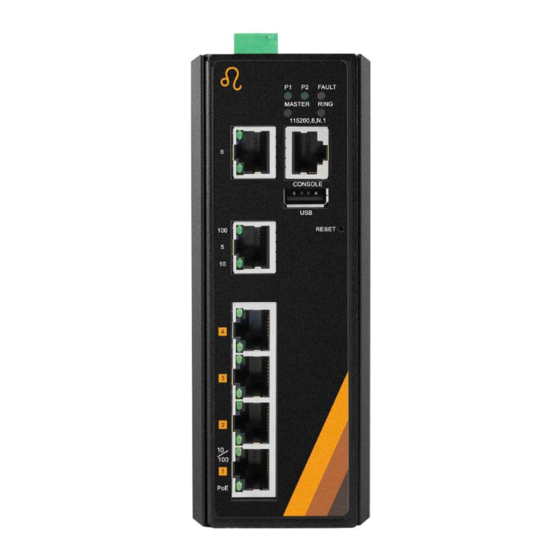

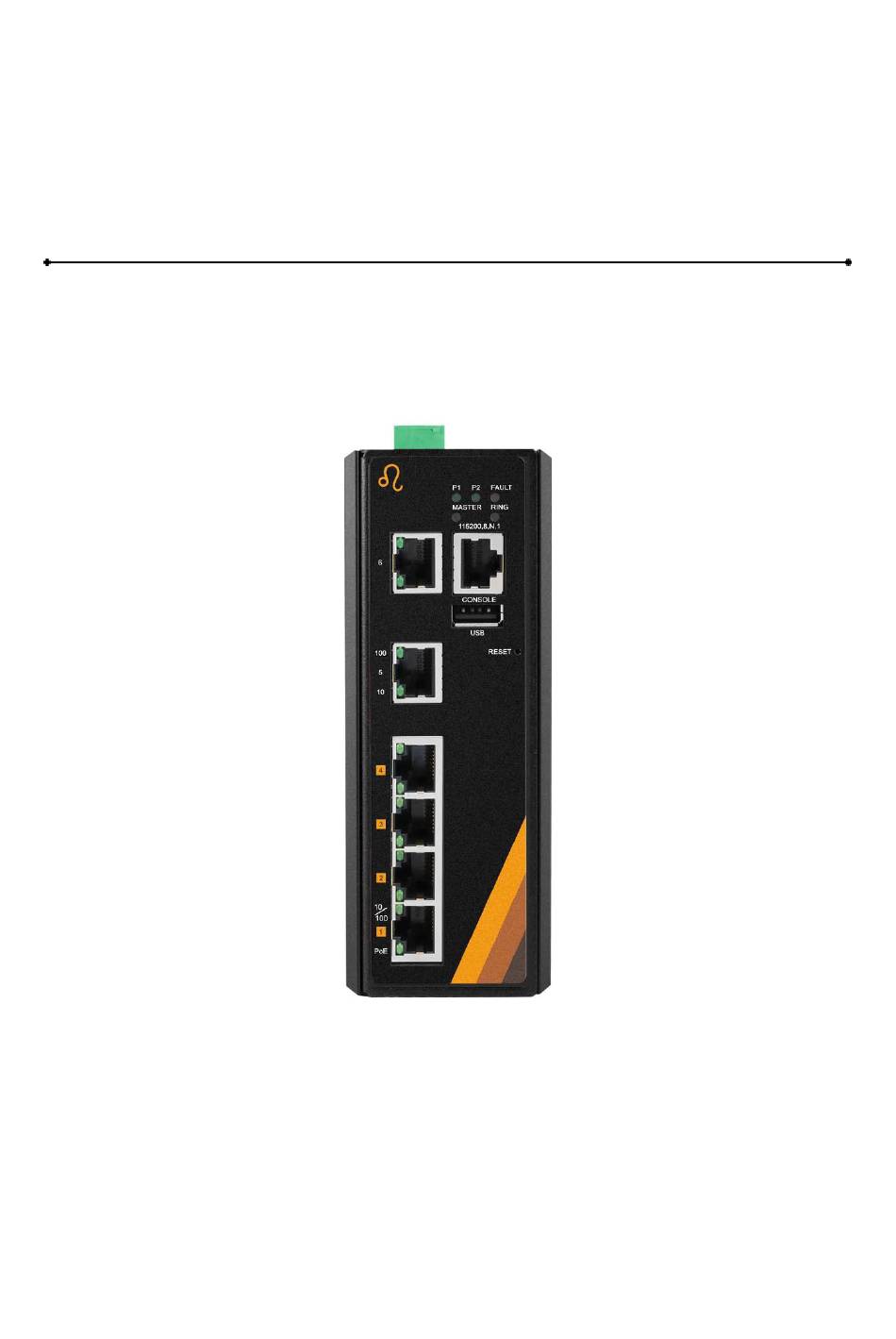

- Page 1 LEONTON PT5-0600-24 Series (PT5-0600-24 / PT5-0600-24-T) User Manual...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 FCC Notice This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
- Page 4 Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en présence d'interférences radio. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 5: Table Of Contents
Contents Overview ......................................1 Key Features ..................................... 1 Package Contents................................... 2 Safety Precaution ................................... 2 Hardware Description ..................................3 Physical Dimensions................................3 Front Panel ....................................4 Top View..................................... 4 LED Indicators ..................................5 Ethernet Ports ................................ -
Page 6: Overview
Overview This series is rated IP30 and installation by DIN Rail. Each unit of this industrial managed Ethernet switch series has 6* 10/100Tx with 4 IEEE 802.3at compliant ports (30W/port), suitable for applications that require high bandwidth and long distance communication. In order to prevent unregulated voltage, this series provides high EFT and ESD protection. -
Page 7: Package Contents
Package Contents ․ 1 - PT5-0600-24(-T) product ․ 2 - Wall mounting brackets and screws ․ 1 - Quick installation guide ․ 1 - RJ45 to DB9 Serial Console cable Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 8: Hardware Description
Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions of PT5-0600-24 series. (W x D x H) is 54mm x 99mm x 142mm Figure 2.1: Physical Dimensions... -
Page 9: Front Panel
Figure 2.2: The Front Panel Top View Figure 2.3, below, shows the top panel of the PT5-0600-24 series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12~55VDC). Figure 2.3: Top Panel View... -
Page 10: Led Indicators
LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. Color Description Power input 1 is active... -
Page 11: Ethernet Ports
Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 12: Cabling
Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. Fiber segment using single-mode connector type must use 9/125μm single-mode fiber cable. Using multi-mode connector type must use 50 or 62.5/125μm multi-mode fiber cable. -
Page 13: Wiring The Fault Alarm Contact
Attention: Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à 5 in-lbs (0.56 Nm). Le calibre du bornier doit être compris entre 18 et 20 AWG. Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.. -
Page 14: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. Figure 3.1: The Rear Side of the Switch and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial Ethernet switch. - Page 15 Figure 3.2: Insert the Switch on the DIN-Rail Step 4 Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Figure 3.3: Stable the Switch on DIN-Rail Step 5 Check if the bracket is mounted tightly on the rail. Step 6 To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.
-
Page 16: Wall Mounting - In The Industrial Control Panel
Wall Mounting - in the industrial control panel Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Step 1 Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. -
Page 17: Hardware Installation
Hardware Installation Installation Steps This section will explain how to install PT5-0600-24 series. Installation Steps Step 1 Unpack the industrial Ethernet switch from the original packing box. Step 2 Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch. -
Page 18: Maintenance And Service
Maintenance and Service If the device requires servicing of any kind, the user is required to disconnect and remove it • from its mounting. The initial installation should be done in a way that makes this as convenient as possible. Voltage/Power lines should be properly insulated as well as other cables. -
Page 19: Trouble Shooting
● If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be ◆ resolved.
