Supplemental
Technical Information
for model

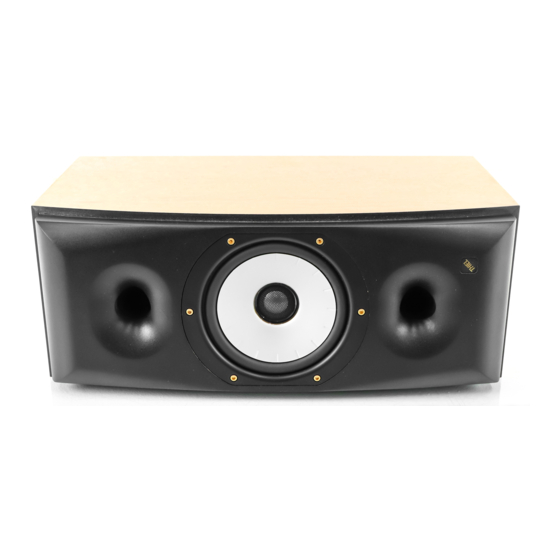

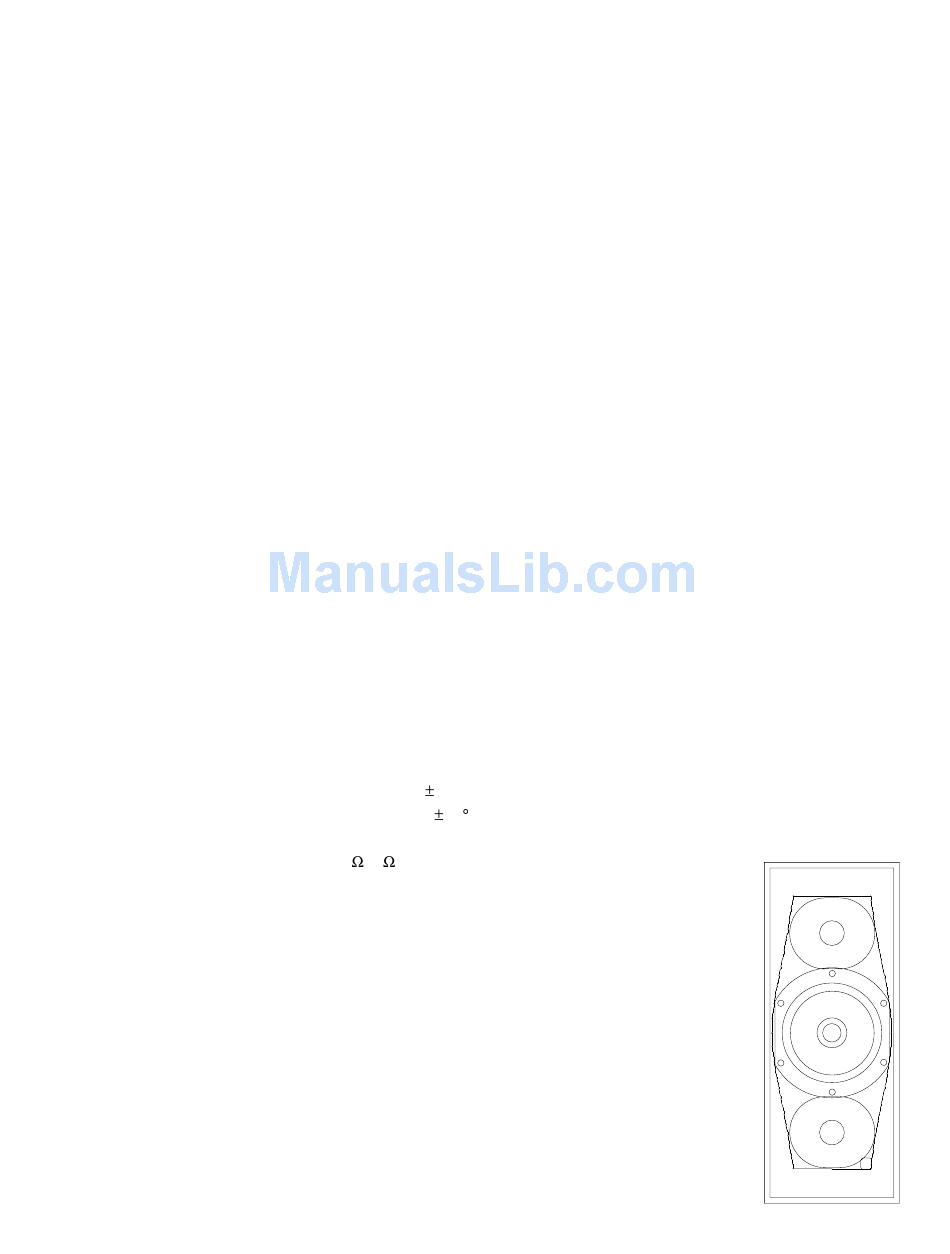

THIEL SCS3
Coherent Source
This paper contains only information specific to the SCS3 speaker system.
It is intended to supplement the general technical information paper which
explains our engineering philosophy, goals and techniques.
THIEL SCS3 SPECIFICATIONS
Bandwidth (-3 dB)
Amplitude response
Phase response
Sensitivity
Impedance
Recommended Power
Size (W x D x H)
Weight
Driver Complement:
Woofer
6.5" (5.1" radiating area) with anodized aluminum cone, cast frame, 1.7"
dia voice coil. Underhung coil (short coil/ long gap) motor system. Linear
travel
3
/
" pk-pk, 3 in
3
linear displacement. 2.5 lb. magnet, 6 lb total magnet
16
structure plus 1.2 lb. shielding magnet. Copper pole sleeve. Made by
THIEL.
Tweeter
1" (1.2" radiating area) with anodized aluminum dome. Aluminum coil.
Underhung coil (short coil/long gap) motor system. Linear travel
Powered by 5 neodymium magnets weighing 1.7 oz. Copper pole sleeve.
Ferrofluid. Coincident with midrange.
®
46 Hz - 22 kHz
48 Hz - 20 KHz 2 dB
minimum 10
87 dB @ 2.8 v-1m
4 , 3 minimum
30-200 watts
7.5 x 10 x 19 inches
30 lb
1
/
" pk-pk.
8
Loudspeaker
7/00
