Supplemental
Technical Information
for model

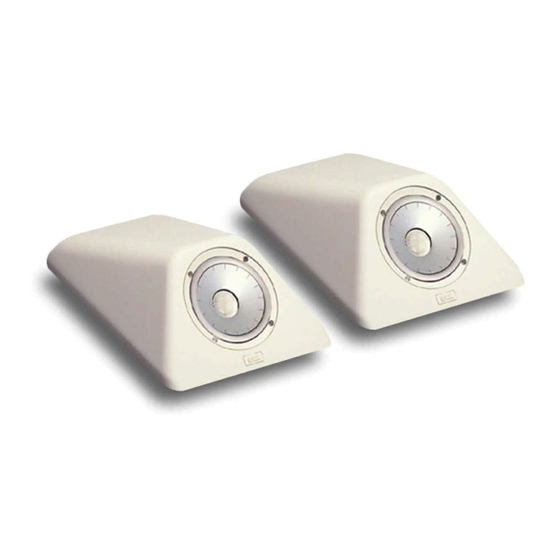

THIEL PowerPoint
Coherent Source
This paper contains only information specific to the PowerPoint speaker
system. It is intended to supplement the general technical information paper
which explains our engineering philosophy, goals and techniques.
THIEL POWERPOINT SPECIFICATIONS
Bandwidth (-3 dB)
Amplitude response
Phase response
Sensitivity
Impedance
Recommended Power
Size (W x D x H)
Weight
Driver Complement:
Woofer
6.5" (5.1" radiating area) with anodized aluminum cone, cast frame, 1.7"
dia voice coil. Underhung coil (short coil/ long gap) motor system. Linear
3
3
travel
/
" pk-pk, 3 in
linear displacement. 7.5 oz. neodymium magnet.
16
Copper pole sleeve. Made by THIEL.
Tweeter
1" (1.2" radiating area) with anodized aluminum dome. Aluminum coil.
Underhung coil (short coil/long gap) motor system. Linear travel
Powered by 5 neodymium magnets weighing 1.7 oz. Copper pole sleeve.
Ferrofluid. Coincident with woofer. Made by THIEL.
®
75 Hz - 20 kHz
75 Hz - 20 KHz 3 dB
minimum 10
89 dB @ 2.8 v-1m
4 , 3 minimum
30-200 watts
19.75 x 12.5 x 5.5 inches
10 lb
1
/
8
Loudspeaker
" pk-pk.
™
1/00
