Summary of Contents for Jorvet J1448M

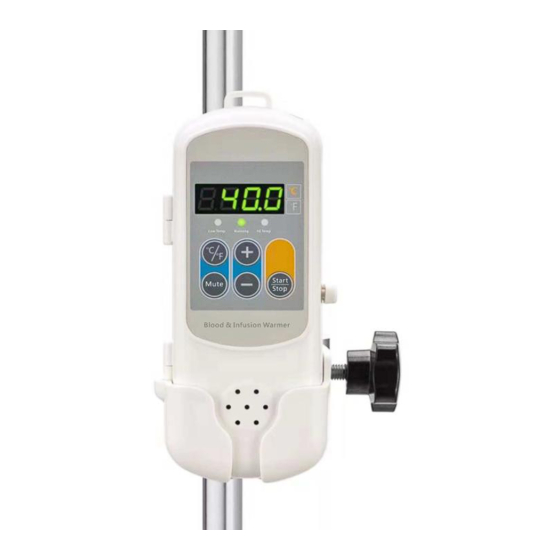

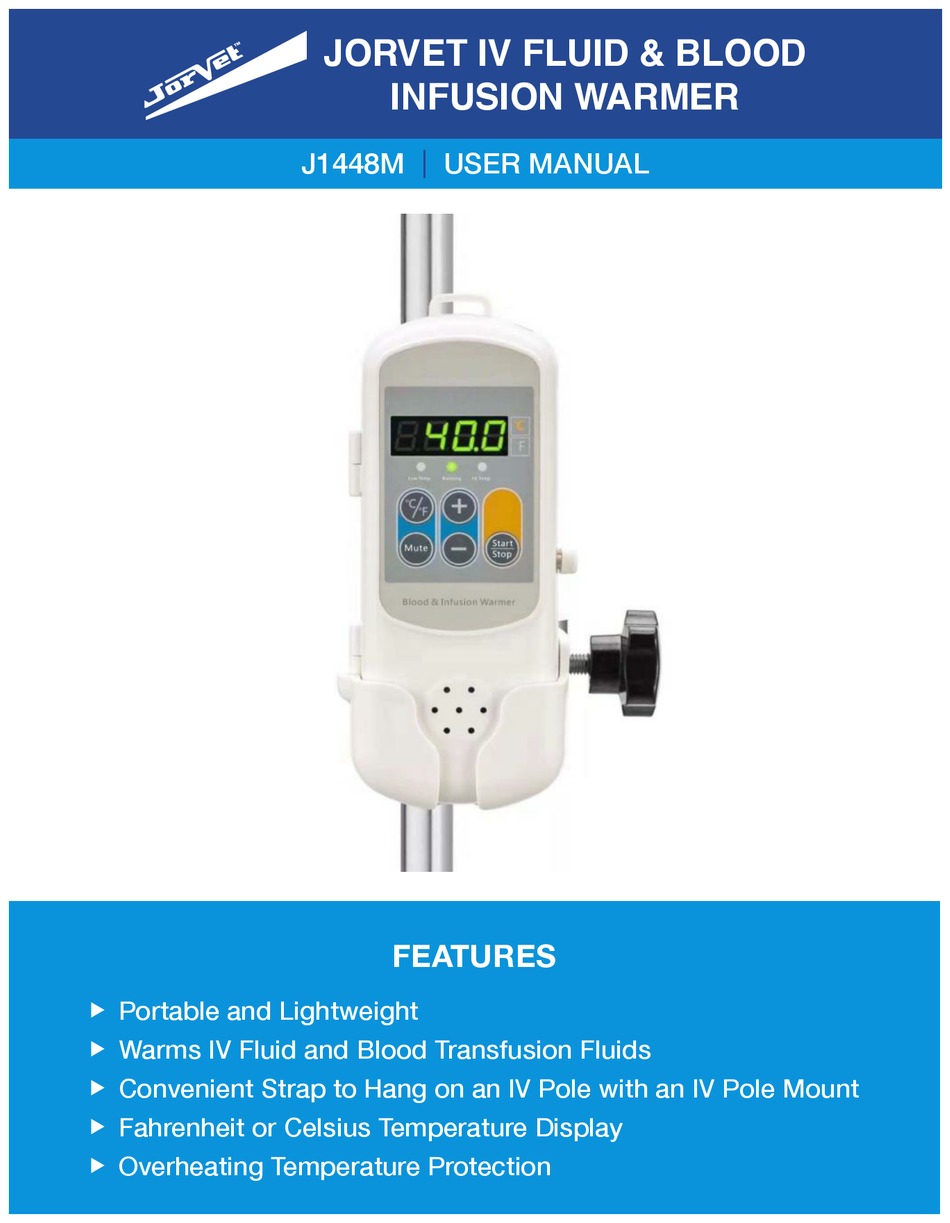

- Page 1 JORVET IV FLUID & BLOOD INFUSION WARMER J1448M USER MANUAL FEATURES Portable and Lightweight Warms IV Fluid and Blood Transfusion Fluids Convenient Strap to Hang on an IV Pole with an IV Pole Mount Fahrenheit or Celsius Temperature Display Overheating Temperature Protection...
-
Page 3: Table Of Contents
09-14 User’s Operation Thank you for using our JorVet J1448M IV Fluid & Blood Infusion Warmer. We want you to get the most out of the machine and to have your experience in using it proceed with ease. Detailed instructions are provided along with the product’s introduction, usage and how to correctly use it, and how to take full... -
Page 4: General Information
GENERAL INFORMATION The Jorvet IV Fluid and Blood Transfusion Warmer is a dry-heat device. This unit is designed to warm IV fluids safely through the heating plate. The Warmer does not control the fluid flow rate. Fluids can be warmed to temperatures between 95°-107.6° F (35°C-42°C) at flow rates 25ml/hr to l000ml/hr. -
Page 5: Introduction
It is intended to provide continuous heating during the infusion and blood transfusion. WORKING PRINCIPLE The Jorvet IV Fluid and Blood Transfusion Warmer is an indirect heating device (dry warmer). The IV fluids are heated as the fluids pass through the channel of the warmer. The temperature can be set between 32°C ~ 42°C (89.6°F ~ 107.6°F). -
Page 6: Safety Compliance
SAFETY COMPLIANCE Protection Against Electric shocks, this includes the internal power supply gainst leakage current Splashing of fluid Working Mode Continuous working mode Input Voltage 100-240V Power 85VA PHYSICAL SPECS Device Dimension 180mm x 70mm x 35mm Weight ~ 0.2KG (without knob); 0.4KG (with knob) Display Type MAIN TECHNICAL SPECS Environment... - Page 7 TEMPERATURE CONTROLLING Applicable IV Set Exclusive IV Set or standard single PVC IV Set (20 and 60 cl/ml, with an outer diameter of 3.4 ~ 4.5mm) Temperature Range 95°-107.6° F (35°C-42°C) Temperature Accuracy ±1°C or ±l.8°F Warming-Up Time ≤ 2 minutes Overheat Protection 48°C Alarm...
-
Page 8: Outer Structure
OUTER STRUCTURE BUTTONS AND FUNCTIONS Lanyard To hang the Jorvet IV Fluid and Blood Transfusion Warmer Lanyard Hole To hang the lanyard Display To display the temperature and the alarm message Running Light Keep flashing during temperature rising and keep it on after reaching the set... -
Page 9: User's Operation
USER'S OPERATION Operation Steps Hang the warmer on the IV pole, adjust the strap to the appropriate length. Note: If the infusion pump is being used, the IV warmer should be placed slightly under the IV line's exit from the infusion pump. Use the knob to tighten to the IV Stand. - Page 10 Middle Heating Path Heating length approximately 31cm. Short Heating Path Heating length approximately 25cm. Connect the power cord to the warmer. The warmer will automatically start once the power cord is connected. Once the power cord is disconnected, the warmer will automatically turn off. + –...
- Page 11 Stopping the Warmer Press to the standby mode and take out the IV tubing from the Start Stop warmer. Disconnect the power supply. ALARM TYPES Overheat Alarm When the temperature increases 2 °C above the set temperature, the heating board will cause an alarm to sound intermittently and the overheat alarm light will keep flashing.
- Page 12 Action for the Alarm When the alarm sounds, do the following steps: Check the patient Confirm the cause of the alarm Turn off the unit Try again ALARMS AND ERRORS ALARM POSSIBLE CAUSE SOLUTION Door not closed Close the door Displays the room temperature Did not press Start/Stop Button...
- Page 13 Daily Check Test the unit completely before the first-time use, or 6-12 months continuous operation, or maintenance or upgrading to make sure the device is working appropriately. Check the following: Environment and power standard AC Power cord is intact and functional Unit and accessory mechanically functionable Alarms are functioning appropriately Accuracy with the Temperature in the standard range...
- Page 14 Action for the Alarm When the alarm sounds, do the following steps: Check the patient Confirm the cause of the alarm Turn off the unit Try again REGULAR MAINTENANCE INTERVAL PERIOD STEP As per Hospital Clean the surface completely before or Cleaning Rules after long-time storage Test the AC power socket and cable...
- Page 16 Professional Veterinary Equipment Supplier Jorgensen Laboratories, Inc. | Loveland, CO 80538 800.525.5614 | fax 970.663.5042 | www.jorvet.com | info@jorvet.com...
