Before Operating
1
Jorgensen Laboratories instruments have a one (1) year limited warranty. This warranty is not valid on normal wear and tear,
cosmetic damages caused by chemicals, solvents, and/or cleaning solutions, as well as acts of God.
Please register your product online at: www.LWScientific.com/warranty_form.
Important: Warranty information must be completed within 30 days of purchase.
2
Remove the centrifuge from the shipping container and inspect for any possible shipping damage. If the centrifuge
appears to be damaged, please contact your distributor immediately.
Open the lid by pressing on the front center of the lid until it clicks (to close, press down again until it clicks).
The screw and washer in the motor shaft are for shipping only. Please remove and use the Thumbscrew for all normal opera-
tion.
Now, install rotor as seen on the next page.
WARNING: Ensure the rotor is securely fixed to the rotor shaft. Failure to properly secure rotor could lead to personal
injury or damage to the centrifuge.
P. 800.525.5614
P. 770.270.1394

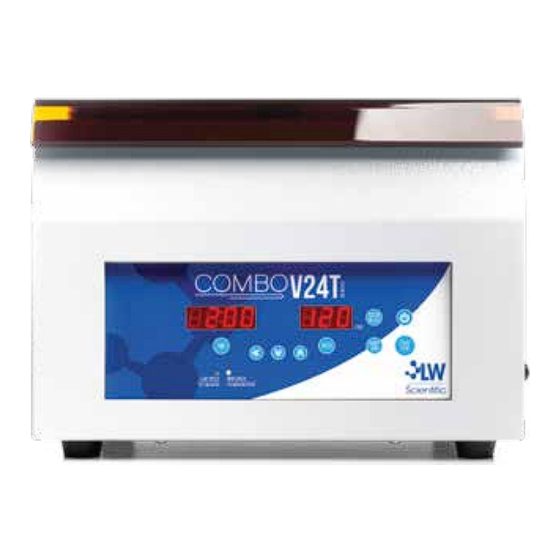

Combo V24T Centrifuge
A
This symbol refers to hazards that may be encountered when using this product.
CAUTION means that damage to product or environment could occur
WARNING means that injury or contamination could occur
F. 970.663.5042
F. 770.270.2389
1450 Van Buren Ave Loveland Co 80538 USA
865 Marathon Parkway Lawrenceville GA 30046
Instruction Manual
Lid
Main Power Switch
Display Power
Start / Stop
Start
Stop
Rotor Select
Rotor
select
Speed
speed
Time
time
Short Spin
Short
B
Spin
Select
Descrease Value
Increase Value
Advertisement
Table of Contents
Related Manuals for Jorvet Combo V24T
Summary of Contents for Jorvet Combo V24T
- Page 1 Combo V24T Centrifuge Instruction Manual Main Power Switch Display Power Start / Stop Start Stop Rotor Select Rotor select Speed speed Time time Short Spin Short Spin Select Descrease Value Increase Value This symbol refers to hazards that may be encountered when using this product.
- Page 2 Selecting and Changing Rotors Place the centrifuge on a sturdy, level surface. Verify that there are no loose objects or packing material in the tube chamber. DO NOT PLUG UNIT IN. Select a rotor and slide it down over the motor shaft, ensuring that the slot in the bottom of the rotor lines up with cross pin on the motor shaft.
- Page 3 Motor and electrical maintenance: The Combo V24T utilizes a brushed motor, which includes bearings that are permanent- ly lubricated. Likewise, the electrical components were designed for high reliability and should not need regular service, other than brush replacement.
- Page 4 Speed Calibration Your Combo V24T was pre-calibrated before it was shipped from Jorgensen Laboratories. If future calibration is needed, the following procedure requires a hand-held tachometer and should only be performed by a qualified technician or the Jorgensen Laboratories Service &...
