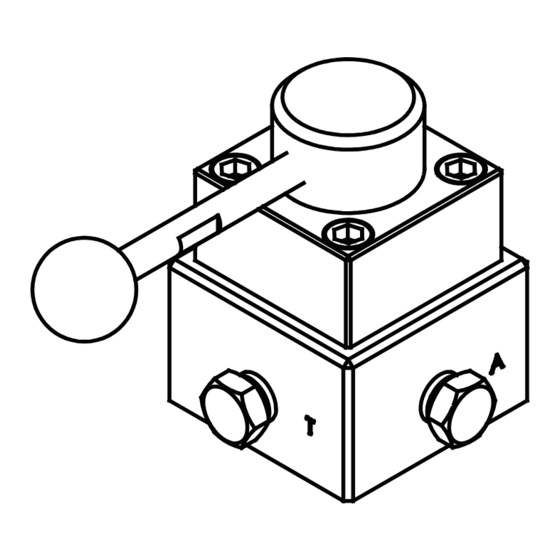

MODELS: PR33, PR33C, P33L, PR33CL, PR43, PR43C, PR43L, & PR43CL
SFA Companies
E-mail: sales@bvahydraulics.com
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Maximum Operating Pressure 10,000 PSI
PR33, PR33C, PR43, PR43C
Manual Control Valves
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419
-
Remote Mounted
Instruction Manual
Fax: 816-891-6599
Website: www.bvahydraulics.com
PR33L, PR33CL, PR43L, PR43CL
PR33-M0 rev 1008
Printed in Taiwan
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BVA Hydraulics PR33
Summary of Contents for BVA Hydraulics PR33

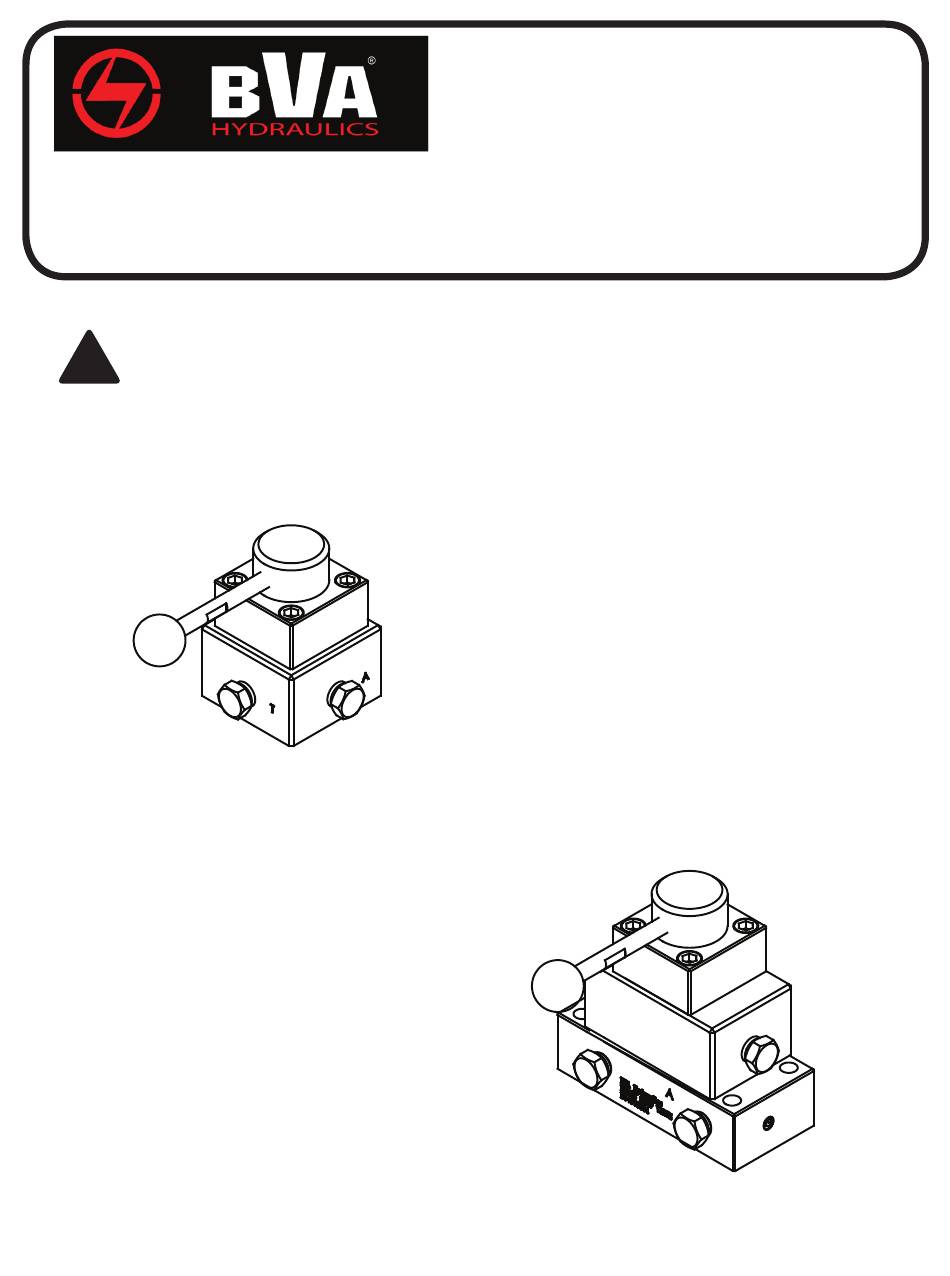

- Page 1 PR33-M0 rev 1008 Remote Mounted Manual Control Valves Instruction Manual MODELS: PR33, PR33C, P33L, PR33CL, PR43, PR43C, PR43L, & PR43CL SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 Tel: 888-332-6419 Fax: 816-891-6599 E-mail: sales@bvahydraulics.com Website: www.bvahydraulics.com This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
-
