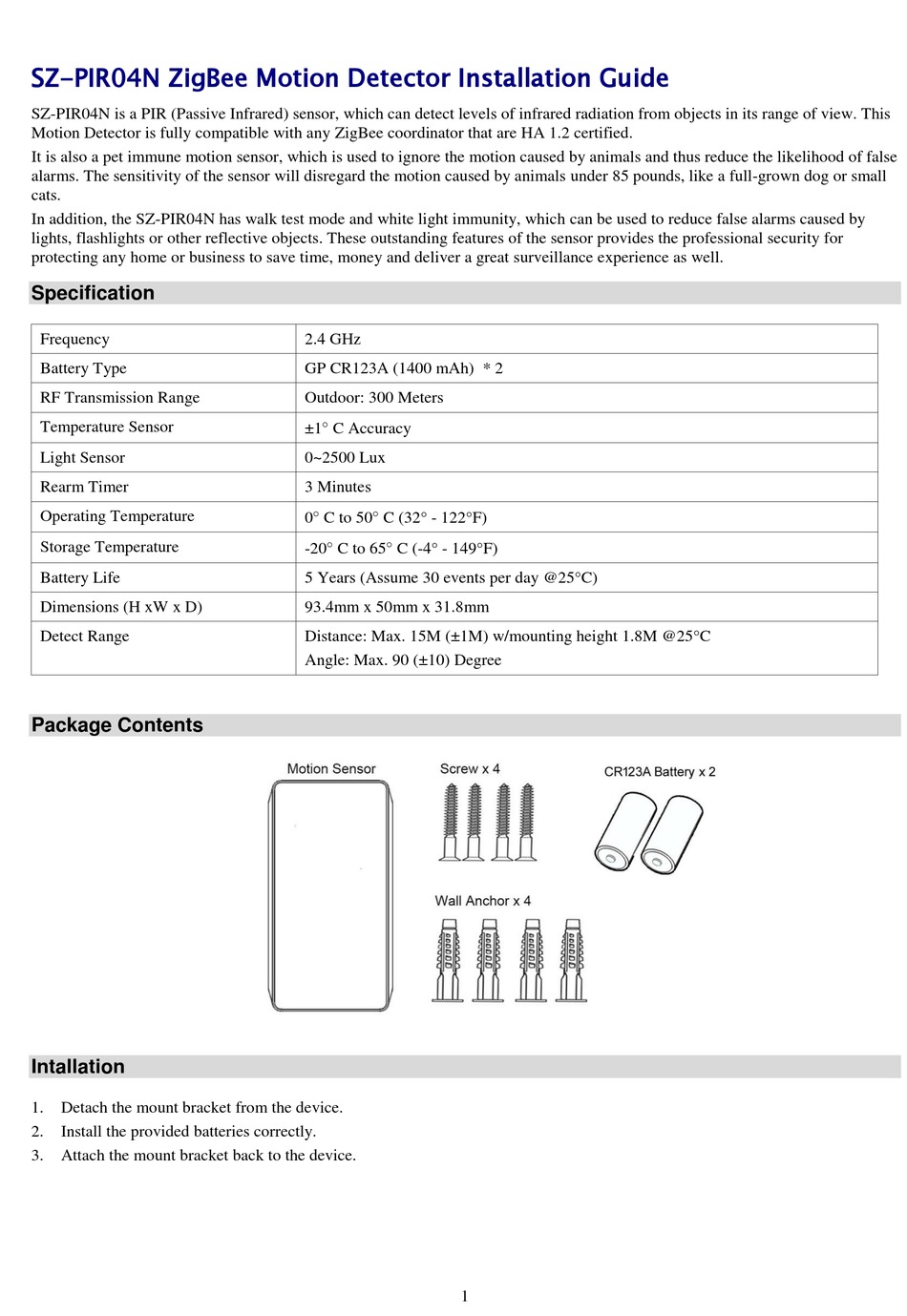

SZ-PIR04N ZigBee Motion Detector Installation Guide
SZ-PIR04N is a PIR (Passive Infrared) sensor, which can detect levels of infrared radiation from objects in its range of view. This
Motion Detector is fully compatible with any ZigBee coordinator that are HA 1.2 certified.
It is also a pet immune motion sensor, which is used to ignore the motion caused by animals and thus reduce the likelihood of false
alarms. The sensitivity of the sensor will disregard the motion caused by animals under 85 pounds, like a full-grown dog or small
cats.
In addition, the SZ-PIR04N has walk test mode and white light immunity, which can be used to reduce false alarms caused by
lights, flashlights or other reflective objects. These outstanding features of the sensor provides the professional security for
protecting any home or business to save time, money and deliver a great surveillance experience as well.
Specification
Frequency
Battery Type
RF Transmission Range
Temperature Sensor
Light Sensor
Rearm Timer
Operating Temperature
Storage Temperature
Battery Life
Dimensions (H xW x D)
Detect Range
Package Contents
Intallation
1.
Detach the mount bracket from the device.
2.
Install the provided batteries correctly.
3.
Attach the mount bracket back to the device.
2.4 GHz
GP CR123A (1400 mAh) * 2
Outdoor: 300 Meters
±1 C Accuracy
0~2500 Lux
3 Minutes
0 C to 50 C (32° - 122°F)
-20 C to 65 C (-4° - 149°F)
5 Years (Assume 30 events per day @25°C)
93.4mm x 50mm x 31.8mm
Distance: Max. 15M (±1M) w/mounting height 1.8M @25°C
Angle: Max. 90 (±10) Degree
1
Advertisement
Table of Contents
Related Manuals for Sercomm SZ-PIR04N
Summary of Contents for Sercomm SZ-PIR04N
- Page 1 SZ-PIR04N ZigBee Motion Detector Installation Guide SZ-PIR04N is a PIR (Passive Infrared) sensor, which can detect levels of infrared radiation from objects in its range of view. This Motion Detector is fully compatible with any ZigBee coordinator that are HA 1.2 certified.
-
Page 2: Operation
ZigBee network. The device will attempt to joing a ZigBee network for 20 times (100 seconds). If all attempts fail, SZ-PIR04N will stop joininig process, and need to press and release the tamper again to start joinging process. -
Page 3: Mounting Instruction
Mounting Instruction The recommended mounted position for a Motion Detector should be 1.8M from the floor in the corner of a room. At this height, the device can detect a movement up to 15M (±1M ) (see the following image). Also, in this position, the 90 degrees (±10 degree) fan-shaped detection pattern can normally offer greater protection than mounting on a flat wall. -
Page 4: Wall Mounting
Wall Mounting Note: The device is suggested to be set at 90 degrees angle, which is the best mounted position for offering the 15M protection area. Detach the mount bracket from the device. Mount the bracket with the supplied screws/anchors into the wall. It can be either mounted on a flat surface or in a corner. Note: Make sure the mount bracket is installed in the correct direction (upwards arrow). -
Page 5: Fcc Statement
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps. UL Notices: This device complies with UL Standard UL639. SZ-PIR04N V1.0 PN: 957BXL0201 Issue Date: 2016/11/15...
