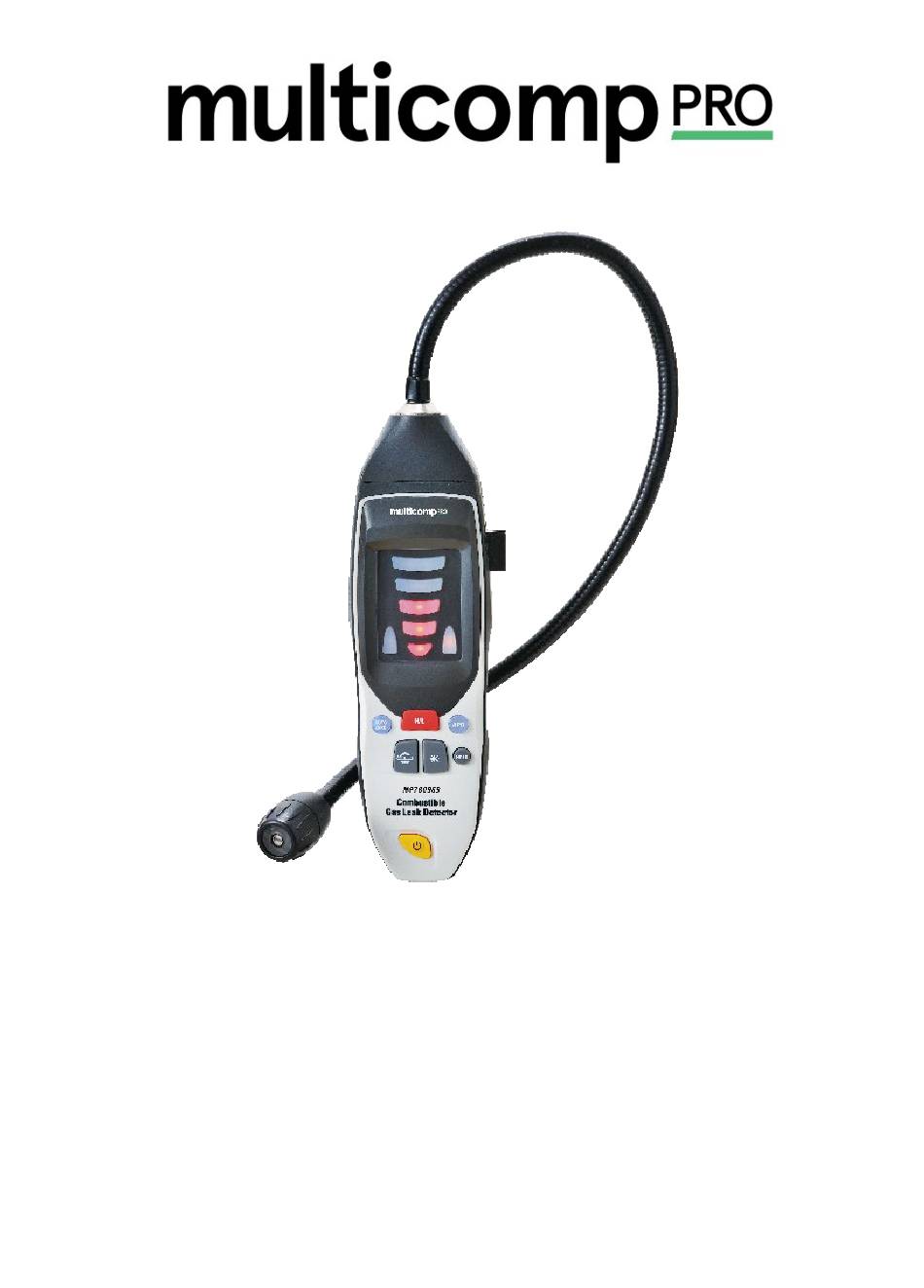

Combustible Gas Leak Detector
MP780969
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP780969 and is the answer not in the manual?

Questions and answers

Related Manuals for multicomp pro MP780969

Summary of Contents for multicomp pro MP780969

  • Page 1 Combustible Gas Leak Detector MP780969 User Manual...

  • Page 2: Table Of Contents

    Contents Page Safety Symbols ................. 3 General Safety Rules ..............3 2-1.Work Area Safety ............... 4 2-2.Electrical Safety ..............4 2-3.Personal Safety ..............4 2-4.Equipment Use and Care ........... 4 2-5.Service ................5 Specific Safety lnformation ............5 3-1.Combustible Gas Detector Safety ........5 Description, Specifications and Standard Equipment.

  • Page 3: 1- Safety Symbols

    Safety Symbols In t his operator's manual and on the product, safety symbols and signal words are used to communicate important safety information. This section is provided to improve understanding of these signal words and symbols. This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

  • Page 4: 2-1.Work Area Safety

    2-1. Work Area Safety • Keep your work area clean and well lit. Cluttered or dark areas invite accidents. • Do not operate equipment in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Equipment can create sparks which may ignite the dust or fumes.

  • Page 5: 2-5.Service

    • Maintain equipment. Check for misalignment or binding of moving parts, missing parts, breakage of parts and any other condition that may affect the equipment's operation. If damaged, have the equipment repaired before use. Many accidents are caused by poorly maintained equipment •...

  • Page 6: 4- Description, Specifications And Standard Equipment

    Description, Specifications and Standard Equipment 4-1. Description The Micro Combustible Gas Leak Detector is a gas leak locating tool that is used to identify the presence of and isolate the source location of combustible gases such as methane, propane, butane, ammonia, carbon monoxide and many others(please see back of manual for a more complete list).

  • Page 7: 4-3.Measurable Gases

    4-3. Measurable Gases Common Mixtures That Would Include or Emit More Than Gases Detected One Of These Gases Methane Natural Gas Paint Thinners Industrial Solvents Dry Cleaning Fluids Gasoline Hydrogen Carbon Monoxide Propane Ethylene Ethane Hexane Benzene Isa-Butane Ethanol Acetaldehyde Formaldehyde Toluene P-Xylene...

  • Page 8: 4-5.Controls & Display

    4-5. Controls & Display Figure 1- Micro Combustible Gas Leak Detector Controls Display & 1. Warm Up Indicator 2. Low Sensitivity Indicator (White) 3. Auto Zero Enable/Disable 4. Vibration Alert Enable/Disable 5. On/Off 6. LED Display 7. High Sensitivity Indicator (Yellow) 8.

  • Page 9: 4-6.Standard Equipment

    4-6. Standard Equipment • Micro Combustible Gas Leak Detector • 5V/0.5A Adapter • Replaceable Gas Sensor • Operator's Manual Charging / Removing Batteries Warning In case of unnecessary danger, it is not allowed to charge or replace batteries in the concentration of combustible gas. Set up and operate the gas detector according to these procedures to reduce the risk of fire, explosions and serious injury and incorrect measurements.

  • Page 10: 7- Set-Up And Operation

    • Following the Set-Up and Operation instructions, turn ON and calibrate the gas detector. Once calibration is complete use a combustible gas source (such as an unlit lighter), to confirm that the gas detector senses the gas. If the gas detector does not sense the gas, do not use the unit until it has been properly serviced.
  • Page 11 If the gas detector is left ON for more than ten minutes with no activity and Auto Power Off is enable, it will automatically shut OFF to conserve the batteries. The Audible Alert and Vibration Alert retain the previous state the detector was last in and can be turned ON or OFF if desired.

  • Page 12: 7-2.Hold Measurement

    Gas Concentration levels may differ depending on the specific gas detected. 7-2. Hold Measurement Press and release the Hold button to enable or disable. When Hold is enable, measurement is stopped and white light and yellow light stop blinking and ON. When Hold is disable, measurement is running and white light and yellow light is blinking.

  • Page 13: 8-4.Disposal

    8-4. Disposal Parts of the gas detector Combustible Gas Detector contain valuable materials and can be recycled. There are companies that specialize in recycling that may be found locally. Dispose of the components in compliance with all applicable regulations. Contact your local waste management authority for more information.
