Parallax 700-10016 Quick Start Manual

Key Fob Remote (#700-10016)

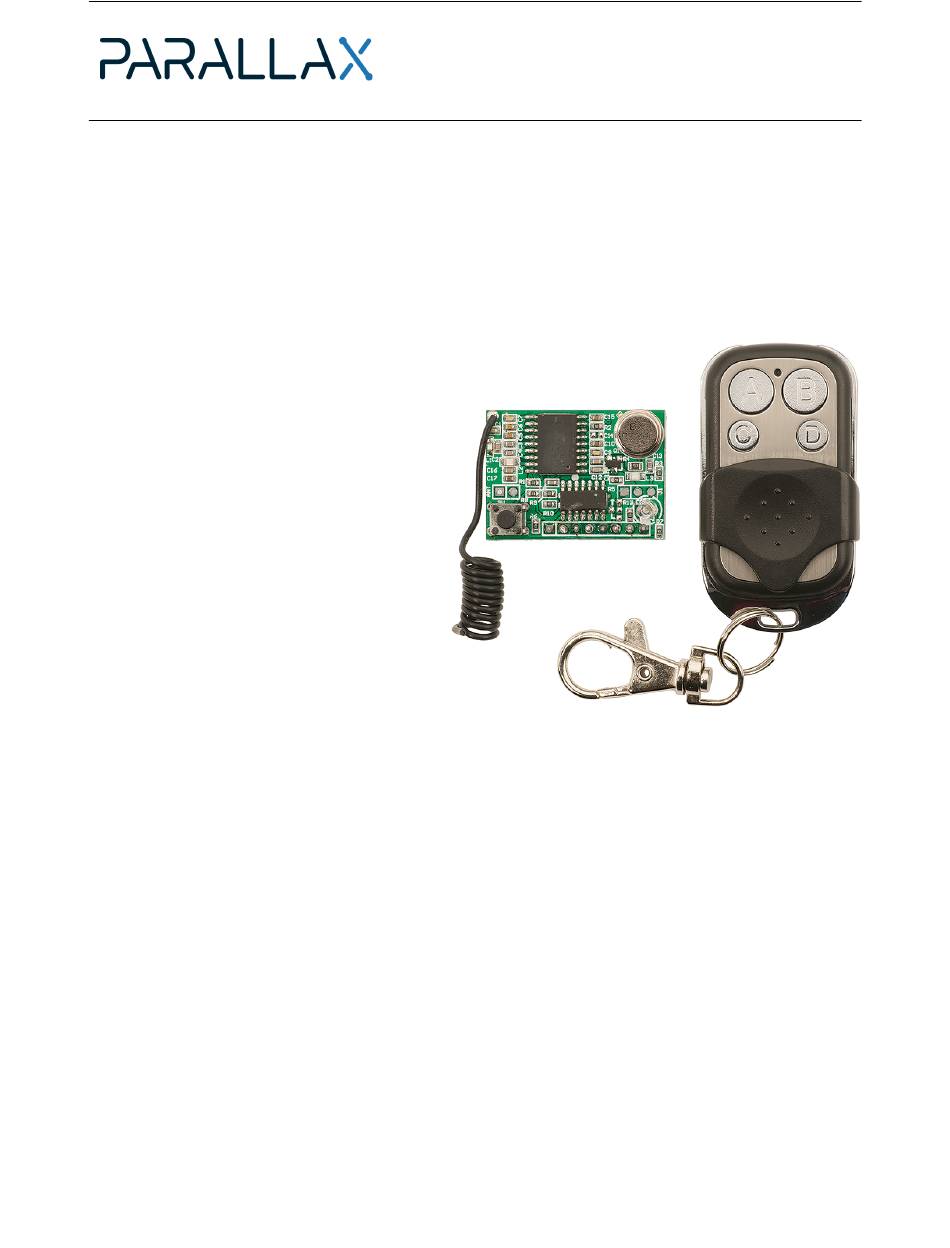

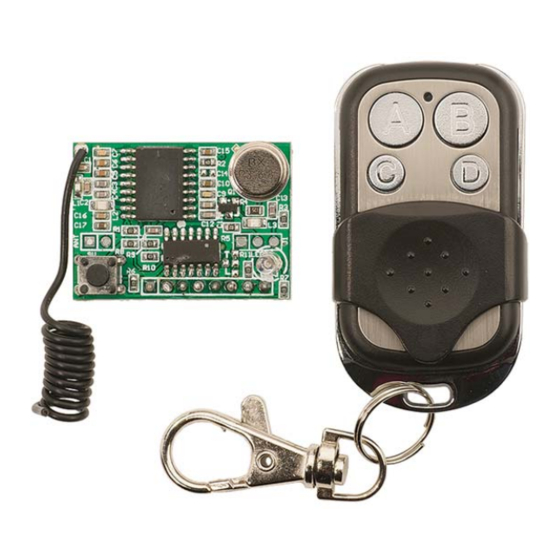

This Key Fob Remote and Receiver PCB can be used to control your custom projects from up to 50 feet
away. The remote and receiver are pre-synchronized for your convenience. Just press a button on the
remote to make the corresponding output pins on the Receiver PCB send a 5V high signal. It is an
affordable way to add wireless human input to your projects.
Features
4 channel control
●
Signal indicator LED
●
Remote and Receiver PCB are
●
pre-synchronized
Up to 50 foot line-of sight range
●
Source 40 mA per Receiver channel @
●
5 VDC for your projects
Pre-installed battery in the remote
●
Specifications
Operating frequency: either 315 MHz band or 433 MHz band may ship
●
Standard 0.1" pin spacing
●
Range: Up to 50 feet (15.25 meters) line-of-sight
●
Power requirements: 5.0 VDC; 40 mA @ 5 VDC per receiver channel
●
Communication: TTL level
●
Receiver PCB Dimensions: 1.34 x 0.96 in (3.40 x 2.44 cm)
●
Operating temp range: -4 to +158 °F (-20 to +70 °C )
●
