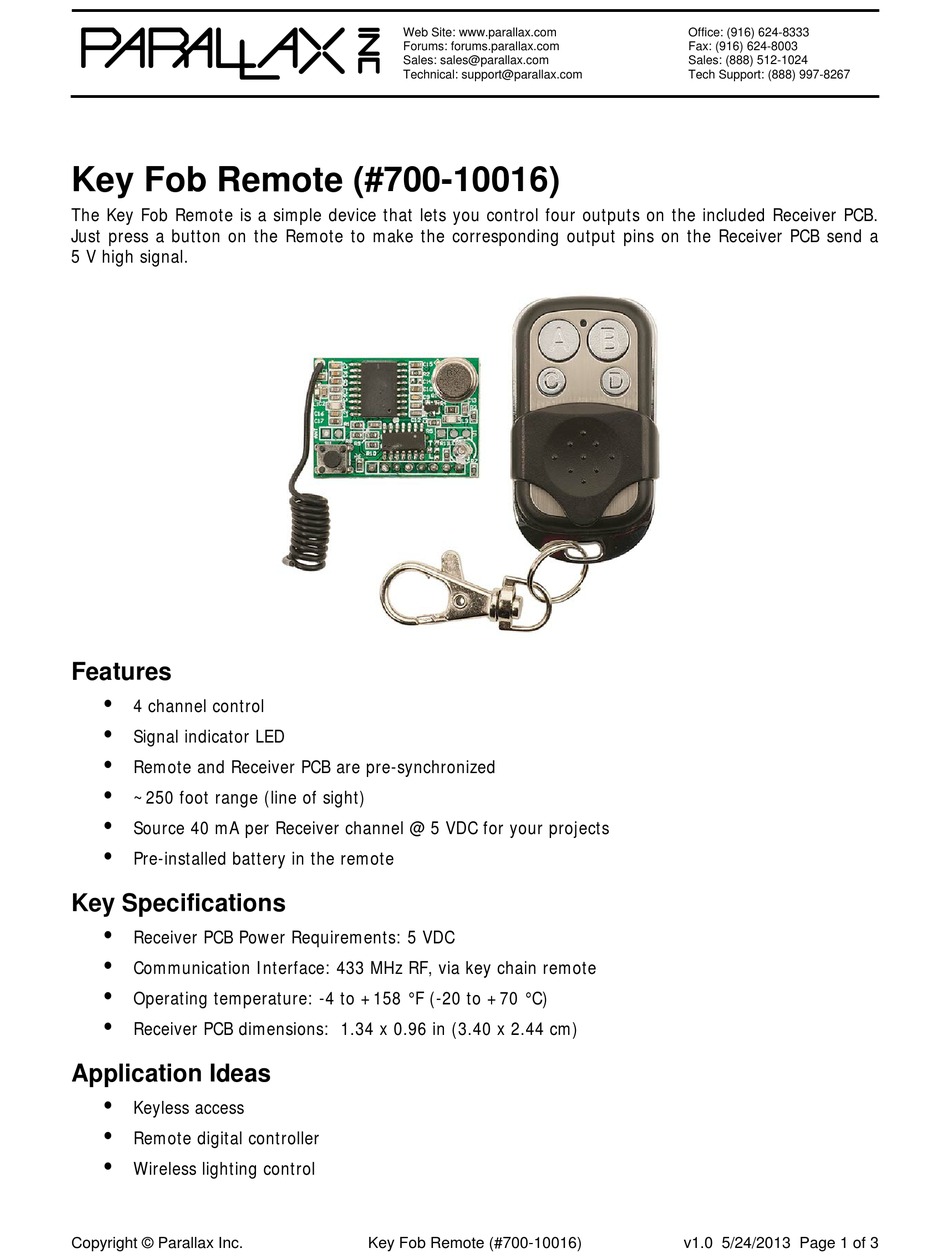

Key Fob Remote (#700-10016)

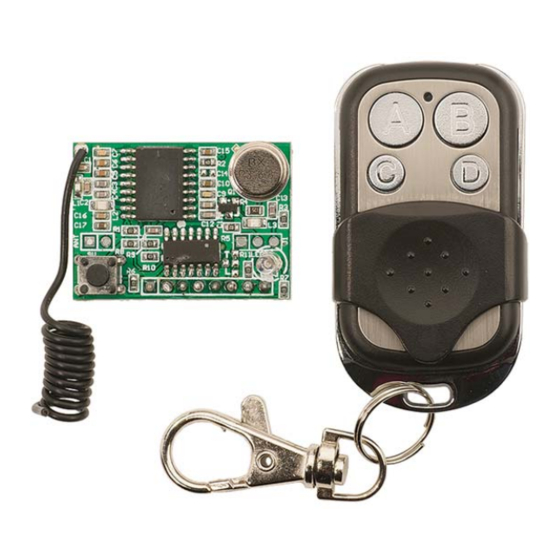

The Key Fob Remote is a simple device that lets you control four outputs on the included Receiver PCB.
Just press a button on the Remote to make the corresponding output pins on the Receiver PCB send a
5 V high signal.
Features
4 channel control
Signal indicator LED
Remote and Receiver PCB are pre-synchronized
~250 foot range (line of sight)
Source 40 mA per Receiver channel @ 5 VDC for your projects
Pre-installed battery in the remote
Key Specifications
Receiver PCB Power Requirements: 5 VDC
Communication Interface: 433 MHz RF, via key chain remote
Operating temperature: -4 to +158 °F (-20 to +70 °C)
Receiver PCB dimensions: 1.34 x 0.96 in (3.40 x 2.44 cm)
Application Ideas
Keyless access
Remote digital controller
Wireless lighting control
Copyright © Parallax Inc.
Web Site: www.parallax.com
Forums: forums.parallax.com
Sales: sales@parallax.com
Technical: support@parallax.com
Key Fob Remote (#700-10016)
Office: (916) 624-8333
Fax: (916) 624-8003
Sales: (888) 512-1024
Tech Support: (888) 997-8267
v1.0 5/24/2013 Page 1 of 3
Advertisement
Table of Contents
Related Manuals for Parallax 700-10016
Summary of Contents for Parallax 700-10016
- Page 1 Technical: support@parallax.com Tech Support: (888) 997-8267 Key Fob Remote (#700-10016) The Key Fob Remote is a simple device that lets you control four outputs on the included Receiver PCB. Just press a button on the Remote to make the corresponding output pins on the Receiver PCB send a 5 V high signal.
- Page 2 Maximum range is ~250 feet line-of-sight. To add even more range to the receiver you can add your own antenna to “ANT1” on the receiver board. Key Chain Remote Copyright © Parallax Inc. Key Fob Remote (#700-10016) v1.0 5/24/2013 Page 2 of 3...
- Page 3 To access the battery compartment, remove the three tiny Phillips- head screws on the back of the remote, and remove the back cover. Copyright © Parallax Inc. Key Fob Remote (#700-10016) v1.0 5/24/2013 Page 3 of 3...
