Broadlink RM Pro+ - Universal Remote Manual

Add Device

Make sure the device is in configuration mode
Add Device

  • Power on the device. If it is in first time use, it will be in smart configuration mode automatically, otherwise you may need to reset it.
  • When the device is in smart configuration mode, follow the wizard in App to add device, name it and assign it to a room.
  • If you have difficulties to add device in smart configuration mode, please refer to Indications to try AP configuration.
  • In device page, tap "Add remote" and follow the wizard to add a virtual remote for your IR or RF device.
  • If any button is not functional, please select "Learn buttons" from menu in remote panel and tap the button to start learning until the button is tested working.

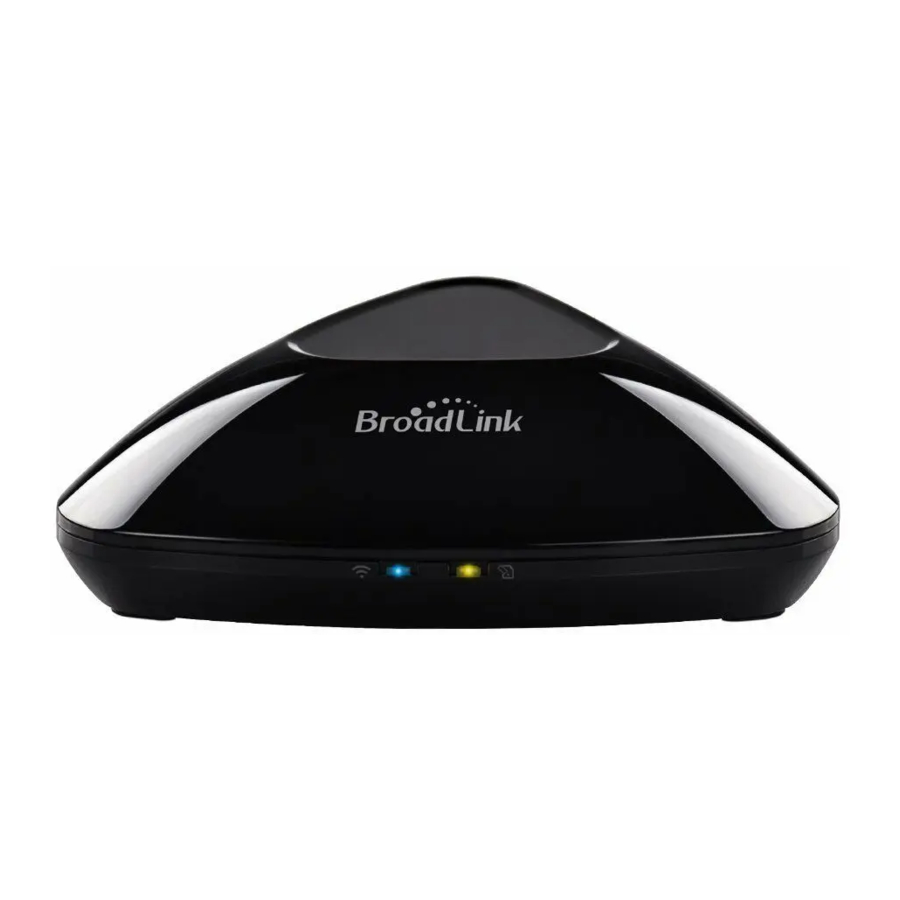

Overview

Unit: mm
Overview - Part 1
Overview - Part 2

Indications

Status Indication
Flashes quickly
(2-3 times / sec)
Device is in smart configuration mode (waiting to be added).
Flashes quickly and off alternatively Device is in AP configuration mode (waiting to be added)
Flashes from quickly to slowly then off Device is being configured and then added to network.
Flashes slowly (once / sec) Device is failed to connect network
Flash once IR / RF signal is sent

Reset for Smart Configuration

  • Press and hold the reset (on/off) button using a needle for 6s until the LED flashes quickly.

Reset for AP Configuration

  • Only when the LED flashes quickly, press and hold the reset (on/off) button using a needle for another 6s until the LED flashes quickly and off alternatively.

Prepare App

  • Download "BroadLink" App from the App Store or Google Play by searching or scanning the QR code.
    www.apple.com
    play.google.com
  • Open the App, sign up an account and follow the wizard to set up your home for first use.


NOTE:

  • Make sure your phone is connected to 2.4GHz Wi-Fi network before adding device (5GHz is not supported).
  • The Wi-Fi password should contain no more than 32 characters and no special characters which are not available on standard keyboard layout.


For more promotions and supports
web: www.ibroadlink.com
e-mail: support@ibroadlink.com

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Broadlink RM Pro+ - Universal Remote Manual
