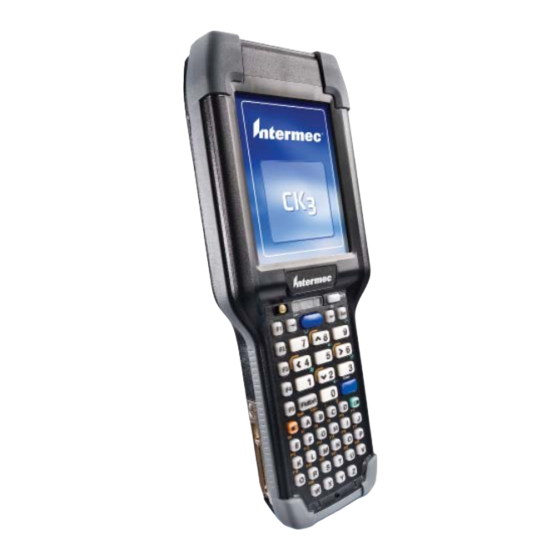

- Page 1 CK 3R | CK 3X Mobile Computer CK3X-NI MODEL NO: 1007CP01 / 1007CP02 User’s Manual...
- Page 2 Intermec Technologies Corporation. Information and specifications contained in this document are subject to change without prior notice and do not represent a commitment on the part of Intermec Technologies Corporation. © 2012 by Intermec Technologies Corporation. All rights reserved.
-
Page 3: Before You Begin
Global Services and Support Warranty Information To understand the warranty for your Intermec product, visit the Intermec web site at www.intermec.com and click Support > Returns and Repairs > Warranty. -
Page 4: Related Documents
Visit the Intermec web site at www.intermec.com to download our current manuals (in PDF). Visit the Intermec technical knowledge base (Knowledge Central) at www.intermec.com and click Support > Knowledge Central to review technical information or to request technical support for your Intermec product. - Page 5 To download documents 1 Visit the Intermec web site at www.intermec.com. 2 Click the Products tab. 3 Using the Products menu, navigate to your product page. For example, to find the CK3 computer product page, click Computers > Handheld Computers > CK3.
-
Page 6: Patent Information
Patent Information Product is covered by one or more of the following patents: 4953113; 4961043; 4970379; 4988852; 5019699; 5021642; 5038024; 5081343; 5095197; 5144119; 5144121; 5182441; 5187355; 5187356; 5195183; 5216233; 5216550; 5218191; 5227614; 5233172; 5241488; 5243602; 5258606; 5278487; 5288985; 5308966; 5322991; 5331136; 5331580;... - Page 7 Using the Computer This chapter introduces the CK3 Mobile Computer with ® Windows Mobile Embedded Handheld 6.5.
- Page 8 Chapter 1 — Using the Computer Introducing the CK3 Mobile Computer The Intermec CK3 Mobile Computer is an ergonomically designed ® ® mobile computer built on the Microsoft Windows Embedded Handlheld 6.5 operating system. The CK3 is lightweight, easy-to-use, and runs most software developed for the Windows Mobile platform, including standalone, client-server, and browser-based applications.
-
Page 9: Using The Battery
802.11 WLAN equipment to operate in markets not served by the current standard. For 802.11d support, you need to order the 802.11d version of the CK3. For help, contact your local Intermec representative. •... -
Page 10: Charging The Battery
Chapter 1 — Using the Computer For replacement batteries, contact your Intermec representative. Charging the Battery Make sure you fully charge the AB17, AB18, 1001AB01, or 1001AB02 battery before you use your CK3. You can charge the battery before or after you install it in the CK3. -
Page 11: Checking The Battery Status
Chapter 1 — Using the Computer Checking the Battery Status The easiest way to check the status of your battery is to look at the battery icon on the status bar of your CK3. Battery Icon Status Icon Status Battery is fully charged. Battery has a medium charge. -
Page 12: Using The Keypad
Using the Keypad Use the following sections to understand how to use the keypad. For information on remapping the keypad, you can download the Device IDL Resource Kit from the Intermec web site at www.intermec.com/ idl. The CK3 comes with an alphanumeric keypad or a numeric keypad. -
Page 13: Using The Power Button
Chapter 1 — Using the Computer Using the Power Button When you press the Power button ( ), you put the CK3 into suspend mode. In this lower power mode, the CK3 continues to supply power to all memory, but turns off power to most hardware such as the display. -
Page 14: Understanding The Screen Icons
Chapter 1 — Using the Computer To turn the screen backlight on and off For the alphanumeric keypad, press • • For the numeric keypad, press Understanding the Screen Icons Use the screen icons on the navigation bar and the command bar to see the network connection status and other system information. -
Page 15: Understanding The Status Leds
Understanding the Status LEDs The CK3 has three status LEDs. Battery status LED Notification LED Good Read LED and Intermec Ready-to-Work indicator Location of the Status LEDs The next table describes the Notification LED, Good Read LED, and Intermec Ready-to-Work™ indicator. . -
Page 16: Using A Microsd Card
Chapter 1 — Using the Computer Using a microSD Card You can use a micro Secure Digital (SD) card to increase file storage and install software. Your CK3 supports microSD cards that hold up to 2 GB of information. The microSD card slot is located in the battery compartment. - Page 17 Chapter 1 — Using the Computer 3 Slide the microSD card cover toward the OPEN position and lift the cover. 4 Insert the microSD card. 5 Close the microSD card cover, and slide the cover toward the LOCK position. 6 Replace the cover. CK3R and CK3X Mobile Computer User’s Manual...
- Page 18 Chapter 1 — Using the Computer 7 Use the stylus to press the reset button in the battery compartment of the CK3. Do not use force or a sharp object when pressing the reset button. You may damage the reset button. Reset bu 8 Install the battery.
- Page 19 Specifications...
-
Page 20: Physical And Environmental Specifications
Keypad Options Alphanumeric and function keypad • • Numeric and function keypad Accessories You can use these accessories (sold and ordered separately) with the CK3. To order accessories, contact your local Intermec sales representative. CK3R and CK3X Mobile Computer User’s Manual... - Page 21 Appendix A — Specifications Battery (AB17, AB18, 1001AB01, 1001AB02) The AB17 standard battery and AB18 extended battery provide main power to the CK3. You can also use 1001AB01 and 1001AB02 to power the CK3. Quad Charger (AC20) The AC20 quad charger charges up to four AB17 or AB18 batteries at one time.
- Page 22 Appendix A — Specifications Vehicle Holder Use the vehicle holder to store your CK3 when you are not using it. Holster The holster provides you with a convenient way to carry your CK3 when you are not using it. CK3R and CK3X Mobile Computer User’s Manual...
- Page 24 Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com © 2012 Intermec Technologies Corporation. All rights reserved. CK3R and CK3X Mobile Computer User’s Manual *935-075-001* P/N 935-075-001...
