INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
FOR COMMERCIAL ELECTRIC SAUNA STOVES
12810, 12812, 12815, 12820, 12825, 12830 AND 12840
MANUFACTURER:
MISA OY
Punaportinkatu 15
54710 LEMI
FINLAND
28.9.2023
ver. 8.2
tel.
+358 20 710 9390
misa@misa.fi
www.misa.fi
VAT
FI0162038
Krnro 188.087
Alv rek.
Advertisement
Table of Contents
Related Manuals for MISA 12810
Summary of Contents for MISA 12810

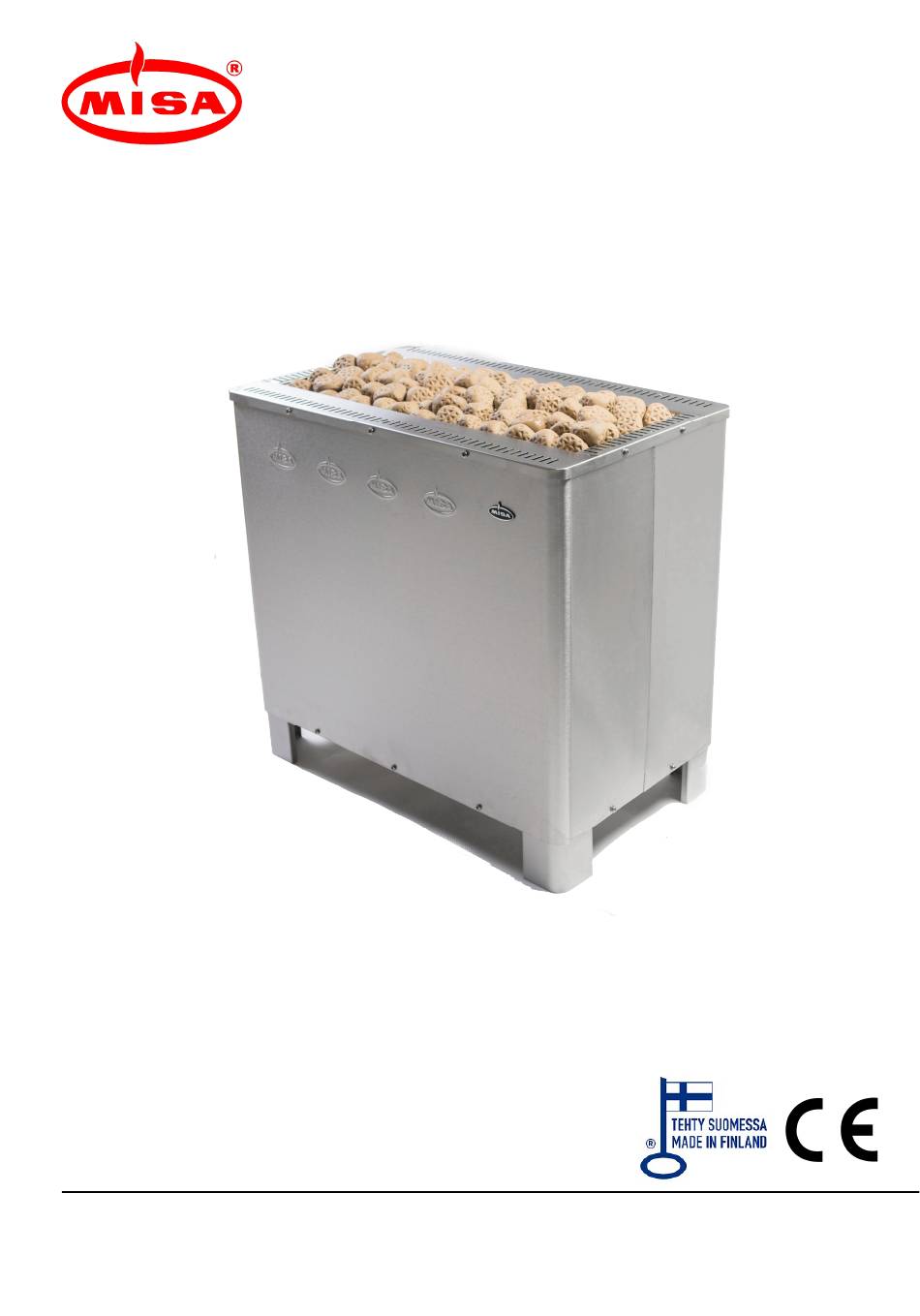

- Page 1 28.9.2023 ver. 8.2 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS FOR COMMERCIAL ELECTRIC SAUNA STOVES 12810, 12812, 12815, 12820, 12825, 12830 AND 12840 MANUFACTURER: MISA OY tel. Punaportinkatu 15 +358 20 710 9390 FI0162038 54710 LEMI misa@misa.fi Krnro 188.087 FINLAND www.misa.fi Alv rek.
-
Page 2: Table Of Contents
SPARE PARTS ..............................10 WIRING DIAGRAMS ………………………………………………………………………………………………………………………………… 11-18 TECHNICAL SPECIFICATIONS Misa commercial electric sauna stoves are cost-effective and durable. For more efficient utilisation of the commercial electric sauna stove, please read these instructions with care and comply with them. Stove Power... -
Page 3: Safety Distances
SAFETY DISTANCES - to combustible material 15 cm (non-combustible material 5 cm) behind the stove - to combustible material on either side 15 cm (non-combustible material 5 cm) - to combustible material in the front 15 cm (non-combustible material 5 cm) - From the top edge of the stove to the ceiling 130 cm The vertical safety distance between a guard made of combustible material and the surface of the stove must be at least 30 cm. -
Page 4: Connection To Power Supply
Follow the manual of the control centre when using the sauna stove. SEMI-ANNUAL MAINTENANCE Misa commercial electric sauna stoves must undergo semi-annual maintenance once in 6 months in accordance with the instructions. If the annual maintenance is neglected, the sauna stove’s warranty expires. -
Page 5: Warranty
- only fresh water may be thrown on the stones - the stove or its surroundings may not be washed with pressure washer - the Misa ERM control centre must be used to control the stove The seller/manufacturer is not liable for damages caused by improper installation at the site or by failure to follow the installation instructions. -
Page 6: Instructions For First Installation/Semi-Annual Maintenance
INSTRUCTIONS FOR FIRST INSTALLATION/SEMI-ANNUAL MAINTENANCE - Make sure the power supply to the sauna stove has been disconnected from the junction box! - If necessary, remove the stones from the stove’s stone compartment. - Lift the empty stove up so that the cable connector box is facing up. - (In case of semi-annual maintenance, remove the Kerkes stove stones from the stove.) - Open the sauna stove’s base plate (Photo 1) - Brush CU-800 copper paste on the threads and mounting nuts, washers and wiring... - Page 7 KERKES SAUNA STOVE STONE INSTALLATION INSTRUCTIONS FOR MISA COMMERCIAL ELECTRIC SAUNA STOVES Load Kerkes round stones into the stone troughs of an empty sauna stove up to the central ridge height (Photo 3) Mix large and small Kerkes “tetra” stones and place them on top of the...
-
Page 8: Semi-Annual Maintenance Memo
MAINTENANCE RECORD SAUNA STOVE SERIAL NUMBER: COMMISSIONING DATE: First installation maintenance / Semi-annual maintenance, ½ year commissioning Copper paste application Copper paste application Coupling nut tensioning Coupling nut tensioning muut huoltotyöt:_____________ muut huoltotyöt:_____________ __________________________ __________________________ day: mechanic: day: mechanic : Semi-annual maintenance, 1 year Semi-annual maintenance, 1½... - Page 9 __________________________ day: mechanic: day: mechanic: SELLER: Cihaus Oy, Pintiläntie 44, 53400 Lappeenranta, Finland p. +358 50 555 1822 info@cihaus.fi www.cihaus.fi MANUFACTURER: MISA OY Tel. Punaportinkatu 15 +358 20 710 9390 FI01620383 54710 LEMI misa@misa.fi Krnro 188.087 FINLAND www.misa.fi Alv rek.
-
Page 10: Spare Parts
SPARE PARTS MISA ERM: Code Part VAS1723 Heating element 1,700W/230V for ERM sauna stove CULIUSKA Copper strip for ERM sauna stove Temperature sensor with resettable overheating protection for T1 Logi control centre, without cable Temperature sensor with fusible overheating protection... -
Page 11: Wiring Diagrams
TUOTE NO.12810 10,2kW ERM SÄHKÖKIUAS 1 SYÖTTÖ KIUKAALLE 400V 3N~ I RYHMÄ 10,2kW MISA OY Puh. (Tel) Telefax Y-tunnus Punaportinkatu 15 020-710 9390 020-710 9399 0162038-3 54710 LEMI Int. +358-20-710 9390 Kotipaikka: Lemi Krnro 188.087 FINLAND Homepage: www.misa.fi E-mail: misa@misa.fi... - Page 12 TUOTE NO.12812 11,9kW ERM SÄHKÖKIUAS L1 L2 1 SYÖTTÖ KIUKAALLE 400V 3N~ I RYHMÄ 5,1kW II RYHMÄ 6,8kW MISA OY Puh. (Tel) Telefax Y-tunnus Punaportinkatu 15 020-710 9390 020-710 9399 0162038-3 54710 LEMI Int. +358-20-710 9390 Kotipaikka: Lemi Krnro 188.087 FINLAND Homepage: www.misa.fi...
- Page 13 TUOTE NO.12815 15.3kW ERM SÄHKÖKIUAS L1 L2 1 SYÖTTÖ KIUKAALLE 400V 3N~ I RYHMÄ 5,1kW II RYHMÄ 10,2kW MISA OY Puh. (Tel) Telefax Y-tunnus Punaportinkatu 15 020-710 9390 020-710 9399 0162038-3 54710 LEMI Int. +358-20-710 9390 Kotipaikka: Lemi Krnro 188.087 FINLAND Homepage: www.misa.fi...
- Page 14 TUOTE NO.12820 20,4kW ERM SÄHKÖKIUAS L1 L2 1 SYÖTTÖ KIUKAALLE 400V 3N~ I RYHMÄ 10,2kW II RYHMÄ 10,2kW MISA OY Puh. (Tel) Telefax Y-tunnus Punaportinkatu 15 020-710 9390 020-710 9399 0162038-3 54710 LEMI Int. +358-20-710 9390 Kotipaikka: Lemi Krnro 188.087 FINLAND Homepage: www.misa.fi...
- Page 15 TUOTE NO.12825 25.5kW ERM SÄHKÖKIUAS 14 15 L1 L2 1 SYÖTTÖ KIUKAALLE 400V 3N~ I RYHMÄ 10,2kW II RYHMÄ 15,3kW Piirtänyt MM 3.1.06 MISA OY Puh. (Tel) Telefax Y-tunnus Punaportinkatu 15 020-710 9390 020-710 9399 0162038-3 54710 LEMI Int. +358-20-710 9390 Kotipaikka: Lemi Krnro 188.087...
- Page 16 1 2 3 4 5 6 7 11 12 17 18 L1 L2 L3 1 SYÖTTÖ KIUKAALLE 400V 3N~ 2 SYÖTTÖ KIUKAALLE 400V 3N~ I RYHMÄ 15,3kW II RYHMÄ 15,3kW MISA OY Puh. (Tel) Telefax Y-tunnus Punaportinkatu 15 020-710 9390 020-710 9399 0162038-3 54710 LEMI Int.
- Page 17 23 24 1 SYÖTTÖ KIUKAALLE 400V 3N~ I RYHMÄ 20,4kW SYÖTTÖKAAPELI 5x10mm²S II RYHMÄ 20,4kW SYÖTTÖKAAPELI 5x10mm²S RIVILIITIN KEVI 10mm² RIVILIITTIMET "L1 L2 L3 N" x2KPL 10mm² DIN KISKO MISA OY Puh. (Tel) Telefax Y-tunnus Punaportinkatu 15 020-710 9390 020-710 9399...
- Page 18 13 14 15 16 17 18 19 23 24 L1 L2 L3 L1 L2 1 SYÖTTÖ KIUKAALLE 400V 3N~ I RYHMÄ 10,2kW II RYHMÄ 10,2kW III RYHMÄ 10,2kW IV RYHMÄ 10,2kW MISA OY Puh. (Tel) Telefax Y-tunnus Punaportinkatu 15 020-710 9390 020-710 9399 0162038-3 54710 LEMI Int.
