MISA SUNNY Instructions For Installation And Use Manual

Table 1
Stove Power
Voltage
no. kW
12545D 4,5 400V 3N~
12560D 6,0 400V 3N~
12575D 8,0 400V 3N~

INSTALLATION

Location of stove in the sauna room

Only one sauna stove must be used in one sauna room. Do not line the walls around the stove
with for instance mineral or other board, since this type of covering may raise the wall
temperature excessively. Do not build an enclosed casing around the stove.
When placing the stove in the sauna room, pay attention to protective distances to flammable
surfaces. These minimum distances have been given in the Table 2 below, and in the Figure 1,
as well as in the type plate of the stove. The stove can be installed to a niche of the wall which
height is min. 1900 mm (Figure 2). The distances are the same for all stoves referred to in this
instruction. If a guard rail is built around the stove the minimum protective distances must be
followed.
Table 2
Minimum protective distances:
To sides 9 cm
To floor 13 cm
Figure 1
Distance min.
min.
Instructions for installation and use

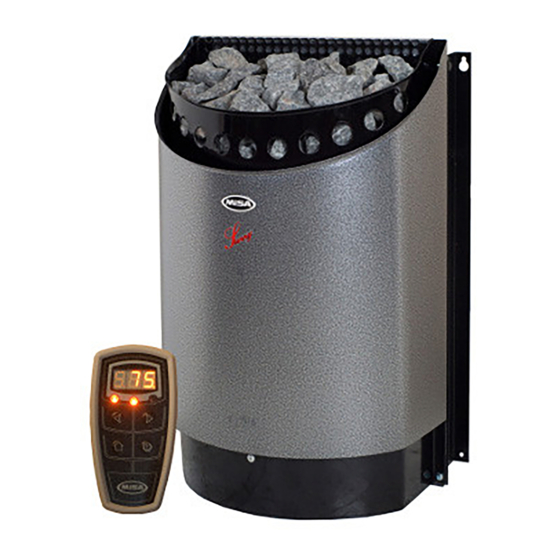

SUNNY – electric sauna stove
Product numbers:
12545DAH, 12560DAH, 12575DAH
12545DAK, 12560DAK, 12575DAK
12545DR, 12560DR, 12575DR
Letters in the end of the product number tell the colour of the
product:
DAH=antique silver DAK=antique copper DR=stainless steel
E.g. the product no. of 8 kW antique silver Sunny is 12575DAH
Sauna Room
dimensions
min.-max height
m³ min. cm
3 - 6 190
5 - 8 190
6 - 11 190
At front 9 cm
To ceiling 110 cm
Stove dimensions
Width Depth Height
cm cm cm
44 32 67
44 32 67
44 32 67
Stones
kg
Weight
kg
15 15
15 18
15 20
Figure 2
Distance
min.
min.
