EndRun PDC3301 User Manual

Pulse distribution chassis
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
"Smarter Timing Solutions"
PDC3301
Pulse Distribution Chassis
User Manual
USM3301-0000-000 Revision 11
January 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDC3301 and is the answer not in the manual?

Questions and answers

Related Manuals for EndRun PDC3301

Summary of Contents for EndRun PDC3301

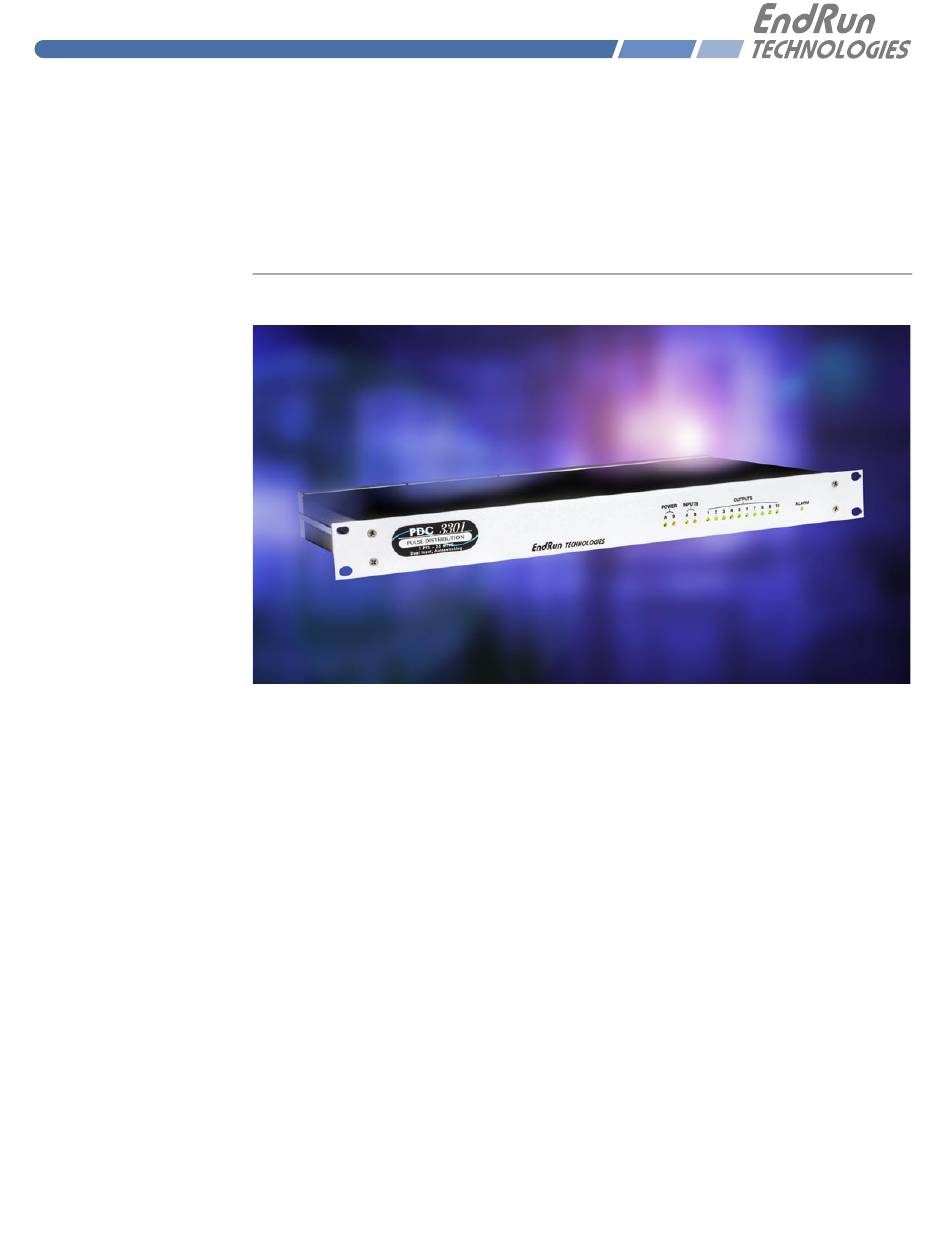

  • Page 1 "Smarter Timing Solutions" PDC3301 Pulse Distribution Chassis User Manual USM3301-0000-000 Revision 11 January 2018...

  • Page 3: Preface

    EndRun Technologies is dedicated to the development and refinement of the technologies required to fulfill the demanding needs of the time and frequency community. The instruments produced by EndRun Technologies have been selected as the timing reference for a variety of industries and applications - computer networks, satellite earth stations, power utilities, test ranges, broadcast and telecommunications systems and more.

  • Page 4: About This Manual

    U.S.A. then Buyer shall pay all duties and taxes, if any. Products not manufactured by EndRun Technologies but included as an integral part of a system (e.g. peripherals, options) are warranted for ninety days, or longer as provided by the original equipment manufacturer, from date of shipment.

  • Page 5: Warranty Repair

    If the warranty period has expired, we offer repair services for equipment you have purchased from EndRun. Call and ask for a customer service agent. It is important to contact us first as many prob- lems may be resolved with a phone call. Please have the serial number of the unit and the nature of the problem available before you call.
  • Page 6 P D C 3 3 0 1 U s e r M a n u a l...

  • Page 7: Table Of Contents

    ..........6 PDC3301 Physical Description .
  • Page 8 ......... 8 Connect Disable Inputs (External Alarm Inputs) .
  • Page 9 Appendix B - Upgrading the Firmware ........19 .
  • Page 10 P D C 3 3 0 1 U s e r M a n u a l...

  • Page 11: Chapter One - Introduction

    Configuration Protocol (DHCP). Manual network configuration is via the RS-232 serial I/O port. Free FLASH Upgrades Firmware is stored in non-volatile FLASH memory, so the PDC3301 can be easily upgraded in the field using the local RS-232 port. We make all firmware upgrades for our products available to our customers free of charge.

  • Page 12: Theory Of Operation

    AC or DC input voltages. (Installation of a second power supply is an option for the PDC3301.) The presence of proper voltage at the output of each of the two inter- nal DC-DC converters is detected and monitored by the alarm logic and CPU. The outputs of these two power supplies are diode “OR’d”...
  • Page 13 P D C 3 3 0 1 U s e r M a n u a l...
  • Page 14 C H A P T E R O N E P D C 3 3 0 1 U s e r M a n u a l...

  • Page 15: Chapter Two - Basic Installation

    This chapter will guide you through the most basic checkout and physical installation of your PDC3301 Pulse Distribution Chassis. Subsequent chapters and appendices will give you the information needed to configure your installation for the maximum performance in your operating environment.

  • Page 16: Pdc3301 Physical Description

    �� RS-232 Connector This DB-9M connector provides the RS-232 serial I/O interface to the PDC3301. This allows the user to initialize, monitor and control the PDC3301. See Chapter 3 - RS-232 Serial I/O Port Signal Definitions for detailed information. 10/100Base-T Jack This optional RJ-45 connector mates with the ethernet twisted pair cable from the network.

  • Page 17: Installing The Pdc3301

    Power cord is used as a disconnection device. To de-energize equipment, disconnect the power cord. If your PDC3301 has dual power supplies, then multiple power cords may be installed. To de-energize this equipment, disconnect all power cords from the device.

  • Page 18: Connect Serial I/O To Host Computer

    If the source(s) of your reference signal(s) has (have) compatible TTL alarm output(s) that you would like to use to force signal input switching on your PDC3301, connect these using coaxial cables to the A and/or B disable input(s) on the PDC3301. The factory default for the PDC3301 disablemode setting is to ignore these inputs.

  • Page 19: Chapter Three - Control And Status Commands

    Chapter Control and Status Commands This chapter describes the PDC3301 control and status commands. The PDC3301 supports com- mands for performing initialization/setup and for monitoring the performance and status of the unit. The serial I/O port physical and electrical characteristics are defined as well.

  • Page 20: Detailed Command Descriptions

    Prints the software and FPGA version information. All entered commands are assumed to be terminated with a carriage return. Line feeds are ignored. All responses from the PDC3301 are terminated with a carriage return and a line feed. Detailed Command...

  • Page 21: Disablemode

    C O N T R O L A N D S T A T U S C O M M A N D S disablemode This command allows you to select external alarm inputs from the reference source (if any) as speci- fied in Appendix D.

  • Page 22: Disablestat

    C H A P T E R T H R E E Query: disablemode Chassis response: y,n,on Factory default setting: disablestat This query-only command shows the status (signal levels) of the Disable A and Disable B inputs. The first character is for Disable A and the second character is for Disable B. A ‘0’ means the disable input is low, and a ‘1’...

  • Page 23: Pwrstat

    C O N T R O L A N D S T A T U S C O M M A N D S Query: port Chassis response: 57600,8,n,1 Factory default setting: 19200,8,n,1 pwrstat This query-only command shows the status of the power supplies and power inputs. The distribution chassis is capable of having two power supplies (for redundancy) but the standard unit has only one.

  • Page 24: Return

    C H A P T E R T H R E E Set: respmode=verbose Chassis response: (The chassis will respond to all future commands and queries by including the command name.) Query: respmode Chassis response: terse Query: respmode Chassis response: respmode=verbose Factory default setting: terse...

  • Page 25: Siginstat

    C O N T R O L A N D S T A T U S C O M M A N D S siginstat This query-only command shows the current status of both signal inputs A and B. The first character is for Signal Input A and the second character is for Signal Input B.

  • Page 26: Upload

    In order to connect the distribution chassis to another computer, a null-modem adapter must be used. The serial cable provided with the shipment is wired as a null-modem adapter and can be used to con- nect the distribution chassis to your computer. PDC3301 DB9M Pin Signal Name Not Connected...

  • Page 27: Appendix A - Led Indicators

    "Smarter Timing Solutions" Appendix LED Indicators This chapter describes the distribution chassis LED indicators and what they mean. Power LEDs COLOR MEANING Green Power supply is good. One of the power supplies has failed. This condition will only exist in a unit with redundant power supplies. The redundant power supply is not installed.

  • Page 28: Output Leds

    A P P E N D I X A Output LEDs COLOR MEANING Green The output is present. The output is absent, shorted, or the output driver has failed. Alarm LED COLOR MEANING Green No alarm condition exists. An alarm condition exists. See commands alarmlist for more information.

  • Page 29: Appendix B - Upgrading The Firmware

    All such downloads are freely available to our customers, without charge. After you have downloaded the appropriate FLASH binary image file from the EndRun Tech- nologies website, you are ready to perform the upgrade to your distribution chassis.

  • Page 30: Problems With The Upgrade

    A P P E N D I X B After establishing communications with the distribution chassis using the desired port settings, issue the following command to initiate the upload: upload<CR><LF> After issuing this command, you will see the distribution chassis respond with this message: Waiting for download using XMODEM 128 or XMODEM 1K (both with CRC).

  • Page 31: Appendix C - Network Port Option

    Overview By default your PDC3301 will accept connections on the standard telnet port 23. After entering the password, use the command to get started. To get help on a particular command, type help fol- help lowed by the command.

  • Page 32: Available User Commands

    Default read-write community string is endrun_1. All entered commands are assumed to be terminated with a carriage return. Line feeds are ignored. All responses from the PDC3301 are terminated with a carriage return and a line feed. Detailed Command Descriptions netconfig This command queries or sets the IP network addressing parameters that are stored in FLASH.

  • Page 33: Netmac

    N E T W O R K P O R T O P T I O N Set: netconfig = OFF,192.168.1.135,255.255.255.0,192.168.1.1,192.168.1.1,- Chassis response: Reset network port (“netreset”) for these settings to take effect. Query: netconfig Chassis response: netconfig = OFF,192.168.1.135,255.255.255.0,192.168.1.1,192.168.1.1,0.0.0.0 Factory default setting: netconfig = ON NOTE...

  • Page 34: Netreset

    All such downloads are freely available to our customers, without charge. After you have downloaded the appropriate FLASH binary image file from the EndRun Technologies website, you are ready to perform the upgrade to your distribution chassis.

  • Page 35: What You Need To Perform The Upgrade

    What You Need To Perform the Upgrade You will need a terminal program which can connect to your PDC3301 via Telnet and supports file uploading using protocols XMODEM 128 with CRC or XMODEM 1K with CRC. These are very common file transfer protocols and should be supported by virtually any terminal program.

  • Page 36: Problems With The Upgrade

    A P P E N D I X C Problems with the Upgrade In general, if you fail to upgrade the firmware successfully, you will need to use the RS-232 port to recover. Should you have difficulties with the upload due to a corrupt file, power failure during upload, or other accident, do not be alarmed.

  • Page 37: Appendix D - Specifications

    "Smarter Timing Solutions" Appendix D Specifications Reference Inputs (A or B): Repetition Rate: 1 PPS to 25 MPPS. Time Code Formats: IRIG-B000, IRIG-B002, IRIG-B003. Impedance: 50Ω. Duty Cycle: 0-50%. Maximum is 50% high. Logic One: >2.4V, < 10V. Logic Zero: <0.8V, >-10V. Rise Time: <100 nanoseconds.
  • Page 38 A P P E N D I X D Maintenance Port: See RS-232 Serial I/O Port Signal Definitions in Chapter 3 for more information. RS-232 serial I/O on rear panel DB9M jack for secure, local terminal access. User-Selectable Parameters: 9600 to 57600 baud, 7 or 8 data bits, odd, even or no parity, 1 or 2 stop bits...
  • Page 39 � � � � � �� �� � �� ���� � � ������� � ��� � � ������������� ���� �� EndRun EndRun EndRun EndRun �� ���������� ���������������� PD C3301 D IM EN SIO NS - AC P OWER P D C 3 3 0 1 U s e r M a n u a l...
  • Page 40 A P P E N D I X D ����������� �� ���������� ���������� �� ������� ����� �� ��� �� ������ �������������� ���� � ������ ������������ ���� �������������� ������� � ���� ���������� �������� ����� ����� ���������� ������ ������ ��������� ���� ��� ������� �������...
  • Page 41 Special Modifications Changes for Customer Requirements From time to time EndRun Technologies will customize the standard PDC3301 Pulse Distribution Chassis for special customer requirements. If your unit has been modified then this section will de- scribe what those changes are.
  • Page 42 S P E C I A L M O D I F I C A T I O N S P D C 3 3 0 1 U s e r M a n u a l...
  • Page 44 2270 Northpoint Parkway Santa Rosa, CA 95407 TEL 1-877-749-3878 FAX 707-573-8619 "Smarter Timing Solutions" www.endruntechnologies.com...
