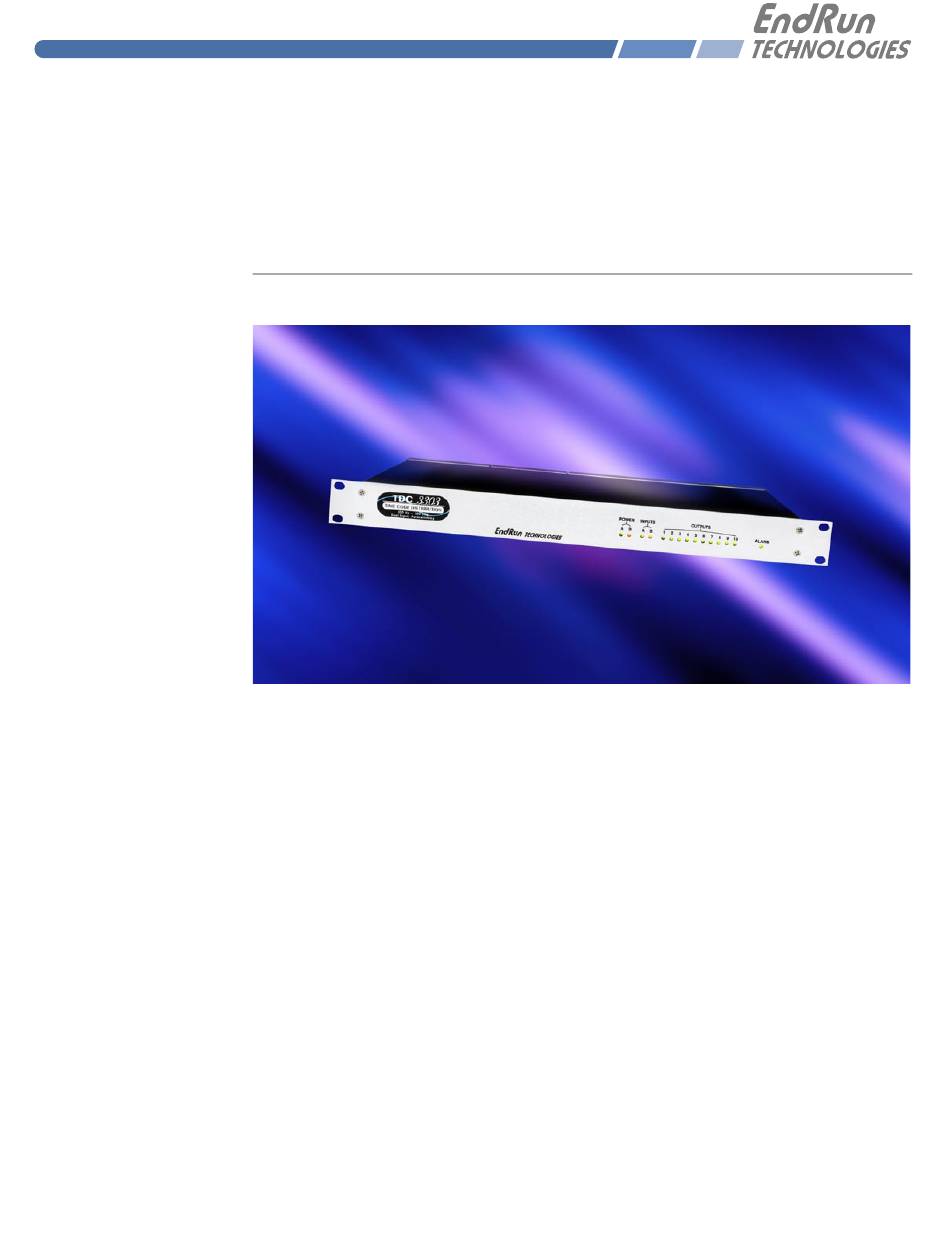

  • Page 1 "Smarter Timing Solutions" TDC3303 Time Code Distribution Chassis User Manual USM3303-0000-000 Revision 10 January 2018...
  • Page 3: Preface

    EndRun Technologies is dedicated to the development and refinement of the technologies required to fulfill the demanding needs of the time and frequency community. The instruments produced by EndRun Technologies have been selected as the timing reference for a variety of industries and applications - computer networks, satellite earth stations, power utilities, test ranges, broadcast and telecommunications systems and more.
  • Page 4: About This Manual

    U.S.A. then Buyer shall pay all duties and taxes, if any. Products not manufactured by EndRun Technologies but included as an integral part of a system (e.g. peripherals, options) are warranted for ninety days, or longer as provided by the original equipment manufacturer, from date of shipment.
  • Page 5: Warranty Repair

    If the warranty period has expired, we offer repair services for equipment you have purchased from EndRun. Call and ask for a customer service agent. It is important to contact us first as many prob- lems may be resolved with a phone call. Please have the serial number of the unit and the nature of the problem available before you call.
  • Page 6 T D C 3 3 0 3 U s e r M a n u a l...
  • Page 7: Table Of Contents

    ..........6 TDC3303 Physical Description .
  • Page 8 Chapter Three - Control and Status Commands ......9 ........... . 9 Available User Commands .
  • Page 9 Appendix C - Network Port Option ........21 .
  • Page 10 T D C 3 3 0 3 U s e r M a n u a l...
  • Page 11: Chapter One - Introduction

    Main Features Overview The TDC3303 may be employed either as a simple, single-input, ten-output signal distributor for non- critical applications, or, by making use of its intelligent dual-input failover switching and redundant power supply capabilities, high-availability signal distribution systems for top tier commercial and military applications may be efficiently implemented.
  • Page 12: Free Flash Upgrades

    AC or DC input voltages. (Installation of a second power supply is an option for the TDC3303.) The presence of proper voltage at the output of each of the two inter- nal DC-DC converters is detected and monitored by the alarm logic and CPU. The outputs of these two power supplies are diode “OR’d”...
  • Page 13 T D C 3 3 0 3 U s e r M a n u a l...
  • Page 14 C H A P T E R O N E T D C 3 3 0 3 U s e r M a n u a l...
  • Page 15: Chapter Two - Basic Installation

    This chapter will guide you through the most basic checkout and physical installation of your TDC3303 Time Code Distribution Chassis. Subsequent chapters and appendices will give you the information needed to configure your installation for the maximum performance in your operating environment.
  • Page 16: Tdc3303 Physical Description

    �� RS-232 Connector This DB-9M connector provides the RS-232 serial I/O interface to the TDC3303. This allows the user to initialize, monitor and control the TDC3303. See Chapter 3 - RS-232 Serial I/O Port Signal Definitions for detailed information. 10/100Base-T Jack This optional RJ-45 connector mates with the ethernet twisted pair cable from the network.
  • Page 17: Installing The Tdc3303

    Power cord is used as a disconnection device. To de-energize equipment, disconnect the power cord. If your TDC3303 has dual power supplies, then multiple power cords may be installed. To de-energize this equipment, disconnect all power cords from the device.
  • Page 18: Connect Serial I/O To Host Computer

    If the source(s) of your time code signal(s) has(have) compatible TTL alarm output(s) that you would like to use to force signal input switching on your TDC3303, connect these using coaxial cable(s) to the Disable A and/or Disable B input(s) on the TDC3303. The factory default for the TDC3303 dis- setting is to ignore these inputs.
  • Page 19: Chapter Three - Control And Status Commands

    Chapter Control and Status Commands This chapter describes the TDC3303 control and status commands. The TDC3303 supports com- mands for performing initialization/setup and for monitoring the performance and status of the unit. The serial I/O port physical and electrical characteristics are defined as well.
  • Page 20: Detailed Command Descriptions

    C H A P T E R T H R E E All entered commands are assumed to be terminated with a carriage return. Line feeds are ignored. All responses from the PDC3301 are terminated with a carriage return and a line feed. Detailed Command Descriptions alarmlist...
  • Page 21: Disablemode

    C O N T R O L A N D S T A T U S C O M M A N D S disablemode This command allows you to select external alarm inputs from the reference source (if any) as speci- fied in Appendix D.
  • Page 22: Disablestat

    C H A P T E R T H R E E Query: disablemode Chassis response: y,n,on Factory default setting: disablestat This query-only command shows the status (signal levels) of the Disable A and Disable B inputs. The first character is for Disable A and the second character is for Disable B. A ‘0’ means the disable input is low, and a ‘1’...
  • Page 23: Reset

    C O N T R O L A N D S T A T U S C O M M A N D S supply). A one ‘1’ means the power supply is good. An ‘x’ means the optional power supply is not installed.
  • Page 24: Selectedin

    C H A P T E R T H R E E Command: return Chassis response: (The chassis will return to the primary input.) selectedin This query-only command shows the currently selected signal input, either A, B or NONE. Query: selectedin Chassis response: (Currently selected input is Signal Input A.)
  • Page 25: Switchmode

    C O N T R O L A N D S T A T U S C O M M A N D S switchmode This command sets the switching mode in case a fault is detected. A fault is either lack of sig- nal presence or a logic high level on Disable A or Disable B, provided these have been config- ured properly (see ).
  • Page 26: Rs-232 Serial I/O Port Signal Definitions

    In order to connect the distribution chassis to another computer, a null-modem adapter must be used. The serial cable provided with the shipment is wired as a null-modem adapter and can be used to con- nect the distribution chassis to your computer. TDC3303 DB9M Pin Signal Name Not Connected...
  • Page 27: Appendix A - Led Indicators

    "Smarter Timing Solutions" Appendix LED Indicators This chapter describes the distribution chassis LED indicators and what they mean. Power LEDs COLOR MEANING Green Power supply is good. One of the power supplies has failed. This condition will only exist in a unit with redundant power supplies. The redundant power supply is not installed.
  • Page 28: Output Leds

    A P P E N D I X A Output LEDs COLOR MEANING Green The output is present. The output is absent, shorted, or the output driver has failed. Alarm LED COLOR MEANING Green No alarm condition exists. An alarm condition exists. See commands alarmlist for more information.
  • Page 29: Appendix B - Upgrading The Firmware

    All such downloads are freely available to our customers, without charge. After you have downloaded the appropriate FLASH binary image file from the EndRun Tech- nologies website, you are ready to perform the upgrade to your distribution chassis.
  • Page 30: Problems With The Upgrade

    A P P E N D I X B After establishing communications with the distribution chassis using the desired port settings, issue the following command to initiate the upload: upload<CR><LF> After issuing this command, you will see the distribution chassis respond with this message: Waiting for download using XMODEM 128 or XMODEM 1K (both with CRC).
  • Page 31: Appendix C - Network Port Option

    Appendix Network Port Option This option allows you to monitor and control your TDC3303 via TCP/IP. Specifically, the telnet, ssh and snmp protocols are supported. The snmp support is MIB II compliant, however no enterprise MIB is implemented. Either telnet or ssh may be used to control and monitor the instrument state, but both protocols cannot be active at the same time.
  • Page 32: Available User Commands

    Default read-write community string is endrun_1. All entered commands are assumed to be terminated with a carriage return. Line feeds are ignored. All responses from the TDC3303 are terminated with a carriage return and a line feed. Detailed Command Descriptions netconfig This command queries or sets the IP network addressing parameters that are stored in FLASH.
  • Page 33: Netmac

    N E T W O R K P O R T O P T I O N Set: netconfig = OFF,192.168.1.135,255.255.255.0,192.168.1.1,192.168.1.1,- Chassis response: Reset network port (“netreset”) for these settings to take effect. Query: netconfig Chassis response: netconfig = OFF,192.168.1.135,255.255.255.0,192.168.1.1,192.168.1.1,0.0.0.0 Factory default setting: netconfig = ON NOTE...
  • Page 34: Netreset

    A P P E N D I X C netreset This command will reset the network port. This is needed after the network parameters are changed. For example, if you change from DHCP on to off then you will need to reset the network port. Command: netreset Chassis response:...
  • Page 35: Upgrading Firmware

    What You Need To Perform the Upgrade You will need a terminal program which can connect to your TDC3303 via Telnet and supports file uploading using protocols XMODEM 128 with CRC or XMODEM 1K with CRC. These are very common file transfer protocols and should be supported by virtually any terminal program.
  • Page 36: Problems With The Upgrade

    A P P E N D I X C After re-connecting via Telnet, issue the command and verify that it is indeed the firmware that you intended to upload to the distribution chassis. If it is, you have successfully upgraded the firm- ware.
  • Page 37: Appendix D - Specifications

    "Smarter Timing Solutions" Appendix D Specifications Reference Inputs (A or B): Carrier Frequency: 100 Hz to 100 kHz. Modulation Ratio: Any. Impedance: 50Ω (or 10kΩ option). Min/Max Signal Levels: .7V peak-to-peak to 6V peak-to-peak. Protection: Protected to 24V peak-to-peak. Connectors: Rear-panel female BNCs labeled “Signal In”. Distribution Outputs (1 through 10): Impedance: 50Ω.
  • Page 38 A P P E N D I X D Network I/O (Option): Rear-panel RJ-45 jack. 10/100Base-T ethernet. Supported IPv4 Network Protocols (Option): TCP/IP Telnet DHCP SNMP v1 and v2 with community strings. Limited implementation - MIB-II only. AC Power: 90-264 VAC, 47-63 Hz, .5 A Max. @ 120 VAC, .25 A Max. @ 240 VAC. 110-370 VDC, 0.5A Max @ 120 VDC.
  • Page 39 � � � � � �� �� � ���� � � � ��������� � ��� � � ������������� ���� �� EndRun EndRun EndRun EndRun �� ���������� ���������������� TD C3 303 DIM EN SION S - AC P OWE R T D C 3 3 0 3 U s e r M a n u a l...
  • Page 40 A P P E N D I X D ����������� �� ���������� ���������� �� ������� ����� �� ��� �� ������ �������������� ���� � ������ ������������ ���� �������������� ������� � ���� ���������� �������� ����� ����� ���������� ������ ������ ��������� ���� ��� ������� �������...
  • Page 41 Special Modifications Changes for Customer Requirements From time to time EndRun Technologies will customize the standard TDC3303 Time Code Distribu- tion Chassis for special customer requirements. If your unit has been modified then this section will describe what those changes are.
  • Page 42 S P E C I A L M O D I F I C A T I O N S T D C 3 3 0 3 U s e r M a n u a l...
  • Page 44 2270 Northpoint Parkway Santa Rosa, CA 95407 TEL 1-877-749-3878 FAX 707-573-8619 "Smarter Timing Solutions" www.endruntechnologies.com...
