Summary of Contents for Asus VP327Q Series

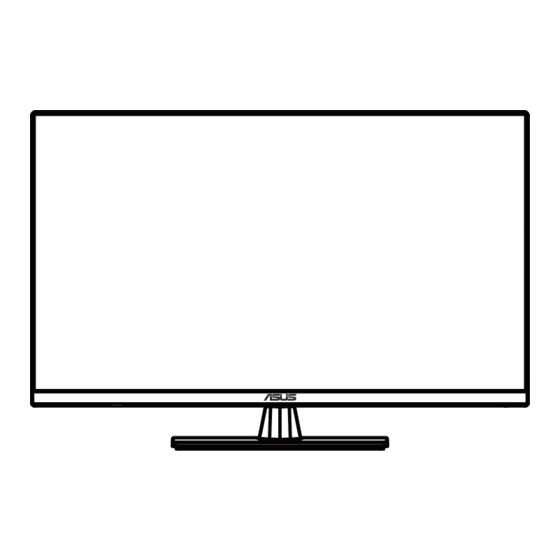

- Page 1 VP327Q Series LCD Monitor User Guide...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
Table of Contents Notices ......................iv Safety Information ..................v Care & Cleaning ..................vi Takeback Services ..................vii Welcome! ..................1-1 Package Contents ................ 1-1 Assembling the Monitor Base ............. 1-2 Connect Cables ................1-3 1.4.1 Rear of the LCD Monitor ..........1-3 Monitor Introduction .............. -
Page 4: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Safety Information
Safety Information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. - Page 6 • A display set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: – ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the display set. –...
-
Page 7: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. •... -
Page 8: Takeback Services
About Flicker https://www.asus.com/Microsite/display/eye_care_technology/ Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. -
Page 9: Welcome
® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Assembling The Monitor Base
Turn the screw clockwise to secure the base. Then adjust the monitor to the angle that is most comfortable for you. • We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. ASUS LCD Monitor VP327Q Series... -
Page 11: Connect Cables
Connect Cables 1.4.1 Rear of the LCD Monitor HDMI-2 HDMI-1 Power AC Input HDMI-1 Port HDMI-2 Port DisplayPort Earphone jack Chapter 1: Product Introduction... -
Page 12: Monitor Introduction
Down key: • Use this hotkey to Energy Saving. • Move the option downwards or decrease the option value. • Key Lock shortcut key. Press and hold it for 5 seconds to enable/disable Keys Lock. ASUS LCD Monitor VP327Q Series... -
Page 13: 2.1 Adjusting The Monitor
2.1 Adjusting the Monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling while changing its angle. -
Page 14: Detaching The Arm/Stand (For Wall Mount)
Figure 1 Figure 2 • The wall mount kit ( 100x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 12 kg (Screw size: M4 x 10 mm). ASUS LCD Monitor VP327Q Series... -
Page 15: Osd (On-Screen Display) Menu
or buttons, according to the indicators on the menu, to make your changes. Select the to return to previous menu or to accept and return to previous menu. ASUS LCD Monitor VP327Q Series... -
Page 16: Osd Function Introduction
This function contains eight sub-functions that you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. ASUS VP327Q HDR OFF Splendid Standard Mode HDMI 3840X2160 @ 60Hz... - Page 17 High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light filter to reduce 70% (max.) h rmful blue light to avoiding CVS (Computer Vision Syndrome) when the user adjusts blue light filter bar to maximum level ASUS LCD Monitor VP327Q Series...
- Page 18 • This function is not available when Reddish or Yellowish is selected in the Skin Tone menu. Color Select the image color you like from this function. ASUS VP327Q HDR OFF Color Standard Mode HDMI 3840X2160 @ 60Hz Brightness Contrast Saturation Color Temp.
- Page 19 • ratio function. Adaptive-Sync : Select ON or OFF to enable or disable the • dynamic refresh rate 60Hz . HDR:High Dynamic Range. Contains two HDR modes (ASUS • Cinema HDR & ASUS Gaming HDR). ASUS LCD Monitor VP327Q Series...
- Page 20 Input Select In this function, you can select your desired input source and toggle the Auto Detection function between on and off. ASUS VP3 27 Q HDR OFF Input Select Standard Mode HDMI 3840X2160 @ 60Hz HDMI 1 HDMI 2...
- Page 21 Power Indicator: Turn the power LED indicator on/off. • Power Key Lock: Disable/Enable the power key. • • Power Saving: Normal Level：Normal power consumption. Deep Level：Reduces power consumption. All Reset: Select YES to revert all settings to the factory default • mode. ASUS LCD Monitor VP327Q Series...
- Page 22 Shortcut Assign the specific function to the two shortcut keys. ASUS VP32 7 Q HDR OFF Shortcut Standard Mode HDMI 3840X2160 @ 60Hz Shortcut 1 Blue Light Filter Shortcut 2 Splendid Brightness Contrast Input Select Color Temp. Volume More (Shortcut 1)
- Page 23 Press the assigned Shortcut Key1 or Shortcut Key2 to activate the GamePlus main menu. GamePlus Main Menu GamePlus — Crosshair GamePlus — Timer GamePlus GamePlus GamePlus Crosshair (Practice Mode) Timer FPS Counter Display Alignment NEXT BACK/EXIT NEXT BACK/EXIT NEXT BACK/EXIT ASUS LCD Monitor VP327Q Series...
- Page 24 3.1.2.2 QuickFit Function The QuickFit function contains three patterns: (1) Grid (2) Paper size (3) Photo size. Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel. Alignment Grid 1 Alignment Grid 2 Paper size: Provides users to view their documents in real size on the screen.
-
Page 25: Specifications
Phys. Dimension without stand (WxHxD) 714.6mm x 423.7mm x 50.7mm (For Wall Mount) Box Dimension (WxHxD) 799mm x 530mm x140mm Net Weight (Esti.) 7.8kg Gross Weight (Esti.) 9.4kg Voltage Rating AC: 100-240V ，50/60Hz Temperature(operation) 0℃~40℃ ASUS LCD Monitor VP327Q Series... -
Page 26: Outline Dimensions
Outline dimensions 3-12 Chapter 3: General instructions... -
Page 27: Troubleshooting (Faq)
• Select the appropriate color temperature (Color Temp.) via OSD. No sound or sound is low(NA) • Adjust the volume settings of your monitor or computer. • Make sure the computer sound card driver is properly installed and activated. 3-13 ASUS LCD Monitor VP327Q Series... -
Page 28: Supported Operating Modes
Supported operating modes PC Supported Primary Timing Resolution HDMI1(2.0) HDMI2(2.0) 640x480 @ 60Hz 800x600 @ 56Hz 800x600 @ 60Hz 1024x768 @ 60Hz 1280x960 @ 60Hz 1280x1024 @ 60Hz 1280x720 @ 60Hz 1280x800 @ 60Hz 1440x900 @ 60Hz 1680x1050 @ 60Hz 1920x1080 @ 60Hz 2560x1440 @ 60Hz 3840x2160 @ 60Hz...
